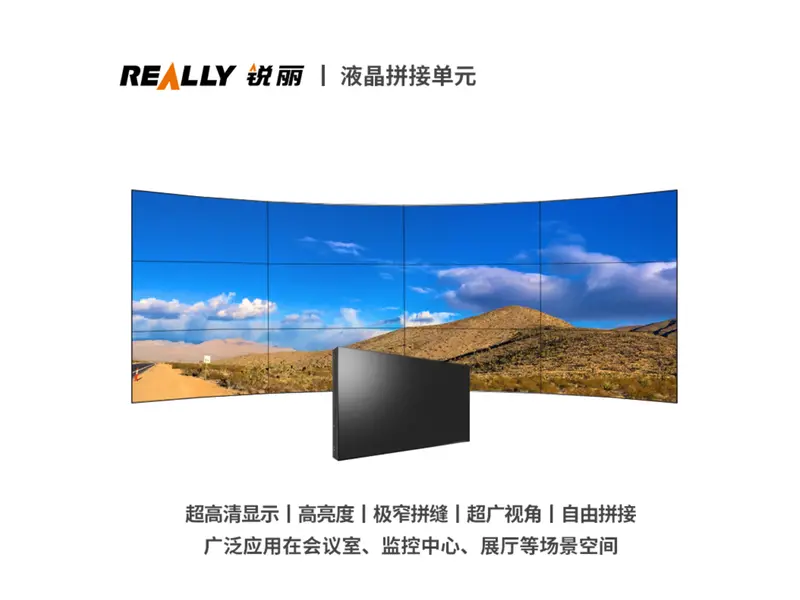

REALLY LCD video wall splicing unit front view

REALLYRLCD Series · Splicing Units

LCD Video Wall Unit · 46–65″ · 4 Models

LCD Video Wall · RLCD 46–65″

The pragmatic video wall: LED-backlit LCD units that splice into any M×N layout, with bezel gaps down to 0.88 mm and panels rated for 60,000 hours. Most monitoring rooms need exactly this — not more.

0.88 mm · minimum splice gap800 cd/m² · top brightness option (55″)178° · viewing angle60,000 h · panel life4K · native on the 65″ unit

CHOOSE YOUR SIZE — FOUR MODELS ON THIS PAGE

Each size ships in several splice-gap and brightness variants (see the table). The 0.88 mm gap exists on 46″ and 55″ only; the 65″ is 3.5 mm but brings native 4K. Selecting a model updates the spec tables and the WhatsApp message.

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

0.88 mmnarrowest splice gap (46″/55″)

178°viewing angle, H and V

60,000hours rated panel life

M×Nfree splicing, landscape or portrait

Four panel sizes cover the RLCD line: 46″, 49″ and 55″ at 1920×1080, and a 65″ unit at native 3840×2160. Each size comes in several brightness and splice-gap variants — from the 0.88 mm gap on 46″/55″ that reads as an almost continuous surface, to economical 3.5 mm builds. Walls assemble in any M×N matrix, landscape or portrait, including mixed-size and shaped layouts; AutoID assigns unit addresses over the loop so commissioning a large wall does not become an afternoon of DIP switches. Inputs are the full legacy-friendly set (DVI/HDMI/VGA/CVBS/RS232, with SDI/DP/USB optional); note the 65″ unit carries its own I/O set as listed. 3D noise reduction cleans interlaced camera feeds, and 178° viewing keeps color stable across a wide operator desk.

Is this the right display for your project?

Plain-language guide — based only on what this product actually does.

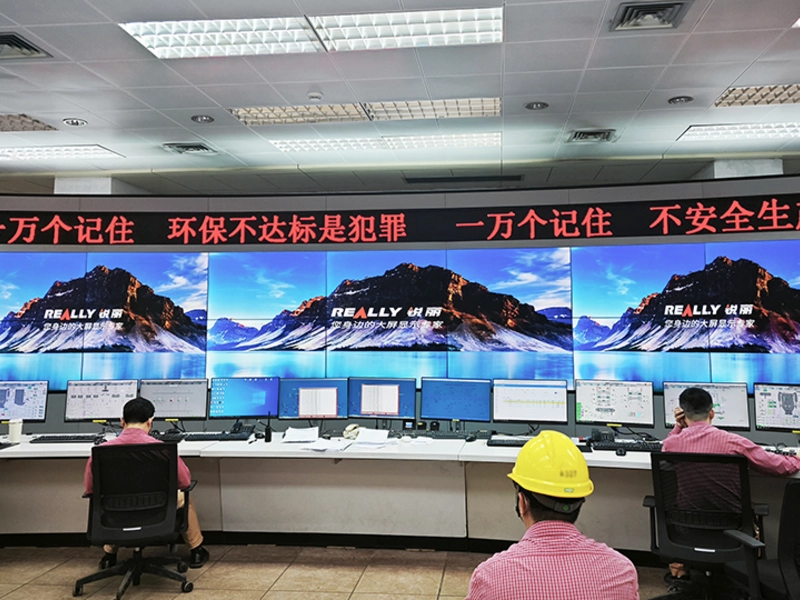

Monitoring & dispatch roomsDozens of camera feeds, 24/7, on a defensible budget. 3D noise reduction and legacy CVBS/DVI inputs handle mixed old-and-new camera estates without extra converters.

Meeting & training roomsA 2×2 of 55″ units gives a 110″-class surface at a fraction of LED cost; add the IR touch option and it doubles as an interactive board.

Retail & exhibition wallsPortrait strips, mixed-size and shaped layouts are supported — content walls behind reception desks and along corridors without custom engineering.

Not the right pick if you need…

A truly seamless image — even 0.88 mm bezels remain visible up close; fine-pitch LED is the zero-bezel option
Outdoor or window-facing daylight positions — these are indoor panels; see the outdoor LED and outdoor signage pages
A single standalone screen with built-in player — the Indoor Digital Signage series is the all-in-one answer

Worried about the source? Order under your own company name.

For corporate buyers: we support submitting the purchase order to the manufacturer under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer.

1 · Company name2 · Corporate bank payment3 · Order registered in your name

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume DiscountBulk quantities of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

The complete series capability list.

Splice gaps from 0.88 mm (46″/55″) — near-continuous image across the wall

Free M×N splicing — landscape, portrait, mixed sizes and shaped walls

AutoID unit addressing via remote or RS232 — fast commissioning of large walls

3D digital noise reduction — cleans analog and interlaced camera sources

Optional 4K point-to-point input, uniform-splicing processing and IR touch

Cold-rolled steel chassis — rigid, heat-dissipating, anti-static and anti-magnetic

LED backlight, low power draw — 145–195 W max on the 46″ unit

Optional wireless casting from phone, tablet or PC to the wall

Full Specifications

Series specifications — technical values in English.

Highlighted column = the model selected above. Values are series data — confirm the final configuration with us before ordering.

Panel & performance

Item	RLCD-460P	RLCD-490P	RLCD-550P	RLCD-650P
Panel size	46″	49″	55″	65″
Aspect ratio	16:9
Resolution	1920×1080	1920×1080	1920×1080	3840×2160
Brightness options	450 / 500 / 700 cd/m²	500 / 700 cd/m²	500 / 700 / 800 cd/m²	500 / 700 cd/m²
Splice gap (bezel-to-bezel) options	0.88 / 1.7 / 3.5 mm	1.7 / 3.5 mm	0.88 / 1.7 / 3.5 mm	3.5 mm
Display area (W×H)	1018.08×572.67 mm	1073.8×604.00 mm	1209.60×680.40 mm	1428.48×803.52 mm
Backlight	LED
Contrast (by variant)	4000:1 / 3500:1 / 3000:1	1400:1 / 1300:1	4000:1 / 3500:1 / 1400:1	4000:1
Viewing angle	178° (H / V)
Colors	16.7M
Refresh rate	60 Hz
Response time	8 ms
Panel life	60,000 h

Ports & operating conditions

Item	RLCD-460P	RLCD-490P	RLCD-550P	RLCD-650P
Signal inputs	DVI / HDMI / VGA / CVBS / RS232, optional SDI / DP / USB	DVI / HDMI / VGA / CVBS / RS232, optional SDI / DP / USB	DVI / HDMI / VGA / CVBS / RS232, optional SDI / DP / USB	DVI / HDMI / DP / VGA / CVBS / USB / RS232
Signal outputs	CVBS / RS232, optional DVI / HDMI	CVBS / RS232, optional DVI / HDMI	CVBS / RS232, optional DVI / HDMI	RS232
Max power consumption	145 / 195 W	165 / 185 W	190 / 280 W	305 / 390 W
Supply voltage	100–240 V AC, 50/60 Hz
Operating temperature	0–50 °C
Operating humidity	10–90%
Housing color	Black
Unit dimensions (W×H, by splice gap)	1018.02×572.61 / 1020.02×574.61 / 1022.20×576.80 mm	1075.58×605.80 / 1077.60×607.80 mm	1210.51×681.22 / 1211.50×682.30 / 1213.50×684.30 mm	1432.58×807.62 mm
Weight	24 ±1 kg	25 ±1 kg	37 ±1 kg	42 ±1 kg

Options — all sizes

Item	RLCD-460P	RLCD-490P	RLCD-550P	RLCD-650P
4K input option	DVI / HDMI / DP / VGA / CVBS / USB / RS232
Uniform-splicing option	Input: DVI / HDMI / DP / VGA / RS232 · Output: DP / RS232
Touch option	IR touch interactive system

Engineering note: Splice gap, brightness and contrast are tied together per panel variant — the 0.88 mm bezel is not available on every size, and the 65″ unit has its own I/O set. Lock the wall layout with us before ordering mounts and processors, and we will confirm the exact variant matrix in writing.

LCD Video Wall FAQ — RLCD 46″/49″/55″/65″

How do the panels splice together, and how visible is the seam?

Units tile in any M×N layout — 2×2, 3×3, 4×6 and so on. The bezel-to-bezel gap is a factory choice of 0.88 mm, 1.7 mm or 3.5 mm on the 46″ unit; 0.88 mm reads as a thin dark line at normal monitoring distance. Unit dimensions shift slightly with each gap option.

What signal inputs does each unit accept?

Standard inputs are DVI, HDMI, VGA, CVBS and RS232, with SDI, DP and USB as options; outputs are CVBS and RS232, with DVI/HDMI loop options. A 4K input option adds DVI/HDMI/DP/VGA/CVBS/USB/RS232, and a uniform-splicing option provides DP output for daisy-chained walls.

Which brightness should I choose for my room?

The 46″ unit ships in 450, 500 or 700 cd/m² variants, and the range runs to 800 cd/m² across the series. 450–500 cd/m² suits dim monitoring rooms; take 700+ for bright retail floors or lobbies with daylight. Contrast is 3000:1–4000:1 depending on the variant, viewing angle 178°.

What is the power draw and weight per unit when planning a big wall?

Each 46″ unit draws 145 W or 195 W maximum depending on the variant and weighs 24 ±1 kg. A 3×3 wall therefore needs roughly 1.3–1.8 kW of AC capacity at 100–240 V, 50/60 Hz, plus a structure rated for about 216 kg. Operating range is 0–50 °C at 10–90% humidity.

Is there a 4K unit and a touch option?

Yes on both counts: the 65″ unit supports 4K, and an infrared touch interactive system is available as an option for presentation walls. All sizes use LED-backlit panels rated 60,000 hours with 16.7M colors, 60 Hz refresh and 8 ms response, in 46″, 49″, 55″ and 65″.
