LED Display & Digital Signage › RLED · Outdoor

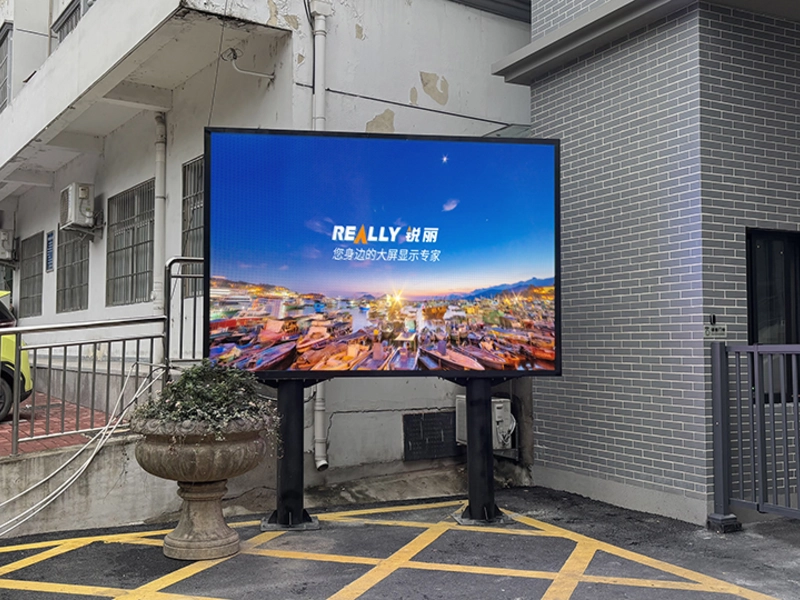

REALLY outdoor LED display on a building facade

REALLYRLED Series · Outdoor

Outdoor LED Display · P3–P10 · 6 Models

Outdoor LED · RLED P3–P10

Q: Is it bright enough to read in full tropical sunlight?

Yes. White-balance brightness exceeds 5,500 nits on the P3 build and reaches 6,500 nits across the series — the level needed for billboards, facades and stadiums facing direct sun. SMD black-lamp LEDs keep contrast at 3000:1 so the image stays saturated, not washed out.

Q: Which pixel pitch matches my viewing distance?

Six pitches from P3 to P10 are available. As the documented reference, the P3 build lists a recommended viewing distance over 4 m with 111,111 px/m² density — suited to street-level advertising. Larger pitches serve longer distances such as highway billboards; send us your site distance and we will size it.

Q: What is the waterproof rating for rainy seasons?

Outdoor-rated cabinets carry IP65 on the front face and IP43 on the rear — the LED surface withstands driving rain and dust while the back stays protected inside the screen structure. The operating envelope is −20 °C to 50 °C at 10–80% RH, covering tropical wet seasons.

Q: How much power should I budget per square meter?

On the P3 build, plan 850 W/m² maximum and 350 W/m² average — a 20 m² billboard therefore needs a 17 kW feed sized for peaks but averages about 7 kW. Input is 220 V AC ±10% at the cabinet. Size cabling and breakers on the maximum figure, billing estimates on the average.

Q: How is a broken module replaced on site?

Modules release in about 5 seconds, so a technician swaps a failed 192×192 mm module (64×64 px on P3) without dismounting the 576×576 mm cabinet. Keep a few spare modules per project and screen downtime stays in minutes. The driver is a high-grayscale constant-current IC at 16-bit, ≥3840 Hz.

Q: How far can the control room be from the screen?

Up to 100 m over Cat5e cable, or up to 10 km over single-mode fiber. For a rooftop billboard controlled from a ground-floor office, fiber removes the distance constraint entirely. Viewing angles are 120°/120°, so street coverage stays wide from a high mounting point.

Sunlight-readable LED walls from 3 to 10 mm pitch — above 5,500 nits white-balance brightness, black-lamp SMD packages for daytime contrast, and cabinets built to shrug off rain and dust on the outdoor-rated models.

>6500 nits · peak white-balance brightnessIP65 · front protection (outdoor models)≥3840 Hz · refresh rate16 bit · grayscale5 s · module removal, front or rear

CHOOSE YOUR PITCH — SIX MODELS ON THIS PAGE

Match pitch to the closest real viewing distance: P3 from 4 m, P4 from 8 m, P5 from 10 m, P6 from 12 m, P8 from 16 m, P10 from 20 m. A coarser pitch at the right distance looks identical and costs meaningfully less per square metre. Selection updates the tables and the WhatsApp message.

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

6500nits white-balance peak (P6/P10)

3840 Hzrefresh — clean on camera

IP65front protection, outdoor models

6pitches: 3 / 4 / 5 / 6 / 8 / 10 mm

Six pitches cover the full range of outdoor jobs: P3 for close-range street-level screens read from 4 m, P4/P5 for storefronts and plazas, and P6/P8/P10 for facades, billboards and stadium perimeters read from 12 m and beyond. White-balance brightness runs above 5,500–6,500 nits depending on model, with 16-bit grayscale and ≥3840 Hz refresh so footage stays smooth on broadcast cameras. P3, P8 and P10 carry IP65 front / IP43 rear protection and P6 is IP65-rated; P4 and P5 are IP20 cabinets for sheltered or semi-outdoor positions — check the table and tell us where the screen will hang. Modules release from front or rear in about five seconds, and wall mounting needs only a simple square-steel frame.

Is this the right display for your project?

Plain-language guide — based only on what this product actually does.

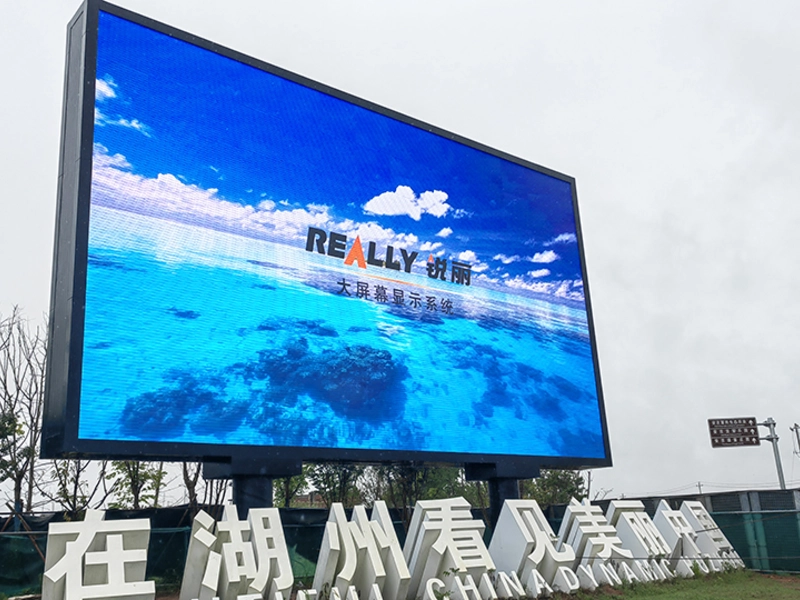

Billboards & facadesP6–P10 with above 6,000-nit brightness stays readable facing the afternoon sun; 920 W/m² peak power on P10 is the number your electrical contractor needs.

Street-level & storefrontP3 reads cleanly from 4 m — right for pedestrian traffic. For covered storefronts, the IP20-rated P4/P5 keep cost down where full weather sealing is unnecessary.

Stadiums & transport hubs≥3840 Hz refresh keeps perimeter and concourse screens flicker-free on broadcast cameras; quick-release modules matter when service windows are short.

Not the right pick if you need…

Indoor close viewing under 4 m — that is fine-pitch territory; see the Fine-Pitch or COB LED pages
A self-contained outdoor advertising unit with player, cooling and enclosure included — that is the Outdoor Digital Signage page
Fully exposed installation on a tight budget — P4/P5 are IP20; pick P3/P6/P8/P10 or ask us to spec protection for your site

Worried about the source? Order under your own company name.

For corporate buyers: we support submitting the purchase order to the manufacturer under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer.

1 · Company name2 · Corporate bank payment3 · Order registered in your name

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume DiscountBulk quantities of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

The complete series capability list.

White-balance brightness above 5,500–6,500 nits — legible in direct sunlight, uniform color with no mosaic effect

SMD black-lamp packages — better color consistency and higher perceived contrast in daylight

Front and rear modules release in about 5 seconds — fast service without unstacking cabinets

Sealed face design with professional mask — dust- and water-protected, IP65-front on outdoor-rated cabinets

Aged and tested from −20 °C to 60 °C white-screen burn-in before shipping

Anti-static, anti-interference, corrosion-resistant component design for coastal and industrial air

Wall mounting on a simple square-steel frame — no heavy custom structure for standard installs

Seamless splicing with micro-adjustable cabinet gaps across the whole screen

Full Specifications

Series specifications — technical values in English.

Highlighted column = the model selected above. Values are series data — confirm the final configuration with us before ordering.

Module & cabinet

Item	RLED-P3	RLED-P4	RLED-P5	RLED-P6	RLED-P8	RLED-P10
Pixel pitch	3 mm	4 mm	5 mm	6 mm	8 mm	10 mm
Module size	192×192 mm	256×128 mm	320×160 mm	192×192 mm	256×128 mm	320×160 mm
Module resolution	64×64 px	64×32 px	64×32 px	32×32 px	32×16 px	32×16 px
Pixel structure	1R1G1B
LED package	SMD 1921	SMD 1921	SMD 2727	SMD 2727	SMD 3535	SMD 3535
Cabinet size	576×576 mm	1024×768 mm	960×960 mm	960×960 mm	1024×768 mm	960×960 mm
Cabinet resolution	192×192 px	256×192 px	192×192 px	160×160 px	128×96 px	96×96 px

Screen performance

Item	RLED-P3	RLED-P4	RLED-P5	RLED-P6	RLED-P8	RLED-P10
Pixel density	111,111 px/m²	62,500 px/m²	40,000 px/m²	27,777 px/m²	15,625 px/m²	10,000 px/m²
White-balance brightness	>5500 nits	>6000 nits	>5500 nits	>6500 nits	>6000 nits	>6500 nits
Grayscale	16 bit
Contrast	3000:1
Refresh rate	≥3840 Hz
Drive method	High-grayscale constant-current driver IC
Viewing angle (H / V)	120° / 120°
Ingress protection	IP65 front / IP43 rear	IP20	IP20	IP65	IP65 front / IP43 rear	IP65 front / IP43 rear
Max / average power (per m²)	850 / 350 W	850 / 350 W	850 / 350 W	850 / 360 W	850 / 360 W	920 / 368 W
Operating temperature	−20 °C to 50 °C
Operating humidity	10–80% RH
Input voltage	220 V AC ±10%
Recommended viewing distance	>4 m	>8 m	>10 m	>12 m	>16 m	>20 m
Control distance	Cat5e < 100 m · single-mode fiber < 10 km

Engineering note: IP ratings differ inside this series — P4 and P5 are IP20 cabinets and belong under cover, not in open weather. Send us a photo or drawing of the mounting position and we will confirm which pitch and protection level actually fits before you commit.

Outdoor LED Screen FAQ — RLED P3–P10

Is it bright enough to read in full tropical sunlight?

Yes. White-balance brightness exceeds 5,500 nits on the P3 build and reaches 6,500 nits across the series — the level needed for billboards, facades and stadiums facing direct sun. SMD black-lamp LEDs keep contrast at 3000:1 so the image stays saturated, not washed out.

Which pixel pitch matches my viewing distance?

Six pitches from P3 to P10 are available. As the documented reference, the P3 build lists a recommended viewing distance over 4 m with 111,111 px/m² density — suited to street-level advertising. Larger pitches serve longer distances such as highway billboards; send us your site distance and we will size it.

What is the waterproof rating for rainy seasons?

Outdoor-rated cabinets carry IP65 on the front face and IP43 on the rear — the LED surface withstands driving rain and dust while the back stays protected inside the screen structure. The operating envelope is −20 °C to 50 °C at 10–80% RH, covering tropical wet seasons.

How much power should I budget per square meter?

On the P3 build, plan 850 W/m² maximum and 350 W/m² average — a 20 m² billboard therefore needs a 17 kW feed sized for peaks but averages about 7 kW. Input is 220 V AC ±10% at the cabinet. Size cabling and breakers on the maximum figure, billing estimates on the average.

How is a broken module replaced on site?

Modules release in about 5 seconds, so a technician swaps a failed 192×192 mm module (64×64 px on P3) without dismounting the 576×576 mm cabinet. Keep a few spare modules per project and screen downtime stays in minutes. The driver is a high-grayscale constant-current IC at 16-bit, ≥3840 Hz.

How far can the control room be from the screen?

Up to 100 m over Cat5e cable, or up to 10 km over single-mode fiber. For a rooftop billboard controlled from a ground-floor office, fiber removes the distance constraint entirely. Viewing angles are 120°/120°, so street coverage stays wide from a high mounting point.
