Outdoor Signage · 4 Mounting Formats
Sealed, weatherproof LCD advertising units that stay readable in direct sun and keep running through heat, rain and frost — with the media player, cooling and enclosure engineered as one machine.
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
Need the PDF datasheet? Get it on WhatsApp →Sample quantities are welcome — testing one or two units first is the normal way to start.

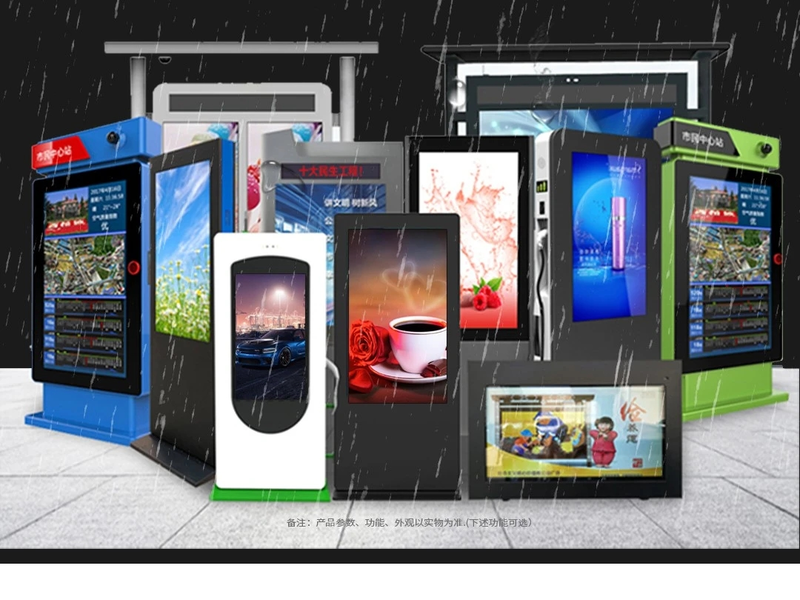

Four mechanical formats cover the usual outdoor positions: a portrait floor-standing totem for sidewalks and plazas, a hanging landscape unit for canopies and walkways, a large ceiling/canopy line up to 98″, and a wall-mounted line for building faces and fence lines. The display core is a high-brightness LCD at 1,000–2,500 cd/m² with an ambient light sensor that dials brightness up against sunlight and down at night; custom builds go up to 3,500 cd/m² for extreme exposures. Thermal management is the deciding spec outdoors, so each format ships in two builds: fan-cooled (IP55, −20/−15 °C to +45 °C) or air-conditioned (IP65, −40 °C to +55 °C) — the vent paths are baffled against driving rain. Inside runs an RK3288 player (2+8 GB, Android or Windows) decoding four 1080p streams or one 4K, with RJ45/USB feeds and optional capacitive touch behind tempered glass.
Is this the right display for your project?
Plain-language guide — based only on what this product actually does.
- A giant screen read from 20 m and beyond — that scale belongs to the Outdoor LED Display series, not an LCD kiosk

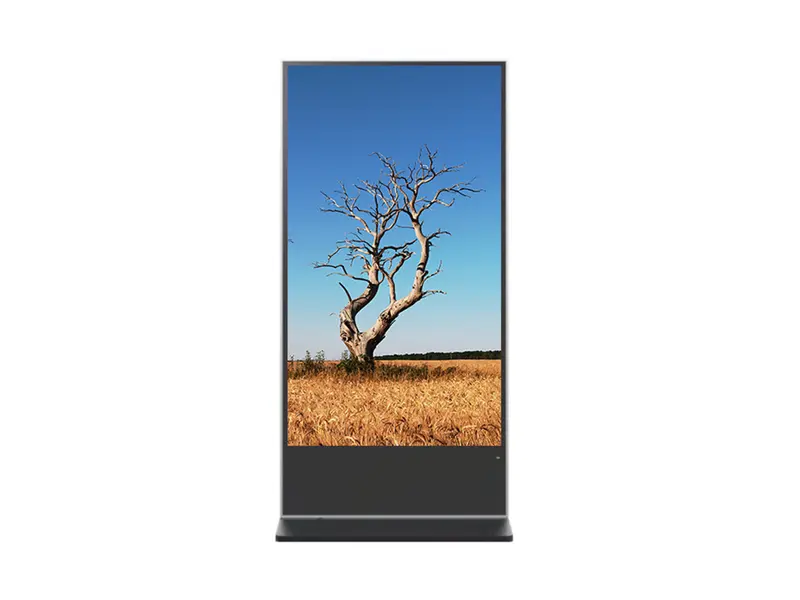

- Indoor lobbies and shopfloors — the Indoor Digital Signage series does the same job for far less, without weather sealing you will not use
- Video-wall scale content across multiple panels — see the LCD Video Wall page for spliced walls
Worried about the source? Order under your own company name.
For corporate buyers: we support submitting the purchase order to the manufacturer under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer.
Using your own freight forwarder? No problem.
For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.
Key Features
The complete series capability list.
Full Specifications
Series specifications — technical values in English.
Four mounting formats — series specifications
| Item | Floor-standing | Hanging | Ceiling | Wall-mounted |
|---|---|---|---|---|
| Screen sizes | 32 / 43 / 49 / 55 / 65 / 75″ | 32 / 43 / 49 / 55 / 65 / 75″ | 65 / 75 / 86 / 98″ | 32 / 43 / 49 / 55 / 65 / 75″ |
| Orientation / aspect | Portrait · 9:16 | Landscape · 16:9 | Landscape · 16:9 | Landscape · 16:9 |
| Resolution | 1080×1920 / 2160×3840 | 1920×1080 / 3840×2160 | 3840×2160 | 1920×1080 / 3840×2160 |
| Display colors | 16.7M | |||
| Brightness | 1,000–2,500 cd/m² (custom builds up to 3,500 cd/m²) | |||
| Contrast | 1200:1 | |||
| Viewing angle | 178° (H / V) | |||
| Response time | ≤8 ms | |||
| Power input | 90–130 / 180–260 V AC | 90–130 / 180–260 V AC | 100–240 V AC, 50/60 Hz | 100–240 V AC, 50/60 Hz |
| Enclosure material | Galvanized steel, powder-coated | Galvanized steel, powder-coated | Galvanized steel + tempered glass | Galvanized steel + tempered glass |
| Installation | Floor-standing | Ceiling-hung | Floor-standing (canopy unit) | Wall-mount |
| Operating temperature | Fan-cooled −20…+45 °C · A/C −40…+55 °C | Fan-cooled −20…+45 °C · A/C −40…+55 °C | Fan-cooled −15…+45 °C · A/C −40…+55 °C | Fan-cooled −15…+45 °C · A/C −40…+55 °C |
| Operating humidity | Fan 5–90% · A/C 5–95% | Fan 5–90% · A/C 5–95% | 5–90% | 5–90% |
| Storage temperature | −40…+60 °C | −10…+50 °C | −10…+50 °C | −10…+50 °C |
| Storage humidity | 5–95% | 10–90% | 10–90% | 10–90% |
| Ingress protection | Fan-cooled: IP55 · Air-conditioned: IP65 | |||
| I/O | RJ45 / USB 2.0 | |||
| Cooling | Fan-cooled or air-conditioned, selectable | |||
| Decoding | 4× 1080p or 1× 4K | |||
| Speakers | 10 W | 10 W | 2× 10 W (8 Ω) | 2× 10 W (8 Ω) |
| CPU | RK3288 | |||
| Memory / storage | 2 GB + 8 GB | |||
| Operating system | Android / Windows | |||
| Touch (optional) | Capacitive | |||
Outdoor Digital Signage FAQ — 32–98″ High-Brightness Kiosks
Can the screen be read in direct African or Brazilian sunlight?
What is the IP rating? Will it survive rain and dust?
Fan-cooled or air-conditioned — which should I choose for a hot climate?
What mounting formats and sizes are available?
How do I manage content, and what player is inside?
What power supply does it need on an unstable grid?
