LED Display & Digital Signage › RLED · COB

REALLYCOB 3-in-1 · Indoor Fine-Pitch

COB LED Video Wall · 0.94–1.56 mm · 3 Models

COB LED Wall · RLED-P0.9 / P1.2 / P1.5

Fine-pitch LED with the LEDs sealed under a continuous COB layer instead of exposed SMD lamps — the wall you pick when people, cleaning cloths or the occasional knock will get close to the screen.

COB 3-in-1 · sealed pixel surface≥8000:1 · contrast16 bit · grayscale≤0.05 mm · module seam1500 cd/m² · max brightness, stepless

CHOOSE YOUR PITCH — THREE MODELS ON THIS PAGE

All three share the same cabinet, surface protection and calibration system — choose by viewing distance: P0.9 from about 1 m, P1.2 from about 1.5 m, P1.5 from about 2 m. Selecting a model updates the spec table and the WhatsApp message.

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

0.94 mmfinest pitch (RLED-P0.9)

8000:1contrast — deep blacks

≤0.05mm module seam

16 bitgrayscale, per-pixel calibrated

The REALLY COB series covers three pitches — RLED-P0.9 (0.9375 mm), RLED-P1.2 (1.25 mm) and RLED-P1.5 (1.5625 mm) — on the same 600×337.5 mm die-cast cabinet, four modules per cabinet, seams held to 0.05 mm. Because the chips are bonded directly to the board and sealed (COB 3-in-1, with flip-chip as the upgraded process), the surface resists impact, dust, moisture and static, and dead-pixel rates stay far below exposed-lamp SMD walls over years of service. Image quality is the other half of the story: ≥8000:1 contrast, 16-bit grayscale, 50–1500 cd/m² stepless brightness and per-pixel brightness/color calibration with the data stored on each module, so modules can be swapped without re-calibrating the wall. 16:9-friendly cabinet geometry builds clean 2K, 4K and 8K canvases.

Is this the right display for your project?

Plain-language guide — based only on what this product actually does.

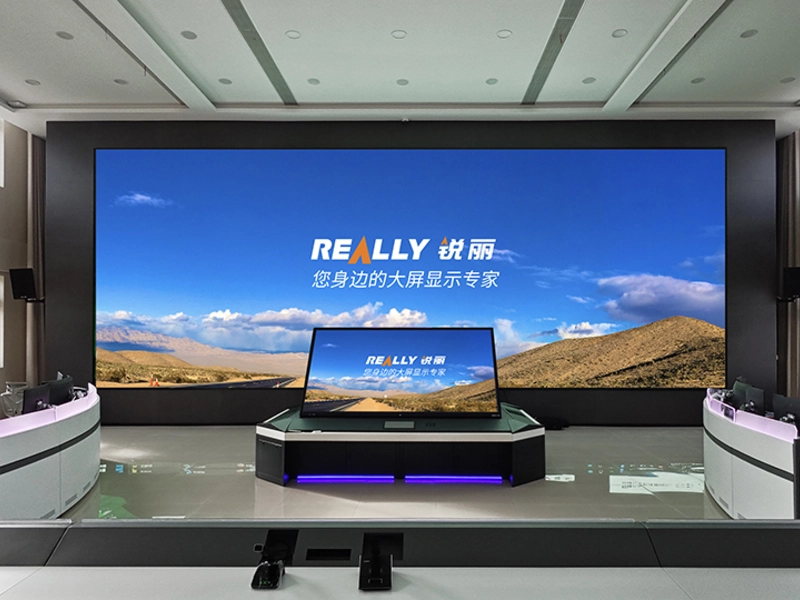

7×24 monitoring centersAround-the-clock duty rooms where a failed pixel cluster is unacceptable — COB's sealed construction keeps failure rates an order of magnitude below exposed-lamp walls.

Meeting & briefing roomsClose viewing, frequent cleaning, presenters walking right past the screen — the wipeable, touch-tolerant COB surface takes daily office life in stride.

Showrooms & exhibitionPublic traffic at arm's length from the wall. Anti-static surface can be touched; ≥8000:1 contrast keeps product footage punchy under gallery lighting.

Not the right pick if you need…

The lowest price per square metre indoors — the SMD fine-pitch series delivers similar pixel density for less where the screen is out of reach
An outdoor screen — this series is indoor-rated; see the Outdoor LED Display page for IP65-front cabinets
A single presentation screen in a small room — an LCD video wall unit or large signage display is usually the more economical tool

Worried about the source? Order under your own company name.

For corporate buyers: we support submitting the purchase order to the manufacturer under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer.

1 · Company name2 · Corporate bank payment3 · Order registered in your name

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume DiscountBulk quantities of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

The complete series capability list.

COB 3-in-1 encapsulation — impact-, dust-, moisture- and static-resistant sealed surface, front face wipeable

Flip-chip COB available as the upgraded process — higher reliability and a smoother light surface

Per-pixel brightness and color calibration, data stored on each module — swap modules without re-calibrating the wall

50–1500 cd/m² stepless brightness and 1000–12000 K color temperature — tunes to any room lighting

Dual-output power supply configuration for stable long-duty operation

Front maintenance, wall-flush mounting — module replacement from the face of the screen

Full Specifications

Series specifications — technical values in English.

Highlighted column = the model selected above. Values are series data — confirm the final configuration with us before ordering.

COB series — 600×337.5 mm cabinets

Item	RLED-P0.9	RLED-P1.2	RLED-P1.5
Pixel pitch	0.9375 mm	1.25 mm	1.5625 mm
Module resolution (W×H)	320×180 px	240×135 px	192×108 px
Module size (W×H)	300×168.75 mm
Pixel encapsulation	COB 3-in-1
Horizontal viewing angle	≥170°
Vertical viewing angle	≥160°	≥170°	≥170°
Brightness	50–600 / 600–1500 cd/m², stepless
Color temperature	1000–12000 K adjustable
Cabinet resolution (W×H)	640×360 px	480×270 px	384×216 px
Cabinet size	600×337.5 mm
Cabinet weight	4.2 kg per cabinet · 35 kg/m²
Modules per cabinet	2×2
Module seam	≤0.05 mm
Peak power	490 W/m²	650 W/m²	650 W/m²
Average power	160 W/m²	260 W/m²	260 W/m²
Color uniformity	Within 0.003 Cx, Cy
Contrast	≥8000:1
Cabinet material	Die-cast aluminium
Operating temperature	−20 °C to +45 °C	−10 °C to +40 °C	−10 °C to +40 °C
Operating humidity	10–90% RH	10–85% RH	10–85% RH
Per-pixel brightness calibration	Yes
Per-pixel color calibration	Yes
Calibration data storage	Stored on the module
Power supply	110–240 V AC, 50–60 Hz
PSU configuration	Dual-output power supply
Grayscale	16 bit
Refresh rate	3840 Hz	1920–3840 Hz	1920–3840 Hz
Note	Peak power may vary ±10% between LED chip batches.

Engineering note: If the wall will run 24/7, tell us the room's ambient light level and running hours — we will configure the low-brightness high-grayscale operating point so the image stays clean without burning brightness headroom you don't need.

COB LED Video Wall FAQ — RLED-P0.9 / P1.2 / P1.5

What makes COB different from a normal SMD LED wall?

This series uses COB 3-in-1 encapsulation: the LEDs are sealed onto the module instead of being individually surface-mounted, which is why the wall reaches ≥8000:1 contrast, 16-bit grayscale and ≤0.05 mm module seams. Calibration data for every pixel is stored on the module itself.

What pixel pitch does it have and where is it meant to be used?

The documented build is 0.9375 mm pitch: each 300×168.75 mm module packs 320×180 pixels, and a 600×337.5 mm cabinet carries 640×360 pixels. This is a fine-pitch indoor wall for monitoring centers, meeting rooms and showrooms where viewers stand close to the screen.

How do the cabinets assemble into a wall?

Each die-cast aluminium cabinet measures 600×337.5 mm, weighs 4.2 kg and holds 2×2 modules, so the finished wall stays around 35 kg/m². Module seams are ≤0.05 mm and color uniformity is held within 0.003 Cx,Cy, so joints stay invisible after per-pixel brightness and color calibration.

How much power does it draw per square meter?

Peak power is 490 W/m² and average power is 160 W/m², so a 10 m² wall averages about 1.6 kW in normal use. The supply accepts 110–240 V AC at 50–60 Hz with a dual-output PSU per cabinet. Note peak power can vary ±10% between LED chip batches.

Can I adjust the brightness for a dark control room?

Yes. Brightness is stepless across 50–600 cd/m² and 600–1500 cd/m² ranges, so you can dim it for 24-hour operators without losing grayscale — the driver keeps 16-bit depth at a 3840 Hz refresh rate. Color temperature is also adjustable from 1000 K to 12000 K.

Will it survive a hot, dusty equipment room?

The wall is rated for −20 °C to +45 °C and 10–90% relative humidity, so warm African and Latin American equipment rooms are within spec. The COB-sealed pixel surface and die-cast aluminium cabinets are the ruggedness features listed for this indoor series.

Related Products

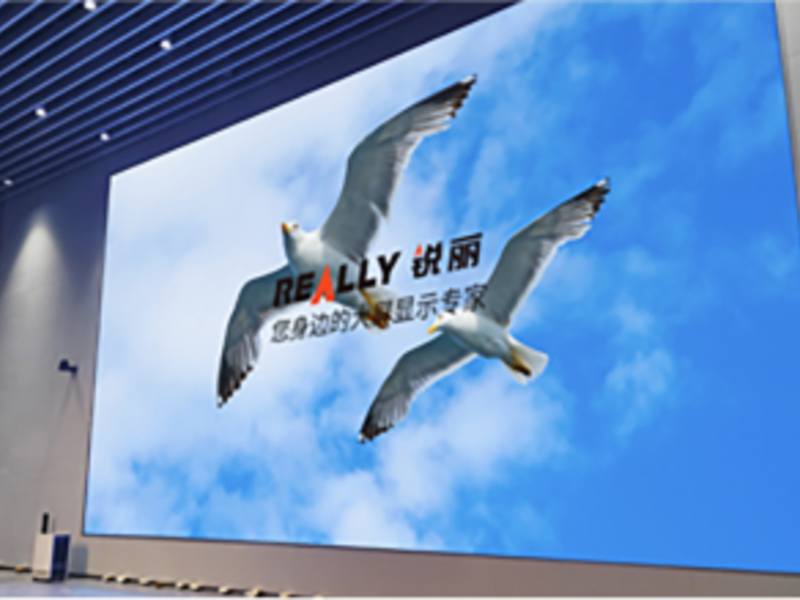

Fine-Pitch LED Video Wall

SMD fine-pitch family, 16 models from 0.78 mm — the wider indoor line-up.

LCD Video Wall

46–65″ LCD splicing units — the budget-friendly video wall alternative.

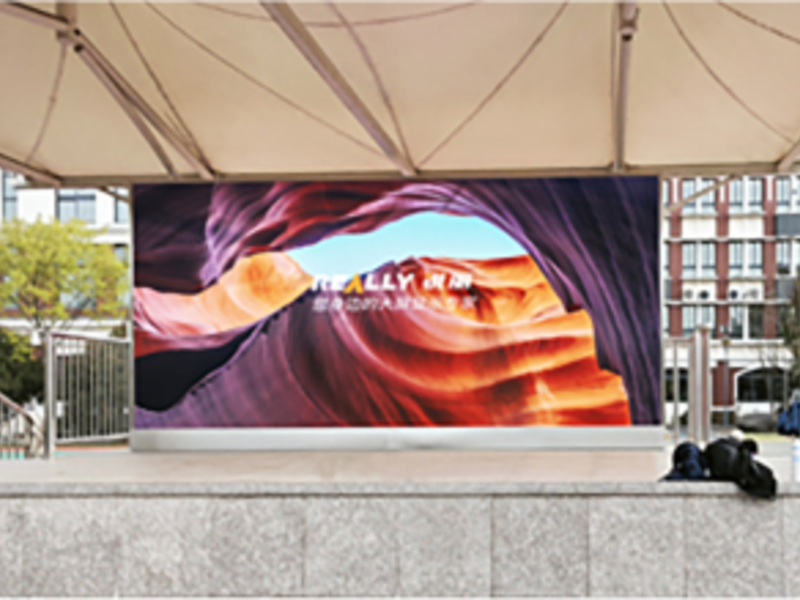

Outdoor LED Display

P3–P10 outdoor LED, up to 6,500 nits — for facades and billboards.

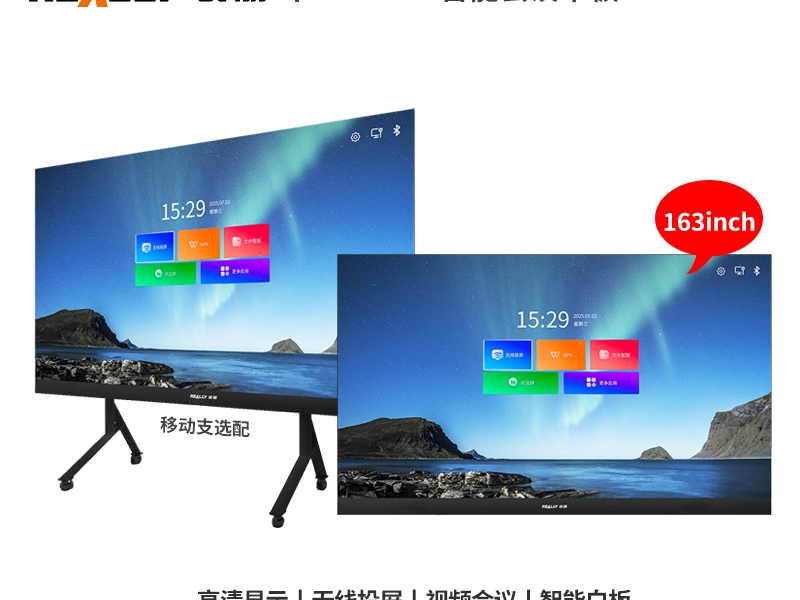

LED Conference Panel
