Monitors & Displays › MW-U · 4K Touch
Uniview MW3565-U-CA 65 inch smart interactive display, 45-degree front-left view
Uniview MW3565-U-CA 65 inch smart interactive display, 45-degree front-left view

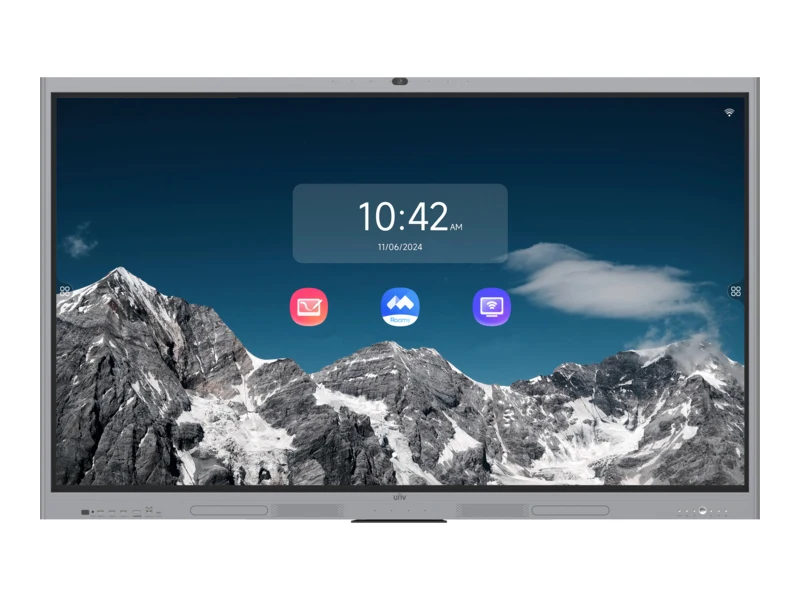

Uniview MW3565-U-CA smart interactive display, front view

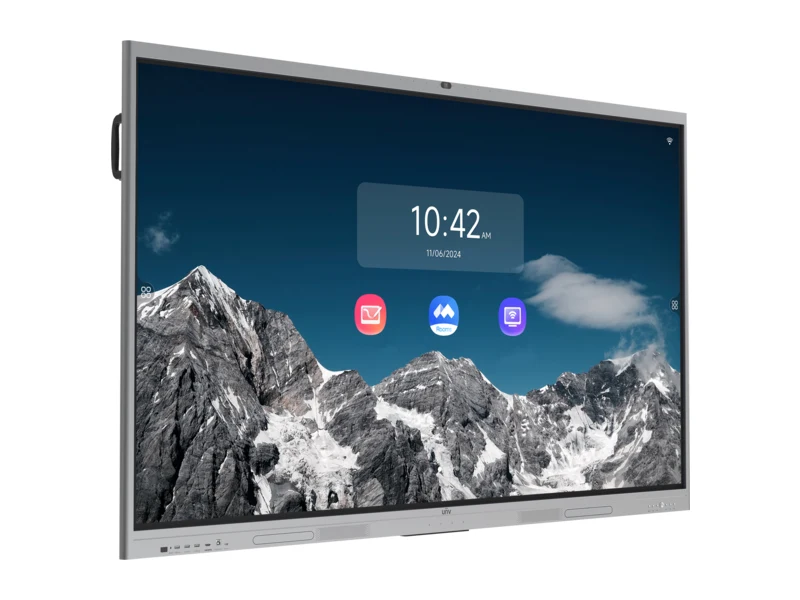

Uniview MW3575-U-CA 75 inch smart interactive display, angled view

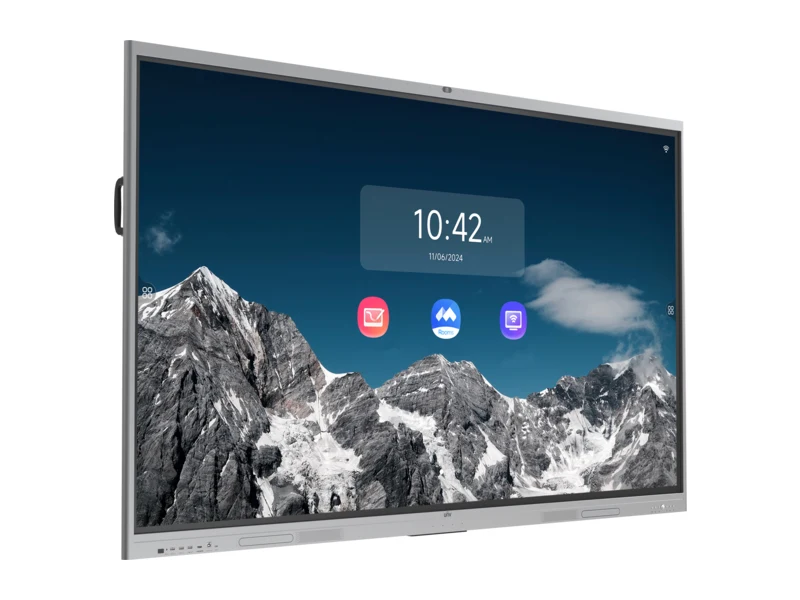

Uniview MW3586-U-CA 86 inch smart interactive display, angled view
UniviewMW-U Series · 40-Point Touch
Smart Interactive Display · 3 Models · 4K Touch

Smart Interactive Display · 65″ / 75″ / 86″

One 4K touch screen for the whole meeting: write on a split-screen whiteboard with OCR, mirror phones and laptops with one touch, and run video calls through the built-in 13MP camera and 8-microphone array — on Android 13 with dual Wi-Fi.

4K UHD · anti-glare panel40 pt · infrared multi-touchAndroid 13 · 4GB / 32GBWi-Fi 5+6 · dual Wi-Fi modules13 MP · built-in camera8 mics · 8 m pickup distance
CHOOSE YOUR SIZE — THREE MODELS ON THIS PAGE
All three share the same 4K touch platform, camera, microphones and I/O — pick by room depth: 65″ for huddle rooms, 75″ for mid-size rooms, 86″ for large rooms. Selecting a model updates the WhatsApp message.
Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →
In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
3sizes — 65, 75, 86 inch
4K3840×2160 anti-glare
40 ptmulti-touch (Windows)
50k hpanel lifespan

The MW3565-U-CA (65″), MW3575-U-CA (75″) and MW3586-U-CA (86″) share one platform: a 4K DLED panel behind 4 mm tempered anti-glare glass, high-precision infrared touch up to 40 points, and Android 13 on a quad-core A55 with 4GB/32GB. Collaboration is built in rather than bolted on — a split-screen whiteboard that recognizes text and shapes (OCR), one-touch wireless mirroring from Android, iOS and Windows, QR-code file transfer from phones, and a 13MP camera with an 8-microphone array that picks up speech at 8 meters. Front-facing buttons and three front USB 3.0 ports keep daily use simple; dual Wi-Fi modules run network and hotspot at the same time, and OTA keeps the system current.

Is this the right display for your rooms?

Plain-language guide — based only on what this product actually does.

Meeting collaborationTwo people write on the split-screen whiteboard at once, annotation and screenshot tools float over any source, and the board leaves the room by QR scan.
Touch whiteboarding & training40-point infrared touch with ±1 mm precision writes with fingers or any opaque pen; OCR turns handwriting and sketches into clean text and shapes.
Remote conferencingThe 13MP camera with a 118° field of view and the 8-mic array covering 8 meters take the whole room into the call — no external bar to buy, mount or cable.
Not the right pick if you need…
  • A seamless picture beyond 86 inch — the REALLY Smart Conference Panel line goes up to 110″, and LED all-in-ones beyond that
  • 7×24 surveillance viewing — that duty belongs to the surveillance monitors (22–32″) and 4K monitors (43″/55″)
  • Windows-only workflows out of the box — an OPS computer is not included and needs to be configured additionally

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer.

1 · Company name2 · Corporate bank payment3 · Order registered in your name

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume DiscountBulk quantities of a single model
CONTACT US
Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTER
Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you
BEST
All discounts are quoted personally — message me on WhatsApp ↑

Key Features

The complete series capability list.

4K UHD anti-glare display with extreme detail; ultra-narrow bezel
High-precision infrared touch, up to 40 points (Windows) / 32 points (Android)
Split-screen whiteboard writing; OCR recognizes text and graphics automatically
One-touch wireless mirroring from Android, iOS and Windows; fast file transfer by QR code
Dual Wi-Fi modules — Wi-Fi 5 + Wi-Fi 6, network and hotspot at the same time
13MP camera and 8-microphone array with 8 m pickup for video calls
Front utility buttons and 3 front USB 3.0 ports for quick plug-in
OTA remote upgrade — the system updates online without backing up data

Full Specifications

Series specifications — technical values in English, quoted from the official datasheets.

Highlighted rows differ between the models:MW3565-U-CAMW3575-U-CAMW3586-U-CA

Panel

Panel Size65″ · 65"75″ · 75"86″ · 86"
BacklightDLED backlight
Resolution3840 × 2160
Brightness (cd/m²)350
Contrast Ratio1200 : 1
Response Time (ms)8
Color Support1.07 billion colors
Viewing Angle (H/V)178°/178°
Refresh Rate (Hz)60
Color Gamut72%
Lifespan (h)50000
Glass4 mm tempered glass, level 7 on Mohs hardness scale, anti-glare
Surface Hardness9H (7 on the Mohs scale)
Display Size (mm)65″ · 1428.48 x 803.5275″ · 1649.6 x 927.986″ · 1895.04 x 1065.96
Pixel Pitch (H × V) (mm)65″ · 0.372 x 0.37275″ · 0.4296 x 0.429686″ · 0.4935 x 0.4935

Touch & System

Touch ControlUp to 40-point multi-touch (WIN: 40-point, Android: 32-point)
Touch Precision (mm)±1
Touch Response Time (ms)≤5
Touch TechnologyInfrared touch
Touchscreen InputOpaque objects (e.g. fingers, pens)
CPU4 x A55 (1.9GHz)
RAM/ROM4GB/32GB
Operation SystemAndroid 13.0

Interface, AV & Wireless

Video Input3 x HDMI IN (4K), 1 x VGA IN, 1 x AV IN, 1 x YPbPr IN, 1 x DP IN
Video Output1 x AV OUT, 1 x HDMI OUT (4K)
Audio Input1 x MIC_IN
Audio Output1 x EARPHONE, 1 x coaxial audio output interface (COAX)
Other Interfaces1 x RS232, 3 x front USB 3.0, 1 x on-board USB 2.0, 1 x on-board USB 3.0, 2 x TOUCH USB, 1 x Type-C, 1 x TF CARD
Network1 x LAN OUT, 1 x LAN IN
SpeakerLeft channel: 1 x treble (5 W) + 1 x bass (15 W) · Right channel: 1 x treble (5 W) + 1 x bass (15 W)
Wi-Fi ConfigurationWi-Fi 5 + Wi-Fi 6, supports 5G/2.4G
Bluetooth Version5.2
Camera ResolutionWin: 13MP for Photos & 13 MP for Video · Android: 13MP for Photos & 1080P for Video
FOV118°/94°/75°
Microphone8
Pickup Distance (m)8

General

Wall Mount Hole (mm)65″ · 500 x 40075″ · 600 x 40086″ · 800 x 400
Wall Mount Screw4-M8 screw hole
Power SupplyAC 100 to 240 V, 50/60 Hz
Overall Power Consumption (W)65″ · <188.3 (without OPS)75″ · <291.5 (without OPS)86″ · <342.2 (without OPS)
Standby Power Consumption (W)＜0.5
Product Dimensions (W × H × D) (mm)65″ · 1498 x 926 x 8975″ · 1720 x 1050 x 9086″ · 1967 x 1188 x 89
Package Dimensions (W × H × D) (mm)65″ · 1615 x 1055 x 20575″ · 1860 x 1173 x 21286″ · 2102 x 1313 x 242
Weight (kg)65″ · Net 41.4 · Gross 45.775″ · Net 53.0 · Gross 60.586″ · Net 82.0 · Gross 85.0
Operating Temperature0°C to 50°C
Operating Humidity10% to 90% RH, non-condensing
Accessories Included1 x power cable, 2 x touch pen, 1 x quick guide, 1 x IR remote controller, 1 x wall mounting bracket
CertificationCE-EMC, CE-RED, CB/LVD, FCC, FCC-ID
Engineering note: Per the official ordering info, projection device, OPS computer, floor stand and smart pen need to be additionally configured — list what each room needs when you enquire. Touch is 40-point under Windows (with OPS) and 32-point under Android. The wall-mount hole pattern differs by size: 500×400 (65″), 600×400 (75″), 800×400 (86″), all 4-M8; a wall mounting bracket is included in the box.

4K Interactive Touch Display FAQ — MW3565/3575/3586-U-CA

What sizes and resolution do these interactive displays offer?
Three sizes: 65″ (MW3565-U-CA), 75″ (MW3575-U-CA) and 86″ (MW3586-U-CA), all 3840 × 2160 4K with 350 cd/m² brightness, 1200:1 contrast, 178°/178° viewing angles and 50,000-hour panel lifespan. The 4 mm tempered anti-glare glass is rated level 7 on the Mohs hardness scale.
How many touch points does the screen support and how accurate is it?
Infrared touch with up to 40 simultaneous points under Windows and 32 under Android. Touch precision is ±1 mm and response time is 5 ms or less. It accepts any opaque object — fingers or ordinary pens — so no special stylus is needed for touch whiteboarding.
Can I run video conferencing without extra camera or microphones?
Yes. A built-in 13MP camera records 13MP video on Windows and 1080P on Android, with 118°/94°/75° field-of-view options. An 8-microphone array picks up voices from up to 8 m. Speakers per side: one 5 W treble plus one 15 W bass, so mid-size meeting rooms need no external kit.
What video inputs and outputs are available for laptops and other sources?
Video in: 3 × HDMI (4K), 1 × VGA, 1 × DisplayPort, 1 × AV, 1 × YPbPr. Video out: 1 × HDMI (4K) and 1 × AV. You also get 1 × Type-C, 3 × front USB 3.0, 2 × touch USB, 1 × RS232, a TF card slot and LAN IN/OUT for network pass-through.
What operating system, hardware and wireless connectivity does it run?
It runs Android 13.0 on a quad-core A55 CPU at 1.9 GHz with 4GB RAM and 32GB storage. Wireless side: Wi-Fi 5 plus Wi-Fi 6 on both 2.4G and 5G bands, and Bluetooth 5.2. Wired LAN IN and LAN OUT ports are also on board.
How do I wall-mount these displays and what power do they draw?
Wall-mount hole patterns: 500 × 400 mm (65″), 600 × 400 mm (75″), 800 × 400 mm (86″), each with 4 M8 screw holes. Net weights are 41.4 / 53.0 / 82.0 kg. Power is AC 100–240 V, 50/60 Hz; consumption stays below 188.3 / 291.5 / 342.2 W without OPS, standby under 0.5 W.
