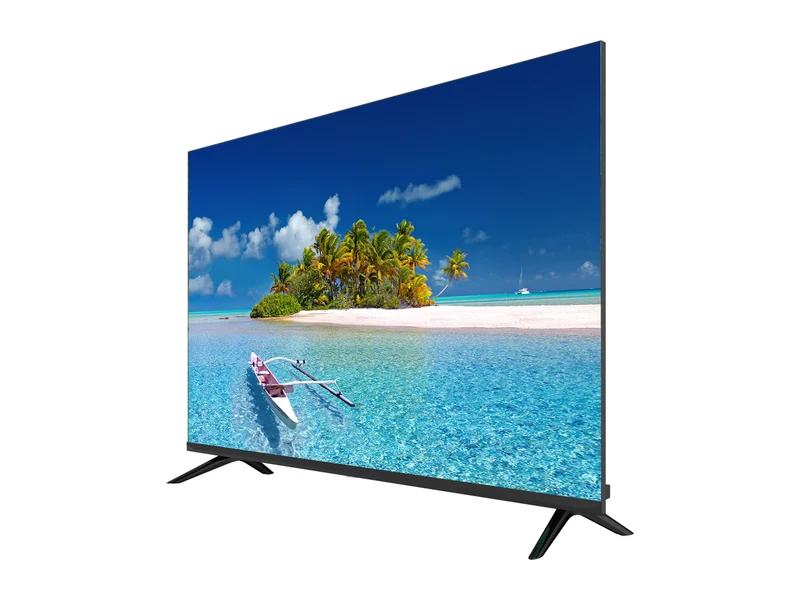

Uniview MW3243-F-V2 43 inch 4K monitor, 45-degree front-left view

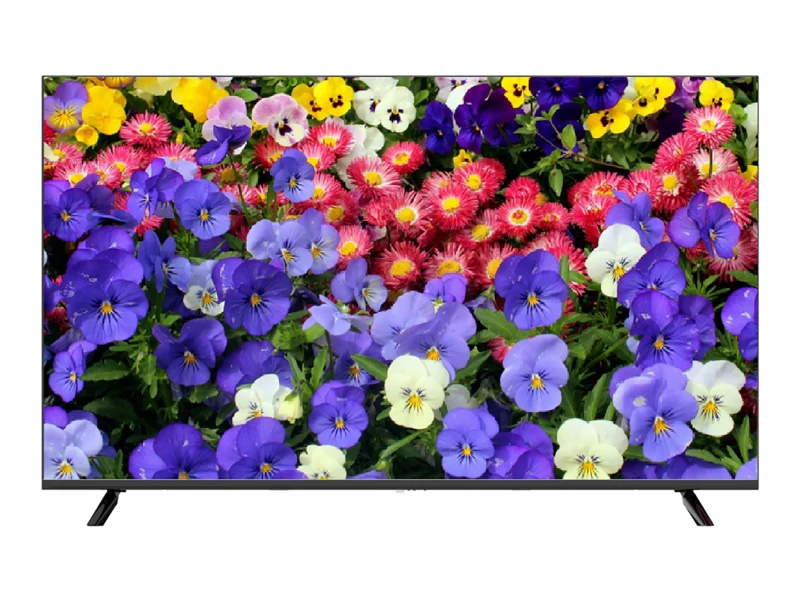

Uniview MW3255-F-V2 55 inch 4K monitor, front view

Uniview MW3243-F-V2 4K monitor, rear view

UniviewMW-F Series · Industrial Panel

4K LED Monitor · 2 Models · 3840×2160 UHD

4K LED Monitor · 43″ / 55″

Industrial-grade 4K displays for the operations floor: 3840×2160 on an IPS panel with 1.07 billion colors, 2×HDMI + 2×DP inputs, silent fanless operation and a 24/7 duty rating — where one screen has to hold a multi-camera grid and still show plates and faces.

4K UHD · 3840×2160IPS · 178° wide viewing1.07 B · color support2×HDMI+2×DP · video inputs7×24 · industrial-grade panel2×10 W · speakers

CHOOSE YOUR SIZE — TWO MODELS ON THIS PAGE

Same panel platform, same I/O — the choice is pure size and viewing distance. Both include a pedestal; the matching HB desk mounts below are the factory desk-stand option per size. Selecting a model updates the WhatsApp message.

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

4K3840×2160 UHD

24/7industrial-grade continuous duty

1.07Bcolors on IPS panel

1.0 mmbezel, top/left/right (43″)

The MW3243-F-V2 (43″) and MW3255-F-V2 (55″) are the 4K members of Uniview's monitor line, built on industrial-grade IPS panels rated for 24/7 continuous operation. Both drive 3840×2160 at 60 Hz with 1.07 billion colors and 300 cd/m², and an automatic color and image enhancing engine sharpens contrast, details and edges on live video. I/O is display-grade: two HDMI and two DisplayPort inputs, a headphone jack and 2×10 W speakers. The ultra-narrow bezel (1.0–1.4 mm on three sides) keeps multi-monitor desks clean, operation is silent, and mounting is VESA 200×200 or the included pedestal — with HB desk mounts as the factory option for console desks.

Is this the right monitor for your project?

Plain-language guide — based only on what this product actually does.

Command & monitoring centersOne 4K screen holds a 2×2 grid of Full HD cameras at native detail — a 16-way grid stays legible where a 1080p screen turns to mush.

4K detail playbackReviewing footage from 4K/8MP cameras pixel-for-pixel: plates, faces and timestamps come through, and the enhancing engine lifts edges and contrast on dim recordings.

Console desks & duty stationsWith the HB desk mount the 43″ or 55″ sits on the console like an oversized monitor; silent fanless operation keeps the duty room quiet.

Not the right pick if you need…

A compact screen for a gatehouse or a single NVR — the 22–32″ Full HD monitors cost less and fit tighter desks
Touch interaction, whiteboard or meetings — that is the Smart Interactive Display line (65–86″, 40-point touch)
A seamless wall bigger than 55″ — LCD video walls and fine-pitch LED walls live in the LED Display category

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer.

1 · Company name2 · Corporate bank payment3 · Order registered in your name

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume DiscountBulk quantities of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

The complete series capability list.

4K UHD 3840×2160 display with 1.07 billion colors

Industrial-grade panel, 24/7 continuous operation

Automatic color and image enhancing engine for contrast, details and edges

2 × HDMI + 2 × DisplayPort inputs; 3.5 mm headphone output

Ultra-narrow bezel, ultra-slim depth, stable structural design

Wide 178° viewing angles from almost any direction

Silent operation for a quiet working environment

VESA 200×200 wall mount, pedestal included; remote control in the box

Full Specifications

Series specifications — technical values in English, quoted from the official datasheets.

Highlighted rows differ between the models:MW3243-F-V2MW3255-F-V2

Panel

Panel Size	43″ · 43"55″ · 55"
Backlight	LED
Resolution	3840 × 2160
Color Support	1.07 B
Brightness (cd/m²)	300
Contrast Ratio	1200:1
Response Time (ms)	8
Refresh Rate	60 Hz
Viewing Angle (H/V)	Horizontal 178°, Vertical 178°
Pixel Pitch (H × V) (mm)	43″ · 0.245 x 0.24555″ · 0.315 x 0.315
Display Size (mm)	43″ · 941.184 x 529.41655″ · 1209.60 x 680.40
LCD Technology/Panel Type	IPS
Color Gamut	72% NTSC
Surface Treatment	43″ · Haze 1%, 3H, Semi-glare or Anti-glare55″ · Haze1%, Anti-Glare, 3H
Bezel Width	43″ · 1.0mm (top/left/right), 17.9 mm (bottom)55″ · 1.4mm (top/left/right), 17.66 mm (bottom)
Operation Hour	24/7

Interface & Audio

Video Input	2 x HDMI, 2 x DP
Audio Output	3.5mm Headphone Jack
Speaker	2 x 10 W
VESA (mm)	200 x 200
Wall-mounted Thread	M6 (10mm Deep Thread)

General

Input Voltage	AC 100 ~ 240 V, 50/60 Hz
Typical Power Consumption (W)	43″ · ≤10055″ · ≤120
Standby Power Consumption (W)	≤0.5
Product Dimensions (W × H × D) (mm)	43″ · 957 x 606.1 x 206.9 (With Pedestal)55″ · 1226.20 x 770.50 x 242.91 (With Pedestal)
Weight (kg)	43″ · Net 6.4 · Gross 9.555″ · Net 11.4 · Gross 15.5
Operating Temperature	0°C ~ 40°C
Operating Humidity	20% ~ 85% (No Condensation)
Material	Plastic
Lifetime (h)	30000
MTBF (h)	50000 h
Certifications	CE/FCC/RoHS
In the Box	1 x 1.5m HDMI Cable, 1 x Quick Guide, 1 x Remote Control, 1 x 1.8m Power Cable, 1 x Pedestal
Optional Accessories	HB-4032-E LED Monitor Display Wall Mounting Bracket

Engineering note: Both models ship with a pedestal, HDMI cable, power cable and remote control. For wall installation the datasheet lists the HB-4032-E wall mounting bracket as an optional accessory (VESA 200×200, M6 thread, 10 mm deep); for console desks use the HB-5043-H / HB-5055-H desk mounts above. Surface is anti-glare (Haze 1%) — suited to bright duty rooms.

Desk Mount Options — HB-5043-H / HB-5055-H

Factory desk-mounting feet matched to each size — order them with the monitor if it will stand on a console instead of hanging on a wall.

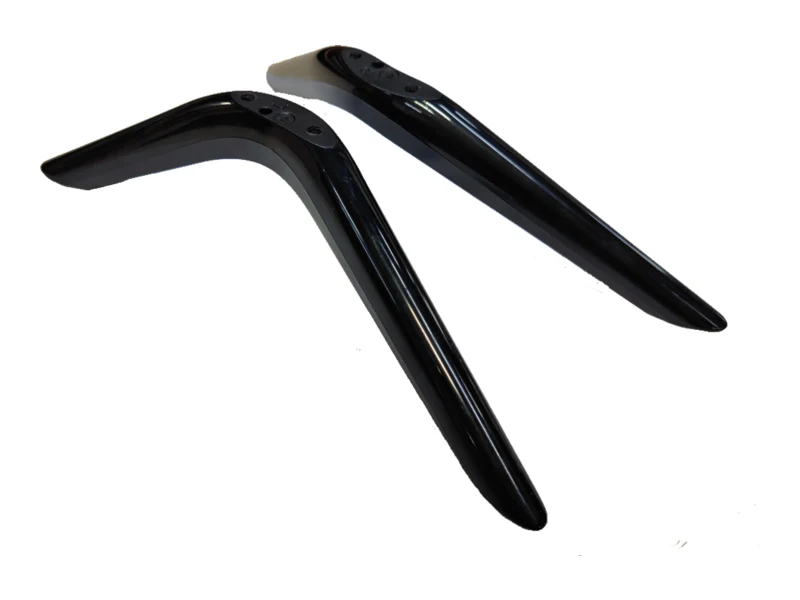

HB-5043-H

Desk mounting for the 43″ MW3243-F-V2.

211.30 × 43.66 × 43.66 mm · 25 g · Plastic

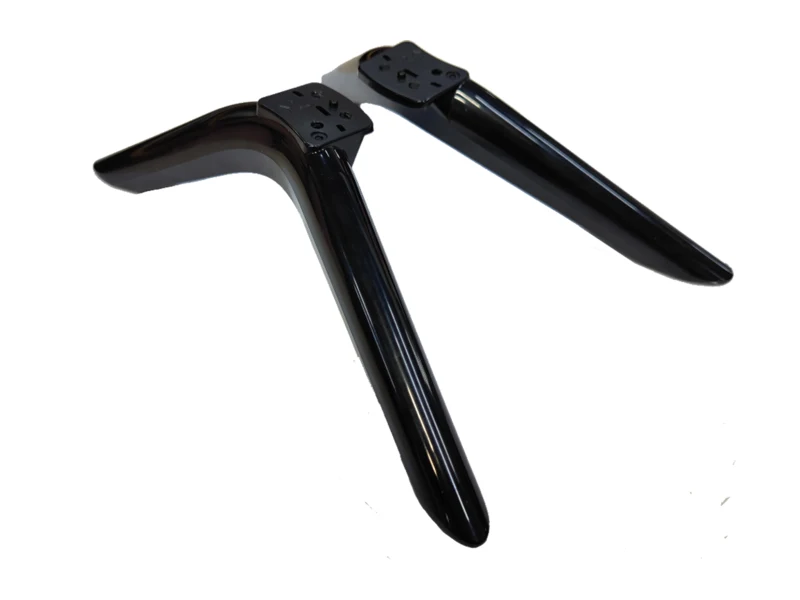

HB-5055-H

Desk mounting for the 55″ MW3255-F-V2.

242.90 × 70.41 × 65.53 mm · 58 g · Plastic

Values quoted from the HB-5043-H / HB-5055-H datasheets (product dimensions W×H×D, weight, material). Each fits its matching monitor size only.

4K Control Room Monitor FAQ — MW3243-F-V2 / MW3255-F-V2

What is the difference between the 43″ and 55″ models?

MW3243-F-V2 is 43″ with a 941×529 mm screen and ≤100 W typical draw; MW3255-F-V2 is 55″ at 1209×680 mm and ≤120 W. Both share 3840×2160 resolution, IPS panels, 300 cd/m² brightness and the same 2×HDMI + 2×DP inputs.

Can these monitors run 24/7 in a control room?

Yes. Both models are rated for 24/7 continuous operation with an industrial-grade IPS panel, 30,000-hour lifetime and 50,000-hour MTBF. Operating range is 0–40 °C and 20–85% humidity without condensation, which suits most equipment rooms without special cooling.

What video inputs do they have for NVRs and decoders?

Each monitor has 2× HDMI and 2× DisplayPort inputs, so you can connect an NVR and a workstation at the same time and switch sources. Audio plays through built-in 2×10 W speakers or a 3.5 mm headphone jack. A 1.5 m HDMI cable ships in the box.

How do I mount them on a wall or desk?

Both use a VESA 200×200 mm pattern with M6 threads 10 mm deep. A pedestal for desk use is included; the HB-4032-E wall bracket and HB-5043-H / HB-5055-H desk mounts are optional. Net weight is 6.4 kg for the 43″ and 11.4 kg for the 55″.

Is 300 cd/m² bright enough, and how wide is the viewing angle?

These are indoor monitors: 300 cd/m² with 1200:1 contrast and a 3H anti-glare surface is specified for control rooms and monitoring walls, not direct sunlight. The IPS panel holds 178°/178° viewing angles and 1.07 billion colors, so operators read the screen clearly from the side.

What power supply do they need? Will they work on 220 V?

They accept AC 100–240 V at 50/60 Hz, so both 110 V and 220 V grids work without a converter. Typical consumption is ≤100 W for the 43″ and ≤120 W for the 55″, dropping to ≤0.5 W in standby. A 1.8 m power cable is included.

Related Products

Surveillance LED Monitor · 22–32″

22″/24″/32″ Full HD monitors for guard desks and small control rooms.

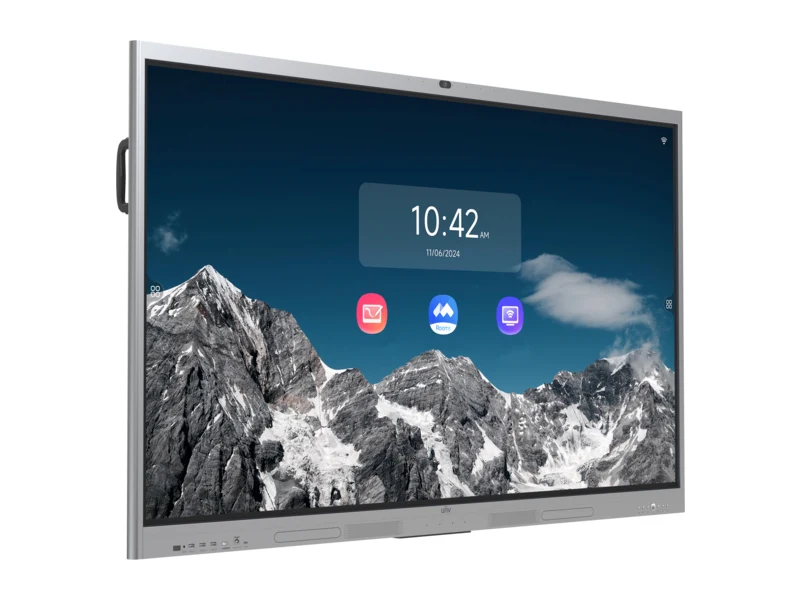

Smart Interactive Display · 65–86″

65–86″ 4K touch displays for meeting rooms — whiteboard, casting and conferencing.

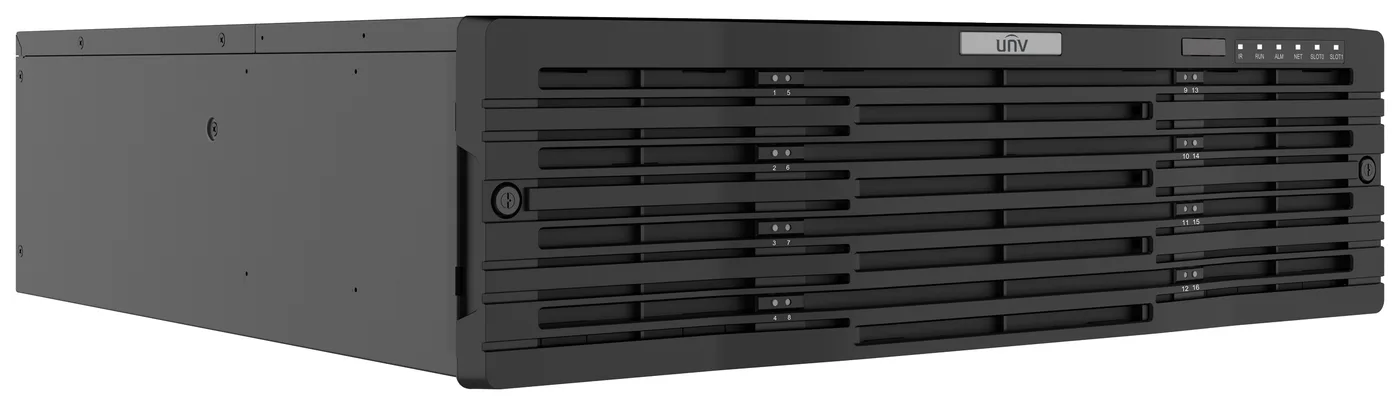

NVR516 Series · 64/128-ch NVR
