Uniview MW3232-V-K2 32 inch surveillance monitor, 45-degree front-left view

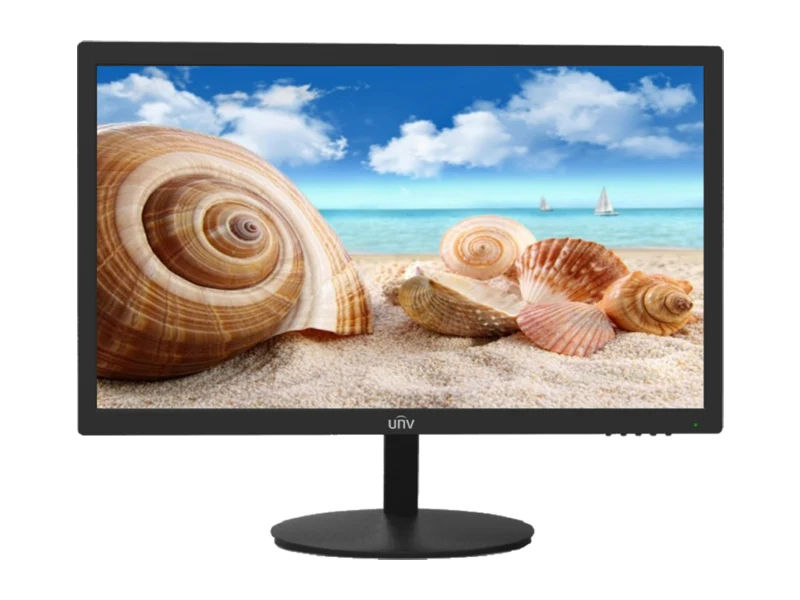

Uniview MW3222-V-DT 22 inch LED monitor, front view

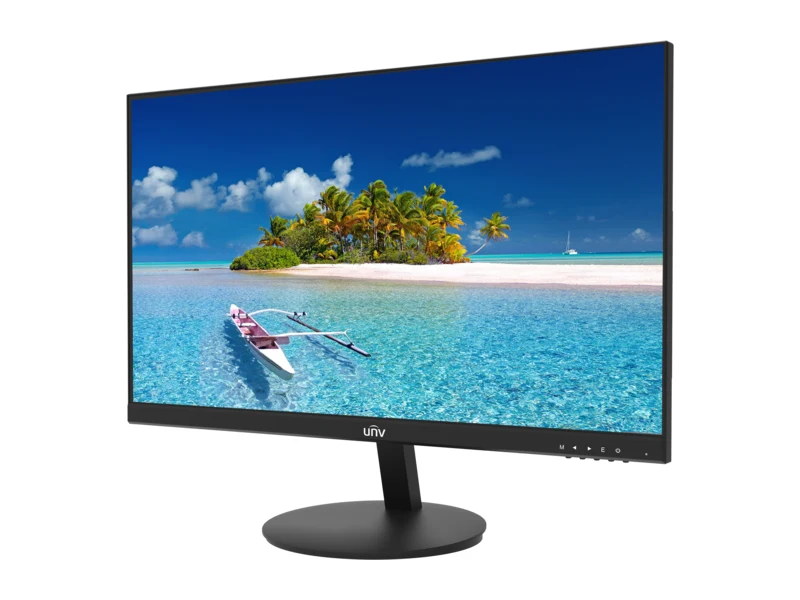

Uniview MW3224-V 24 inch LED monitor, front view

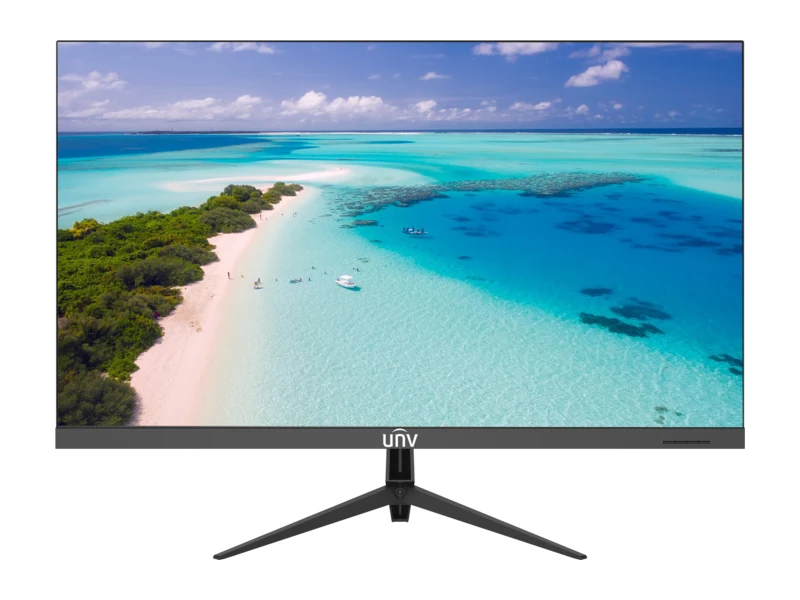

Uniview MW3232-V-K2 monitor front view with on-screen image

UniviewMW Series · 7×24 Rated

Surveillance LED Monitor · 3 Models · Full HD 1080p

Surveillance LED Monitor · 22″ / 24″ / 32″

Dedicated monitoring displays for the security desk: Full HD 1920×1080, 178° wide viewing, VGA + HDMI inputs with adaptive signal recognition, built-in speakers — and a panel rated for 7×24 continuous operation, which is where ordinary TVs give up.

1080p · 1920×1080 Full HD178° · viewing angle H/V7×24 · operation ratingVGA+HDMI · dual video inputVESA · 100×100 mountCE/FCC/RoHS · certified

CHOOSE YOUR SIZE — THREE MODELS ON THIS PAGE

All three are Full HD with VGA + HDMI and a 7×24 rating — pick by viewing distance. The 32″ adds 300 cd/m² brightness and a 75 Hz panel. Selecting a model updates the WhatsApp message; the spec table below compares all three.

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

3sizes — 22, 24, 32 inch

24/7operation hour rating

178°viewing angle H/V

50k hMTBF, 30k h panel lifetime

This page covers the three Full HD sizes of Uniview's surveillance monitor line: MW3222-V-DT (22″, VA panel, 3000:1 contrast), MW3224-V (24″, three-side slim bezel from 2.0 mm) and MW3232-V-K2 (32″, 300 cd/m², 75 Hz, plastic casing). All three run 1920×1080 at 178°/178° viewing, take VGA and HDMI with adaptive signal recognition, include stereo speakers and a pedestal, and mount on VESA 100×100. The panels are rated for 24/7 operation with 30,000-hour lifetime and 50,000-hour MTBF — the duty cycle a monitor actually sees next to an NVR at a guard desk or in a small control room.

Is this the right monitor for your project?

Plain-language guide — based only on what this product actually does.

Security control roomsLive view runs day and night — the 24/7-rated panel and low power draw are built for exactly this duty, where a consumer TV burns out early.

Guard desks & gatehousesPlug the NVR straight in over HDMI or VGA — the monitor recognizes the signal by itself, and the built-in speakers carry alarm audio without extra boxes.

Wall-mounted public viewAs a public-view monitor at entrances, the 178° angle keeps the picture readable from the side; VESA 100×100 puts it on any standard wall bracket.

Not the right pick if you need…

4K detail for command centers or forensic playback — see the 4K LED Monitor page (43″/55″, 3840×2160, IPS)
Touch, whiteboard and video meetings — that is the Smart Interactive Display line (65–86″)
A multi-screen wall canvas — LCD video walls and LED walls live in the LED Display category

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer.

1 · Company name2 · Corporate bank payment3 · Order registered in your name

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume DiscountBulk quantities of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

The complete series capability list.

True color display, Full HD 1920×1080 on all three sizes

Supports 7×24 working with low power consumption

Wide 178°(H) / 178°(V) viewing angle, no color shift from the side

Adaptive signal recognition on VGA and HDMI inputs

Built-in stereo speakers; simple OSD menu in 8+ languages

VESA 100×100 wall mount and included pedestal stand

MW3224-V: three-side super-slim bezel, blue-light reduction, DC dimming without flicker

MW3232-V-K2: plastic casing, lighter body, easy pedestal assembly, stable structural design

Full Specifications

Series specifications — technical values in English, quoted from the official datasheets.

Highlighted rows differ between the models:MW3222-V-DTMW3224-VMW3232-V-K2

Panel

Panel Size	22″ · 22"24″ · 24"32″ · 32"
Backlight	22″ · LED24″ · ELED32″ · D-LED
Resolution	1920 × 1080
Color Support	16.7 M
Brightness (cd/m²)	22″ · 25024″ · 25032″ · 300
Contrast Ratio	22″ · 3000:124″ · 1200:132″ · 4000:1
Response Time (ms)	22″ · 724″ · 1432″ · 8
Refresh Rate	22″ · 60 Hz24″ · 60 Hz32″ · 75 Hz
Viewing Angle (H/V)	Horizontal 178°, Vertical 178°
Pixel Pitch (H × V) (mm)	22″ · 0.248 x 0.24824″ · 0.2745 x 0.274532″ · 0.36 x 0.36
Display Size (mm)	22″ · 476.64 x 268.1124″ · 527.04 x 296.4632″ · 698.40 x 392.85
LCD Technology/Panel Type	22″ · VA24″ · —32″ · VA
Color Gamut	72% NTSC
Surface Treatment	Haze 25%, 3H
Operation Hour	24/7

Interface & Audio

Video Input	1 x VGA, 1 x HDMI
Audio Input	22″ · 1 x 3.5mm Mini-Jack24″ · 1 x 3.5mm Mini-Jack32″ · 1 x Audio
Speaker	22″ · 2 x 1.5 W24″ · 2 x 1.5 W32″ · 2 x 2 W
VESA (mm)	100 x 100
Wall-mounted Thread	22″ · 4-M4 Threaded Hole24″ · 4-M4 Threaded Hole, Depth 10mm32″ · 4-M4 Screw Holes, 8mm Deep

General

Input Voltage	22″ · DC 12 V, 2 A24″ · DC 12 V, 2 A32″ · DC 12V, 3A
Typical Power Consumption (W)	22″ · ≤24 (On)24″ · ≤24 (On)32″ · ＜36
Standby Power Consumption (W)	22″ · ≤0.5 (Standby)24″ · ≤0.5 (Standby)32″ · ＜0.5
Product Dimensions (W × H × D) (mm)	22″ · 508.02 x 392.87 x 200.00 (With Pedestal)24″ · 541.8 x 412.6 x 200 (With Pedestal)32″ · 712.54 x 517.14 x 199.64 (Including base)
Weight (kg)	22″ · Net 2.3 · Gross 3.424″ · Net 3.3 · Gross 4.632″ · Net 4.1 · Gross 6
Operating Temperature	0°C ~ 40°C
Operating Humidity	22″ · 20% ~ 85% (No Condensation)24″ · 20% ~ 85% (No Condensation)32″ · 10% ~ 90% (No Condensation)
Material	22″ · Plastic24″ · ABS32″ · ABS
Lifetime (h)	30000
MTBF (h)	50000 h
Certifications	CE/FCC/RoHS
In the Box	22″ · 1 x HDMI Cable, 1 x Adapter, 1 x Pedestal, 1 x Quick Guide24″ · HDMI Cable, Power Cable, Adapter, Pedestal, Quick Guide32″ · 1 x 1.5m HDMI Cable, 1 x Base, 1 x Adapter, 1 x Quick Guide

Engineering note: The three panels are not identical: the 22″ is VA with 3000:1 contrast and 7 ms response; the 24″ ELED panel runs 1200:1 and 14 ms and its datasheet does not state the panel type; the 32″ D-LED runs 4000:1, 300 cd/m² and 75 Hz on DC 12 V / 3 A (the smaller two use 12 V / 2 A adapters). All ship with a pedestal; for the 32″ the wall bracket HB-4022-E is listed as an optional accessory. Confirm power and mounting per site when ordering.

Surveillance Monitor FAQ — MW3222-V-DT / MW3224-V / MW3232-V-K2

How do the 22″, 24″ and 32″ models differ?

All three are 1920×1080. The 22″ (MW3222-V-DT) is a VA panel at 250 cd/m² and 3000:1; the 24″ (MW3224-V) is 250 cd/m² at 1200:1; the 32″ (MW3232-V-K2) is a VA panel at 300 cd/m², 4000:1 and a 75 Hz refresh rate versus 60 Hz on the smaller two.

Are they rated for 24/7 operation with an NVR?

Yes — the whole line is specified for 24/7 duty, with a 30,000-hour panel lifetime and 50,000-hour MTBF. That is the key difference from consumer TVs, which are not built for continuous surveillance display. Operating range is 0–40 °C, fine for a typical guard room.

What inputs do they have for connecting an NVR or DVR?

Each monitor has 1× VGA and 1× HDMI, covering both older DVRs and current NVRs. Audio from the recorder plays through built-in speakers — 2×1.5 W on the 22″ and 24″, 2×2 W on the 32″ — with a 3.5 mm audio input. An HDMI cable is included in the box.

How much power do they use? Can I run them on 12 V backup power?

They run on DC 12 V — 2 A for the 22″ and 24″, 3 A for the 32″ — via the supplied adapter. Consumption is low: ≤24 W on the 22″/24″ and under 36 W on the 32″, under 0.5 W in standby. The 12 V input makes integration with battery-backed CCTV power straightforward.

Can I wall-mount them next to the entrance or in a guard booth?

Yes. All three use the VESA 100×100 mm pattern with 4× M4 threaded holes, and a desk pedestal is included as standard. They are light — 2.3 kg (22″), 3.3 kg (24″) and 4.1 kg (32″) net — so a basic VESA arm or bracket carries them easily in a booth or reception desk.

Related Products

4K LED Monitor · 43″ / 55″

4K UHD 43″ & 55″ IPS monitors — the step up for command centers and detail playback.

Smart Interactive Display · 65–86″

65–86″ 4K touch displays for meeting rooms — whiteboard, casting and conferencing.

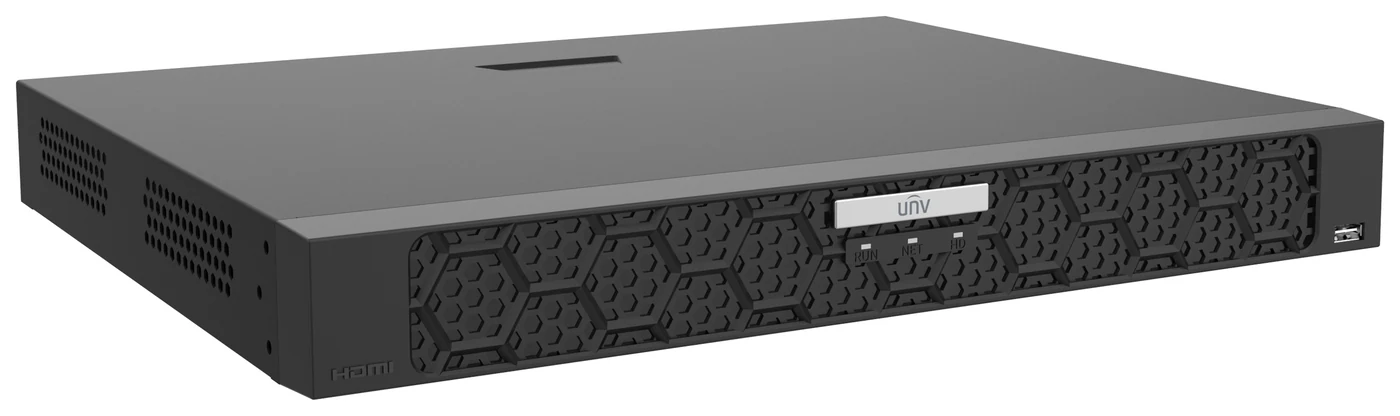

NVR502 Series · 8/16/32-ch PoE NVR
