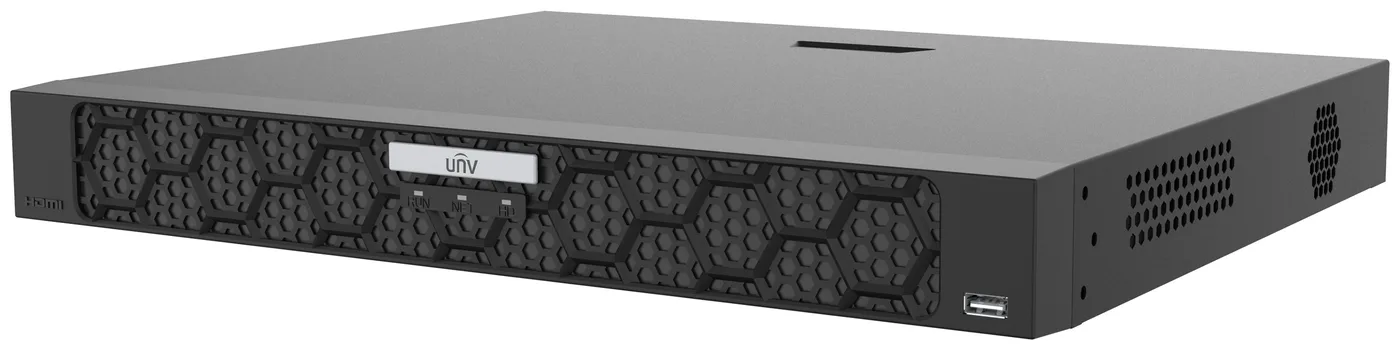

9/16/32-Channel 2-HDD Network Video Recorder NVR502-09B / NVR502-16B / NVR502-32B — view 3

9/16/32-Channel 2-HDD Network Video Recorder NVR502-09B / NVR502-16B / NVR502-32B — view 4

Uniview (UNV)B Series · 2× SATA HDD

2-HDD Network Video Recorder · B Series

NVR502-09 / 16 / 32B

9 / 16 / 32-channel network video recorder — Ultra 265 compression, 4K HDMI output, records cameras up to 16MP, with built-in Smart detection (face, vehicle, temperature) and RAID 1 dual-disk support.

16MP · max recordingUltra 265 · low storage4K HDMI · + VGA simultaneous2× SATA · up to 24 TB · RAID 1Smart Detection · built in38 languages · local interface

CHOOSE YOUR SIZE — THREE MODELS ON THIS PAGE

Rule of thumb: count your cameras, then leave room to grow — a site with 9 cameras runs comfortably on the 09B; pick the 16B or 32B if you may add cameras later, or need the extra HDD bay for RAID 1 redundancy. Highlighted rows in the spec table below show every difference between the three.

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

How many terabytes for your channels and days? Use the storage calculator →

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCULRoHSWEEEONVIFNDAA

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

9/16/32Channel options

320 MbpsIncoming bandwidth

2× 24 TBMax HDD capacity

4KHDMI output

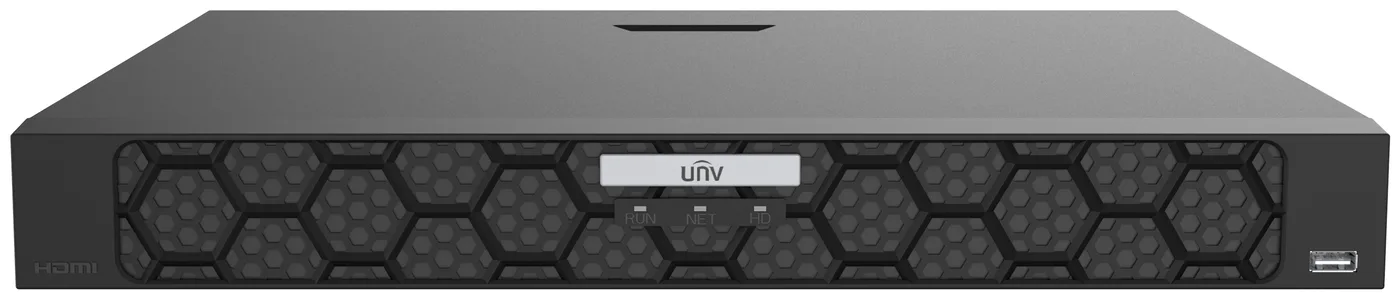

The Uniview NVR502-B Series is a 2-HDD network video recorder offered in three sizes: NVR502-09B (9-ch), NVR502-16B (16-ch) and NVR502-32B (32-ch). All three record cameras up to 16MP with Ultra 265 / H.265 / H.264 compression, output simultaneously over 4K HDMI and VGA, and include built-in Smart by IPC detection (Face Detection, Face Comparison, Vehicle Detection, Temperature Detection) plus VCA search (face, vehicle, human body, people counting, heat map). Two SATA bays each take a hard disk up to 24 TB with RAID 1 mirroring support; the local interface is available in 38 languages including Spanish (Latin America), Portuguese (Brazil) and French.

Is this the right recorder for you?

Plain-language guide for buyers and installers — based only on what this recorder actually does.

Right-sized, room to growThe 9-ch 09B covers a compact site today; the 16B and 32B share the same 2-bay chassis so you can size up without learning a new interface.

Large sites need disk redundancyTwo SATA bays with RAID 1 mirroring mean a single disk failure doesn't wipe out your footage — worth it once a site runs 16 or 32 cameras.

AI-assisted monitoringBuilt-in Face Detection, Face Comparison, Vehicle Detection (LPR) and Temperature Detection flag real events across all channels — no more scrubbing hours of empty footage.

Search by event, not by scrubbingVCA Search finds a face, a vehicle, a person or a crowd spike in seconds — with People Counting Report and Heat Map for foot-traffic analysis.

Remote viewing on phoneP2P protocol built in — the owner checks the site from a phone app without a fixed IP or network skills.

Fast backup via USB 3.0Three USB ports total — one on the front for quick access, plus one USB 2.0 and one USB 3.0 on the rear — pulling recorded footage onto a drive is fast even with everything else plugged in.

Not the right pick if you need…

PoE ports — cameras need a separate PoE switch (we bundle one at combo price)
RS232 serial control — the port is N/A on this series (RS485 is present for PTZ control)
More than 2 hard disks or RAID 5/6/10 — this chassis has 2 SATA bays with RAID 1 (mirroring) only
Simultaneous local snapshot on more than 4 channels — Snapshot is capped at 4-ch (max. D1 resolution) regardless of model size
Full 32-channel synchronous local playback on the NVR502-32B — local playback tops out at 16-ch even though this model accepts 32 camera inputs

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

Support Ultra 265/H.265/H.264 video formats

9/16/32-channel input

VGA and HDMI independent output

Up to 16 Megapixels resolution recording

ANR technology to enhance the storage reliability when the network is disconnected

Support cloud upgrade

Protects your footage. Finds the moment.

Two real capabilities from the datasheet that matter every day: disk redundancy and built-in smart search.

RAID 1 MIRRORING

One disk fails, footage survives

Two SATA bays run in RAID 1 mirroring — if one disk fails, the second keeps recording and holds an identical copy, so a hardware failure doesn't mean lost evidence.

SMART BY IPC

Real alerts, not hours of nothing

Built-in Face Detection, Face Comparison, Vehicle Detection (LPR) and Temperature Detection run across all channels (up to 8 images/s total), feeding Face Snapshot Search, Motor/Non-Motor Vehicle Search, Human Body Search, People Counting Report and Heat Map — search by event, not by scrubbing the timeline.

Which size fits your project?

Bars show camera capacity per model. Click the model buttons above to switch — the spec table highlights every other difference.

NVR502-09Blive view split 1/4/6/8/9 · sync playback 9-ch

9cameras

NVR502-16Blive view split 1/4/6/8/9/16 · sync playback 16-ch

16cameras

NVR502-32Blive view split up to 1/4/6/8/9/16/25/32 · sync playback 16-ch

32cameras

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the three models:NVR502-09B · 9-chNVR502-16B · 16-chNVR502-32B · 32-ch

Decoding

Decoding Format	Ultra 265, H.265, H.264
Decoding Capability	09B · Ultra 265/H.265: 2×16MP@30, 2×12MP@30, 4×4K@30, 6×5MP@30, 8×4MP@30, 9×3MP@30 \| H.264: 2×16MP(4800×2688)@30, 2×12MP@30, 2×4K@30, 4×5MP@30, 6×4MP@30, 8×3MP@30, 9×1080P@3016B · Ultra 265/H.265: 2×16MP@30, 2×12MP@30, 4×4K@30, 6×5MP@30, 8×4MP@30, 10×3MP@30, 16×1080P@30 \| H.264: 2×16MP(4800×2688)@30, 2×12MP@30, 2×4K@30, 4×5MP@30, 6×4MP@30, 8×3MP@30, 14×1080P@30, 16×720P@3032B · Ultra 265/H.265: 2×16MP@30, 2×12MP@30, 4×4K@30, 6×5MP@30, 8×4MP@30, 10×3MP@30, 16×1080P@30, 32×960P@25 \| H.264: 2×16MP(4800×2688)@30, 2×12MP@30, 2×4K@30, 4×5MP@30, 6×4MP@30, 8×3MP@30, 14×1080P@30, 30×720P@30, 32×D1
Decoding Capability Description	The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width. For VGA/HDMI independent output, the VGA live video is output by default — to output the highest-resolution video from the HDMI port, clear the VGA video on the preview page.
Audio Compression	G.711A, G.711U

Network

Incoming Bandwidth	320 Mbps
Outgoing Bandwidth	160 Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4
Browser (Plugin)	IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

Video/Audio Input

IP Video Input	09B · 9-ch16B · 16-ch32B · 32-ch
RCA Audio Input	1-ch

Video/Audio Output

HDMI Output	4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output	1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
RCA Audio Output	1-ch
Liveview Display	09B · 1/4/6/8/916B · 1/4/6/8/9/1632B · 1/4/6/8/9/16/25/32
Corridor Mode Screen	09B · 3/4/5/7/916B · 3/4/5/7/9/10/12/1632B · 3/4/5/7/9/10/12/16/32
Two-way Audio	1-ch, RCA (using the audio input and output)
Snapshot	FTP/Schedule/Event Snapshot; 4-ch snapshot (max. D1 (720×576) video resolution, with D1 snapshot resolution)

Recording

Recording Resolution	16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Synchronous Playback in Local	09B · 9-ch16B · 16-ch32B · 16-ch

Smart

Smart by IPC	All channels (up to 8 images/s in total): Face Detection, Face Comparison, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
VCA Search	Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map

Alarm

General Alarm	Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm	IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

GUI Language

38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Hard Disk

SATA	2 SATA Interfaces
Capacity	Up to 24 TB for each HDD (the maximum HDD capacity varies with environment temperature and hard disk size, the environment temperature for use should not exceed 40°C)
Disk Group	Support
Redundant Storage	Support
Disk Array Type	RAID 1

External Interface

Network Interface	2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB	Front: 1 × USB 2.0, Rear panel: 1 × USB 2.0, 1 × USB 3.0
RS485	1
RS232	N/A
Alarm In	8-ch
Alarm Out	2-ch
Power Supply	DC 12 V / 3 A

Working Environment

Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	≤ 90% RH (non-condensing)
Power Consumption (without HDD)	≤ 20 W

Dimensions

Weight (without HDD)	≤ 2 kg (4.40 lb)
Dimensions	380 mm × 315 mm × 53 mm (15.0" × 12.4" × 2.1")

Certification

Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC	Part15 Subpart B

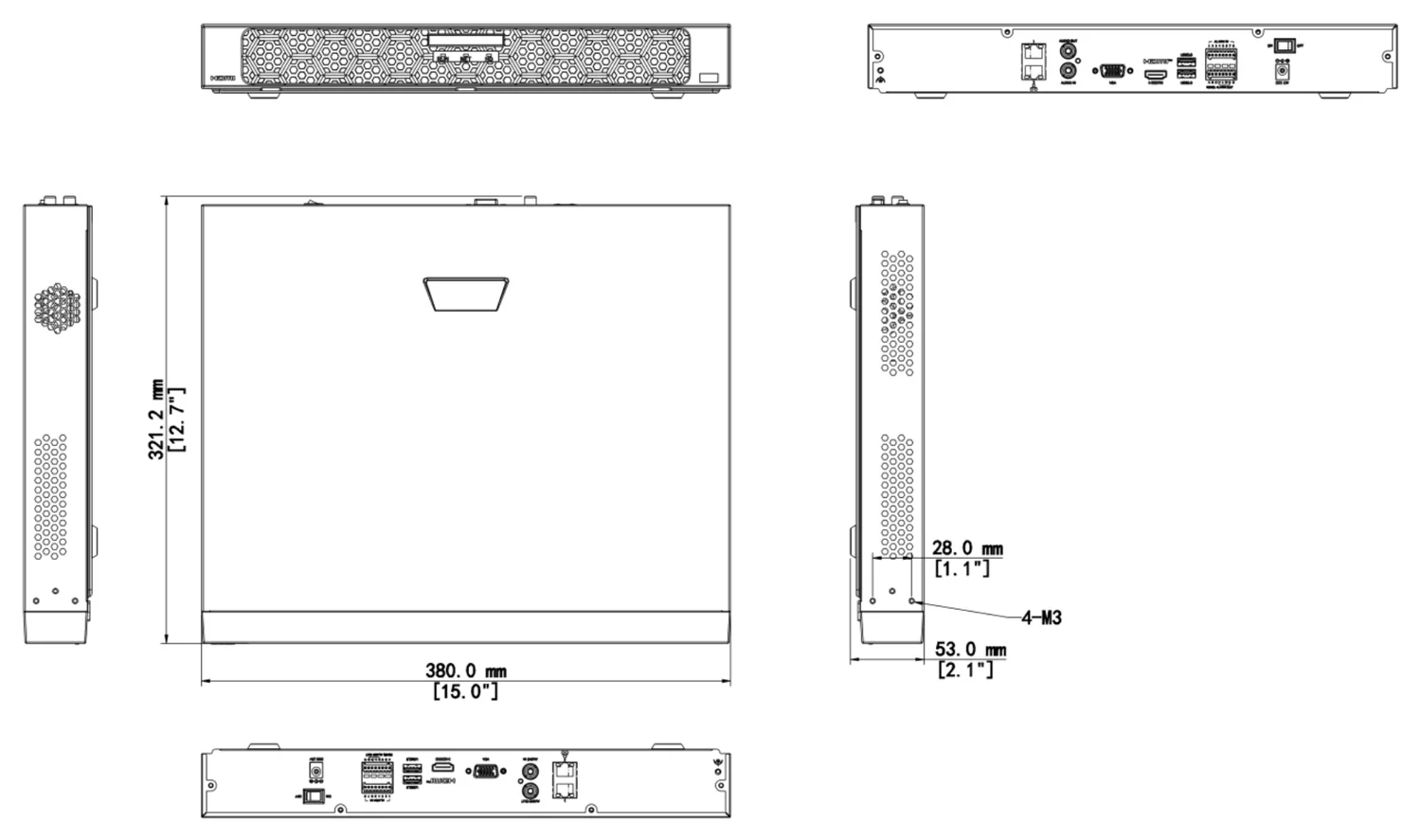

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	380 × 315 × 53 mm (15.0" × 12.4" × 2.1")
Weight (without HDD)	≤ 2 kg (4.40 lb)
Power supply	DC 12 V / 3 A
Consumption (without HDD)	≤ 20 W

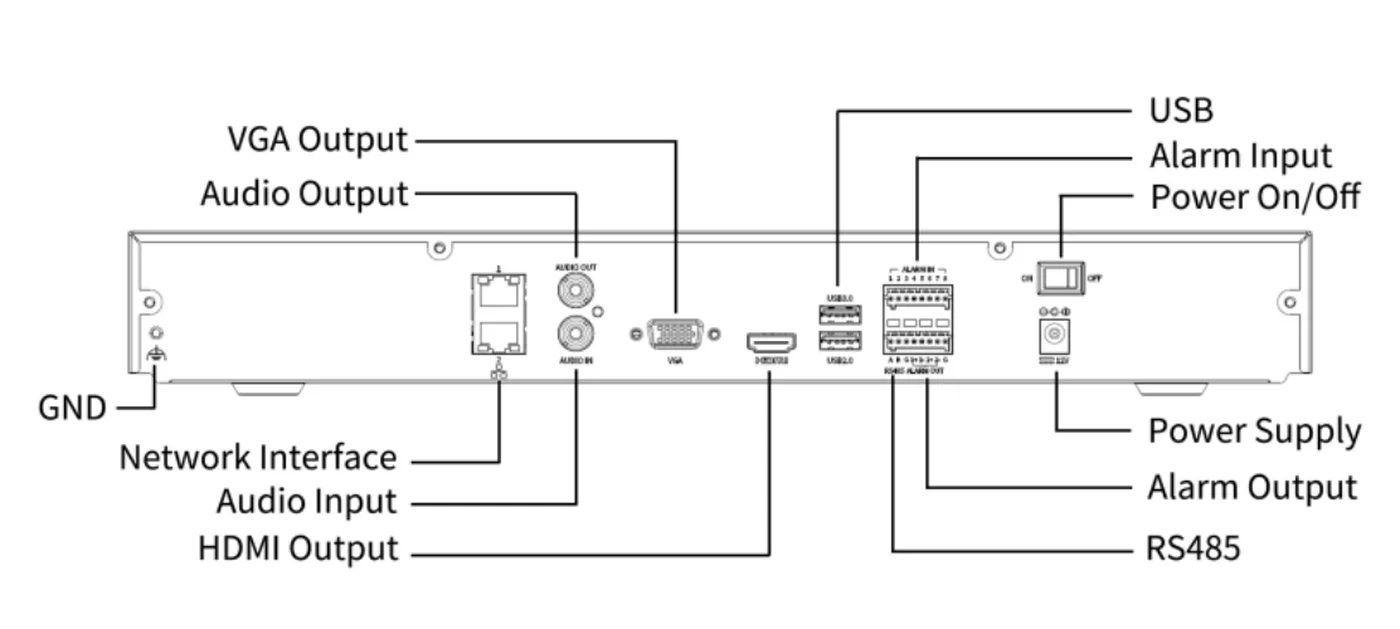

Rear panel — all interfaces

Optional Mounting Accessories

Order together with the camera to save shipping.

RM-1U-3802-HDD 1U NVR rack mount tray

9/16/32-Channel NVR FAQ — NVR502-B Series

How many IP cameras can I connect?

The NVR502-09B takes 9 IP cameras, the 16B 16 and the 32B 32, recording up to 16 MP per channel. Incoming bandwidth is 320 Mbps, so size camera bitrates to stay inside that figure, and pick the channel count that leaves room to add cameras as the site grows.

What happens if a hard drive fails?

The two SATA bays (up to 24 TB each) support Disk Group and Redundant Storage with RAID 1 mirroring, so both disks hold an identical copy of critical footage. A single drive failure then doesn't stop recording or lose the protected footage — worth enabling on sites where video is evidence, such as shops, warehouses and residential compounds.

Does it have built-in PoE ports?

No — this series has no PoE ports. It connects through two gigabit RJ45 interfaces, and cameras are powered by an external PoE switch on the LAN. That layout suits projects where cameras are spread across floors or buildings rather than home-run to the recorder.

Can I connect alarm sensors and sirens?

Yes — it has 8 alarm inputs and 2 alarm outputs plus an RS485 port, so PIR sensors, door contacts or sirens wire directly to the recorder and can trigger recording, snapshots or notifications alongside the video events.

Does it support face detection and smart search?

Yes — with UNV smart cameras, every channel can report Face Detection, Face Comparison, Vehicle Detection (LPR) and Temperature Detection events (up to 8 images/s total). The NVR indexes these events for VCA Search — face snapshot/comparison, vehicle and human-body search — so you jump straight to the right clip instead of scrubbing hours of video.

Can I view live video remotely?

Yes — up to 128 remote users can connect. The recorder supports P2P, DDNS, HTTP/HTTPS and RTSP and works in a browser (IE10/11, Chrome 45+, Edge 79+, Firefox 52+), so an integrator can check several client sites from one office. Outgoing bandwidth for remote streams is 160 Mbps.
