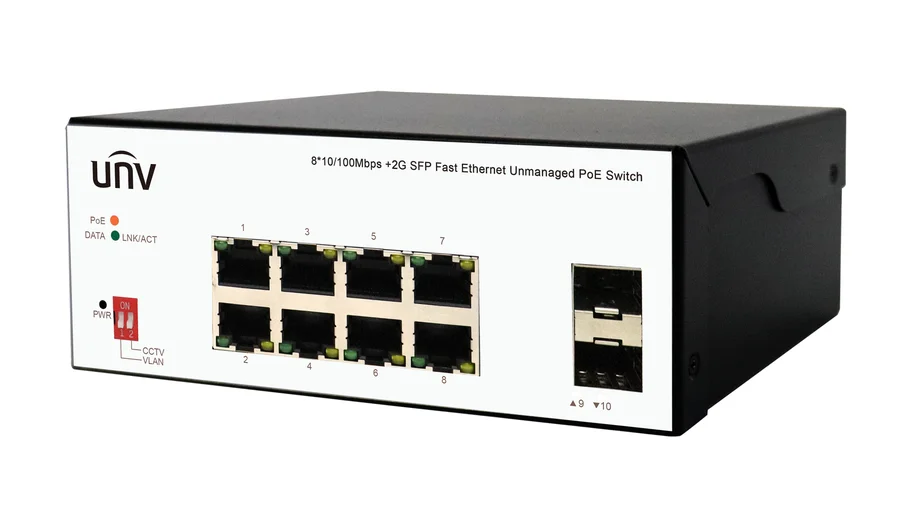

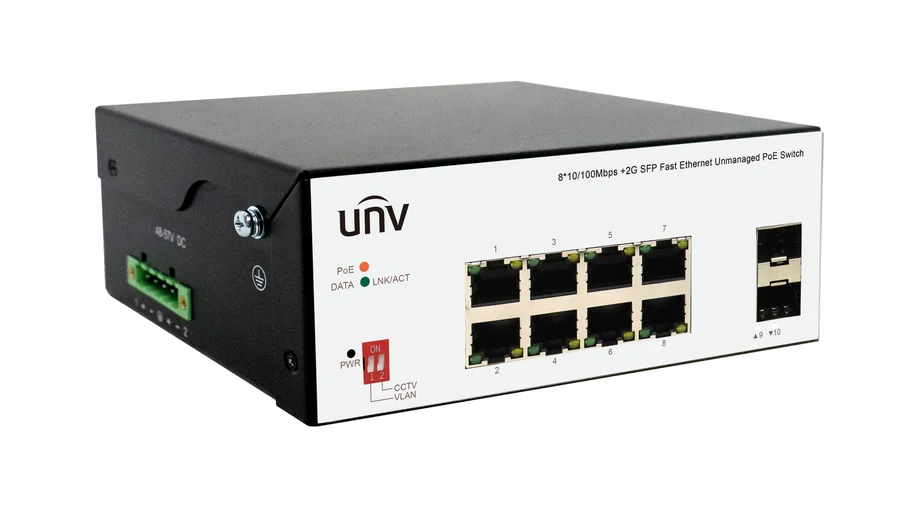

Manufacturer product photo · 8×FE PoE + 2×SFP
ISW2000-8T2GP-POE-IN
Uniview · Industrial PoE Switch
Unmanaged Harsh-Environment PoE Switch · 8×FE PoE + 2×GE SFP
Project-Based Pricing
Volume & combo discounts — get your quote
In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port
Get Best Price on WhatsAppTerms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
Not sure about the PoE budget? Size it with the calculator →
Need the PDF datasheet? Get it on WhatsApp →HOW TO GET A BETTER PRICE
Volume DiscountOrder 50+ pcs of this model
CONTACT US
Project Combo DiscountMix any categories & models storewide in one order — no quantity limit
BIGGER
Verified Project DiscountDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you
BIGGEST
All discounts are quoted personally — message me on WhatsApp ↑
◆PoE 120 W
◆8×FE PoE + 2×GE SFP
◆-30 ~ 65°C
◆5.6 Gbps
◆CCTV Mode 250 m
Overview
The ISW2000-8T2GP-POE-IN is an unmanaged industrial PoE Ethernet switch with 8 × 10/100Mbps RJ45 PoE ports (IEEE 802.3af/at, up to 30 W per port, 120 W total budget) and 2 × 1000Mbps SFP slots for a gigabit fiber uplink. It switches at 5.6 Gbps with 4.17 Mpps forwarding and store-and-forward transfer, and offers plug-and-play VLAN or CCTV (10 Mbps, up to 250 m) working modes with no configuration required. A -30 °C to 65 °C operating range with ±6/8 kV ESD and ±2/4 kV surge protection suits harsh field cabinets.
Is This the Right Fit?
Six real deployment scenarios matched to this model's actual datasheet specifications.
Mid-Scale PoE Camera PowerThe 120 W total budget powers eight typical fixed/turret cameras (10–15 W each) with headroom, and any single port can still deliver 30 W — one switch handles a mid-size camera cluster instead of daisy-chaining several small switches.
CCTV Mode for Perimeter & Gate RunsFlip the front DIP switch to CCTV mode and the port forces down to 10 Mbps, extending data-and-power transmission up to 250 m — enough to reach a perimeter camera or gate box well beyond the standard 100 m copper limit, with no configuration needed.
Plug-and-Play Field InstallFully unmanaged — no CLI, no web login, no VLAN setup. Flip the DIP switch to VLAN or CCTV mode and it works immediately, ideal for installers who need a drop-in switch on site.
Per-Port PoE Status at a GlanceDedicated PWR, LNK/ACT and PoE panel indicators let a technician confirm which port is powering a camera and which link is up — no laptop or software needed to spot a tripped port during a site walk.
Gigabit Fiber Uplink Beyond 100 mTwo 1000Mbps SFP slots carry the uplink to the NVR or core switch over fiber, breaking past copper's 100 m limit while the eight access ports keep serving local 10/100Mbps PoE devices.
Harsh Outdoor Cabinets-30 °C to 65 °C operating range with ±6/8 kV ESD and ±2/4 kV surge protection suit an unheated roadside or rooftop cabinet exposed to wide temperature swings across the year.
Not a good fit if:
- 8 ports at the full 30 W PoE+ ceiling would demand 240 W, well above the 120 W total budget — check actual camera draw and avoid loading every port to maximum simultaneously.
- Access ports are Fast Ethernet (10/100Mbps), not Gigabit — if downlink cameras need gigabit throughput, choose a GE-port PoE model instead.
- Unmanaged with only VLAN and CCTV working modes via the front DIP switch — no Web/SNMP interface, no per-port VLAN tagging or remote monitoring; choose a managed switch if you need those.
Key Features
- 8 × 10/100Mbps RJ45 PoE ports + 2 × 1000Mbps SFP slots
- PoE per IEEE 802.3af/at — up to 30 W per port, 120 W total budget
- Two plug-and-play working modes: VLAN (downlink-to-uplink only) and CCTV (10 Mbps, data & power up to 250 m)
- IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control
- Panel indicators (PWR, LNK/ACT, PoE) monitor status and assist fault diagnosis
- -30 °C to 65 °C wide operating temperature range for harsh field environments
Specifications
IEEE Standards
| IEEE802.3 / 802.3u / 802.3ab / 802.3z | 10/100/1000Base Ethernet |
| IEEE802.3x | Flow Control (full-duplex) & Backpressure (half-duplex) |
| IEEE802.3af / 802.3at | PoE / PoE+ |
Ports
| Copper | 8 × 10/100Mbps RJ45 (PoE) |
| Fiber | 2 × 1000Mbps SFP slots |
| Working modes | VLAN · CCTV (10 Mbps, data + power up to 250 m) |
| Transfer mode | Store-and-forward |
Performance
| Switching capacity | 5.6 Gbps |
| Forwarding rate | 4.17 Mpps |
| Packet buffer | 2 Mbit |
| MAC | 4K |
| Jumbo Frame | 16 KBytes |
PoE
| Total budget | 120 W |
| Per port | 30 W |
Power & Environment
| Power input | DC 48–57 V, powered by adapter · Adapter AC 100–240 V, 50/60 Hz · Max. power 135 W (including PoE) |
| Operating temp. | -30°C ~ 65°C |
| Humidity | Operating 5% ~ 95% · Storage 0% ~ 95%, non-condensing |
| ESD | Contact ±6 kV · Air ±8 kV |
| Surge | Differential ±2 kV · Common ±4 kV |
| Dimensions | 145 × 109 × 58 mm |
| Indicators | PWR · LNK/ACT · PoE |
Models & Ordering
| Model | Product Description | Price |
|---|---|---|
| ISW2000-8T2GP-POE-IN | Unmanaged industrial PoE switch — 8 × 10/100Mbps RJ45 PoE (802.3af/at, 30 W/port, 120 W total), 2 × 1000Mbps SFP slots, DC 48–57 V or AC 100–240 V adapter, -30 °C to 65 °C. |
SFP optical modules are quoted separately — tell us your fiber distances and we include the right optics in the same quote.
Project Bundles WelcomeCameras + NVR + switches + cabling quoted as one bundle · Free full-project BOM review.
Talk to an engineer →8-Port Industrial PoE Switch FAQ — ISW2000-8T2GP-POE-IN
How many IP cameras can the ISW2000-8T2GP-POE-IN power?
All 8 FE ports are PoE (IEEE 802.3af/at) with a 120 W total budget — an average of 15 W per port with all eight loaded. Typical fixed IP cameras draw 4–12 W, so a full 8-camera setup fits comfortably, and a single port can deliver up to 30 W for PTZ or heated housings.
Can it power a camera 250 m away?
Yes. In CCTV mode each copper port carries data plus PoE power up to 250 m at 10 Mbps, so distant cameras connect without mid-span extenders. Both VLAN and CCTV working modes are plug-and-play with no configuration, and the 2 × 1000 Mbps SFP slots handle the gigabit fiber uplink.
Will it survive heat, cold and surges in a field cabinet?
It is rated -30 to 65 °C with 5–95% non-condensing humidity, plus ±6 kV contact / ±8 kV air ESD and ±2 kV differential / ±4 kV common-mode surge protection. The 145 × 109 × 58 mm body suits pole cabinets, gate barriers and rooftop enclosures in hot or cold climates.
Is the switching capacity enough for 8 camera streams?
Yes: 5.6 Gbps switching capacity and 4.17 Mpps forwarding in store-and-forward mode, with a 2 Mbit packet buffer, 4K MAC table and 16 KB jumbo frames. Eight 100 Mbps camera links plus two gigabit SFP uplinks stay well inside that fabric, even with all streams recording continuously.
What power supply does the switch need?
It runs on DC 48–57 V from an AC 100–240 V, 50/60 Hz adapter, with 135 W maximum consumption including the full PoE load. That leaves the 120 W PoE budget fully usable. Front PWR, LNK/ACT and PoE indicators show power and per-port status during installation.
