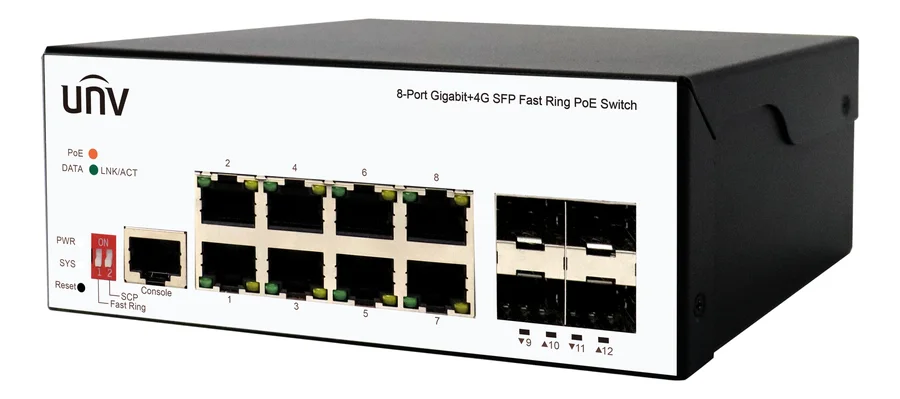

Manufacturer product photo · 8×GE + 4×SFP
ISW5000-8GT4GP-POE-IN
Uniview · Industrial PoE Switch
Harsh-Environment Managed Gigabit PoE Switch · 8×GE PoE + 4×SFP
Project-Based Pricing
Volume & combo discounts — get your quote
In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port
Get Best Price on WhatsAppTerms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
Not sure about the PoE budget? Size it with the calculator →
Need the PDF datasheet? Get it on WhatsApp →HOW TO GET A BETTER PRICE
Volume DiscountOrder 50+ pcs of this model
CONTACT US
Project Combo DiscountMix any categories & models storewide in one order — no quantity limit
BIGGER
Verified Project DiscountDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you
BIGGEST
All discounts are quoted personally — message me on WhatsApp ↑
◆PoE 120 W
◆8×GE + 4×SFP
◆-30 ~ 65°C
◆24 Gbps
◆ERPS One-Click Ring
Overview
The ISW5000-8GT4GP-POE-IN is a harsh-environment industrial managed Gigabit PoE switch with 8 × 10/100/1000M RJ45 PoE ports (IEEE 802.3af/at, up to 30 W per port, 120 W total budget) and 4 × 1000M SFP fiber slots. It delivers 24 Gbps switching capacity and 17.86 Mpps forwarding, with one-click ERPS ring, STP/RSTP/MSTP protection and full management over Web, Console, Telnet, SSH and SNMP v1/v2c/v3. A -30 °C to 65 °C operating range with ±6/8 kV ESD and ±2/4 kV surge protection suits demanding field cabinets.
Is This the Right Fit?
Six real deployment scenarios matched to this model's actual datasheet specifications.
Warehouse CCTV Power & BackboneThe 120 W PoE budget runs eight typical fixed cameras (10–13 W each) with headroom, and any single port can feed a 30 W device — one switch powers and aggregates a warehouse bay.
Factory Ring NetworkOne-click ERPS ring turns a chain of switches into a self-healing loop — if a cable is cut on the line, traffic reroutes automatically; commissioning takes one button, not a CLI session.
Fiber Uplink Beyond 100 mFour 1000M SFP slots take the backbone past copper's 100 m limit — multimode or single-mode optics per distance, with DDM optical diagnostics built in.
Outdoor Cabinets, Extreme Temperatures-30 °C to 65 °C operating range with ±6/8 kV ESD and ±2/4 kV surge protection — built for roadside and rooftop cabinets that bake in summer and freeze in winter.
Wire-Speed Video Aggregation24 Gbps switching and 17.86 Mpps forwarding keep all 12 ports at wire speed simultaneously — no dropped frames when every camera streams at once; LACP bundles uplinks for more headroom.
Managed Diagnostics for Remote SitesVirtual cable test, DDM optical readings, Syslog and SNMP traps let you diagnose a tunnel or rooftop site from the office — send a technician only when hardware truly failed.
Not a good fit if:
- Maximum 30 W per port (802.3af/at) — heated PTZ domes or other 802.3bt (60–90 W) devices need a bt-capable switch or midspan injector.
- Layer-2 managed with static routes only — if you need inter-VLAN dynamic routing (OSPF/RIP), choose a Layer-3 switch instead.
- Power input is DC 48–57 V or the AC 100–240 V adapter — no 12/24 V low-voltage input, so direct solar-battery or vehicle supplies need a DC-DC converter.
Key Features
- 8 × 10/100/1000M RJ45 PoE ports + 4 × 1000M SFP slots
- PoE per IEEE 802.3af/at — up to 30 W per port, 120 W total budget, 100 m data & power reach
- One-click ERPS ring and one-click storm suppression for fast field commissioning
- STP/RSTP/MSTP (64 instances) Layer-2 link protection
- Static & LACP link aggregation with load balancing and link backup
- Full management: Web, Console, Telnet, SSH, SNMP v1/v2c/v3, Syslog, NTP
- Security suite: dynamic ARP inspection, DHCP snooping, storm control, port isolation & security
Specifications
IEEE Standards
| IEEE802.3 / 802.3u / 802.3ab / 802.3z | 10/100/1000Base Ethernet |
| IEEE802.3x | Flow Control (full-duplex) & Backpressure (half-duplex) |
| IEEE802.3af / 802.3at | PoE / PoE+ |
Ports
| Copper | 8 × 10/100/1000Mbps RJ45 (PoE) |
| Fiber | 4 × 1000Mbps SFP slots |
| Transfer mode | Store-and-forward |
Performance
| Switching capacity | 24 Gbps |
| Forwarding rate | 17.86 Mpps |
| MAC | 8K |
| Jumbo Frame | 9 KBytes |
PoE
| Total budget | 120 W |
| Per port | 30 W |
| Pin mode | Mode A: 1/2(−), 3/6(+) |
| Reach | Data + power up to 100 m |
Management
| Access | Web / Console / Telnet / SSH |
| SNMP | v1 / v2c / v3 + Trap |
| Time & files | SNTP/NTP · FTP/TFTP · Syslog |
| Maintenance | Watchdog · CPU protect · Ping/Traceroute · Virtual cable test · DDM |
Layer-2 Features
| VLAN | 802.1Q 4K · Access/Trunk/Hybrid · QinQ · Voice VLAN · MAC/Protocol/IP-subnet based |
| Ring & spanning tree | ERPS · STP/RSTP/MSTP (64 inst.) · Loopback detection |
| Aggregation | Static + LACP (802.3ad), src/dst-mac/ip load balance |
| Multicast | IGMP Snooping v1/v2/v3 · Fast Leave · IGMP Proxy · MLD v1/v2 |
| IPv6 | ND Snooping · DHCPv6 · IPv6 ACL/ping/telnet · static route |
Security
| ARP | Dynamic ARP inspection · anti-spoofing/scanning · ARP guard |
| DHCP | Server/Relay/Snooping · Option 82/43/60/61/67 |
| Protection | Storm control · port isolation/security · ICMP attack prevention |
Power & Environment

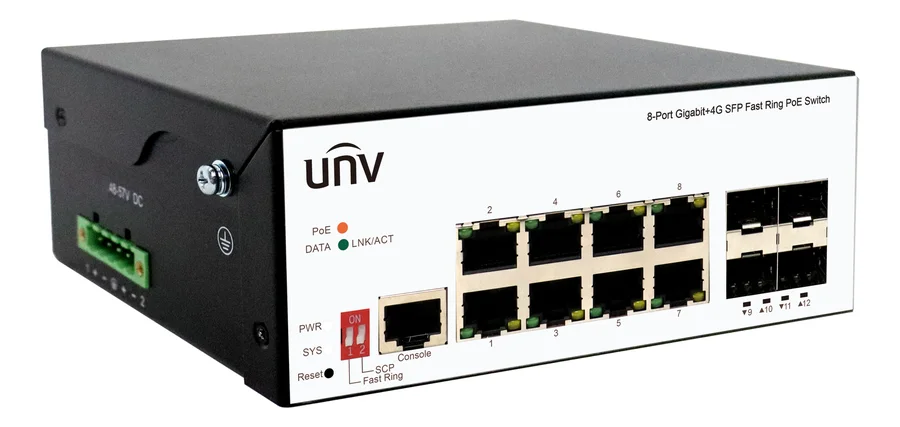

| Power input | DC 48–57 V · Adapter AC 100–240 V, 50/60 Hz |
| Operating temp. | -30°C ~ 65°C |
| Humidity | 5% ~ 95% non-condensing |
| ESD | Contact ±6 kV · Air ±8 kV |
| Surge | Differential ±2 kV · Common ±4 kV |
| Dimensions | 145 × 109 × 62.3 mm |
| Indicators | PWR · LNK/ACT |
Models & Ordering
| Model | Product Description | Price |
|---|---|---|
| ISW5000-8GT4GP-POE-IN | Harsh-environment managed Gigabit PoE switch — 8 × 10/100/1000M RJ45 PoE (802.3af/at, 30 W/port, 120 W total), 4 × 1000M SFP slots, DC 48–57 V or AC 100–240 V adapter, -30 °C to 65 °C. |
SFP optical modules are quoted separately — tell us your fiber distances and we include the right optics in the same quote.
Project Bundles WelcomeCameras + NVR + switches + cabling quoted as one bundle · Free full-project BOM review.
Talk to an engineer →Managed Industrial PoE Switch FAQ — ISW5000-8GT4GP-POE-IN
How much PoE power does the ISW5000-8GT4GP-POE-IN provide?
All 8 gigabit RJ45 ports source IEEE 802.3af/at PoE with a 120 W total budget — 15 W average per port fully loaded, up to 30 W on a single port for PTZ cameras. Pinout is Mode A (1/2 negative, 3/6 positive) and each port carries data plus power up to 100 m.
Can I build a redundant fiber ring with it?
Yes. It offers one-click ERPS ring protection plus STP/RSTP/MSTP with up to 64 instances and loopback detection. With 4 × 1000M SFP slots you can link cabinets into a fiber ring so a single fiber cut does not drop the cameras behind each node — a common layout for perimeter and roadside CCTV backbones.
How do I manage and troubleshoot it remotely?
Access runs over Web, Console, Telnet and SSH, with SNMP v1/v2c/v3 plus traps for the NMS, and SNTP/NTP, FTP/TFTP and Syslog for time and files. Maintenance tools include a hardware watchdog, CPU protection, ping/traceroute, virtual cable test and DDM optical diagnostics on the SFP links.
Which network features matter for a CCTV or factory LAN?
4K 802.1Q VLANs with Access/Trunk/Hybrid, QinQ and voice VLAN; static and LACP link aggregation; IGMP Snooping v1/v2/v3 with fast leave for multicast video; DHCP server/relay/snooping with Option 82; storm control, port isolation, dynamic ARP inspection and ICMP attack prevention for edge security.
Is it tough enough for harsh sites, and how fast is the fabric?
It operates -30 to 65 °C with ±6 kV contact / ±8 kV air ESD and ±2/±4 kV surge protection, powered from DC 48–57 V via an AC 100–240 V adapter. The fabric switches 24 Gbps at 17.86 Mpps with an 8K MAC table and 9 KB jumbo frames, in a 145 × 109 × 62.3 mm housing.
