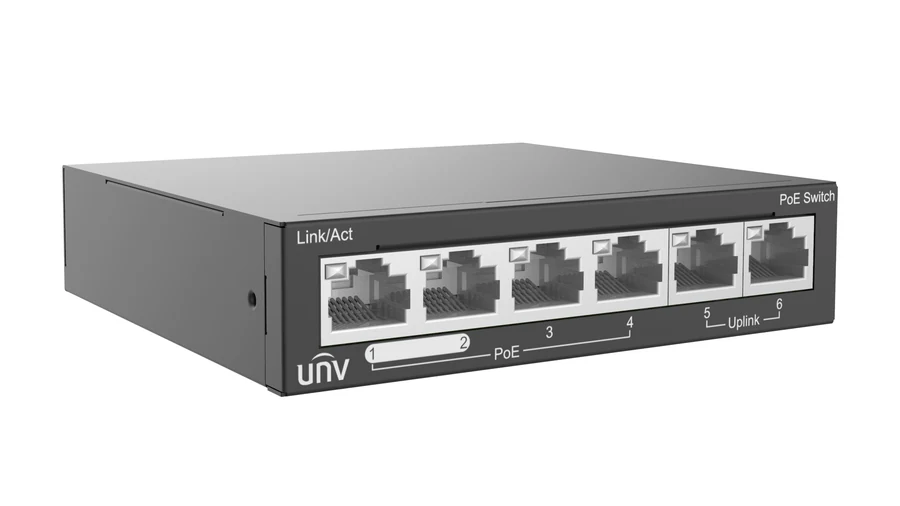

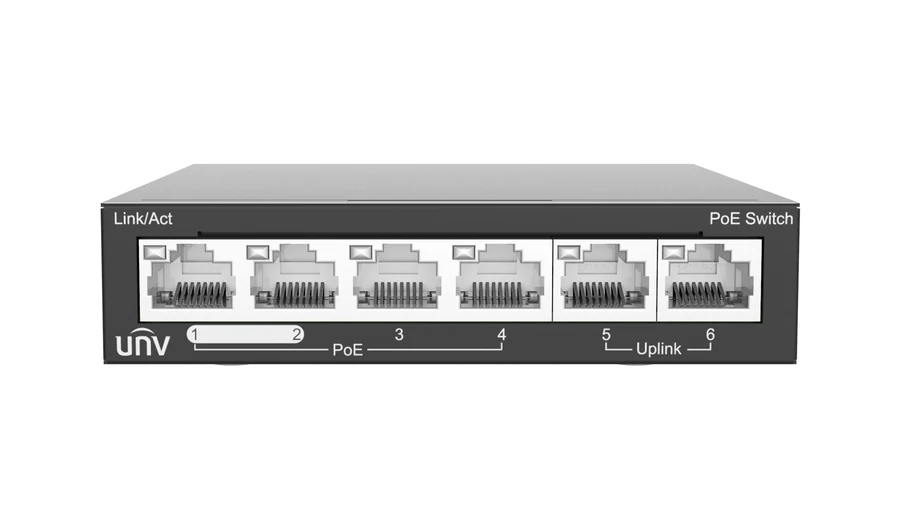

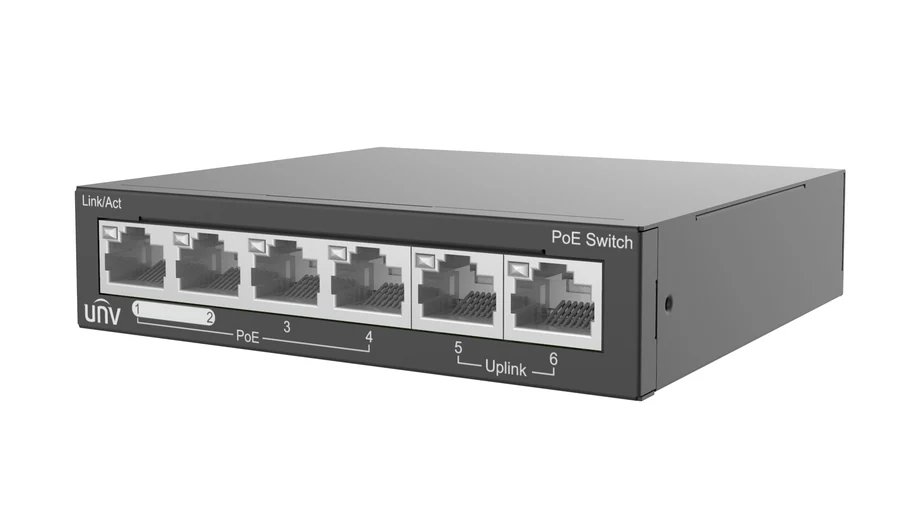

Manufacturer product photo · 6-port unmanaged PoE switch
NSW2020-6T-POE-IN
Uniview · PoE Switch
Unmanaged Fast Ethernet PoE Switch · 6×10/100M (4 PoE) + 2 Uplink
Project-Based Pricing
Volume & combo discounts — get your quote
In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port
Get Best Price on WhatsAppTerms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
Not sure about the PoE budget? Size it with the calculator →
Need the PDF datasheet? Get it on WhatsApp →HOW TO GET A BETTER PRICE
Volume DiscountOrder 50+ pcs of this model
CONTACT US
Project Combo DiscountMix any categories & models storewide in one order — no quantity limit
BIGGER
Verified Project DiscountDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you
BIGGEST
All discounts are quoted personally — message me on WhatsApp ↑
◆4 PoE Ports
◆PoE 60 W
◆1.2 Gbps
◆EXTEND 250 m
◆Fanless
Overview
The NSW2020-6T-POE-IN is an unmanaged Fast Ethernet PoE switch with 6 × 10/100Mbps RJ45 ports — 4 PoE-enabled downlink ports (ports 1-2 carry power priority) plus 2 uplink ports — built for plug-and-play CCTV micro-deployments. It delivers a 60 W total PoE power budget (30 W max per port, IEEE 802.3af/at, Mode B pinout: 4/5+, 7/8-) over a 1.2 Gbps switching fabric with 0.90 Mpps forwarding, a 448K bit packet buffer and a 1K MAC address table. A fanless, all-metal 107×101×25 mm housing (0.19 kg) runs from 0°C to 45°C, is NDAA compliant, and switches between Default (Normal) and EXTEND (250 m surveillance reach) working modes via a rear-panel slide switch — no management software required.
Is This the Right Fit?
Six real deployment scenarios matched to this model's actual datasheet specifications.
4-Camera PoE Micro-Hub for a Single Recorder4 PoE-enabled downlink ports (1-4) plus a dedicated uplink pair power and connect a compact 4-channel camera kit through one switch — plug straight into a 4-channel NVR without splitting cabling across two devices.
Priority Ports Protect Your Most Critical CameraPorts 1-2 carry PoE power priority, so an entrance camera or a critical asset feed on those ports keeps drawing power first if total demand approaches the 60 W budget — put your must-not-lose camera there.
EXTEND Mode Pushes One Camera Out to 250 mFlip the rear-panel switch to EXTEND (surveillance mode) and push power plus data up to 250 m — well past the standard 100 m Ethernet limit — for a single gate, driveway or perimeter camera set apart from the rest, without adding a repeater.
25 mm Micro Body Hides Behind a Monitor or Ceiling VoidAt just 107×101×25 mm and 0.19 kg — the lightest housing in the NSW20-series lineup — the all-metal fanless body is small enough to hide behind a monitor, inside a shallow ceiling void or zip-tied to a pole bracket.
NDAA-Compliant Pick for Small Public-Sector BidsNDAA compliance lets integrators quote this compact switch into US federal, municipal and other public-sector tenders that require Section 889-compliant network hardware — even for a small 4-camera add-on.
Silent 65 W Draw Beside a Small Rack or Reception Desk0 cooling fans and a 65 W max power draw keep the unit silent enough for a small reception cabinet, retail counter or open-plan office corner where a full-size rack switch would be overkill for just 4 cameras.
Not a good fit if:
- Unmanaged — no Web/CLI/SNMP access or VLAN tagging; the rear-panel switch offers only Default/EXTEND positions, with no separate VLAN-isolation mode; choose a managed switch if you need remote configuration or port isolation.
- Fast Ethernet only (10/100Mbps, no Gigabit) — for 4K or multi-stream camera backbones and NVR uplinks, choose a Gigabit PoE switch instead.
- 30 W max per port but only 60 W total budget — the 4 PoE ports can't all run at full 30 W simultaneously (4×30 W = 120 W ≫ 60 W budget), and 802.3bt heated PTZ domes (60–90 W) need a bt-capable switch or midspan injector since this model is 802.3af/at only.
Key Features
- 6 × 10/100Mbps RJ45 ports, including 4 PoE-enabled downlink ports (1-4) plus 2 uplink ports (5-6)
- 60 W total PoE budget, up to 30 W per port, IEEE 802.3af/at, Mode B pinout (4/5+, 7/8-)
- Ports 1-2 hold PoE power priority under budget contention
- IEEE 802.3x flow control and port traffic control for congestion management
- Packet buffer optimization for smoother multi-camera streaming
- EXTEND (surveillance) mode reaches up to 250 m via a rear-panel Default/Extend slide switch
- Fanless, all-metal 107×101×25 mm housing, NDAA compliant
Specifications
IEEE Standards
| IEEE802.3 / 802.3u | 10/100Base Ethernet |
| IEEE802.3az | Energy Efficient Ethernet (EEE) |
| IEEE802.3x | Flow control |
| IEEE802.3af / 802.3at | PoE / PoE+ power sourcing |
Ports
| Total ports | 6 × 10/100Mbps RJ45 |
| PoE ports | 4 (ports 1–4) |
| Uplink ports | 2 × 10/100Mbps RJ45 (ports 5–6) |
| Priority ports | 1–2 (PoE power priority) |
Performance
| Switching capacity | 1.2 Gbps |
| Forwarding rate | 0.90 Mpps |
| Packet buffer | 448K bit |
| MAC address table | 1K |
PoE
| Total budget | 60 W |
| Per port | 30 W max |
| PoE standard | IEEE 802.3af / 802.3at |
| Pin mode | Mode B: 4/5(+), 7/8(-) |
Power & Environment
| Power input | DC 48/51V (external adapter, AC 100–240V, 50/60Hz) |
| Max. power consumption | 65 W |
| Cooling | Fanless (0 fans) |
| Operating temp. | 0°C ~ 45°C (32°F ~ 113°F) |
| Humidity | 10% ~ 90% non-condensing |
| Dimensions (W×D×H) | 107 × 101 × 25 mm |
| Weight | 0.19 kg |
| Indicators | POWER · PoE-MAX · LINK/ACT |
| Working modes | Default (Normal) / EXTEND (250 m) — rear-panel slide switch |
| Compliance | NDAA compliant |
Models & Ordering
| Model | Product Description | Price |
|---|---|---|
| NSW2020-6T-POE-IN | Unmanaged Fast Ethernet PoE switch — 6 × 10/100Mbps RJ45 (4 PoE ports, 60 W total budget, 30 W/port max, Mode B), fanless all-metal housing, 0°C to 45°C, NDAA compliant. |
Single fixed-configuration SKU — no variant options for this model.

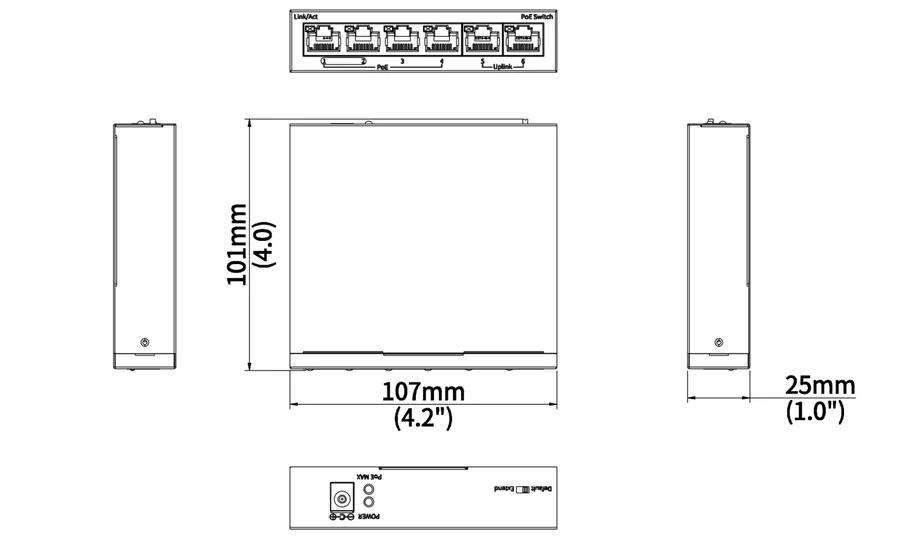

Dimensions
unit: mm
Project Bundles WelcomeCameras + NVR + switches + cabling quoted as one bundle · Free full-project BOM review.
Talk to an engineer →4-Port PoE Switch FAQ — NSW2020-6T-POE-IN
How many cameras can the NSW2020-6T-POE-IN handle?
Four PoE ports (1–4) share a 60 W budget — 15 W average each, with up to 30 W on a single port under IEEE 802.3af/at. Typical IP cameras draw 4–12 W, so four cameras run comfortably; ports 1–2 hold power priority if the budget tightens. Ports 5–6 are the uplinks.
How far can it push PoE to a camera?
100 m in Default mode. Slide the rear-panel switch to EXTEND and the link reaches 250 m — enough for a yard gate or a parking-lot pole without extra hardware. Power pinout is Mode B: pins 4/5 positive, 7/8 negative, per IEEE 802.3af/at.
How is the switch powered?
Through an external DC 48/51 V adapter that accepts AC 100–240 V, 50/60 Hz mains input. Whole-unit maximum consumption is 65 W. There are no fans: the 107 × 101 × 25 mm metal case cools silently and operates from 0 to 45 °C at 10–90 % humidity, non-condensing.
Is it suitable for a small shop or home CCTV kit?
That is exactly its role: plug-and-play with no configuration, a 1.2 Gbps switching fabric, 100 Mbps per port — ample for four camera streams — a 448K bit buffer and 1K MAC table, all in a 0.19 kg palm-size housing that tucks behind a counter. It is also NDAA compliant.
Which indicators and standards does it support?
LEDs show POWER, PoE-MAX and per-port LINK/ACT, so you can spot budget exhaustion at a glance. Standards covered: IEEE 802.3/802.3u Ethernet, 802.3x flow control, 802.3az Energy Efficient Ethernet and 802.3af/at PoE sourcing. Forwarding rate is 0.90 Mpps across the six 10/100 Mbps ports.
