Unmanaged DIN-Rail Gigabit PoE+ Switch ZJIES1000D-P-8PGT-DCH
Genuine product photo · 8-port gigabit PoE DIN-rail switch

ZJIES1000D-P-8PGT-DCH

Unmanaged PoE · DIN-Rail Gigabit
Unmanaged Industrial DIN-Rail Gigabit PoE+ Switch · 8×PoE GE Copper · DC 48V
Project-Based Pricing
Volume & combo discounts — get your quote
In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port
✓ Project-level customization & OEM supported
Get Best Price on WhatsApp

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Not sure about the PoE budget? Size it with the calculator →

Need the PDF datasheet? Get it on WhatsApp →
HOW TO GET A BETTER PRICE
Volume DiscountOrder 50+ pcs of this model
CONTACT US
Project Combo DiscountMix any categories & models storewide in one order — no quantity limit
BIGGER
Verified Project DiscountDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you
BIGGEST
All discounts are quoted personally — message me on WhatsApp ↑
◆PoE+ 802.3af/at
◆8-Port Gigabit PoE · 30W
◆~240W PoE Budget
◆DC 48V Redundant
◆-40 ~ 75°C · IP40 Fanless
◆5-Year Warranty

Overview

The ZJIES1000D-P-8PGT-DCH is an industrial unmanaged full-gigabit DIN-rail PoE switch with 8 × 10/100/1000Base-T PoE ports (IEEE 802.3af/at, PoE+, up to 30 W each) — a compact, copper-only gigabit PoE access switch. It delivers data and power over a single cable to IP cameras, IP phones and wireless APs, with a total PoE budget of about 240 W. Plug-and-play — no configuration — with store-and-forward switching in a fanless metal enclosure (50×150×120 mm) on DIN-rail (wall-mount optional). Powered by DC 48V (36–56V) with redundant dual input and reverse-polarity / overload protection, -40 to +75°C wide temperature and strong EMC immunity — ideal for industrial surveillance and edge PoE deployments.

Key Features

  • Unmanaged plug-and-play — zero configuration
  • 8 × Gigabit PoE ports (802.3af/at) — copper-only, no fiber
  • Up to 30 W per PoE port · ~240 W total PoE budget
  • Powers IP cameras, IP phones & wireless APs — data + power in one cable
  • DC 48V (36–56V) redundant dual input · reverse-polarity & overload protection
  • DIN-rail (default) · wall-mount optional · fanless IP40 metal 50×150×120 mm
  • Wide temperature -40 ~ +75°C · strong EMC immunity · 5-year warranty

Specifications

IEEE Standards

IEEE802.310BaseT Ethernet
IEEE802.3u100Base-T(X) & 100Base-FX Fast Ethernet
IEEE802.3ab1000Base-T(X) Ethernet
IEEE802.3xFlow Control
IEEE802.3af/atPower over Ethernet (PoE / PoE+)

Switching

MAC Address Table8K
Packet Buffer1 Mbit
ForwardingStore-and-forward

Interfaces

RJ45 PoE Ports8 × 10/100/1000Base-T (PoE af/at)
Fiber PortsNone (copper-only model)
PoE WiringV+/V+/V-/V- on Pins 1,2,3,6 (Endspan, MDI Alt A)
LED IndicatorsPower, Link, PoE

PoE Power

StandardIEEE 802.3af / 802.3at (PoE+)
PoE Ports8 (all RJ45 ports)
Per-Port PowerUp to 30 W @ 48V DC
Total PoE BudgetUp to ~240 W (8 × 30 W)
Powering MethodEndspan, MDI Alternative A
Powered DevicesIP cameras, IP phones, wireless APs, etc.

Power

Terminal4-pin terminal, dual redundant input
DC InputDC 48V, range 36–56V DC
Input CurrentMax 5.1A @ 48V DC (PoE loaded)
Power ProtectionReverse-polarity & overload

Physical

HousingIP40 fanless metal enclosure
MountingDIN-rail (default), wall-mount optional
Dimensions50 (W) × 150 (H) × 120 (D) mm

Certification

EMCCE, FCC
EMIFCC Part 15, CISPR (EN55022) Class A
EMSEN61000-4-2/3/4/5/6/8 Level 3
ShockIEC60068-2-27
Free FallIEC60068-2-32
VibrationIEC60068-2-6
GreenRoHS, WEEE

Environment

Standard Temp-10 ~ +60°C
Wide Temp-40 ~ +75°C
Storage Temp-40 ~ +85°C
Humidity5–95% non-condensing

Reliability

MTBF320,000 hours
Warranty5 years

Models & Ordering

ModelProduct DescriptionPrice
ZJIES1000D-P-8PGT-DCHUnmanaged DIN-rail gigabit PoE switch — 8 × 10/100/1000Base-T PoE (802.3af/at, max 30W each), DC 48V.✆ WhatsApp

All 8 RJ45 ports are gigabit PoE (802.3af/at, up to 30W each). Copper-only — no fiber ports. DC 48V (36–56V) input, dual redundant; 48V is required to source PoE. The requested model is ZJIES1000D-P-8PGT-DCH.

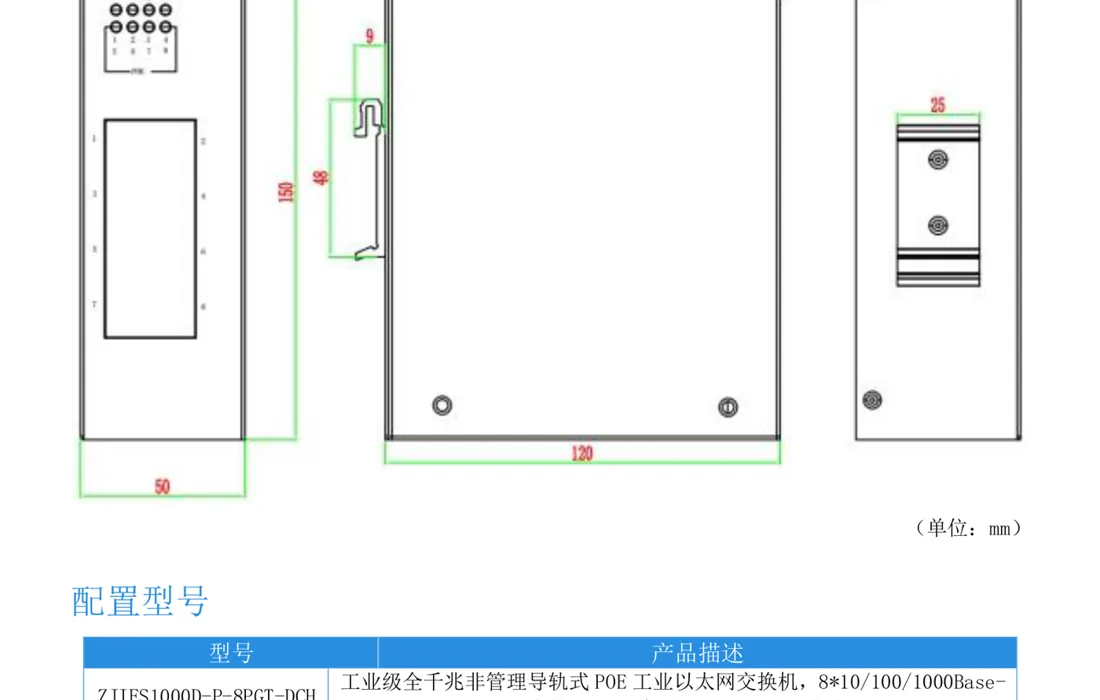

Dimensions

ZJIES1000D-P-8PGT-DCH dimensions drawing in mm
unit: mm
Your Brand. Our Factory.Neutral casing, ready for your logo · Custom port/PoE options · Small batches welcome.
Custom & OEM →

8-Port Gigabit PoE Switch FAQ — ZJIES1000D-P-8PGT-DCH

How many IP cameras can the ZJIES1000D-P-8PGT-DCH power?
All 8 gigabit RJ45 ports supply PoE under IEEE 802.3af/at, up to 30 W each, with a total budget of about 240 W — that is 30 W per port even with all 8 loaded. A full 8-camera CCTV cluster, including PTZ or heated housings on any port, is within budget.
Why choose gigabit ports for a CCTV switch?
Each port is 10/100/1000Base-T, so every camera gets a full gigabit link instead of sharing 100 Mbps. With an 8K MAC address table, store-and-forward switching and IEEE 802.3x flow control, the switch keeps multiple high-bitrate video streams moving without drops.
What power input does it require?
DC 48V in the 36–56V range on a 4-pin terminal with dual redundant input. Size the supply for a maximum input current of 5.1 A at 48V with PoE fully loaded — roughly 245 W. Reverse-polarity and overload protection are built in.
How is PoE delivered over the cable?
Power is injected Endspan on MDI Alternative A: V+/V+ on pins 1 and 2, V-/V- on pins 3 and 6, sharing the same pairs as data. Standard 802.3af/at powered devices — IP cameras, IP phones, wireless APs — negotiate power automatically; no splitters or injectors are needed.
Is it suitable for harsh, unattended sites?
Yes. It is fanless in an IP40 metal case (50 x 150 x 120 mm) on DIN rail or wall, unmanaged so nothing needs remote administration. Standard temperature -10 to +60°C, wide version -40 to +75°C, EN61000-4 Level 3 EMS immunity, 320,000-hour MTBF, 5-year warranty.
Does this model include fiber uplinks?
No — the -8PGT-DCH is copper-only: 8 gigabit PoE ports, no fiber interface. It suits sites where the uplink stays on copper. If the run back to the control room needs fiber, the related ZJIES1000D-P models add 2 or 4 x 1000Base-X SFP slots to the same 8-port PoE base.
