Genuine product photo · 16-port copper DIN-rail Fast Ethernet switch

ZJIES1000D-16T-DCL

Name: Atlas ZJIES1000D-16T-DCL
Brand: Zhongxin Shutong

Unmanaged · DIN-Rail Fast Ethernet

Unmanaged Industrial DIN-Rail Fast Ethernet Switch · 16×FE Copper · DC 24V

Project-Based Pricing

Volume & combo discounts — get your quote

In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

✓ Project-level customization & OEM supported

Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →

HOW TO GET A BETTER PRICE

Volume DiscountOrder 50+ pcs of this model

Project Combo DiscountMix any categories & models storewide in one order — no quantity limit

BIGGER

Verified End-User DiscountEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice

BIGGEST

All discounts are quoted personally — message me on WhatsApp ↑

Overview

The ZJIES1000D-16T-DCL is an industrial unmanaged Fast Ethernet DIN-rail switch with 16 × 10/100Base-T copper ports — a high-density, copper-only 100M access/aggregation switch with no fiber ports. It is plug-and-play — no configuration required — with store-and-forward switching, an 8K MAC table and a fanless metal enclosure (65×150×120 mm) on DIN-rail (wall-mount optional). This -DCL variant runs on DC 24V (12–36V) with redundant dual input and reverse-polarity / overload protection; it draws under 6 W, operates from -40 to +75°C and offers strong EMC immunity — ideal for dense industrial edge and aggregation cabinets.

Key Features

Unmanaged plug-and-play — zero configuration
16 × 10/100Base-T Fast Ethernet copper — pure-copper, no fiber
High-density design · 8K MAC · store-and-forward
DC 24V (12–36V) redundant dual input (-DCL) · under 6 W
DIN-rail mounting (default) · wall-mount optional · 65×150×120 mm metal
Fanless IP40 · wide temp -40 ~ +75°C · strong EMC immunity
Reverse-polarity & overload protection · 5-year warranty

Specifications

IEEE Standards

IEEE802.3	10BaseT Ethernet
IEEE802.3u	100Base-T(X) & 100Base-FX Fast Ethernet
IEEE802.3x	Flow Control

Switching

MAC Address Table	8K
Packet Buffer	1 Mbit
Forwarding	Store-and-forward

Interfaces

RJ45 Ports	16 × 10/100Base-T
Fiber Ports	None (copper-only model)
LED Indicators	Power, Link

Power

Terminal	4-pin terminal, dual redundant input
DC Input (-DCL)	DC 24V, range 12–36V DC
Other Options	-DCH: DC 48V (36–56V) · -AC: AC 220V (100–240V)
Power Consumption	Max 6 W
Power Protection	Reverse-polarity & overload

Physical

Housing	IP40 fanless metal enclosure
Mounting	DIN-rail (default), wall-mount optional

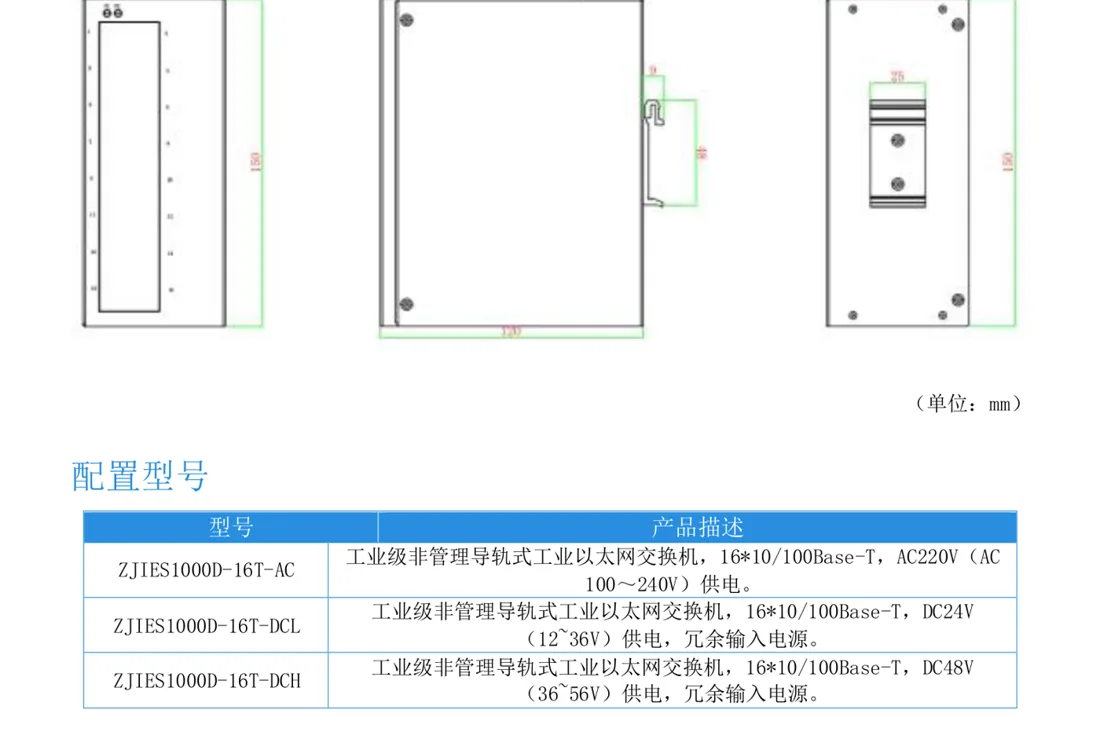

Dimensions	65 (W) × 150 (H) × 120 (D) mm

Certification

EMC	CE, FCC
EMI	FCC Part 15, CISPR (EN55022) Class A
EMS	EN61000-4-2/3/4/5/6/8 Level 3
Shock	IEC60068-2-27
Free Fall	IEC60068-2-32
Vibration	IEC60068-2-6
Green	RoHS, WEEE

Environment

Standard Temp	-10 ~ +60°C
Wide Temp	-40 ~ +75°C
Storage Temp	-40 ~ +85°C
Humidity	5–95% non-condensing

Reliability

MTBF	320,000 hours
Warranty	5 years

Models & Ordering

Model	Product Description	Price
ZJIES1000D-16T-DCL	Unmanaged DIN-rail Fast Ethernet switch — 16 × 10/100Base-T, DC 24V (12–36V), redundant input.	✆ WhatsApp
ZJIES1000D-16T-DCH	Unmanaged DIN-rail Fast Ethernet switch — 16 × 10/100Base-T, DC 48V (36–56V), redundant input.	✆ WhatsApp
ZJIES1000D-16T-AC	Unmanaged DIN-rail Fast Ethernet switch — 16 × 10/100Base-T, AC 220V (100–240V).	✆ WhatsApp

This page is the -DCL variant: DC 24V (12–36V) with redundant input. Same 16-port model is also offered as -DCH (DC 48V, 36–56V) and -AC (AC 220V). Copper-only Fast Ethernet, no fiber. The requested model is ZJIES1000D-16T-DCL.

16-Port DIN-Rail Industrial Switch FAQ — ZJIES1000D-16T-DCL

Does the ZJIES1000D-16T-DCL have fiber ports?

No — this is the copper-only model: 16 × 10/100Base-T RJ45 ports and no fiber. It is meant as a high-density 100M access and aggregation switch at the industrial edge, uplinking over copper. Its ordering options concern power only: -DCL for DC 24V, -DCH for DC 48V, -AC for AC 220V.

What does the -DCL suffix mean for power?

-DCL is the DC 24V build, accepting 12–36V on a 4-pin terminal with dual redundant inputs, reverse-polarity and overload protection. Sister options are -DCH for DC 48V (36–56V) and -AC for AC 220V (100–240V). Maximum draw is just 6 W, easy on solar or battery-backed cabinets.

Can it survive heat and dust without a fan?

Yes. The fanless IP40 metal enclosure has no moving parts to clog, and the switch runs from -40 to +75°C in the wide-temperature version (-10 to +60°C standard) at 5–95% non-condensing humidity. EMS immunity meets EN61000-4 Level 3 and MTBF is 320,000 hours.

How do I install it in the cabinet?

It clips onto a standard DIN rail by default; a wall-mount option is available. The compact 65 × 150 × 120 mm case leaves room in crowded control boxes, and power plus link LEDs per port let you verify all 16 connections at a glance during commissioning.

Is any configuration required?

None. It is an unmanaged plug-and-play switch: wire the DC input, plug in up to 16 devices and traffic flows. Forwarding is store-and-forward with an 8K MAC address table, 1 Mbit packet buffer and 802.3x flow control — nothing to license, update or misconfigure in the field.

What warranty and certifications does it carry?

It carries CE and FCC EMC marks, FCC Part 15 / EN55022 Class A EMI, EN61000-4-2/3/4/5/6/8 Level 3 EMS, and IEC60068-2 shock, free-fall and vibration test compliance, plus RoHS and WEEE. Warranty is 5 years, with MTBF rated at 320,000 hours.
