ZJIES1000D-16T2S-DC

Name: Atlas ZJIES1000D-16T2S-DC
Brand: Zhongxin Shutong

Unmanaged · DIN-Rail Fast Ethernet

Unmanaged Industrial DIN-Rail Fast Ethernet Switch · 16×FE + 2×Fiber · DC 24V/48V

Project-Based Pricing

Volume & combo discounts — get your quote

In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

✓ Project-level customization & OEM supported

Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →

HOW TO GET A BETTER PRICE

Volume DiscountOrder 50+ pcs of this model

Project Combo DiscountMix any categories & models storewide in one order — no quantity limit

BIGGER

Verified End-User DiscountEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice

BIGGEST

All discounts are quoted personally — message me on WhatsApp ↑

Overview

The ZJIES1000D-16T2S-DC is an industrial unmanaged Fast Ethernet DIN-rail switch with 16 × 10/100Base-T copper ports and 2 × 100Base-FX fixed fiber uplinks — a higher-density 100M access/aggregation switch. It is plug-and-play — no configuration required — with store-and-forward switching, an 8K MAC table, 4 Mbit buffer and a fanless metal enclosure (65×150×120 mm) on DIN-rail (wall-mount optional). Powered by DC 24V (12–36V) or 48V (36–56V) with redundant dual input with reverse-polarity and overload protection, it draws under 12 W, operates from -40 to +75°C and offers strong EMC immunity — ideal for dense industrial edge and aggregation cabinets where a simple, rugged, silent 100M switch is needed.

Key Features

Unmanaged plug-and-play — zero configuration
16 × 10/100Base-T + 2 × 100Base-FX fixed fiber (SC/ST/FC/LC)
High-density design · 8K MAC · 4 Mbit buffer · store-and-forward
DC 24V (12–36V) / 48V (36–56V), redundant dual input
DIN-rail mounting (default) · wall-mount optional · 65×150×120 mm metal
Fanless IP40 · wide temp -40 ~ +75°C · strong EMC immunity
Reverse-polarity & overload protection · 5-year warranty

Specifications

IEEE Standards

IEEE802.3	10BaseT Ethernet
IEEE802.3u	100Base-T(X) & 100Base-FX Fast Ethernet
IEEE802.3x	Flow Control

Switching

MAC Address Table	8K
Packet Buffer	4 Mbit
Forwarding	Store-and-forward

Interfaces

RJ45 Ports	16 × 10/100Base-T
Fiber Ports	2 × 100Base-FX fixed (SC/ST/FC/LC optional)
Optical Distance	Multimode 2 km; single-mode 20 / 40 / 60 / 120 km
LED Indicators	Power, Link, Fiber

Power

Terminal	4-pin terminal, dual redundant input
DC 24V Input	DC 24V, range 12–36V DC
DC 48V Input	DC 48V, range 36–56V DC
Power Consumption	Max 12 W
Power Protection	Reverse-polarity & overload

Physical

Housing	IP40 fanless metal enclosure
Mounting	DIN-rail (default), wall-mount optional

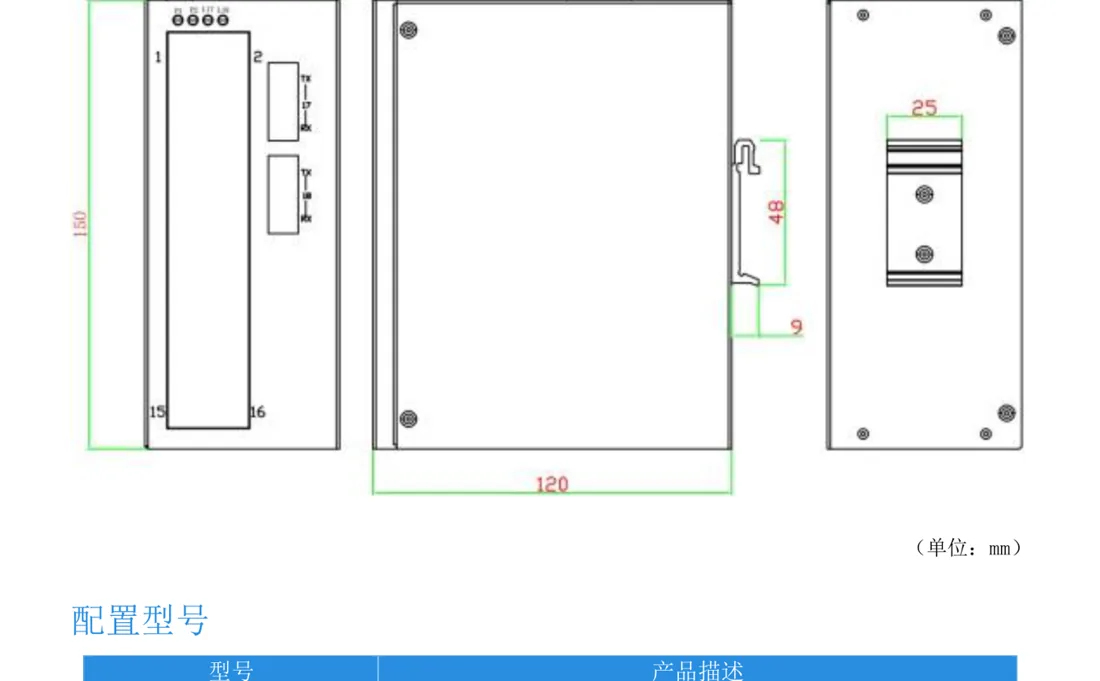

Dimensions	65 (W) × 150 (H) × 120 (D) mm

Certification

EMC	CE, FCC
EMI	FCC Part 15, CISPR (EN55022) Class A
EMS	EN61000-4-2/3/4/5/6/8 Level 3
Shock	IEC60068-2-27
Free Fall	IEC60068-2-32
Vibration	IEC60068-2-6
Green	RoHS, WEEE

Environment

Standard Temp	-10 ~ +60°C
Wide Temp	-40 ~ +75°C
Storage Temp	-40 ~ +85°C
Humidity	5–95% non-condensing

Reliability

MTBF	320,000 hours
Warranty	5 years

Models & Ordering

Model	Product Description	Price
ZJIES1000D-16T2S-DCL	Unmanaged DIN-rail Fast Ethernet switch — 16 × 10/100Base-T + 2 × 100Base-FX fixed fiber (SC/ST/FC/LC), DC 24V (12–36V), redundant input.	✆ WhatsApp
ZJIES1000D-16T2S-DCH	Unmanaged DIN-rail Fast Ethernet switch — 16 × 10/100Base-T + 2 × 100Base-FX fixed fiber (SC/ST/FC/LC), DC 48V (36–56V), redundant input.	✆ WhatsApp
ZJIES1000D-16T2S-AC	Unmanaged DIN-rail Fast Ethernet switch — 16 × 10/100Base-T + 2 × 100Base-FX fixed fiber (SC/ST/FC/LC), AC 220V (100–240V).	✆ WhatsApp
ZJIES1000D-14T4S-AC	Unmanaged DIN-rail Fast Ethernet switch — 14 × 10/100Base-T + 4 × 100Base-FX fixed fiber (SC/ST/FC/LC), AC 220V (100–240V).	✆ WhatsApp
ZJIES1000D-14T4S-DCL	Unmanaged DIN-rail Fast Ethernet switch — 14 × 10/100Base-T + 4 × 100Base-FX fixed fiber (SC/ST/FC/LC), DC 24V (12–36V), redundant input.	✆ WhatsApp
ZJIES1000D-14T4S-DCH	Unmanaged DIN-rail Fast Ethernet switch — 14 × 10/100Base-T + 4 × 100Base-FX fixed fiber (SC/ST/FC/LC), DC 48V (36–56V), redundant input.	✆ WhatsApp

This page covers the DC variants: -DCL = DC 24V (12–36V), -DCH = DC 48V (36–56V), both with redundant input. Fixed-fiber (100Base-FX) models: multimode 2 km, single-mode 20/40/60/120 km; SC/ST/FC/LC connectors optional. An AC 220V variant is also available. The requested model is ZJIES1000D-16T2S-DC.

DIN-Rail Fiber Switch FAQ — ZJIES1000D-16T2S-DC

How far can the fiber uplinks of the ZJIES1000D-16T2S-DC go?

The 2 × 100Base-FX fixed fiber ports reach 2 km on multimode, or 20, 40, 60 and up to 120 km on single-mode, with SC, ST, FC or LC connectors to order. That lets one remote cabinet backhaul 16 field devices to a control room tens of kilometres away.

What is the full port layout?

16 × 10/100Base-T copper ports for local devices plus 2 × 100Base-FX fixed fiber uplinks — a higher-density 100M access and aggregation layout. Store-and-forward switching with an 8K MAC table and 4 Mbit packet buffer moves traffic between copper and fiber sides.

Which DC voltages does it accept?

Two DC builds exist: 24V nominal accepting 12–36V, and 48V nominal accepting 36–56V. Both use a 4-pin terminal with dual redundant inputs plus reverse-polarity and overload protection. Maximum consumption is 12 W, so a modest DC supply covers the whole unit.

When should I pick this model over a copper-only DIN-rail switch?

Choose it when the cabinet uplinks over fiber rather than copper: its 2 × 100Base-FX ports carry traffic 2 km on multimode or up to 120 km on single-mode. You keep the same fanless 65 × 150 × 120 mm DIN-rail format, 16 copper access ports, a 4 Mbit buffer and a maximum draw of 12 W.

What environments is it rated for?

The wide-temperature build runs from -40 to +75°C (standard -10 to +60°C) at 5–95% non-condensing humidity, in a fanless IP40 metal enclosure. It meets EN61000-4 Level 3 EMS and IEC60068-2 shock, free-fall and vibration standards — suited to roadside, plant-floor and pole cabinets.

Does it need commissioning or software?

No — it is unmanaged and plug-and-play: wire power, connect the 16 copper drops and 2 fiber runs, and check the power, link and fiber LEDs. There is no CLI or web interface to secure or maintain. MTBF is 320,000 hours and the warranty runs 5 years.
