ZJIES1000D-8T-DC

Name: Atlas ZJIES1000D-8T-DC
Brand: Zhongxin Shutong
SKU: Atlas ZJIES1000D-8T-DC

Unmanaged · DIN-Rail Fast Ethernet

Unmanaged Industrial DIN-Rail Fast Ethernet Switch · 8×FE Copper · DC 24V/48V

Project-Based Pricing

Volume & combo discounts — get your quote

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

✓ Project-level customization & OEM supported

Get Best Price on WhatsApp

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

HOW TO GET A BETTER PRICE

Volume DiscountOrder 50+ pcs of this model

Project Combo DiscountMix any categories & models storewide in one order — no quantity limit

BIGGER

Verified Project DiscountDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BIGGEST

All discounts are quoted personally — message me on WhatsApp ↑

◆Fast Ethernet 100M

◆Unmanaged Plug&Play

◆DIN-Rail / Wall Mount

◆DC 24V/48V Redundant

◆-40 ~ 75°C · IP40 Fanless

◆5-Year Warranty

Overview

The ZJIES1000D-8T-DC is an industrial unmanaged Fast Ethernet DIN-rail switch with 8 × 10/100Base-T copper ports. It is plug-and-play — no configuration required — with store-and-forward switching, a compact fanless metal enclosure (32×144×95 mm) and DIN-rail mounting (wall-mount optional). Powered by DC 24V (12–36V) or 48V (36–56V) with redundant dual input and reverse-polarity / overload protection, it draws under 6 W, operates from -40 to +75°C and offers strong EMC immunity — ideal for compact cabinets and industrial edge sites where a simple, rugged, silent 100M switch is needed.

Key Features

Unmanaged plug-and-play — zero configuration
8 × 10/100Base-T Fast Ethernet copper
DIN-rail mounting (default) · wall-mount optional · compact 32×144×95 mm
DC 24V (12–36V) / 48V (36–56V), redundant dual input
Fanless IP40 metal · silent · under 6 W consumption
Wide temperature -40 ~ +75°C · strong EMC immunity
Reverse-polarity & overload protection · 5-year warranty

Specifications

IEEE Standards

IEEE802.3	10BaseT Ethernet
IEEE802.3u	100Base-T(X) & 100Base-FX Fast Ethernet
IEEE802.3x	Flow Control

Switching

MAC Address Table	4K
Packet Buffer	1 Mbit
Forwarding	Store-and-forward

Interfaces

RJ45 Ports	8 × 10/100Base-T
Fiber Ports	None (copper-only model)
LED Indicators	Power, Link

Power

Terminal	4-pin terminal, dual redundant input
DC 24V Input	DC 24V, range 12–36V DC
DC 48V Input	DC 48V, range 36–56V DC
Power Consumption	Max 6 W
Power Protection	Reverse-polarity & overload

Physical

Housing	IP40 fanless metal enclosure
Mounting	DIN-rail (default), wall-mount optional
Dimensions	32 (W) × 144 (H) × 95 (D) mm

Certification

EMC	CE, FCC
EMI	FCC Part 15, CISPR (EN55022) Class A
EMS	EN61000-4-2/3/4/5/6/8 Level 3
Shock	IEC60068-2-27
Free Fall	IEC60068-2-32
Vibration	IEC60068-2-6
Green	RoHS, WEEE

Environment

Standard Temp	-10 ~ +60°C
Wide Temp	-40 ~ +75°C
Storage Temp	-40 ~ +85°C
Humidity	5–95% non-condensing

Reliability

MTBF	320,000 hours
Warranty	5 years

Models & Ordering

Model	Product Description	Price
ZJIES1000D-8T-DCL	Unmanaged DIN-rail Fast Ethernet switch — 8 × 10/100Base-T, DC 24V (12–36V), redundant input.	✆ WhatsApp
ZJIES1000D-8T-DCH	Unmanaged DIN-rail Fast Ethernet switch — 8 × 10/100Base-T, DC 48V (36–56V), redundant input.	✆ WhatsApp
ZJIES1000D-8T-AC	Unmanaged DIN-rail Fast Ethernet switch — 8 × 10/100Base-T, AC 220V (100–240V).	✆ WhatsApp
ZJIES1000D-6T2S-AC	Unmanaged DIN-rail Fast Ethernet switch — 6 × 10/100Base-T + 2 × 100Base-FX fixed fiber (SC/ST/FC), AC 220V (100–240V). MM 2 km / SM 10 km, single/dual fiber optional.	✆ WhatsApp
ZJIES1000D-6T2S-DCL	Unmanaged DIN-rail Fast Ethernet switch — 6 × 10/100Base-T + 2 × 100Base-FX fixed fiber (SC/ST/FC), DC 24V (12–36V), redundant input.	✆ WhatsApp
ZJIES1000D-6T2S-DCH	Unmanaged DIN-rail Fast Ethernet switch — 6 × 10/100Base-T + 2 × 100Base-FX fixed fiber (SC/ST/FC), DC 48V (36–56V), redundant input.	✆ WhatsApp

This page covers the DC variants: -DCL = DC 24V (12–36V), -DCH = DC 48V (36–56V), both with redundant input. Fixed-fiber (100Base-FX) models: multimode 2 km, single-mode 20/40/60/120 km; single/dual fiber and SC/ST/FC optional. An AC 220V variant is also available in this series. The requested model is ZJIES1000D-8T-DC.

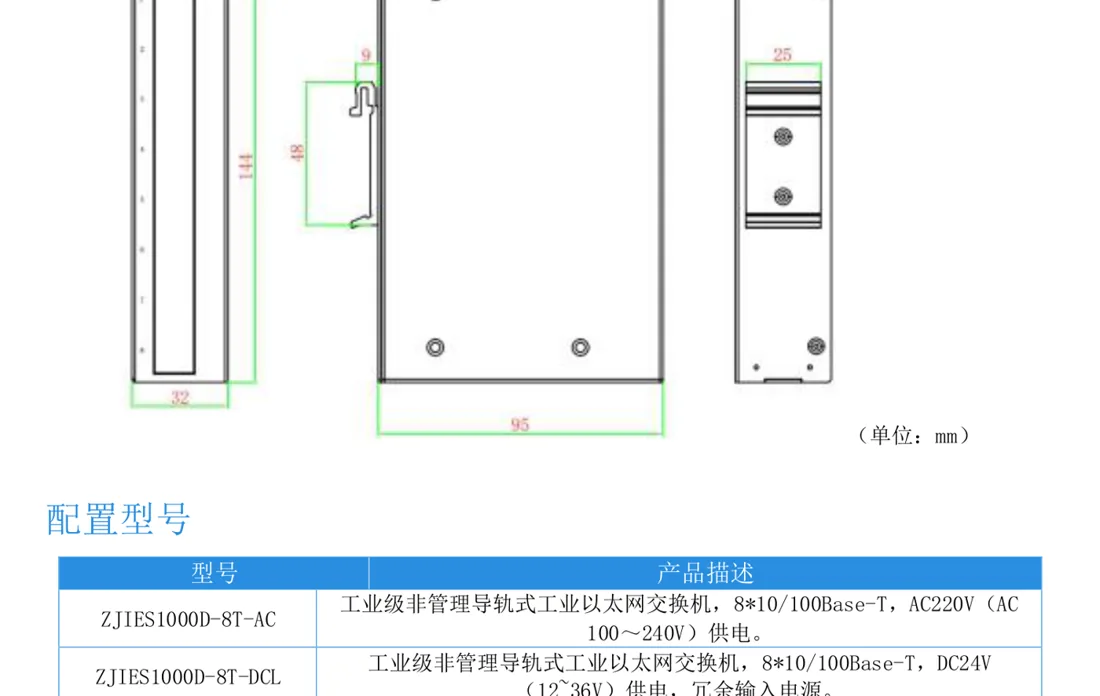

Dimensions

unit: mm

Your Brand. Our Factory.Neutral casing, ready for your logo · Custom port/power options · Small batches welcome.

Custom & OEM →

Industrial DIN-Rail Switch FAQ — ZJIES1000D-8T-DC

What ports does the ZJIES1000D-8T-DC provide?

It has 8 × 10/100Base-T RJ45 copper ports and no fiber ports — a copper-only Fast Ethernet model. Switching is store-and-forward with a 4K MAC address table and 1 Mbit packet buffer, enough for typical industrial edge devices.

How is it powered?

By DC 24V (12–36V) or DC 48V (36–56V) on a 4-pin terminal with dual redundant inputs, so a second supply keeps the network up if the first fails. It draws under 6 W and includes reverse-polarity and overload protection.

Does this switch need any configuration?

No. It is an unmanaged plug-and-play switch — connect cables and power and it forwards traffic immediately using store-and-forward switching. There is no software to set up, which keeps commissioning simple for installers and integrators working in the field.

What temperature range does it support?

The wide-temperature version operates from -40 to +75°C (standard version -10 to +60°C), storage -40 to +85°C, humidity 5–95% non-condensing. The fanless IP40 metal enclosure has no moving parts, and EMC immunity meets EN61000-4 Level 3.

How is it installed and how big is it?

It clips onto a standard DIN rail by default, with an optional wall-mount kit. The compact case measures only 32×144×95 mm, so it fits tight control cabinets. MTBF is rated at 320,000 hours and it carries a 5-year warranty.
