DDR 9560 quad-lens WiFi and wired gun-ball camera
DDR 9560 quad-lens WiFi and wired gun-ball camera
DDRQuad-Lens · WiFi + Wired
4-Lens Gun-Ball Camera · 8MP (4x1080P) · WiFi 6 + RJ45/PoE

DDR 9560 Quad · 4-Lens WiFi + Wired

Four lenses on one head, each a 1080P channel — watch four angles at once with no blind spot. It joins over WiFi 6 or a wired RJ45/PoE link and switches between them automatically. A 1T AI core detects and tracks people to 30 m, with red-blue flash alarm. Powered by DC 12 V, it fits yards, warehouses and shopfronts that already have WiFi or a nearby switch.

8MP · 4x1080P channels4 lenses · no blind spotWiFi 6 + RJ45 · auto switch30 m · human detectionRed-blue flash · active deterrent256 GB · TF card recording
ONE MODEL ON THIS PAGE — QUAD-LENS 9560 WiFi
This is the WiFi + wired version of the 9560 quad: four lenses on one head that connect over WiFi 6 or RJ45/PoE and need on-site network + DC 12 V power. The DDR 9560 solar version instead runs on battery + solar over 4G for off-grid sites — see Related Products.
✓ Project-level customization & OEM supported
Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (EXW or FOB, each quoted separately), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →
In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
4x2MPchannels — 8MP total
30 mhuman detection & tracking
1TAI compute
[object Object]wireless or wired, auto

The DDR 9560 quad is a four-lens gun-ball camera on the platform with an H610 processor. Four 1/3.2 inch sensors deliver four 1920x1080 channels — 8MP in total — so one head covers four angles at once with no blind spot, all encoded at H.265+ to hold storage and bandwidth down. It connects over WiFi 6 (802.11ax) with Bluetooth pairing and SLE 1.0, or over a full RJ45 stack with external PoE and cross-segment auto image with RS-series NVRs, switching between wired and wireless automatically. A 1T AI core drives human detection and tracking to 30 m; the head holds 6 presets with a guard position. Night vision runs on a dual-light board (smart dual-light, full-color, smart IR) with sound-light alarm and a red-blue flash warning, plus a night-light function. The camera offers full-duplex talk with AI echo cancellation and a wireless IR-CUT on both the fixed lenses and the ball. Powered by DC 12 V, it records to a TF card up to 256 GB (FAT32), PC/NVR or cloud, manages under NVR or EasyVMS, and runs the P6SLite app in 17 languages.

Is this the right camera for your site?

Plain-language guide — based only on what this product actually does.

Yards & forecourtsOne quad head on a pole watches the gate, the parking area and two side approaches at once — four angles, no second camera and no blind corner.
Warehouses & yardsCover aisles and loading doors from a corner mount; drop to PoE Ethernet for a rock-steady feed and let human tracking follow anyone moving between racks.
Shopfronts & compoundsWhere WiFi already reaches, mount one quad camera to see the storefront, both pavements and the entrance; red-blue flash and sound-light alarm push intruders back.
Not the right pick if you need…
  • A remote off-grid site — the DDR 9560 solar version runs on battery + solar over 4G instead of WiFi/wire
  • 4K forensic detail on a single lens — a high-resolution single-sensor PoE camera is the right tool
  • One simple indoor angle only — a single-lens DDR 6607/6601 pan-tilt is smaller and cheaper

Worried about the source? Order under your own company name.

For corporate buyers: we support submitting the purchase order to the manufacturer under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer.

1 · Company name2 · Corporate bank payment3 · Order registered in your name

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China — EXW or FOB, your choice, each quoted separately. From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOBDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume DiscountBulk quantities of a single model
CONTACT US
Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTER
Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you
BEST
All discounts are quoted personally — message me on WhatsApp ↑

Key Features

The complete series capability list.

Four 1080P lenses on one gun-ball head — four angles at once, 8MP total, no blind spot
1T AI human detection and tracking to 30 m with a guard position on the ball
Dual-mode network: WiFi 6 (802.11ax) plus RJ45 with external PoE and cross-segment auto image with RS-series NVRs
Automatic wired/wireless switching keeps the four channels live when WiFi weakens
Dual-light night vision (smart dual-light, full-color, smart IR) with sound-light and red-blue flash alarm
H.265+ smart encoding across all four channels — lower bitrate, longer recording
Full-duplex two-way talk with AI echo cancellation; wireless IR-CUT on fixed lenses and ball
DC 12 V power; TF card to 256 GB, PC/NVR or cloud; managed by NVR / EasyVMS; P6SLite app in 17 languages

Full Specifications

Series specifications — technical values in English.

Values are series data from the manufacturer datasheet — confirm the final configuration with us before ordering.

System

Model9560 — quad-lens WiFi + wired gun-ball camera
MainboardRS-W84 (4-lens gun-ball module)
Camera type4-lens gun-ball module
Main processorH610
Operating systemEmbedded Linux

Video

Image sensor4 x 1/3.2 inch CMOS
Video compressionH.265+
System formatPAL 50 Hz / NTSC 60 Hz
Effective resolution8MP — 4 x 1920x1080
Frame rateAdaptive
Video bitrate135-2048 kbps
Min. illuminationDay 1 Lux / Night 0.01 Lux
Day/Night modesSmart dual-light / Full-color / Smart IR
SnapshotSupported

Audio

Audio codecG.711U
Audio inputExternal analog MIC, SNR 42 dB
Audio outputExternal 8 ohm / MAX 2 W speaker
Voice callFull-duplex talk with AI echo cancellation

Alarm & PTZ

AI compute1T human detection
Detection rangeUp to 30 m
Sound-light alarmSupported (with dual-light board)
Red-blue flashFlashing alarm on trigger
Alarm voiceTTS and app-recorded voice
Alarm linkageRecording / Snapshot
Presets6 positions
TrackingHuman tracking + guard position
Night lightSupported

Network

RJ45HTTP / TCP/IP / IPv4 / UPNP / RTSP / UDP / SMTP / NTP / DHCP / DNS / IP Filter / IP Search
External PoESupported
Cross-segment auto imageWith RS-series NVR
Wired/wireless switchAutomatic
WiFiWiFi 6 - IEEE 802.11 b/g/n/ax
BluetoothBLE fast pairing
SLESLE 1.0
WiFi hotspotBuilt-in
ProtocolsP6S / ONVIF
IR-CUTWireless (fixed lenses + ball)

Recording & App

Recording modesAlarm / Scheduled
Recording storageTF card / PC / NVR
TF card capacityUp to 256 GB (FAT32)
Cloud storageSupported
Central managementNVR / EasyVMS
Mobile appP6SLite - 17 languages

Power & Physical

Power supplyDC 12 V
Working current185 mA +/-10 mA
Operating environment-20 C to 55 C
Mainboard size52 x 38 mm
Engineering note: Four channels means four times the video, so plan the link. On WiFi, keep the head within solid range of the router; on wire, one PoE drop carries all four streams. Tell us the mounting height, the coverage you need and whether power is DC 12 V or PoE, and we will confirm the mount, the switch and whether WiFi will hold four channels at your distance before it ships.

4-Lens WiFi + Wired Camera FAQ — DDR 9560 Quad

What do the four lenses actually give me?
Four independent 1/3.2-inch sensors, each at 1920x1080 — 8MP combined — cover four angles from a single mounting point with no blind spot. One camera, one power feed, one network connection instead of four separate installs. H.265+ keeps the total bitrate within 135–2048 kbps per stream.
Does it connect by WiFi or by cable?
Either — and it decides for itself. WiFi 6 (IEEE 802.11 b/g/n/ax) with BLE fast pairing handles wireless, the RJ45 port with external PoE support handles wired, and switching between them is automatic. A built-in WiFi hotspot also lets a phone connect directly at the site.
Can I record it on an NVR — does it support ONVIF?
Yes. It supports ONVIF and P6S, records to TF card up to 256 GB (FAT32), PC or NVR, and works under NVR or EasyVMS central management. With RS-series NVRs it can auto-image across network segments, and cloud storage is supported for an off-site copy.
What does it do when someone enters the area?
The 1T AI detects people up to 30 m out and tracks them, with a guard position to return to. On trigger it can flash a red-blue alarm, sound a light-and-sound alert, and play a TTS or app-recorded voice message, while linkage starts recording and snapshots automatically.
How is it powered and can I talk through it?
Power is DC 12 V at about 185 mA, with external PoE supported on the wired RJ45 run. Audio is full-duplex two-way talk with AI echo cancellation through an external mic (42 dB SNR) and an 8-ohm 2 W speaker. The P6SLite app manages it in 17 languages.

Related Products

DDR 6607 - WiFi PTZ
DDR 6607 · WiFi PTZ
Single-lens WiFi pan-tilt sibling — one angle, cable-free, USB 5 V powered.

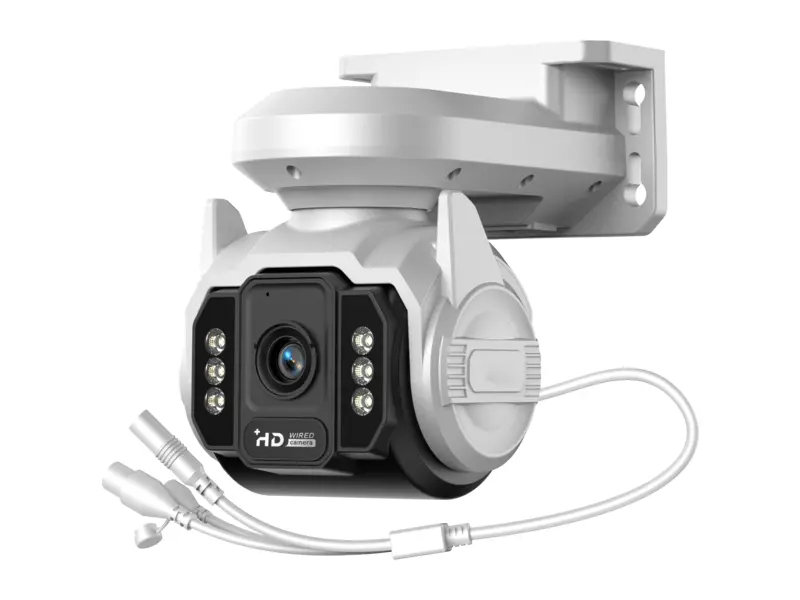

DDR 6601 - WiFi + Wired PTZ
