IPC-B232-AF40-ECO
2MP fixed IR bullet network camera — up to 30m smart infrared night vision, PoE single-cable install, built-in mic, NDAA-compliant, IP67 outdoor body.
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
Need the PDF datasheet? Get it on WhatsApp →Sample quantities are welcome — testing one or two units first is the normal way to start.

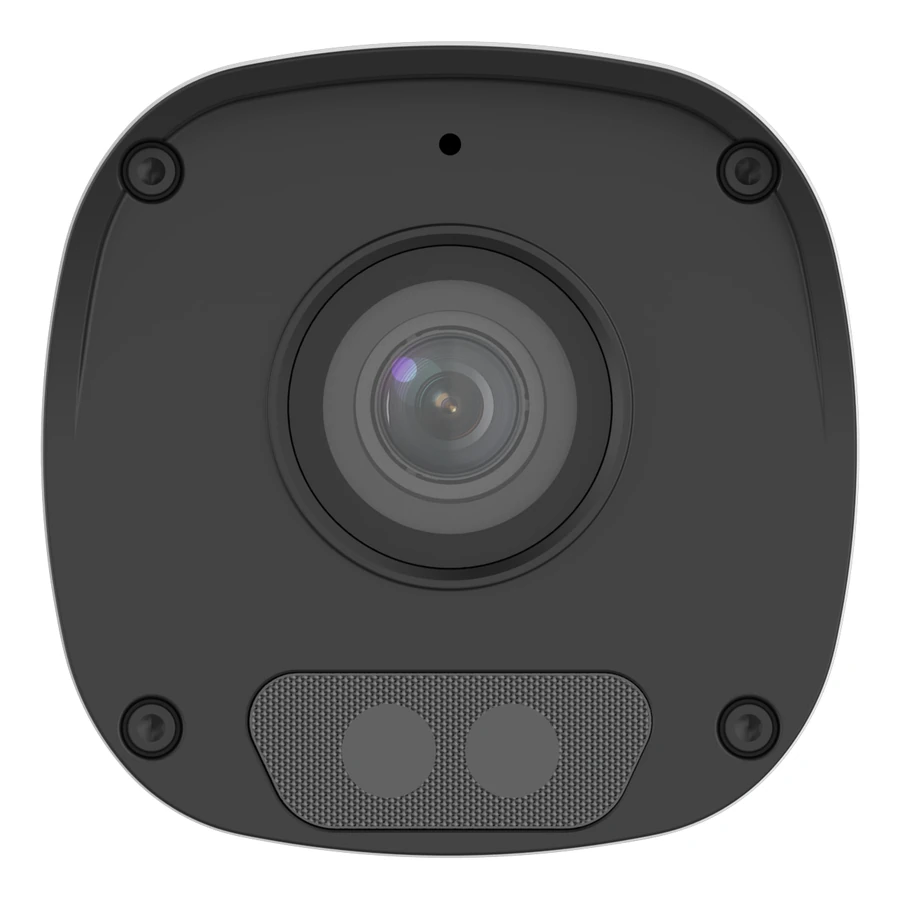

The Uniarch IPC-B232-AF40-ECO is a 2MP fixed bullet network camera from the Entry Series IR line, built in a larger IP67 outdoor housing. It provides up to 30 m of smart infrared night vision, accurate human body detection 2.0, PoE single-cable power, and an NDAA-compliant build for −30 °C to 60 °C. It carries a fixed 4.0 mm lens (68° view) for medium-range coverage.
Is this the right camera for you?
Plain-language guide for buyers and installers — based only on what this camera actually does.
- Full-color night vision — this is IR-only, night video is black & white, not color
- Two-way talk — it has a mic but no speaker
- Wi-Fi — this is a wired RJ45 camera
- Zoom — the lens is fixed at 4.0 mm, no optical zoom
- MicroSD card recording — Edge Storage is N/A, it records to an NVR instead
- Alarm in/out wiring for sirens or sensors
Worried about counterfeits? Order under your own company name.
For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.
Using your own freight forwarder? No problem.
For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.
Key Features
Complete list from the official datasheet.
Night Vision: Smart IR
Invisible infrared night vision — this model has no warm-light module.
Invisible infrared — discreet black & white night vision
Smart IR up to 30 m (98.4 ft.) at 850 nm. The camera watches without lighting up the scene — nothing shows it is recording. This model has a single IR illuminator only, no warm-light module.
How far can it see? (DORI)
DORI (EN 62676-4) is the industry standard for what a camera can do at distance.
How wide a view at each distance
Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.
| Distance | 68.4° |
|---|---|
| 5 m16 ft | 6.8 m22.3 ft |
| 10 m33 ft | 13.6 m44.6 ft |
| 15 m49 ft | 20.4 m66.9 ft |
| 20 m66 ft | 27.2 m89.2 ft |
| 30 m98 ft | 40.8 m134 ft |
Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.
Full Specifications
Complete official specifications from the manufacturer's datasheet (technical values in English).
Camera
| Max Resolution | 2 MP |
| Sensor | 1/3.0" CMOS |
| Min. Illumination | Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| S/N | > 52 dB |
| WDR | DWDR |
Lens
| Focal Length | 4.0 mm |
| Iris | F2.0 |
| Field of View (H) | 68.4° |
| Field of View (V) | 37.0° |
| Field of View (D) | 77.3° |
| Lens Type | Fixed |
| Iris Type | Fixed |
DORI
| DORI Distance (Lens) | 4 mm |
| DORI Distance (Detect) | 73.5 m (241.0 ft.) |
| DORI Distance (Observe) | 29.4 m (96.4 ft.) |
| DORI Distance (Recognize) | 14.7 m (48.2 ft.) |
| DORI Distance (Identify) | 7.3 m (24.0 ft.) |
Illuminator
| Supplemental Light | IR |
| Illumination Distance (IR) | 30 m (98.4 ft.) |
| Wavelength | 850 nm |
Video
| Video Compression | Ultra 265, H.265, H.264 |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 1080P (1920×1080), max. 30 fps; 720P (1280×720), max. 30 fps · Sub Stream: 640×360, max. 30 fps; 2CIF (704×288), max. 30 fps; CIF (352×288), max. 30 fps |
| Video Bit Rate | 128 Kbps to 6144 Kbps |
| OSD | Up to 4 OSDs |
| U-code | Support |
| Privacy Mask | Up to 4 areas |
| ROI | Support |
| Video Stream | Dual streams |
| Smart Illumination | Support |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Image Stabilization | N/A |
| Defog | Digital defog |
Events
| Basic Detection | Motion detection, Audio detection, Human body detection 2.0 |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
Audio
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | N/A |
| Suppression | Support |
| Sampling Rate | 8 kHz |
Storage
| Edge Storage | N/A |
Network
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, QoS |
| Compatible Integration | ONVIF (Profile S, Profile T), API, SDK |
| Client | APP, Uniarch client |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Security | Password Protection, Strong Password, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF |
| User/Host | Up to 32 users. 2 user levels: administrator and common user |
Interface
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Serial Port | N/A |
| Built-in Mic | Support |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A |
Certification
| Protection | IP67 (IEC 60529) |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4); FCC (FCC 47 CFR part15 B) |
| Safety | CE LVD (EN 62368-1) |
| Environment | CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU); Packaging and Packaging Waste (94/62/EC) |
General
| Power | PoE (IEEE 802.3af) |
| Power Consumption | Max. 3.7 W |
| Power Interface | N/A |
| Dimensions | 196.5 mm × 73.0 mm × 72.9 mm (7.7" × 2.9" × 2.9") (L × W × H) |
| Weight | 0.22 kg (0.49 lb.) |
| Material | Graphene + Plastic |
| Working Environment | -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 4 KV |
| Reset Button | N/A |
| Web Client Language | 1 Language: English |
Dimensions
Engineering drawing reproduced 1:1 from the official datasheet.
| Dimensions | 140 × 61 × 65 mm (5.5" × 2.4" × 2.6") |
| Weight | 0.15 kg (0.34 lb.) |
| Material | Graphene + Plastic |
| Mount adjustment | Pan 0–360° · Tilt 0–90° · Rotate 0–360° |
Optional Mounting Accessories
Order together with the camera to save shipping.
2MP IR Bullet Camera FAQ — IPC-B232-AF40-ECO
How far does the night vision of the IPC-B232-AF40-ECO reach?
Does it show color at night?
How is it powered and can it stay outdoors?
Can it pick up audio and detect people?
What resolution does it record and how much bandwidth does it use?
