IP Cameras › IPC-B234-AF40-DL-ECO

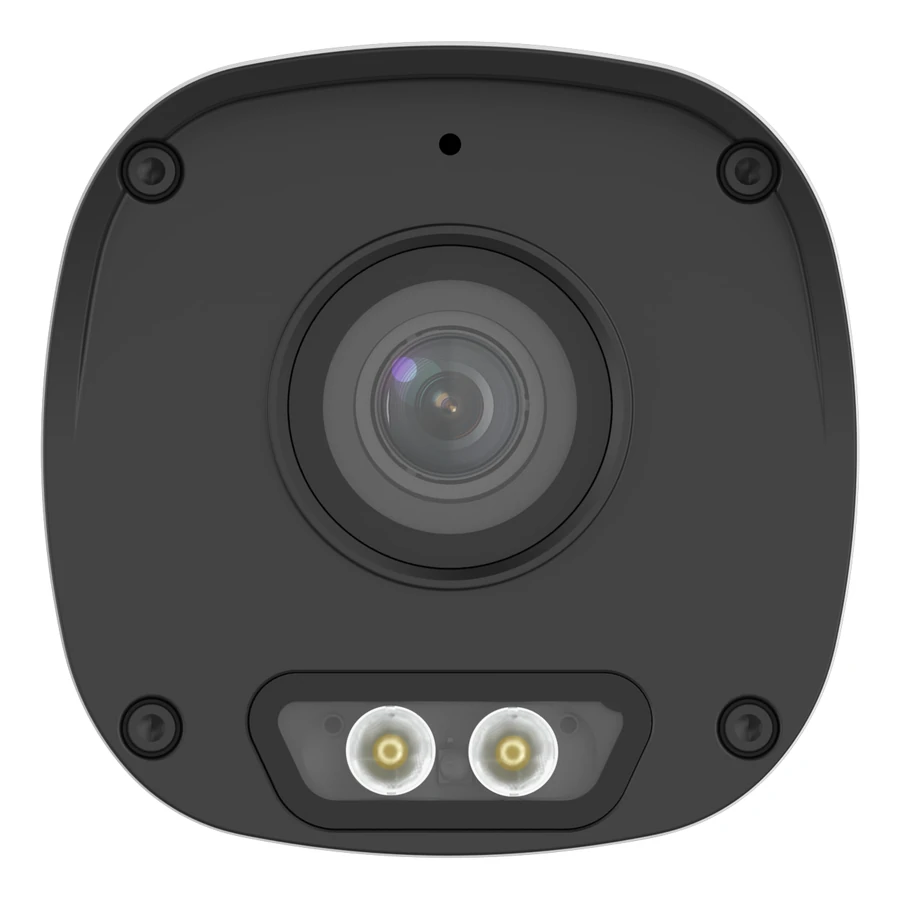

4MP Dual-Light Bullet Network Camera IPC-B234-AF40-DL-ECO
4MP Dual-Light Bullet Network Camera IPC-B234-AF40-DL-ECO — view 1
4MP Dual-Light Bullet Network Camera IPC-B234-AF40-DL-ECO — view 2

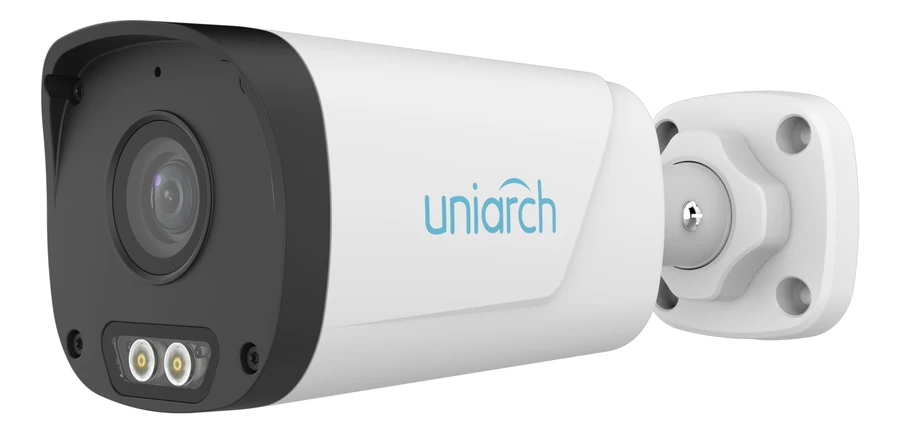

4MP Dual-Light Bullet Network Camera IPC-B234-AF40-DL-ECO — view 3
UniarchEntry Series · Dual Light
4MP Dual-Light Bullet · Entry Series

IPC-B234-AF40-DL-ECO

4MP fixed dual-light bullet network camera — IR night vision plus warm white light, PoE single-cable install, built-in mic, NDAA-compliant, IP67 outdoor body.

4 MP · 1440P@25fpsUltra 265 · low bandwidthDual Light · IR 30m + warm 15mPoE · 802.3afIP67 · outdoorMic · built-in audioNDAA · compliant construction
Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →
In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEEIP67ONVIF
Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
30 mIR night vision
15 mWarm light
IP67Outdoor rated
3.5 WPoE max power

The Uniarch IPC-B234-AF40-DL-ECO is a 4MP fixed bullet network camera from the Entry Series dual-light line, built in a larger IP67 outdoor housing. It combines 30 m infrared and 15 m warm-light illumination for discreet or full-color night vision, accurate human body detection 2.0, PoE single-cable power, and an NDAA-compliant build rated for −30 °C to 60 °C. It carries a fixed 4.0 mm lens (77° view) for medium-range coverage.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Shops & storefrontsSee who enters in sharp 4MP detail, and the built-in mic records what is said at the counter. The 4.0 mm lens covers a full shop floor from a corner.
Home gates & yardsThe warm light turns on at night — visitors are visible in color and intruders know they are seen.
Warehouse & site perimetersIP67 body and −30 to 60 °C rating survive rain, dust and heat. The larger housing detects movement up to 90 m away along fence lines.
Residential compoundsHuman body detection 2.0 raises alerts for people, not for stray animals or moving branches.
Procurement-sensitive sitesNDAA-compliant build for buyers with government or institutional procurement rules, plus 3 user roles (administrator, common user, operator) to split access across staff.
Kiosks & fuel stationsOne PoE cable does power + video — no electrician needed at the pole, quick to install and move.
Not the right pick if you need…
  • Two-way talk — it has a mic but no speaker
  • Wi-Fi — this is a wired RJ45 camera
  • Zoom — the lens is fixed at 4.0 mm, no optical zoom
  • MicroSD card recording — Edge Storage is N/A, it records to an NVR instead
  • Alarm in/out wiring for sirens or sensors

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume Discount50+ units of a single model
CONTACT US
Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTER
End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice
BEST
All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 4 MP, 1/3.0" CMOS sensor
4 MP (2560 × 1440)@25/20 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
Smart dual-light ensures high quality image
Ultra 265, H.265, H.264
2D/3D DNR (digital noise reduction)
ROI (region of interest) ensures image quality in areas of interest with low bandwidth
3-axis
Built-in mic
Wide temperature range: −30 °C to 60 °C (−22 °F to 140 °F)
Supports PoE power supply
IP67

Dual Light: two ways to see the night

Switchable Auto/Manual — set it per site, per customer.

IR MODE

Invisible infrared — discreet black & white night vision

Smart IR up to 30 m (98.4 ft.) at 850 nm. The camera watches without lighting up the scene — nothing shows it is recording.

WARM LIGHT MODE

Visible warm light — full-time color and active deterrence

Warm white light up to 15 m (49.2 ft.) keeps faces and clothing colors visible at night — and tells intruders the area is watched.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance.

Detectsomething is there
90 m295.3 ft
Observewhat is happening
36 m118.1 ft
Recognizesomeone you know
18 m59.1 ft
Identifya stranger's face
9 m29.5 ft

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Max Resolution4 MP
Sensor1/3.0" CMOS
Min. IlluminationColor: 0.003 Lux (F1.6, AGC ON), 0 Lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 to 1/100000 s
Adjustment AnglePan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N> 52 dB
WDRDWDR

Lens

Focal Length4.0 mm
Iris TypeFixed
IrisF1.6
Field of View (H)77.4°
Field of View (V)41.9°
Field of View (D)90.5°
Lens TypeFixed

DORI

DORI Distance (Lens)4 mm
DORI Distance (Detect)90.0 m (295.3 ft.)
DORI Distance (Observe)36.0 m (118.1 ft.)
DORI Distance (Recognize)18.0 m (59.1 ft.)
DORI Distance (Identify)9.0 m (29.5 ft.)

Illuminator

Supplemental LightDual light
Illumination Distance (IR)30 m (98.4 ft.)
Illumination Distance (Warm Light)15 m (49.2 ft.)
Wavelength850 nm

Video

Video CompressionUltra 265, H.265, H.264
H.264 Code ProfileBaseline profile, Main profile, High profile
Frame RateMain Stream: 4 MP (2560×1440) max. 25 fps; 3 MP (2304×1296) max. 30 fps; 1080P (1920×1080) max. 30 fps · Sub Stream: 640×360 / 2CIF (704×288) / CIF (352×288) max. 30 fps
Video Bit Rate128 Kbps to 6144 Kbps
U-codeSupport
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROISupport
Video StreamDual streams


Smart IlluminationSupport
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal, Flip vertical, Flip horizontal, 180°
DewarpingN/A
HLCSupport
BLCSupport
Image StabilizationN/A
DefogDigital defog

Events

Basic DetectionMotion detection, Audio detection, Human body detection 2.0
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two-way AudioN/A
SuppressionSupport
Sampling Rate8 kHz

Storage

Edge StorageN/A

Network

ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SNMP, QoS, SSL/TLS
Compatible IntegrationONVIF (Profile S, Profile T), API, SDK
User/HostUp to 32 users. 3 user levels: administrator, common user and operator
SecurityPassword Protection, Strong Password, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF
ClientUniarch client, Uniarch app
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/ON/A
Alarm I/ON/A
Serial PortN/A
Built-in MicSupport
Built-in SpeakerN/A
WIFIN/A
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Video OutputN/A

Certification

EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4); FCC (FCC 47 CFR part15 B)
SafetyCE LVD (EN 62368-1)
EnvironmentCE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU); Packaging and Packaging Waste (94/62/EC)
ProtectionIP67 (IEC 60529)

General

PowerPoE (IEEE 802.3af)
Power ConsumptionMax. 3.1 W
Power InterfaceN/A
Dimensions196.5 mm × 73.0 mm × 72.9 mm (7.7" × 2.9" × 2.9") (L × W × H)
Weight0.22 kg (0.49 lb.)
MaterialGraphene + Plastic
Working Environment-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection4 KV
Reset ButtonN/A
Web Client Language4 Languages: English, Russian, Spanish, Vietnamese

Dimensions

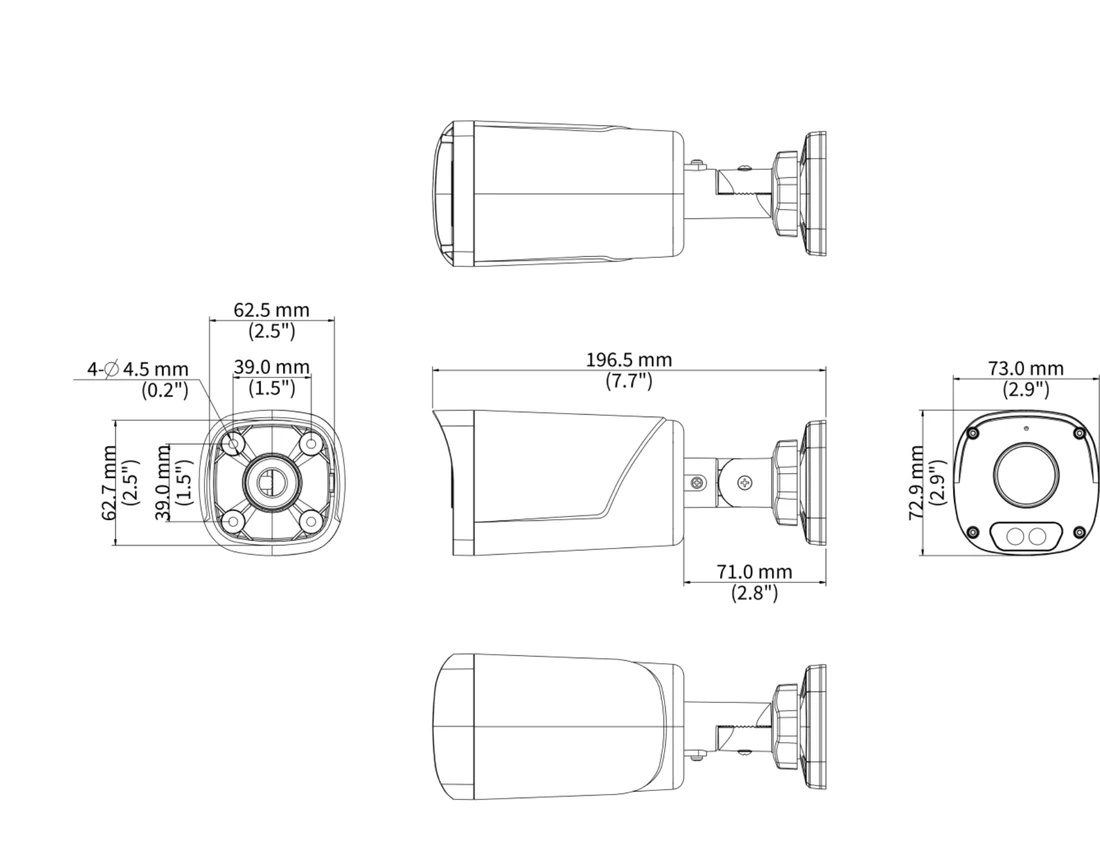

Engineering drawing reproduced 1:1 from the official datasheet.

IPC-B234-AF40-DL-ECO dimensions drawing in mm
unit: mm (in.)
Dimensions196.5 × 73.0 × 72.9 mm (7.7" × 2.9" × 2.9")
Weight0.22 kg (0.49 lb.)
MaterialGraphene + Plastic
Mount adjustmentPan 0–360° · Tilt 0–90° · Rotate 0–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB05-A-INSmall bullet junction box (rear wiring, square)
TR-UP06-B-INBullet pole mounting bracket
TR-A01-INNPT 3/4" waterproof cable gland
TR-UP06-C-IN-V2Pole bracket for bullet junction box
TR-UC08-C-V2Bullet & dome corner mounting bracket

4MP Dual-Light Bullet Camera FAQ — IPC-B234-AF40-DL-ECO

How far can the IPC-B234-AF40-DL-ECO see at night?
Two light sources cover the night: invisible 850 nm smart IR reaches 30 m in black and white, and warm white light keeps faces and clothing in color up to 15 m. With 4MP resolution the DORI figures reach 90 m to detect and 18 m to recognize a person.
What does 4MP give me over a 2MP camera?
The main stream records 2560×1440 at up to 25 fps — roughly double the pixels of 1080p — so you can crop into faces or plates further away. The fixed 4.0 mm lens covers a 77.4° horizontal field of view, and DORI identify distance is 9 m.
Can it detect people and record sound?
Yes. Human body detection 2.0 separates people from moving branches or animals, cutting false alarms versus plain motion detection. A built-in microphone captures audio with the video, and audio detection can trigger an event on loud noise. Up to 4 privacy mask areas are configurable.
Is it waterproof and how do I power it?
The IP67 housing handles dust and heavy rain on walls and poles. PoE carries power and video on one network cable, so no separate power line is needed at the gate. The bracket adjusts 360° pan and 90° tilt, and the model is NDAA compliant for projects that require it.
Will it work with my NVR and how much bandwidth does it need?
It encodes Ultra 265, H.265 and H.264 with dual streams — a 4MP (2560×1440) main stream at up to 25 fps for recording plus a lighter sub stream for live view. Bit rate is adjustable from 128 to 6144 Kbps, so each channel can be tuned for bandwidth and storage.
