IP Cameras › IPC2318LE-ADF28(40)KM-WP

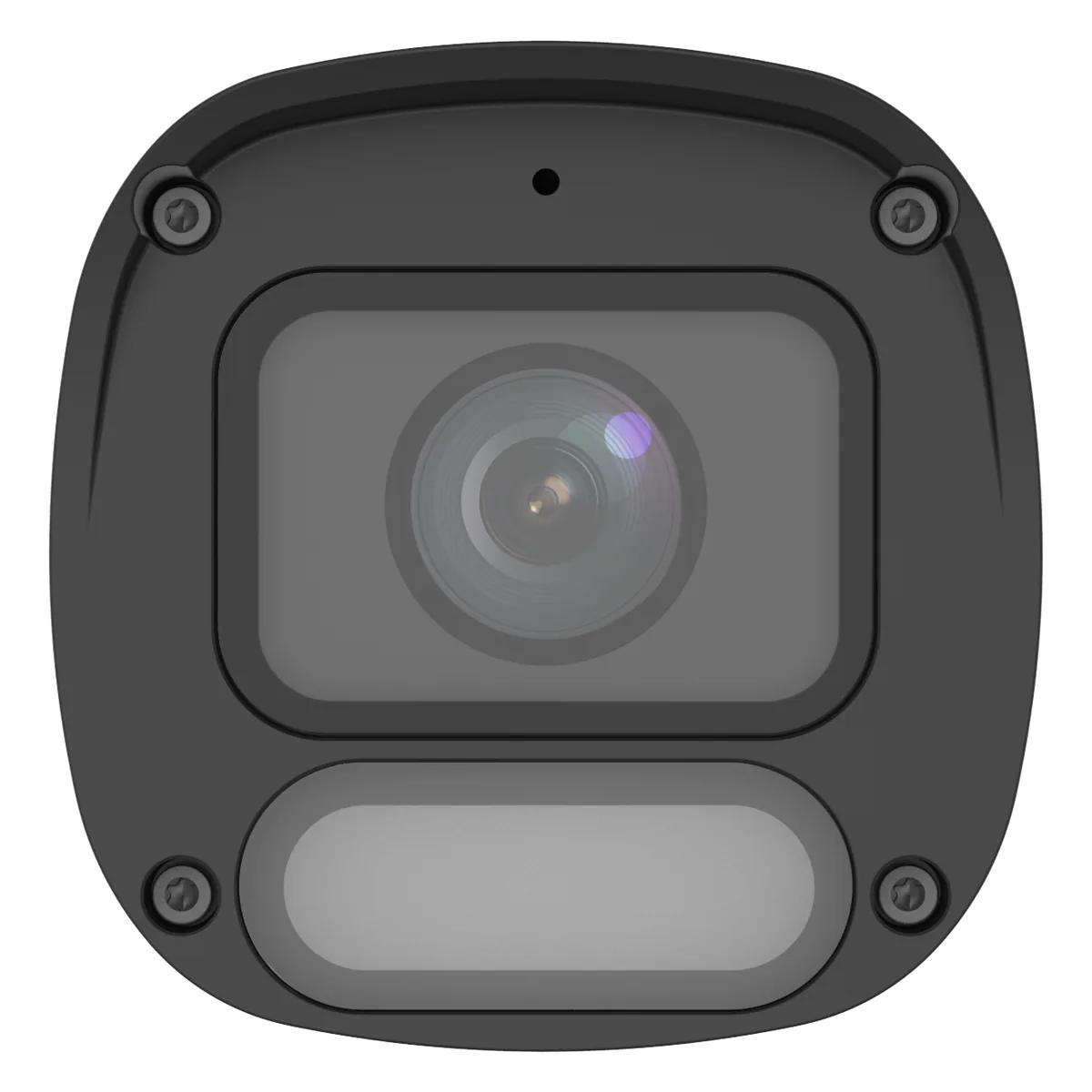

8MP ColorHunter Fixed Bullet Network Camera IPC2318LE-ADF28(40)KM-WP

8MP ColorHunter Fixed Bullet Network Camera IPC2318LE-ADF28(40)KM-WP — view 1

8MP ColorHunter Fixed Bullet Network Camera IPC2318LE-ADF28(40)KM-WP — view 2

8MP ColorHunter Fixed Bullet Network Camera IPC2318LE-ADF28(40)KM-WP — view 3

Uniview (UNV) · BulletOwLView Series · ColorHunter

8MP ColorHunter Bullet · OwLView Series

IPC2318LE-ADF28(40)KM-WP

Name: Uniview IPC2318LE-ADF28(40)KM-WP
Brand: Uniview
SKU: IPC2318LE-ADF28(40)KM-WP

8MP fixed bullet network camera with ColorHunter and Wise-ISP — F1.0 large aperture delivers 24-hour full-color images, 120dB true WDR, PoE single-cable install, IP67 outdoor body.

8 MP · 3840×2160@20fpsF1.0 · large apertureColorHunter · 24h full colorUltra 265 · low bandwidthPoE · 802.3afIP67 · outdoorMicroSD · up to 512 GB

CHOOSE YOUR LENS — TWO MODELS ON THIS PAGE

ADF28KM (2.8 mm, 111° view) covers a very wide area near the camera — doorways, small yards, shop fronts. ADF40KM (4.0 mm, 94° view) trades width for reach — driveways, corridors, fence lines. Highlighted rows in the spec table below show every difference.

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCULRoHSWEEEIP67ONVIFNDAA

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

0.0003 LuxColor sensitivity

30 mWarm light range

120 dBTrue WDR

IP67Outdoor rated

The Uniview IPC2318LE-ADF28(40)KM-WP is an 8MP fixed bullet network camera from the OwLView series, built around a 1/1.8" CMOS sensor with an F1.0 large-aperture lens. ColorHunter with Wise-ISP technology keeps images in full color around the clock, backed by 120dB true WDR and a built-in warm light rated to 30 m for extra illumination after dark. It runs on a single PoE cable, records to a MicroSD card up to 512GB, and carries an IP67 outdoor rating; it is offered with two fixed lenses — 2.8 mm (ADF28KM, wider view) or 4.0 mm (ADF40KM, longer reach).

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Shops & storefrontsColorHunter keeps faces and colors visible around the clock, and the built-in mic picks up what is said at the counter. ADF28KM's 111° view covers a small shop from one corner.

Home gates & yardsThe warm light switches on automatically at night, showing visitors in full color instead of black-and-white silhouettes.

Warehouse & site perimetersIP67 body and −30 to 60 °C rating survive rain, dust and heat; ADF40KM's 90 m detect range watches long fence lines.

Residential compoundsUltra motion detection is based on human body and vehicle detection, so alerts fire for people and cars — not stray animals or moving branches.

Small offices & receptionUltra 265 compression keeps 8MP recordings compact — more days of footage on the same NVR disk or MicroSD card.

Kiosks & fuel stationsOne PoE cable does power and video, and edge recording to a MicroSD card keeps footage running even if the network drops.

Not the right pick if you need…

Covert / invisible night vision — there is no IR illuminator, only visible warm light
Two-way talk — it has a mic but no speaker
Wi-Fi — this is a wired RJ45 camera
Zoom — the lens is fixed (2.8 or 4.0 mm, chosen at purchase)
Alarm in/out wiring for sirens or sensors

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 8 MP, 1/1.8" CMOS sensor and F1.0 large aperture lens

8 MP (3840 × 2160)@20 fps; 5 MP (3072 × 1728)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps

Ultra 265, H.265, H.264, MJPEG compression

ColorHunter with Wise-ISP technology ensures 24-hour full-color images

120 dB true WDR technology enables clear image in strong light scene

Supports 9:16 corridor mode

Built-in mic

White light, up to 30 m (98.4 ft.) warm light distance

MicroSD, up to 512 GB

IP67 protection

Supports PoE power supply

3-axis adjustment

ColorHunter + Wise-ISP: how it stays in color all night

Two technologies working together — no IR switch to flip.

COLORHUNTER + WISE-ISP

F1.0 large aperture + AI image processing — color at 0.0003 lux

The 1/1.8" sensor and F1.0 lens let in far more light than a typical bullet camera; Wise-ISP then processes that light in real time to render 24-hour full-color video — no need to drop to black-and-white after dark.

WARM LIGHT

Extra light when the scene is too dark for ColorHunter alone

Built-in warm light reaches up to 30 m (98.4 ft.), switching Auto or Manual. It supplements ColorHunter in near-total darkness and doubles as a visible deterrent.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Switch the lens buttons above to compare.

Detectsomething is there

63 m206.7 ft

Observewhat is happening

25.2 m82.7 ft

Recognizesomeone you know

12.6 m41.3 ft

Identifya stranger's face

6.3 m20.7 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	KM · 111.0°	KM · 94.2°
5 m16 ft	14.6 m47.7 ft	10.8 m35.3 ft
10 m33 ft	29.1 m95.5 ft	21.5 m70.6 ft
15 m49 ft	43.7 m143 ft	32.3 m106 ft
20 m66 ft	58.2 m191 ft	43.0 m141 ft
30 m98 ft	87.3 m286 ft	64.6 m212 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:ADF28KM = 2.8 mmADF40KM = 4.0 mm

Camera

Max Resolution	8 MP
Sensor	1/1.8" CMOS
Min. Illumination	Color: 0.0003 Lux (F1.0, AGC ON)
Shutter	Auto/Manual, 1 ~ 1/100000 s
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N	> 52 dB
WDR	120 dB

Lens

Focal Length	ADF28KM · 2.8 mmADF40KM · 4.0 mm
Iris Type	Fixed
Iris	F1.0
Field of View (H)	ADF28KM · 111.0°ADF40KM · 94.2°
Field of View (V)	ADF28KM · 63.0°ADF40KM · 51.0°
Field of View (D)	ADF28KM · 131.0°ADF40KM · 111.7°
Lens Type	Fixed

DORI

DORI Distance (Lens)	ADF28KM · 2.8 mmADF40KM · 4 mm
DORI Distance (Detect)	ADF28KM · 63.0 m (206.7 ft.)ADF40KM · 90.0 m (295.3 ft.)
DORI Distance (Observe)	ADF28KM · 25.2 m (82.7 ft.)ADF40KM · 36.0 m (118.1 ft.)
DORI Distance (Recognize)	ADF28KM · 12.6 m (41.3 ft.)ADF40KM · 18.0 m (59.1 ft.)
DORI Distance (Identify)	ADF28KM · 6.3 m (20.7 ft.)ADF40KM · 9.0 m (29.5 ft.)

Illuminator

Supplemental Light	Warm light
Illumination Distance (Warm Light)	30 m (98.4 ft.)
Light On/Off Control	Auto/Manual

Video

Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 8 MP (3840 × 2160), max. 20 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps · Sub Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Video Bit Rate	128 Kbps to 6144 Kbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
Video Stream	Dual streams


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart Illumination	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog
Image Stabilization	N/A

Events

Basic Detection	Motion detection, Ultra motion detection (based on human body and vehicle detection), Tampering alarm, Audio detection
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Intelligent

Smart Intrusion Prevention (Lite)

Intrusion, crossline detection (both detection are based on human body and vehicle detection)

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	8 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

Network

Protocols	IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host	Up to 32 users, 2 user levels: administrator and common user
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, APP
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ · Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529)

General

Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 3.9 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	206 mm × 73 mm × 73 mm (8.1" × 2.9" × 2.9") (L × W × H)
Weight	0.48 kg (1.06 lb.)
Material	Metal
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	Support
Web Client Language	13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian

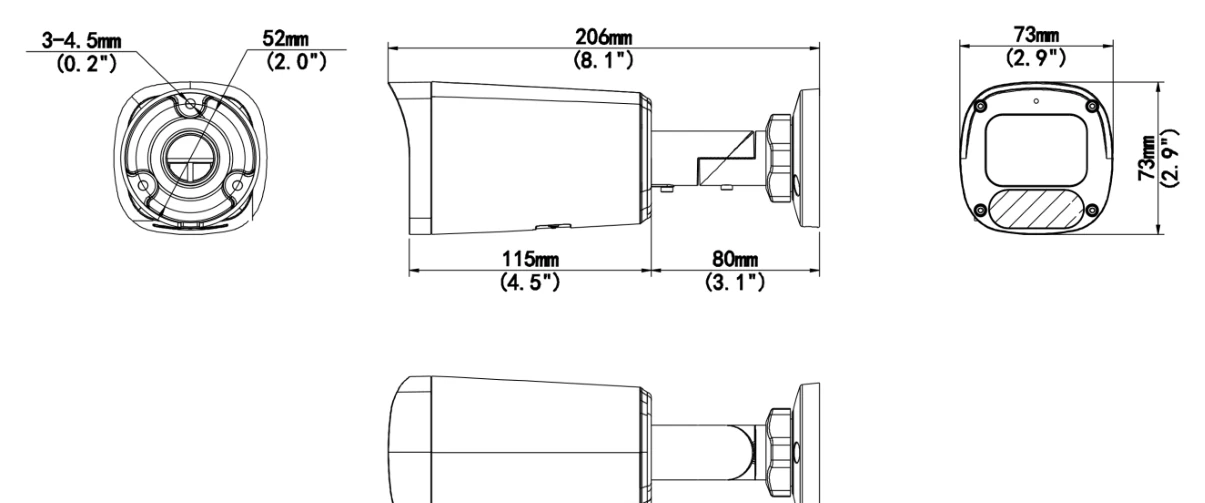

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	206 × 73 × 73 mm (8.1" × 2.9" × 2.9")
Weight	0.48 kg (1.06 lb.)
Material	Metal
Mount adjustment	Pan 0–360° · Tilt 0–90° · Rotate 0–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB05-B-INSmall bullet junction box (Elegant White)

TR-A01-INNPT 3/4" waterproof cable gland

TR-UP06-C-IN-V2Pole mounting bracket for bullet junction box only

TR-UC08-C-V2Bullet & dome corner mounting bracket

8MP Color Night Vision Camera FAQ — IPC2318LE-ADF28(40)KM-WP

Does this camera show color at night without street lighting?

Yes. The F1.0 aperture and 1/1.8-inch sensor deliver color video down to 0.0003 lux, so ColorHunter keeps the scene in full color through the night. When the site is near total darkness, the built-in warm light reaches up to 30 m and switches on automatically or manually.

Which lens should I order, 2.8 mm or 4.0 mm?

Pick 2.8 mm for wide coverage: 111.0° horizontal view, DORI detection to 63 m and identification at 6.3 m — good for gates and yards. Pick 4.0 mm for reach: 94.2° view, detection to 90 m and identification at 9.0 m, suited to driveways and perimeters.

What resolution and frame rates does it record?

The main stream runs 8 MP (3840×2160) at up to 20 fps, or you can drop to 5 MP or 4 MP at 30 fps for smoother motion. Dual streams with Ultra 265, H.265, H.264 and MJPEG keep the bitrate between 128 Kbps and 6144 Kbps.

How do I power it, and does it survive outdoor installs?

It is a PoE camera: one network cable from a PoE switch or PoE NVR port carries both power and video, which keeps cabling simple on long runs. The IP67-rated housing handles rain and dust, and the bracket adjusts pan 0–360° and tilt 0–90°.

Can it tell people and vehicles from other movement?

Yes. Ultra motion detection works on human body and vehicle detection, and Smart Intrusion Prevention Lite adds intrusion and crossline rules filtered the same way. That cuts false alarms from animals, rain or moving branches. Tampering alarm and audio detection are also built in.
