IP Cameras › IPC3612LB-SF28(40)-A

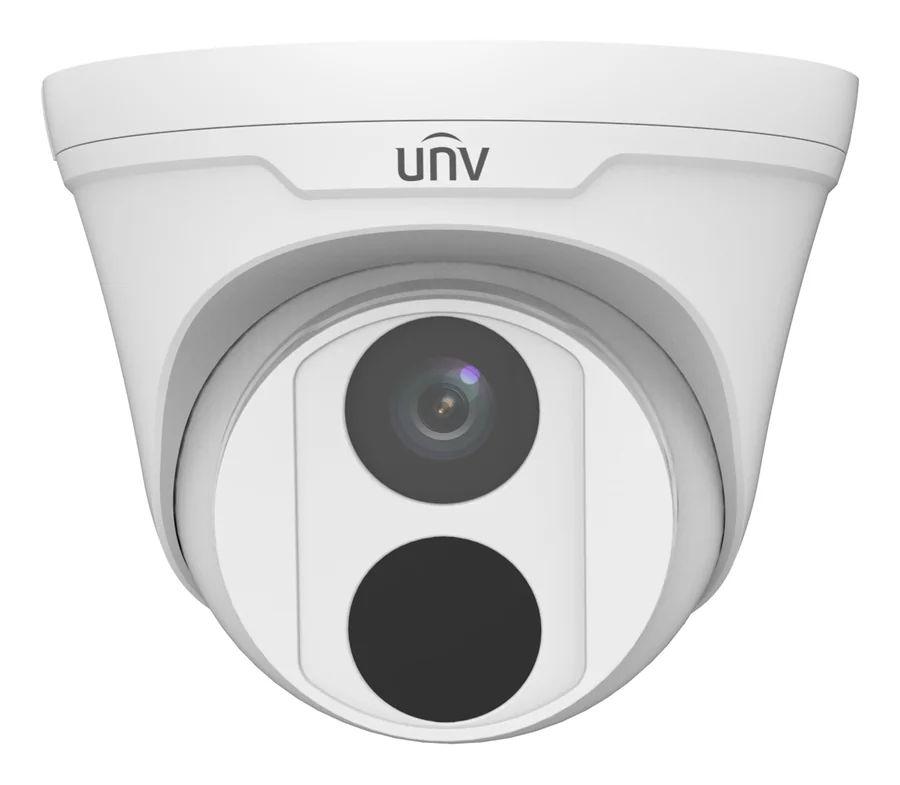

2MP Fixed Dome Network Camera IPC3612LB-SF28(40)-A

2MP Fixed Dome Network Camera IPC3612LB-SF28(40)-A — view 1

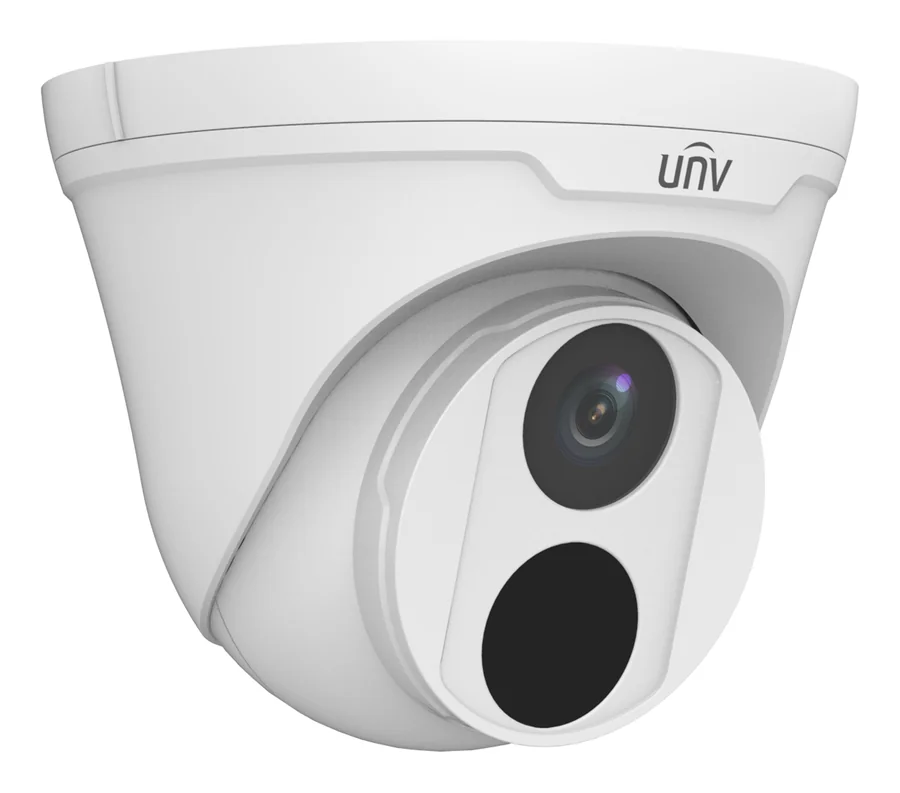

2MP Fixed Dome Network Camera IPC3612LB-SF28(40)-A — view 2

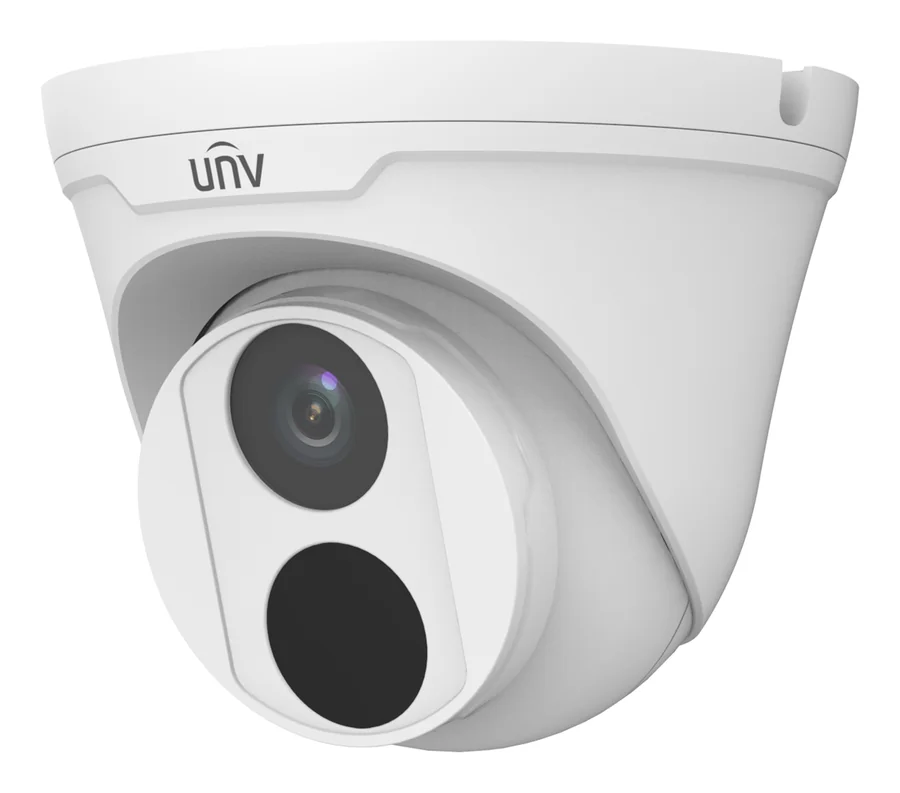

2MP Fixed Dome Network Camera IPC3612LB-SF28(40)-A — view 3

Uniview (UNV) · Dome2MP · Fixed Lens

2MP Fixed Dome · Smart IR

IPC3612LB-SF28(40)-A

Name: Uniview IPC3612LB-SF28(40)-A
Brand: Uniview
SKU: IPC3612LB-SF28(40)-A

2MP fixed dome network camera — Smart IR night vision up to 30 m, PoE single-cable install, IP67 outdoor body.

2 MP · 1080P@30fpsUltra 265 · low bandwidthSmart IR · up to 30mPoE · 802.3afIP67 · outdoorNDAA · compliant

CHOOSE YOUR LENS — TWO MODELS ON THIS PAGE

SF28 (2.8 mm, 101.1° view) covers a wide area near the camera — doorways, small rooms, shop counters. SF40 (4.0 mm, 82.5° view) trades width for reach — corridors, driveways, fence lines. Highlighted rows in the spec table below show every difference.

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCCBUL/CULRoHSWEEEIP67ONVIFNDAA

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

30 mSmart IR distance

IP67Outdoor rated

5.0 WPoE max power

NDAACompliant

The Uniview IPC3612LB-SF28(40)-A is a 2MP fixed dome network camera. Smart IR reaches up to 30 m for night vision, it powers over a single PoE cable, and it carries an IP67 outdoor rating with a −30 °C to 60 °C working range. It is offered with two fixed lenses: 2.8 mm (SF28, wider view) or 4.0 mm (SF40, longer reach).

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Shops & storefrontsThe compact turret dome mounts flush on a ceiling or wall to watch the door and counter. SF28 covers the whole shop floor from a corner.

Home entryways & gatesSmart IR keeps watch at night without lighting up the scene — discreet black & white night vision up to 30 m.

Warehouse & site perimetersIP67 body and −30 to 60 °C rating survive rain, dust and heat. SF40 watches long fence lines.

Hallways & corridorsThe turret dome shape is a familiar, low-profile fit for indoor or covered-outdoor ceiling mounting along corridors.

Small offices & receptionUltra 265 compression keeps recordings small — more days of footage on the same NVR disk.

Retail aisles & parking areasOne PoE cable does power + video — no electrician needed at the mounting point, quick to install.

Not the right pick if you need…

Two-way talk — no built-in microphone or speaker at all
Color night vision — infrared only, there is no visible warm-light illuminator
Wi-Fi — this is a wired RJ45 camera
Zoom — the lens is fixed (2.8 or 4.0 mm, chosen at purchase)
Alarm in/out wiring for sirens or sensors

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 1080P, 1/2.8" CMOS sensor

1080P (1920 × 1080)@30/25 fps; 720P (1280 × 720)@30/25 fps

Ultra 265, H.265, H.264

Smart IR, up to 30 m (98.4 ft.) IR distance

Day/night functionality

2D/3D DNR (digital noise reduction)

IP67 protection

Supports PoE power supply

3-axis

Night Vision: Smart IR

IR on/off switching is Auto or Manual — set it per site, per customer.

IR MODE

Invisible infrared — discreet black & white night vision

Smart IR up to 30 m (98.4 ft.) at 850 nm, switchable Auto/Manual. The camera watches without lighting up the scene — nothing shows it is recording. This model has Smart IR only; there is no warm-light illuminator.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Switch the lens buttons above to compare.

Detectsomething is there

45 m147.6 ft

Observewhat is happening

18 m59.1 ft

Recognizesomeone you know

9 m29.5 ft

Identifya stranger's face

4.5 m14.8 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	AF28 · 101.1°	AF40 · 82.5°
5 m16 ft	12.2 m39.9 ft	8.8 m28.8 ft
10 m33 ft	24.3 m79.7 ft	17.5 m57.5 ft
15 m49 ft	36.5 m120 ft	26.3 m86.3 ft
20 m66 ft	48.6 m159 ft	35.1 m115 ft
30 m98 ft	72.9 m239 ft	52.6 m173 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:SF28 = 2.8 mmSF40 = 4.0 mm

Camera

Max Resolution	2 MP
Sensor	1/2.8" CMOS
Min. Illumination	Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°
S/N	> 52 dB
WDR	DWDR

Lens

Focal Length	AF28 · 2.8 mmAF40 · 4.0 mm
Iris Type	Fixed
Iris	F2.0
Field of View (H)	AF28 · 101.1°AF40 · 82.5°
Field of View (V)	AF28 · 56.5°AF40 · 44.5°
Field of View (D)	AF28 · 117°AF40 · 93°

DORI

DORI Distance (Lens)	AF28 · 2.8 mmAF40 · 4 mm
DORI Distance (Detect)	AF28 · 45.0 m (147.6 ft.)AF40 · 64.3 m (211.0 ft.)
DORI Distance (Observe)	AF28 · 18.0 m (59.1 ft.)AF40 · 24.8 m (81.4 ft.)
DORI Distance (Recognize)	AF28 · 9.0 m (29.5 ft.)AF40 · 12.4 m (40.7 ft.)
DORI Distance (Identify)	AF28 · 4.5 m (14.8 ft.)AF40 · 6.2 m (20.3 ft.)

Illuminator

Supplemental Light	IR
Illumination Distance (IR)	30 m (98.4 ft.)
Wavelength	850 nm
IR On/Off Control	Auto/Manual

Video

Video Compression	Ultra 265, H.265, H.264
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main: 1080P (1920 × 1080) max. 30 fps, 720P (1280 × 720) max. 30 fps · Sub: D1 (720 × 576) max. 30 fps, 640 × 360 max. 30 fps, 2CIF (704 × 288) max. 30 fps, CIF (352 × 288) max. 30 fps
Video Bit Rate	128 Kbps to 6144 Kbps
U-code	Support (main stream)
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Dual streams


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog

Events

Basic Detection	Motion detection
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	8 kHz

Network

Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP
Compatible Integration	ONVIF (Profile S, Profile T), API, SDK
User/Host	Up to 32 users, 2 user levels: administrator and common user
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF
Client	EZStation, APP
Web Browser	Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	N/A
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1); CB (IEC 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529)

General

Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 5.0 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø118 mm × 95 mm (Ø4.6" × 3.8") (Ø × H)
Weight	0.29 kg (0.64 lb.)
Material	Metal + Plastic
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	N/A
Web Client Language	1 Language: English

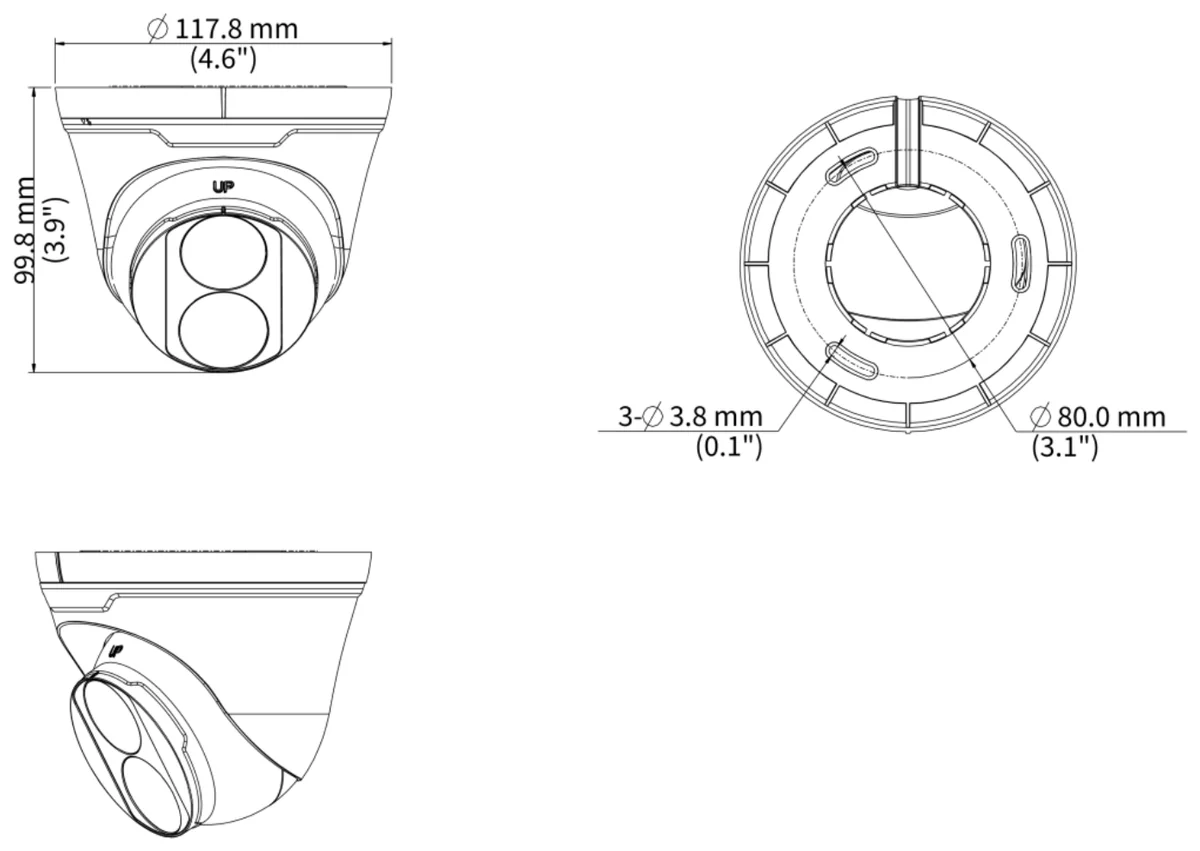

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Ø118 mm × 95 mm (Ø4.6" × 3.8") (Ø × H)
Weight	0.29 kg (0.64 lb.)
Material	Metal + Plastic
Mount adjustment	Pan 0–360° · Tilt 0–80° · Rotate 0–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB03-I-INJunction box for plastic turret camera (support wiring from behind)

TR-A01-INNPT 3/4" waterproof cable gland

TR-SE24-INDome pendant mounting pole 200mm

TR-SE24-A-INDome pendant mounting pole 500mm

TR-CM24-INDome pendant mounting bracket (indoor)

TR-JB07/WM03-G-IN-V2Wall mounting assembling bracket for 32 fix-dome & mini fix-dome & plastic turret camera

TR-WM03-D-IN-V2Wall mounting bracket for 32 fix-dome & mini fix-dome & plastic turret camera

TR-UC08-C-V2Bullet & dome corner mounting bracket

TR-WM07P-BDome wall mounting plastic bracket

2MP Fixed Dome Camera FAQ — IPC3612LB-SF28(40)-A

Which lens should I pick: SF28 (2.8 mm) or SF40 (4.0 mm)?

The 2.8 mm version covers 101.1 degrees horizontally with DORI detection at 45 m and identification at 4.5 m — good for rooms and close entries. The 4.0 mm version narrows to 82.5 degrees but stretches detection to 64.3 m and identification to 6.2 m.

How does it perform at night?

Smart IR covers up to 30 m at 850 nm, switchable Auto or Manual, with no visible glow. The IR-cut filter changes over automatically, color mode holds to 0.01 lux at F2.0, and with IR active it records at 0 lux in full darkness.

How is it powered on site?

Through PoE: the network cable from your PoE switch delivers power and video together, so there is no power adapter at the camera. That makes multi-camera rollouts across shops, schools and compounds faster and cheaper to cable.

Can it be installed outdoors in the rain?

Yes, the housing is IP67 rated against dust and water, so uncovered walls, gates and carports are fine. Aim it precisely with pan 0-360, tilt 0-80 and rotate 0-360 degrees, and digital defog helps in haze or dusty wind.

Is it usable where internet bandwidth is limited?

Yes. Ultra 265 and H.265 compression shrink the 1080p stream, with bit rate adjustable from 128 kbps to 6144 kbps. Dual streams let the NVR record full quality while remote viewers pull a light sub stream at D1 or 640x360.
