IPC6312LFW-AX5C-VG1
A compact 2MP PTZ dome that finds trouble and gets close: 5× optical zoom locks onto people with auto tracking, LightHunter imaging holds true color into near-darkness, and smart intrusion prevention filters out false alarms — in a PoE-powered housing rated -30 to 60 °C.
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
Need the PDF datasheet? Get it on WhatsApp →Sample quantities are welcome — testing one or two units first is the normal way to start.
The IPC6312LFW-AX5C-VG1 is a 2MP LightHunter mini PTZ dome camera built around a 1/2.8" CMOS sensor with a 2.7 to 13.5 mm, 5× optical-zoom lens (F1.6), delivering up to 120 dB WDR and color imaging down to 0.002 lux (AGC on). Smart intrusion prevention covers cross line, intrusion, enter-area and leave-area detection with false-alarm filtering and human/vehicle classification, while auto tracking automatically follows human targets and a built-in mic and speaker support two-way audio. Smart IR reaches 50 m plus a 15 m warm light, MicroSD storage takes cards up to 512 GB, and the IP66-rated housing runs on DC 12 V or PoE (IEEE 802.3at).
Is this the right camera for you?
Plain-language guide for buyers and installers — based only on what this camera actually does.
- No wide panoramic view — this is a single-lens 5× zoom mini PTZ covering one area at a time, not a 360° or multi-sensor camera. Pair it with a fixed or panoramic camera if you need full-scene overview plus detail together.
- The datasheet lists auto tracking with human-target filtering, not face recognition or a face database — it follows a person, it doesn't identify who they are. Choose a dedicated face-recognition camera if identity matching is the goal.
- IP66 protection (not IP67/submersible) — fine for eaves, walls and typical outdoor poles, but not rated for direct water immersion or burial-level exposure.
Worried about counterfeits? Order under your own company name.
For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.
Using your own freight forwarder? No problem.
For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.
Key Features
Complete list from the official datasheet.
Two Capabilities Working Together
Auto tracking finds the target; the lens and low-light imaging bring it into clear view.
5× zoom auto-tracking locks onto people in real time
A 2.7–13.5 mm, 5× optical-zoom lens (F1.6) pairs with auto tracking that filters for human targets only, so the PTZ head follows people without chasing vehicles or moving branches.
LightHunter imaging holds color into near-darkness
0.002 lux color sensitivity (F1.6, AGC on) plus 120 dB WDR keeps footage usable in dim lots and backlit doorways; once it's fully dark, 50 m IR and 15 m warm light take over.
How far can it see? (DORI)
DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Values shown are at full 5× telephoto.
How wide a view at each distance
Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.
| Distance | 106.6° wide | 31.5° tele |
|---|---|---|
| 5 m16 ft | 13.4 m44.0 ft | 2.8 m9.3 ft |
| 10 m33 ft | 26.8 m88.0 ft | 5.6 m18.5 ft |
| 15 m49 ft | 40.2 m132 ft | 8.5 m27.8 ft |
| 20 m66 ft | 53.7 m176 ft | 11.3 m37.0 ft |
| 30 m98 ft | 80.5 m264 ft | 16.9 m55.5 ft |
Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.
Full Specifications
Complete official specifications from the manufacturer's datasheet (technical values in English).
Camera
| Max Resolution | 2 MP |
| Sensor | 1/2.8" CMOS |
| Min. Illumination | Color: 0.002 Lux (F1.6, AGC ON), 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | > 52 dB |
Lens
| Focal Length | 2.7 to 13.5 mm |
| Optical Zoom | 5X |
| Iris | F1.6 |
| Field of View (H) | 106.6° to 31.5° |
| Field of View (V) | 56.5° to 16.9° |
| Field of View (D) | 138.6° to 38.7° |
Video
| Privacy Mask | Up to 4 areas |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 1080P (1920 × 1080) max. 30 fps; Sub Stream: 720P (1280 × 720), max. 30 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Dual streams |
| OSD | Up to 4 OSDs |
Intelligent
| Auto Tracking | Support, target filtering: human only |
| Smart Intrusion Prevention | Cross line detection, intrusion detection (support false alarm filtering and the classification of human and vehicle) |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| BLC | Support |
| Smart IR | Support |
| Defog | Digital defog |
Illuminator
| Light On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Illumination Distance (IR) | 50 m (164.0 ft.) |
| Illumination Distance (Warm Light) | 15 m (49.2 ft.) |
Events
| Basic Detection | Motion detection, Tampering alarm, Audio detection |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication |
Audio
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16KHZ |
Storage
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
PTZ
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Patrol Stay Time | 120 s to 1800 s |
| Home Position | Support |
| Pan Range | 0° to 345° |
| Tilt Range | -10° to 100° |
| Pan Speed | 1°/s to 40°/s |
| Tilt Speed | 1°/s to 30°/s |
Network & Security
| Protocols | TLS1.3, SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), SDK, API |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, UNV-Link, UNV-Link Pro |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
Interface
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 1/1 |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
Certification
| EMC | CE-EMC (EN 55032: 2015+A11: 2020+A1: 2020, EN 50130-4: 2011+A1: 2014, EN 61000-3-3: 2013+A1: 2019+A2: 2021, EN IEC 61000-3-2: 2019+A1: 2021) |
| Safety | CE LVD (EN 62368-1: 2020+A11: 2020); UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) |
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
General
| Power | DC 12 V (±25%), PoE (IEEE 802.3at) |
| Power Consumption | 18 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | 133 mm × 185 mm × 286 mm (Ø5.2" × 7.3" × 11.3") (L × W × H) |
| Weight | 788 g (1.74 lb.) |
| Working Environment | -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 °C to 70 °C (-40 °F to 158 °F), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 2 KV |
| Reset Button | Support |
| Heater | Support |
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
| Configurable P/N | Support |

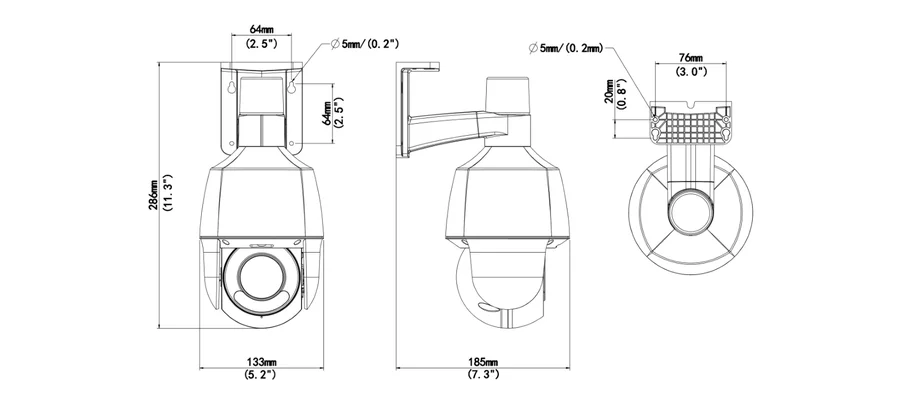

Dimensions
Engineering drawing reproduced 1:1 from the official datasheet.
| Dimensions | 133 mm × 185 mm × 286 mm (Ø5.2" × 7.3" × 11.3") (L × W × H) |
| Weight | 788 g (1.74 lb.) |
| Power | DC 12 V (±25%), PoE (IEEE 802.3at) |
| Power Consumption | 18 W |
| Working Environment | -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤95% RH (non-condensing) |
| Protection | IP66 · 2 KV surge |
Optional Mounting Accessories
Order together with the camera to save shipping.
