IPC6322LFW-AX5C-VG
A compact PTZ dome that zooms 5× onto anything that moves: human-only auto-tracking, an active-deterrence strobe plus customizable voice warnings, and LightHunter low-light imaging with IR 50 m and a 15 m warm light for full-color night evidence.
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
Need the PDF datasheet? Get it on WhatsApp →Sample quantities are welcome — testing one or two units first is the normal way to start.
The IPC6322LFW-AX5C-VG is a 2MP LightHunter mini PTZ dome with a 2.7–13.5 mm, 5× optical-zoom lens (105.2° to 29.32° horizontal field of view) and 1080P main stream at up to 30 fps. Auto tracking locks onto human targets, and smart intrusion prevention (cross line, intrusion, enter/leave area) filters false alarms by classifying people, non-motor and motor vehicles. An integrated active-deterrence alarm combines a strobe light with customizable voice messages, backed by two built-in speakers and two-way audio. LightHunter low-light processing delivers up to 120 dB WDR and 0.003 lux color sensitivity, while IR reaches 50 m and a separate warm light reaches 15 m for full-color night capture. The housing is IP66-rated, works on DC 12 V or PoE (IEEE 802.3at), and supports 1024 presets with 16 patrols.
Is this the right camera for you?
Plain-language guide for buyers and installers — based only on what this camera actually does.
- 2MP / 1080P resolution only — no 4K or panoramic channel. If you need long-range identification detail or a wide stitched panorama, a higher-resolution or dual-channel PTZ is a better fit.
- Auto tracking filters for human targets only — it is not built to auto-track vehicles specifically. For vehicle-focused tracking on roadways, check a traffic-oriented PTZ instead.
- IP66 only, not IP67/IK10 — this is a light-duty mini PTZ for standard outdoor mounts, not an armored unit for extreme vandalism-prone or fully submersible sites.
Worried about counterfeits? Order under your own company name.
For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.
Using your own freight forwarder? No problem.
For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.
Key Features
Complete list from the official datasheet.
Dual Illumination: IR + Warm Light
Two independent light sources, switchable automatically or manually.
850 nm IR reaches 50 m for covert monochrome night viewing when full-color capture is not required
undefined
A separate 15 m warm light keeps footage in full color at night — useful for face and clothing evidence, paired with the active-deterrence strobe
undefined
How far can it see? (DORI)
DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Bars show the 5× telephoto end; at the 2.7 mm wide end the datasheet's minimum distances are roughly a third of these figures (Detect from 48.9 m).
How wide a view at each distance
Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.
| Distance | 105.2° wide | 29.3° tele |
|---|---|---|
| 5 m16 ft | 13.1 m42.9 ft | 2.6 m8.6 ft |
| 10 m33 ft | 26.2 m85.8 ft | 5.2 m17.2 ft |
| 15 m49 ft | 39.2 m129 ft | 7.8 m25.7 ft |
| 20 m66 ft | 52.3 m172 ft | 10.5 m34.3 ft |
| 30 m98 ft | 78.5 m257 ft | 15.7 m51.5 ft |
Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.
Full Specifications
Complete official specifications from the manufacturer's datasheet (technical values in English).
Camera
| Max Resolution | 2 MP |
| Sensor | 1/2.8" CMOS |
| Min. Illumination | Color: 0.003 Lux (F1.2, AGC ON), 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | > 52 dB |
Lens & Field of View
| Focal Length | 2.7 to 13.5 mm |
| Optical Zoom | 5× |
| Iris | F1.2 |
| Field of View (H) | 105.2° to 29.32° |
| Field of View (V) | 52.6° to 16.38° |
| Field of View (D) | 136.8° to 36.1° |
DORI
| DORI Distance (Detect) | 48.9 m to 170.7 m (160.4 ft. to 560.0 ft.) |
| DORI Distance (Observe) | 19.6 m to 68.3 m (64.4 ft. to 224 ft.) |
| DORI Distance (Recognize) | 9.8 m to 34.1 m (32.1 ft. to 112 ft.) |
| DORI Distance (Identify) | 4.9 m to 17.1 m (16.1 ft. to 56.1 ft.) |
Illuminator
| Light On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Illumination Distance (IR) | 50 m (164.0 ft.) |
| Illumination Distance (Warm Light) | 15 m (49.2 ft.) |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| BLC | Support |
| Smart IR | Support |
| Defog | Digital defog |
Video
| Privacy Mask | Up to 4 areas |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 1080P (1920×1080), max. 30 fps · Sub Stream: 720P (1280×720), max. 30 fps · Third Stream: D1 (720×576), max. 30 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Triple streams |
| OSD | Up to 8 OSDs |
Intelligent
| Auto Tracking | Support, target filtering: human only |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | Support people flow counting and crowd density monitoring |
| Exception Detection | Object removed, Object Left Behind, Scene change, Defocus detection |
PTZ
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Patrol Stay Time | 120 s to 1800 s |
| Home Position | Support |
| Pan Range | 0° to 345° |
| Tilt Range | -10° to 100° |
| Pan Speed | 1°/s to 50°/s |
| Tilt Speed | 1°/s to 40°/s |
Events
| Basic Detection | Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind, Scene change, Defocus detection |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication |
Audio
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16 kHz |
Storage
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
Network & Security
| Protocols | TLS1.3, SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, UNV-Link, UNV-Link Pro |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
| Web Client Language | 22 languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
Interface
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 1/1 |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
General
| Power | DC 12 V (±25%), PoE (IEEE 802.3at) |
| Power Consumption | 18 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | 185 mm × 133 mm × 286 mm (7.3" × 5.2" × 11.3") (L × W × H) |
| Weight | 1.32 kg (2.91 lb.) |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -40℃ ~ 70℃ (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 2 KV |
| Reset Button | Support |
| Heater | Support |
| Configurable P/N | Support |
Certification
| EMC | CE-EMC (EN 55032: 2015+A11: 2020+A1: 2020, EN 50130-4: 2011+A1: 2014, EN 61000-3-3: 2013+A1: 2019+A2: 2021, EN IEC 61000-3-2: 2019+A1: 2021) |
| Safety | CE LVD (EN 62368-1: 2020+A11: 2020) · UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-ROHS (2011/65/EU; (EU)2015/863) |
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |

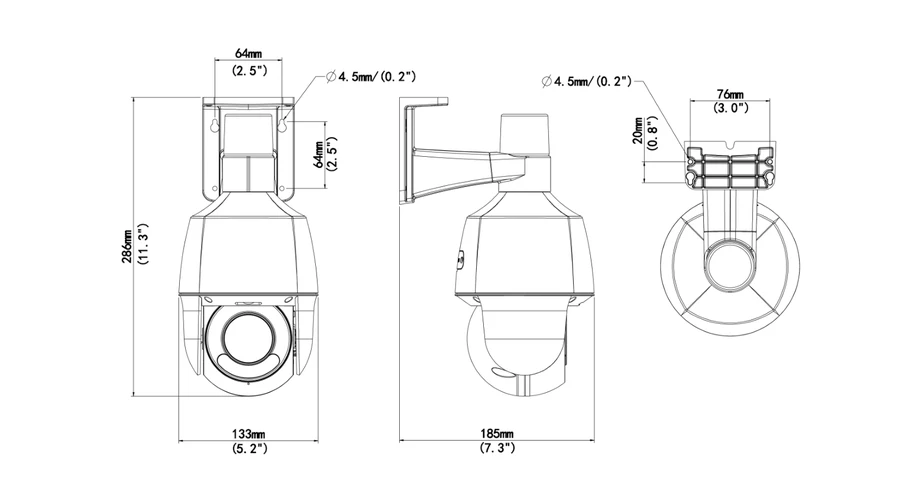

Dimensions
Engineering drawing reproduced 1:1 from the official datasheet.
| Dimensions | 185 mm × 133 mm × 286 mm (7.3" × 5.2" × 11.3") (L × W × H) |
| Weight | 1.32 kg (2.91 lb.) |
| Power | DC 12 V (±25%) · PoE (IEEE 802.3at) · 18 W |
| Working Environment | -30 °C to 60 °C (-22 °F to 140 °F), ≤95% RH non-condensing |
| Protection | IP66 · 2 kV surge |
Optional Mounting Accessories
Order together with the camera to save shipping.
Active Deterrence PTZ Camera FAQ — IPC6322LFW-AX5C-VG
How does the IPC6322LFW-AX5C-VG deter intruders?
What can it see at night?
How do I power it on site?
How far can it recognize a person, and how much can it cover?
Does it do people counting for shops?
