IPC6324LWH-AX5C-VG2
A compact PTZ dome camera built around Wise-ISP ColorHunter: a 1/1.8-inch 4MP sensor with 5X optical zoom keeps color and detail in extremely low light, smart intrusion prevention filters false alarms with cross-line and intrusion detection, and a 40 m warm light plus 120 dB WDR keep the picture usable after dark and against harsh backlight.
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
Need the PDF datasheet? Get it on WhatsApp →Sample quantities are welcome — testing one or two units first is the normal way to start.
The IPC6324LWH-AX5C-VG2 is a PTZ dome camera with a 1/1.8-inch 4MP CMOS sensor and a 5X optical-zoom lens (2.7 to 13.5 mm), delivering a 2688×1520 main stream at up to 30 fps in Ultra 265, H.265, H.264 or MJPEG. Wise-ISP ColorHunter processing optimizes color, detail and smear in extremely low light down to 0.0005 lux, while up to 120 dB WDR handles harsh backlight. Smart intrusion prevention supports cross-line and intrusion detection with human/vehicle-based false-alarm filtering, and auto tracking locks onto and follows people (human-only target filtering). A 40 m warm light with auto/manual control replaces conventional IR for full-color night capture, and the camera pans 0° to 345° / tilts -10° to 100° with 1024 presets and 16 patrols. Power is DC 12 V or PoE (IEEE 802.3at), housed to IP66.
Is this the right camera for you?
Plain-language guide for buyers and installers — based only on what this camera actually does.
- IP66, not IP67 — this housing is rated against water jets and dust ingress but not full submersion; it is not the pick for a mount that could be flooded or submerged.
- Auto tracking targets people only — there is no vehicle-tracking mode, so a site that mainly needs to follow moving vehicles should look at a different model.
- No PoE+ or high-power PTZ heater is listed — power draw tops out at 25.4 W over DC 12 V or PoE (802.3at); an installer in extreme cold should confirm heater behavior is adequate for the site before relying on it as a primary deicing solution.
Worried about counterfeits? Order under your own company name.
For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.
Using your own freight forwarder? No problem.
For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.
Key Features
Complete list from the official datasheet.
Two Sides of the Same Sensor: Color Clarity + Warm Light
Wise-ISP ColorHunter and the 40 m warm light work together so the camera stays in full color after dark instead of switching to monochrome IR.
Wise-ISP ColorHunter
Deeply optimizes color, detail and smear in extremely low-light scenes, holding usable color down to 0.0005 lux (F1.2, AGC on).
40 m warm-light illuminator
Auto or manual light control extends full-color capture to 40 m (131.2 ft.) for face and plate detail instead of falling back to black-and-white infrared.
How far can it see? (DORI)
DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Values above are the telephoto end (13.5 mm, 5X); the wide-angle end (2.7 mm) is listed in the spec table's DORI group below.
How wide a view at each distance
Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.
| Distance | 113.7° wide | 50.3° tele |
|---|---|---|
| 5 m16 ft | 15.3 m50.2 ft | 4.7 m15.4 ft |
| 10 m33 ft | 30.6 m100 ft | 9.4 m30.8 ft |
| 15 m49 ft | 45.9 m151 ft | 14.1 m46.2 ft |
| 20 m66 ft | 61.2 m201 ft | 18.8 m61.6 ft |
| 30 m98 ft | 91.8 m301 ft | 28.2 m92.4 ft |
Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.
Full Specifications
Complete official specifications from the manufacturer's datasheet (technical values in English).
Camera
| Sensor | 1/1.8" CMOS |
| Min. Illumination | Color: 0.0005 Lux (F1.2, AGC ON) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | > 56 dB |
Lens
| Focal Length | 2.7 to 13.5 mm |
| Optical Zoom | 5X |
| Field of View (H) | 113.69° to 50.29° |
| Field of View (V) | 59.46° to 28.45° |
| Field of View (D) | 156.23° to 59.34° |
DORI
| DORI Distance (Lens) | 2.7 to 13.5 mm |
| DORI Distance (Detect) | 98.6 m to 209.9 m (323.3 ft. to 688.7 ft.) |
| DORI Distance (Observe) | 39.4 m to 84.0 m (129.3 ft. to 275.5 ft.) |
| DORI Distance (Recognize) | 19.7 m to 42.0 m (64.7 ft. to 137.7 ft.) |
| DORI Distance (Identify) | 9.9 m to 21.0 m (32.3 ft. to 68.9 ft.) |
Video
| Privacy Mask | Up to 4 areas |
| Frame Rate — Main Stream | 4 MP (2560×1440)@25 fps (Default); 4 MP (2688×1520), max. 30 fps; 4 MP (2560×1440), max. 30 fps |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate | 128 Kbps to 6144 Kbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Triple streams |
| OSD | Up to 8 OSDs |
Intelligent
| Auto Tracking | Support, target filtering: human only |
| Smart Intrusion Prevention | Support false alarm filtering: cross line detection, intrusion detection (based on human body and vehicle detection) |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| BLC | Support |
| Defog | Digital defog |
Illuminator
| Light On/Off Control | Auto/Manual |
| Illumination Distance (Warm Light) | 40 m |
Events
| Basic Detection | Motion detection, Audio detection, Tampering alarm |
| Motion Detection | Support |
| Tampering Detection | Support |
| Audio Detection | Support |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication |
| UMD (Ultra Motion Detection) | Support |
Audio
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 kHz, 16 kHz |
Storage
| Edge Storage | MicroSD, up to 512 GB |
Network & Security
| Protocols | TLS1.3, SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | EZStation, EZLive, EZView |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
PTZ
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Patrol Stay Time | 120 s to 1800 s |
| Home Position | Support |
| Number of Presets (IPC) | 1024 |
| Pan Range | 0° to 345° |
| Tilt Range | -10° to 100° |
| Pan Speed | 1°/s to 50°/s |
| Tilt Speed | 1°/s to 40°/s |
| Number of Patrol | 16 |
Interface
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 1/1 |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
Certification
| EMC | CE-EMC (EN 55032; EN IEC 61000-3-2; EN 61000-3-3; EN 50130); FCC SDoC (47 CFR Part 15; Subpart B) |
| Safety | UL (UL 62368-1); CUL (CAN/CSA C22.2 No. 62368-1); CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (2011/65/EU; (EU)2015/863) |
| Protection | IP66 (IEC 60529) |
General
| Power | DC 12 V±25%, PoE (IEEE 802.3at) |
| Power Consumption | ≤ 25.4 W |
| Weight | 1.33 kg (2.93 lb.) |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 2 KV |
| Reset Button | Support |
| Material | Metal |
| Heater | Support |
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
Live View
| Maximum Bitstream | 35 |
| OSD Color | Support |
| OSD Character Number | 40 |
Dimensions

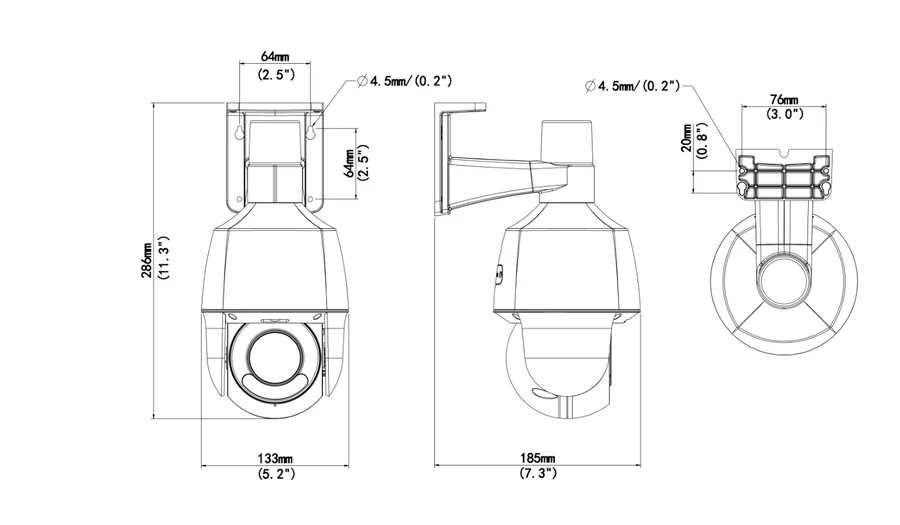

Engineering drawing reproduced 1:1 from the official datasheet.
| Dimensions | 133 mm (W) × 286 mm (H) × 185 mm (D) (5.2" × 11.3" × 7.3") · wall-mount base Φ76 mm (3.0") |
| Weight | 1.33 kg (2.93 lb.) |
| Power | DC 12 V (±25%), PoE (IEEE 802.3at) · ≤ 25.4 W |
| Working Environment | -30 °C to 60 °C (-22 °F to 140 °F), ≤95% RH non-condensing |
| Protection | IP66 (IEC 60529) · 2 kV surge |
Optional Mounting Accessories
Order together with the camera to save shipping.
