PTZ Cameras › IPC6412LR-X5UPW-VG

IPC6412LR-X5UPW-VG 2MP WDR Starlight Wi-Fi Mini PTZ Dome Camera front view

2MP WDR Starlight Wi-Fi Mini PTZ Dome Camera, 5× Zoom IPC6412LR-X5UPW-VG — view 1

2MP WDR Starlight Wi-Fi Mini PTZ Dome Camera, 5× Zoom IPC6412LR-X5UPW-VG — view 2

2MP WDR Starlight Wi-Fi Mini PTZ Dome Camera, 5× Zoom IPC6412LR-X5UPW-VG — view 3

Uniview (UNV) · PTZ CameraStarlight · Mini PTZ Dome

2MP WDR Starlight Wi-Fi Mini PTZ · 5× Optical Zoom

IPC6412LR-X5UPW-VG

Name: IPC6412LR-X5UPW-VG
Brand: Uniview
SKU: IPC6412LR-X5UPW-VG

A compact Wi-Fi-enabled mini PTZ dome that pairs a 2MP WDR Starlight sensor with 5× optical zoom — smart intrusion detection with human/vehicle classification keeps watch, and built-in two-way audio lets you talk to whoever it sees.

1920×1080 · main stream @30fps5× · optical zoom (2.7–13.5mm)Wi-Fi · wireless connection, easy installPoE 802.3at · + DC 12V option120 dB · optical WDR30 m · Smart IR distance

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Compliance:ONVIF Profile SONVIF Profile GONVIF Profile T

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

2 MP1080P Starlight sensor

5×Optical zoom, 2.7–13.5 mm

30 mSmart IR distance

120 dBOptical WDR

The IPC6412LR-X5UPW-VG is a 2MP WDR Starlight IR mini PTZ dome camera built around a 1/2.7" CMOS sensor with 5× optical zoom (2.7-13.5 mm, F1.2) and up to 120 dB optical WDR for high-contrast scenes. It adds Wi-Fi connectivity for easy installation, smart intrusion prevention (cross line, intrusion, and enter/leave-area detection with human, non-motor and motor-vehicle classification plus false-alarm filtering), and a built-in microphone and speaker for two-way audio. Power is DC 12 V or PoE (IEEE 802.3at), IR illumination reaches 30 m, and the housing is rated for -10 °C to 50 °C operation.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Wi-Fi installs, no cable pullingRetrofit sites, temporary setups, or spots where pulling a network cable is impractical: this mini PTZ connects over Wi-Fi, and can also run on PoE (802.3at) or DC 12V when a cable is already there.

Mid-range perimeter watch5× optical zoom (2.7-13.5mm) lets one camera cover a gate or yard at wide angle and zoom in on a person or plate at the far end, with pan up to 350° and tilt 0°-90°.

Fewer false alarmsCross line, intrusion, and enter/leave-area detection classify human, non-motor and motor-vehicle traffic before triggering an alert, cutting nuisance alarms caused by blowing leaves or small animals.

Usable color at dusk and dark0.003 lux color sensitivity plus 120dB WDR keep dusk and dawn footage usable, while Smart IR reaches 30m after dark without washing out close objects.

Two-way audio on siteBuilt-in mic and speaker give operators a way to warn off an intruder or talk to a visitor directly through the camera, without adding a separate intercom.

Compact mount, flexible bracketsAt Ø129 × 143.6mm and 0.76kg, it mounts on the included wall/pole brackets or the corner and junction-box options in the accessories list — no heavy-duty support structure required.

Not the right pick if you need…

No ingress-protection (IP) rating is stated in the datasheet, and the working environment is limited to -10°C to 50°C — not the choice for exposed extreme-climate sites; check with us before specifying it for harsh outdoor conditions.
Audio I/O is N/A — there is no external mic/speaker input line, only the built-in mic and speaker. If you need to wire in existing PA equipment, look at a model with dedicated audio ports.
Video Output is N/A — there is no analog/HDMI monitor output for local viewing; this is a network-only camera.
Alarm I/O is 1 in / 1 out — for projects needing many dry-contact triggers or relay outputs, plan for an external I/O module.

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 1080P, 1/2.7" CMOS sensor

1920 × 1080 @30fps in the main stream

Ultra 265, H.265, H.264, MJPEG

5X optical zoom allows for closer viewing of subjects

Smart intrusion prevention, supports false alarm filtering, including cross line, intrusion, enter area, leave area detection

Automatic selection of best snapshots

LightHunter technology ensures ultra-high image quality in low illumination environment

Up to 120 dB optical WDR (wide dynamic range)

Wi-Fi connection and easy installation

Built-in mic and speaker, supports two-way audio

Alarm I/O: 1/1

Smart IR, up to 30 m (98.4 ft) IR distance

How far can it see? (DORI — full zoom)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Values below are at full 5× optical zoom (13.5mm); at the 2.7mm wide end the datasheet gives shorter distances (Detect 70.9 m / Observe 28.4 m / Recognize 14.2 m / Identify 7.1 m).

Detectsomething is there

247.5 m812.0 ft

Observewhat is happening

99 m324.8 ft

Recognizesomeone you know

49.5 m162.4 ft

Identifybeyond doubt

24.8 m81.4 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	104.9° wide	30.6° tele
5 m16 ft	13.0 m42.7 ft	2.7 m9.0 ft
10 m33 ft	26.0 m85.4 ft	5.5 m18.0 ft
15 m49 ft	39.0 m128 ft	8.2 m26.9 ft
20 m66 ft	52.0 m171 ft	10.9 m35.9 ft
30 m98 ft	78.1 m256 ft	16.4 m53.9 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Sensor	1/2.7" CMOS
Min. Illumination	Color: 0.003 Lux (F1.2, AGC ON), 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
WDR	120 dB
S/N	>52 dB

Lens

Focal Length	2.7 to 13.5 mm
Optical Zoom	5X
Iris	F1.2
Field of View (H)	104.9° to 30.6°
Field of View (V)	55.41° to 17.7°
Field of View (D)	136.37° to 36.1°

DORI

DORI Distance (Lens)	2.7 to 13.5 mm
DORI Distance (Detect)	70.9 m to 247.5 m (232.5 ft. to 812.0 ft.)
DORI Distance (Observe)	28.4 m to 99.0 m (93.2 ft. to 324.8 ft.)
DORI Distance (Recognize)	14.2 m to 49.5 m (46.5 ft. to 162.4 ft.)
DORI Distance (Identify)	7.1 m to 24.8 m (23.3 ft. to 81.4 ft.)

Video

Privacy Mask	24 areas, up to 4 areas per scene
Video Compression	Ultra 265, H.265, H.264, MJPEG
Frame Rate	Main Stream: 1080P (1920×1080), max. 30 fps; Sub Stream: 720P (1280×720), max. 30 fps; Third Stream: D1 (720×576), max. 30 fps
Video Bit Rate	128 Kbps to 16 Mbps
U-code	Support
ROI	Support
Video Stream	Triple streams
OSD	Up to 8 OSDs

Intelligent

Smart Intrusion Prevention	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
Exception Detection	Object removed, Object Left Behind, Scene change, Defocus detection


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180°
HLC	Support
BLC	Support
Smart IR	Support
Defog	Digital defog
Heatwave Reduction	N/A

Illuminator

Light On/Off Control	Auto/Manual
Wavelength	850 nm
Illumination Distance (IR)	30 m (98.4 ft.)

Events

Basic Detection	Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind, Scene change, Defocus detection
General Function	Watermark, IP address filtering, Alarm input, Alarm output, Access policy, ARP protection, RTSP authentication, User authentication

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	128 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	16 KHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

Network

Protocols	SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, UNV-Link, UNV-Link Pro
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

PTZ

Number of Presets	1024
Preset Patrol	16 patrols, up to 64 presets for each patrol
Patrol Stay Time	1800 s to 3600 s
Preset Image Freeze	N/A
Home Position	Support
Pan Range	350°
Tilt Range	0° to 90°
Pan Speed	0.1°/s to 60°/s
Tilt Speed	0.1°/s to 50°/s

Interface

Audio I/O	N/A
Alarm I/O	1/1
Serial Port	1 × RS485
Built-in Mic	Support
Built-in Speaker	Support
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

EMC	CE-EMC (EN 55032: 2015+A1:2020; EN 61000-3-3: 2013+A1: 2019; EN IEC 61000-3-2: 2019+A1: 2021; EN 55035: 2017+A11:2020), FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety	CE LVD (EN 62368-1:2014+A11:2017), CB (IEC 62368-1:2014), UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment	CE-ROHS (2011/65/EU;(EU)2015/863)

General

Reset Button	Support
Material	Plastic
Web Client Language	22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
Configurable P/N	Support

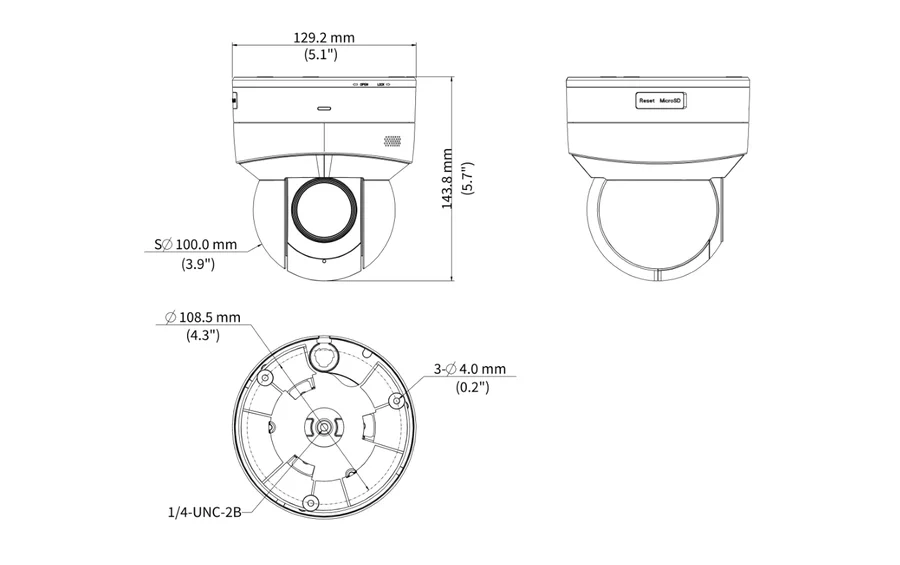

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Ø129 mm × 143.6 mm (Ø5.1" × 5.7")
Weight	0.76 kg (1.67 lb.)
Power	DC 12 V (±25%), PoE (IEEE 802.3at)
Power Consumption	Max. 15 W
Working Environment	-10 °C to 50 °C (14 °F to 122 °F), ≤95% RH non-condensing
Storage Environment	-40 °C to 70 °C (-40 °F to 158 °F), ≤95% RH non-condensing
Power Interface	Ø5.5 mm coaxial power plug
Surge Protection	4 kV

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB03-H-INJunction box for metal turret camera (supports wiring from behind)

TR-JB07/WM03-F-INWall mounting assembling bracket with back hole for 3-inch hemisphere

TR-WM03-B-INWall mounting assembling bracket for 3-inch hemisphere

TR-A01-INNPT 3/4'' waterproof cable gland

TR-UP06-INUniversal pole mounting bracket

TR-UC08-CBullet & dome corner mounting bracket

WiFi PTZ Camera FAQ — IPC6412LR-X5UPW-VG

Does the IPC6412LR-X5UPW-VG need a network cable?

Not necessarily. It is a Wi-Fi mini PTZ, so video can go over the wireless network where cabling is impractical. For wired sites it also supports PoE per IEEE 802.3at — one cable for power and data — or a local DC 12 V supply. Note it still needs power at the mounting point if you use Wi-Fi.

How far does its night vision reach?

The 850 nm IR illuminator covers up to 30 m (98.4 ft), with Smart IR preventing overexposure of close subjects. Before IR kicks in, the F1.2 lens keeps color down to 0.003 lux with AGC on, and 120 dB WDR handles headlights and backlit entrances.

How far can it recognize a person?

With the 2.7–13.5 mm 5x zoom lens, DORI figures are: detect 70.9–247.5 m, observe 28.4–99 m, recognize 14.2–49.5 m and identify 7.1–24.8 m. Zoomed to the tele end, you can confirm identity at roughly 25 m and spot movement beyond 240 m.

What smart detections does it include?

Smart intrusion prevention covers cross-line, intrusion, enter-area and leave-area detection with false-alarm filtering. Exception detection adds object removed, object left behind, scene change and defocus. Basic events include motion, tampering and audio detection, and there are alarm input/output contacts for sirens or sensors.

Can I talk through the camera?

Yes. Two-way audio is supported with G.711U/G.711A compression at 128 Kbps and a 16 kHz sampling rate, with echo suppression. A guard or shop owner can hear what is happening and answer or warn visitors remotely from the monitoring app or VMS.
