IP Cameras › TIC3612SA-F2-4F3AC-I1

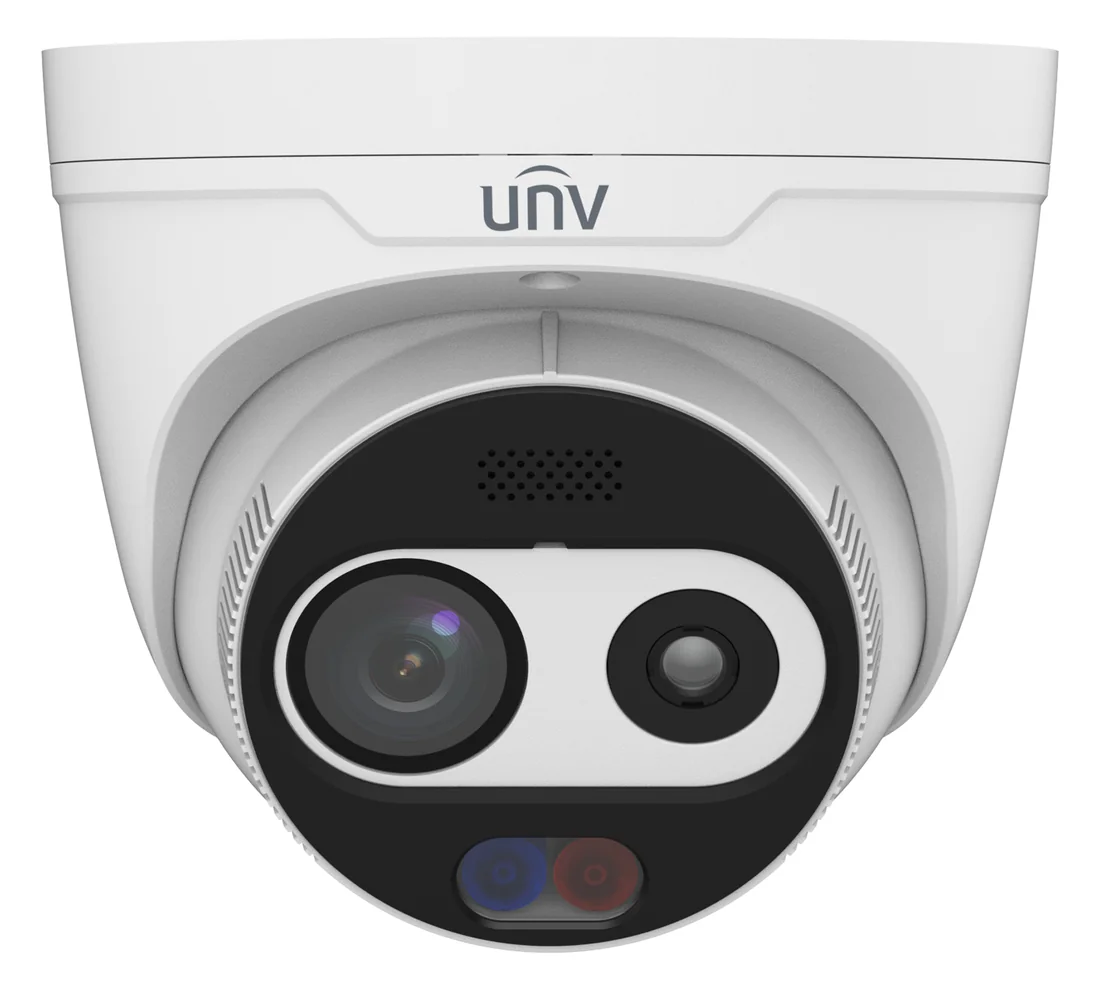

TIC3612SA Thermal & Optical Bi-Spectrum Dome Camera

Thermal & Optical Bi-Spectrum Network Dome Camera TIC3612SA-F2/F3/F7-4F#AC-I1 — view 1

Thermal & Optical Bi-Spectrum Network Dome Camera TIC3612SA-F2/F3/F7-4F#AC-I1 — view 2

Thermal & Optical Bi-Spectrum Network Dome Camera TIC3612SA-F2/F3/F7-4F#AC-I1 — view 3

Uniview (UNV) · DomeThermal & Optical Bi-Spectrum

Thermal & Optical Bi-Spectrum Dome · TIC Series

TIC3612SA-F2-4F3AC-I1

Name: Uniview TIC3612SA-F2-4F3AC-I1
Brand: Uniview
SKU: TIC3612SA-F2-4F3AC-I1

Thermal & optical bi-spectrum network dome camera — dual video (thermal + 4MP colour) over a single IP address. Radiometric temperature reading, fire alarm and smart intrusion prevention on both channels. Three thermal lens options: 2.1mm (F2), 3.0mm (F3), 7.0mm (F7).

4 MP · optical channel, 2688×1520256×192 · thermal resolutionRadiometric · ±8°C / ±8% accuracyPoE · 802.3af / DC12VIP67 · outdoorMic+Speaker · built-in two-way audio

CHOOSE YOUR THERMAL LENS — THREE MODELS ON THIS PAGE

Same dome body and electronics — only the thermal lens (and its paired optical lens) changes. F2 (2.1mm) covers the widest area up close: doorways, small yards. F3 (3.0mm) is the balanced middle choice for most perimeters. F7 (7.0mm) trades field of view for reach — long fence lines and open yards. Highlighted rows and badges below show every difference between the three.

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCULRoHSWEEEIP67ONVIFNDAA

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

2.1 mmThermal lens (this variant)

21 mHuman detection (thermal)

42 mVehicle detection (thermal)

±8 °CTemperature accuracy

The Uniview TIC3612SA is a thermal & optical bi-spectrum dome camera built around a 1/2.8" colour sensor paired with an uncooled 256×192 vanadium-oxide thermal core, streaming both channels from one IP address. The thermal channel reads absolute temperature (±8°C or ±8% accuracy) for fire and hot-spot alarms even in total darkness, smoke or glare, while the optical channel delivers 4MP colour video with smog recognition to confirm what the thermal channel sees. This page covers three lens options that share the same body: F2 (2.1mm thermal), F3 (3.0mm) and F7 (7.0mm) — pick the shortest for wide near-field coverage or the longest for long perimeter reach.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Warehouses & fire-risk sitesThe thermal channel spots hot spots and flags a fire alarm before smoke is visible to the eye — the optical channel's smog recognition reconfirms it.

Fence lines & open perimetersThermal detection works in total darkness with no illuminator needed. Pick F7 for the longest reach along a straight fence line.

Substations & equipment yardsRadiometric readout (±8°C or ±8%) tracks equipment temperature continuously and alarms on abnormal hot or cold spots automatically.

Ports, yards & logistics areasSmart intrusion prevention classifies people and vehicles on both channels at once, cutting false alarms from stray animals or moving shadows.

Smoke-obscured or glare conditionsWhen smoke, fog or backlight blind a normal lens, the thermal channel keeps working because it senses heat, not visible light.

Unmanned low-light sitesBuilt-in mic and speaker allow live two-way talk-down over the same PoE cable that already carries power and video.

Not the right pick if you need…

Motorized PTZ / zoom — this is a fixed-lens turret; pick your thermal focal length (F2/F3/F7) at purchase
Wi-Fi — this is a wired RJ45 camera
8MP/4K optical video — the optical channel tops out at 4MP (2688×1520)
Battery or solar operation — needs PoE (802.3af) or DC12V wired power
Coverage well beyond ~140 m — step up to a longer thermal lens or a PTZ thermal camera instead

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

Thermal & optical dual-spectrum image, dual video with single IP address, adaptable to various scenes

1/2.8" target surface, high sensitivity sensor, suitable for starlight monitoring

Thermal module supports reliable fire detection and fire shield area

Thermal module supports temperature detection and cold&hot spot tracking, which highlights abnormal temperatures and links to alarm

Thermal & optical dual-spectrum smart intrusion prevention can be enabled simultaneously: cross line, enter area, leave area, intrusion

Optical module supports smog recognition, which can help with fire alarm reconfirmation

Supports picture-in-picture mode, real-time contrast live, more convenient and clear

Supports audio and light alarm, with red and blue warning lights built in

Ultra 265, H.265, H.264, MJPEG

Max 2688×1520@30fps in the optical module and max 960P@30fps in the thermal module

DC 12V ±25% or PoE power supply

Alarm 2 in and 2 out, audio 1 in and 1 out, micro SD, up to 512 GB

Two channels, one camera

Thermal and optical run at the same time, from the same IP address — numbers below follow the lens selected above.

THERMAL CHANNEL

Radiometric temperature reading, day or night

256×192 vanadium-oxide sensor (NETD <50mK) reads absolute temperature at ±8°C or ±8% accuracy across two selectable ranges (-20 to 150°C / 100 to 550°C), tracking hot & cold spots automatically. At this lens, it flags a person at 21 m and a vehicle at 42 m; a 0.1×0.1 m fire or hot-spot event is caught at 9 m / 3.5 m.

OPTICAL CHANNEL

4MP full-colour video with smog recognition

1/2.8" CMOS records true-colour 2688×1520 video at up to 30fps with 120dB WDR, and its smog recognition helps reconfirm a thermal fire alert. Picture-in-picture overlays both views on one live feed. At this lens, optical DORI identify range is 5.9 m (19.2 ft.), recognize 11.7 m (38.4 ft.).

How far can the optical channel see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance — these figures are for the optical (visible-light) channel only; the thermal channel's detection range is shown in the next section. Switch the lens buttons above to compare.

Detectsomething is there

58.5 m191.9 ft

Observewhat is happening

23.4 m76.8 ft

Recognizesomeone you know

11.7 m38.4 ft

Identifya stranger's face

5.9 m19.2 ft

Thermal detection & recognition range (Johnson's Criteria)

Theoretical maximum ranges for the thermal channel, calculated per Johnson's Criteria for a 4.0×1.4 m vehicle and a 1.8×0.5 m person — one row per lens on this page. Real-world smart-alarm trigger distances are the smaller, conservative figures shown in the stat bar and channel cards above.

Lens	Detect (vehicle)	Detect (person)	Recognize (vehicle)	Recognize (person)	Identify (vehicle)	Identify (person)
2.1 mm (F2)	207 m	83 m	52 m	21 m	30 m	12 m
3.0 mm (F3)	296 m	119 m	74 m	30 m	49 m	17 m
7.0 mm (F7)	690 m	277 m	173 m	69 m	99 m	40 m

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	F2 · 108.5°	F7 · 25.2°
5 m16 ft	13.9 m45.6 ft	2.2 m7.3 ft
10 m33 ft	27.8 m91.1 ft	4.5 m14.7 ft
15 m49 ft	41.7 m137 ft	6.7 m22.0 ft
20 m66 ft	55.6 m182 ft	8.9 m29.3 ft
30 m98 ft	83.3 m273 ft	13.4 m44.0 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheets for all three lens variants (technical values in English). Each block follows the source layout: Optical channel | Thermal channel.

Colored badges show the value for each of the three lens variants:F2 = 2.1 mm thermalF3 = 3.0 mm thermalF7 = 7.0 mm thermal

Camera

Parameter	Optical	Thermal
Original Resolution	N/A	256 × 192
Sensor	1/2.8" CMOS	Vanadium oxide uncooled focal plane arrays
Min. Illumination	F2: Colour 0.01 Lux (F1.6,AGC ON), B/W 0.005 Lux, 0 Lux with IRF3: Colour 0.003 Lux, B/W 0.002 Lux, 0 Lux with IRF7: Colour 0.003 Lux, B/W 0.002 Lux, 0 Lux with IR	N/A
Day/Night	IR-cut filter with auto switch (ICR)	N/A
Pixel Size	N/A	12 um
NETD	—	< 50 mk@F1.0@25 °C
Shutter	Auto/Manual, 1 to 1/100000 s
WDR	120 dB
S/N	>56 dB

Lens

Parameter	Optical	Thermal
Focal Length	F2 2.6 mmF3 4.0 mmF7 6.0 mm	F2 2.1 mmF3 3.0 mmF7 7.0 mm
Iris	F1.6	F1.0
Field of View (H)	F2 108.5°F3 74.9°F7 49.1°	F2 88.8°F3 58.0°F7 25.2°
Field of View (V)	F2 70.7°F3 44.4°F7 26.9°	F2 63.7°F3 42.5°F7 19.3°
Field of View (D)	F2 133.5°F3 97.4°F7 60.4°	F2 109.2°F3 72°F7 31°

DORI (Optical Channel)

Parameter	Optical	Thermal
DORI Distance (Detect)	F2 58.5 m (191.9 ft.)F3 90.0 m (295.3 ft.)F7 135.0 m (442.9 ft.)	N/A
DORI Distance (Observe)	F2 23.4 m (76.8 ft.)F3 36.0 m (118.1 ft.)F7 54.0 m (177.2 ft.)	N/A
DORI Distance (Recognize)	F2 11.7 m (38.4 ft.)F3 18.0 m (59.1 ft.)F7 27.0 m (88.6 ft.)	N/A
DORI Distance (Identify)	F2 5.9 m (19.2 ft.)F3 9.0 m (29.5 ft.)F7 13.5 m (44.3 ft.)	N/A

Illuminator

Parameter	Optical	Thermal
Wavelength	750 nm	N/A
Illumination Distance (IR)	30 m	N/A
Light On/Off Control	Auto/Manual	N/A

Video

Parameter	Optical	Thermal
Frame Rate	4MP (2688×1520), Max 30 fps	960P (1280×960), Max 30 fps
Video Compression	Ultra 265, H.265, H.264, MJPEG
Video Bit Rate	128 Kbps to 16 Mbps
U-code	Support
ROI	Support
Video Stream	Triple streams
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas (8 blacks / 8 mosaics)	N/A


Parameter	Optical	Thermal
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2	N/A
Digital Noise Reduction	2D/3D DNR
HLC	Support	N/A
BLC	Support	N/A
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Defog	Digital defog	N/A
Palette	N/A	lava, medical, arctic, mazarine, fusion, rain, puce, white hot, iron oxide red, hot iron, rainbow 1, rainbow 2, rainbow 3, depict hot, ice hot, black hot, red hot, green hot, color 1, color 2

Intelligent

Parameter	Optical	Thermal
Smart Intrusion Prevention	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human and vehicle)
Smoke Detection	Support	N/A
Temperature Measurement Accuracy	N/A	±8 °C (±14.4 °F) or ±8% (whichever is greater)
Temperature Range	N/A	Selectable between -20 °C to 150 °C (-4 °F to 302 °F) and 100 °C to 550 °C (212 °F to 1022 °F)
Detection Distance for Vehicles (4×1.4 m)	N/A	F2 42 mF3 60 mF7 140 m
Detection Distance for Personnel (1.8×0.5 m)	N/A	F2 21 mF3 30 mF7 70 m

Events

Parameter	Optical	Thermal
Fire Detection	N/A	Support
Basic Detection	Motion detection, Tampering alarm, Audio detection	N/A
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output
Detection Distance for Fire (0.1×0.1 m)	N/A	F2 9 mF3 13 mF7 29 m
Detection Distance for Temperature (0.1×0.1 m)	N/A	F2 3.5 mF3 8 mF7 20 m

Audio

Parameter	Optical	Thermal
Audio Compression	G.711U, G.711A
Audio Bitrate	128 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	16 KHZ

Storage

Parameter	Optical	Thermal
Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR

Network

Parameter	Optical	Thermal
Protocols	IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Client	EZStation, UNV-Link, UNV-Link Pro
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

Interface

Parameter	Optical	Thermal
Built-in Mic	Support
Built-in Speaker	Support
Audio I/O	1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O	2/2
Serial Port	1 × RS485
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A	1 BNC (for debugging)

Certification

Parameter	Optical	Thermal
EMC	CE-EMC (EN 55032:2015+A1:2020, EN 61000-3-3:2013+A1:2019, EN IEC 61000-3-2:2019+A1:2021, EN 50130-4:2011+A1:2014); FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety	CE LVD (EN IEC 62368-1:2020+A11:2020); UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment	CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection	IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)

General

Parameter	Optical	Thermal
Power	DC12V (±25%), PoE (IEEE802.3af)
Power Consumption	Max 12 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Φ129 × 114 mm (Φ5.08" × 4.49") (Φ × H)
Weight	F2 0.72 kgF3 0.72 kgF7 0.73 kg (1.6 lb.)
Working Environment	-40 °C to 70 °C (-40 °F to 158 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-40 °C to 70 °C (-40 °F to 158 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	6 KV
Reset Button	Support
RTC	Support
Web Client Language	22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak

Live View

Parameter	Optical	Thermal
Maximum Bitstream	35
Maximum Bandwidth	50 Mbps
OSD Font	Vector
OSD Color	Support
OSD Character Number	40

Other

Parameter	Optical	Thermal
Corridor Mode	Support
Software Version	Q6202

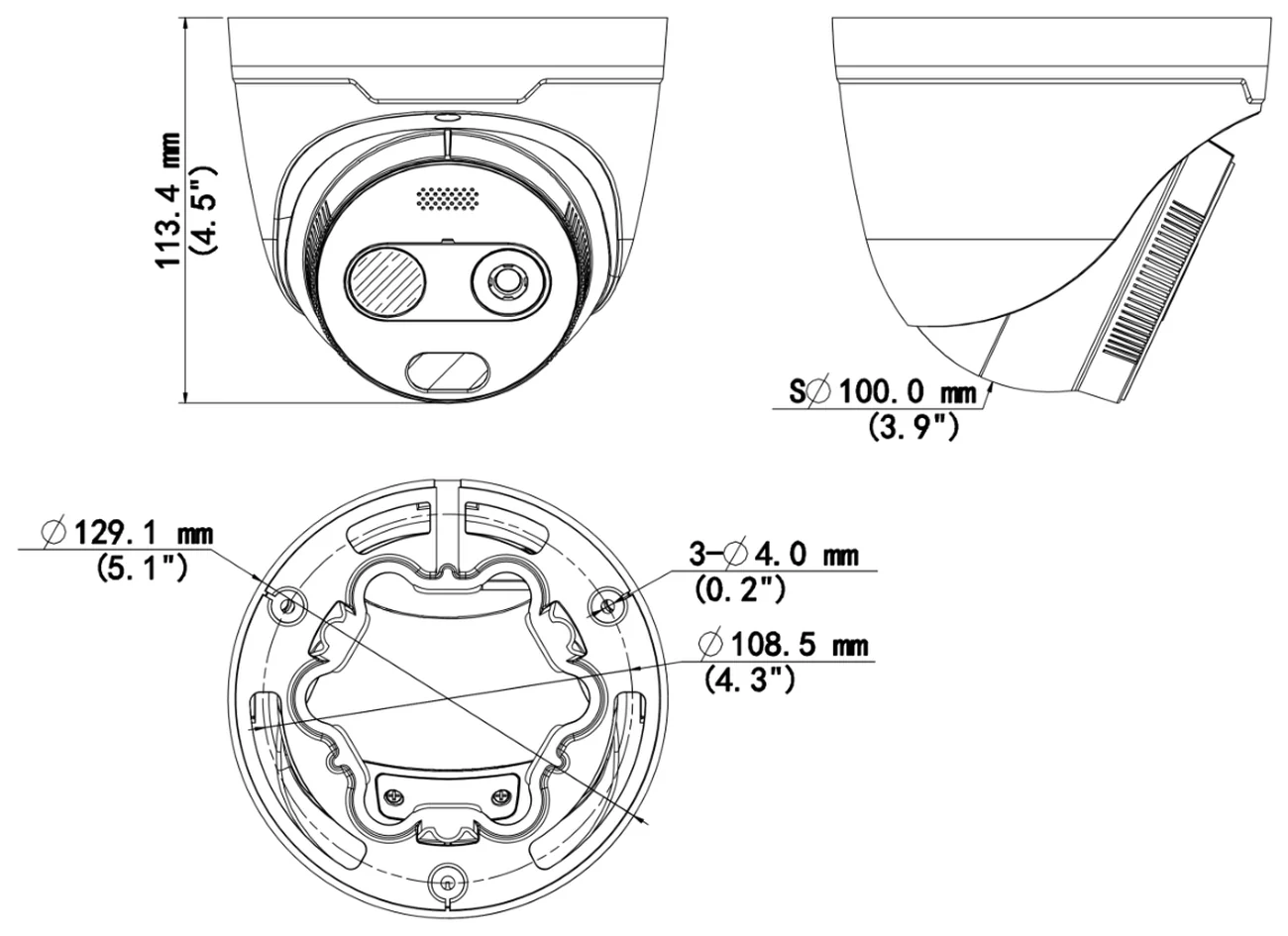

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet — identical body across all three lens variants.

unit: mm (in.)

Dimensions	Φ129 × 114 mm (Φ5.08" × 4.49") (Φ × H)
Weight	F2 0.72 kgF3 0.72 kgF7 0.73 kg (1.6 lb.)
Power Interface	Ø5.5 mm coaxial power plug
Working Environment	-40 °C to 70 °C (-40 °F to 158 °F), Humidity: ≤ 95% RH (non-condensing)

Optional Mounting Accessories

Order together with the camera to save shipping. Identical accessory list across all three lens variants.

TR-JB03-H-INJunction box for metal turret camera (support wiring from behind)

TR-JB07/WM03-F-INWall mounting assembling bracket with back hole for 3 inch hemisphere

TR-A01-INNPT 3/4" waterproof cable gland

TR-WM03-B-INWall mounting assembling bracket for 3 inch hemisphere

TR-UP06-INUniversal pole mounting bracket

TR-UC08-CBullet & dome corner mounting bracket

Thermal Dome Camera FAQ — TIC3612SA Series

What thermal lens options does the TIC3612SA offer?

Three: the 2.1 mm (F2) detects a vehicle at 207 m, the 3.0 mm (F3) at 296 m and the 7.0 mm (F7) at 690 m. Pick F2 for wide indoor or yard coverage and F7 for long corridors, fence lines or cable trays.

Can it raise a fire alarm automatically?

Yes — the radiometric thermal channel measures temperature with ±8 °C accuracy and triggers fire and temperature alarms on its own, so an overheating panel, motor or stockpile raises an event before visible flames, day or night, in smoke or darkness.

What does the optical channel provide?

A 1/2.8-inch CMOS at 4MP (2688×1520), 30 fps with 120 dB WDR for visual verification. Optical DORI detect range is 58.5 m on the F2, 90 m on the F3 and 135 m on the F7, and 750 nm IR reaches 30 m for discreet night checks.

How does the optical side perform in low light?

Colour sensitivity depends on the lens version: 0.01 lux on the F2 and 0.003 lux on the F3, dropping to black-and-white and then 0 lux operation once IR switches on. 2D/3D noise reduction, HLC, BLC and digital defog are all included.

How heavy are the video streams for remote sites?

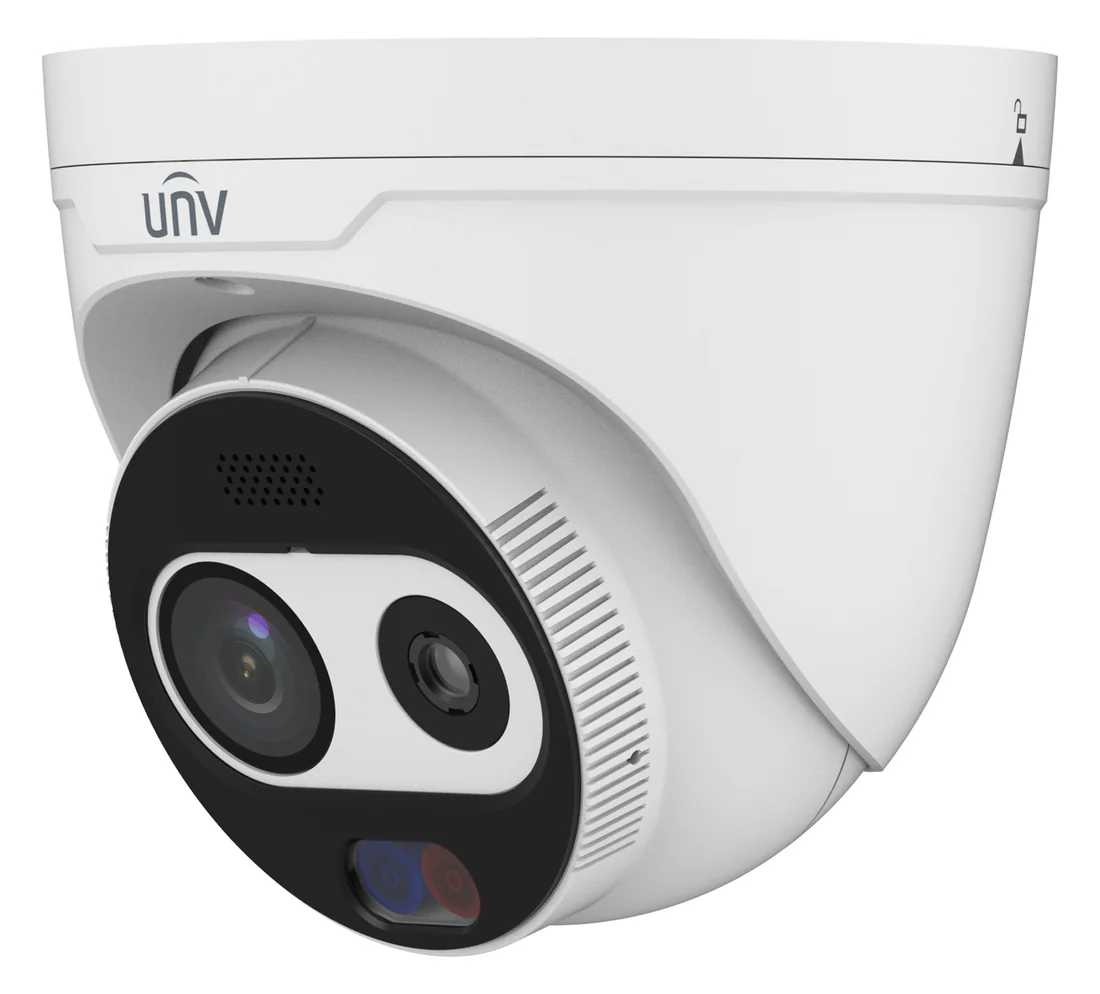

Compression options are Ultra 265, H.265, H.264 and MJPEG with bit rate configurable from 128 Kbps to 16 Mbps, plus triple streams, ROI and U-code — so sites with limited uplink bandwidth can still view and record both the thermal and optical channels.
