24×GE PoE + 2×GE + 2×SFP · 260W · 19-inch Rack S24G02G2GFI

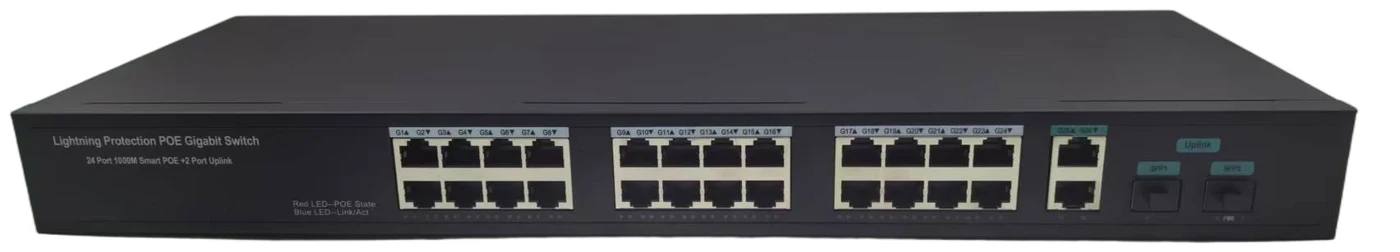

24×GE PoE + 2×GE + 2×SFP · 260W · 19-inch Rack S24G02G2GFI — view 1

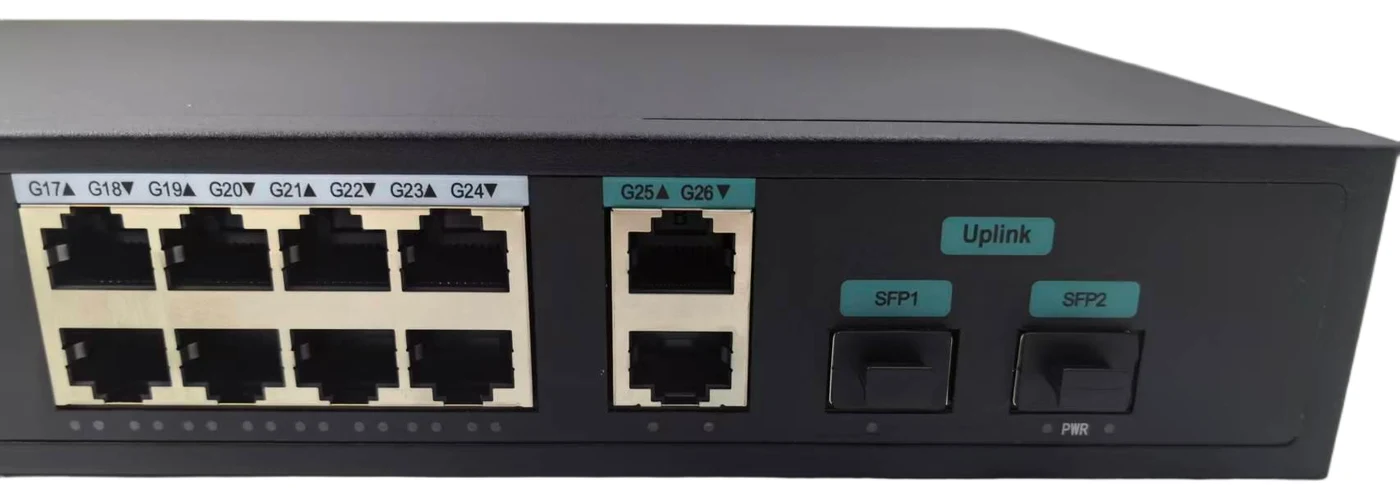

24×GE PoE + 2×GE + 2×SFP · 260W · 19-inch Rack S24G02G2GFI — view 2

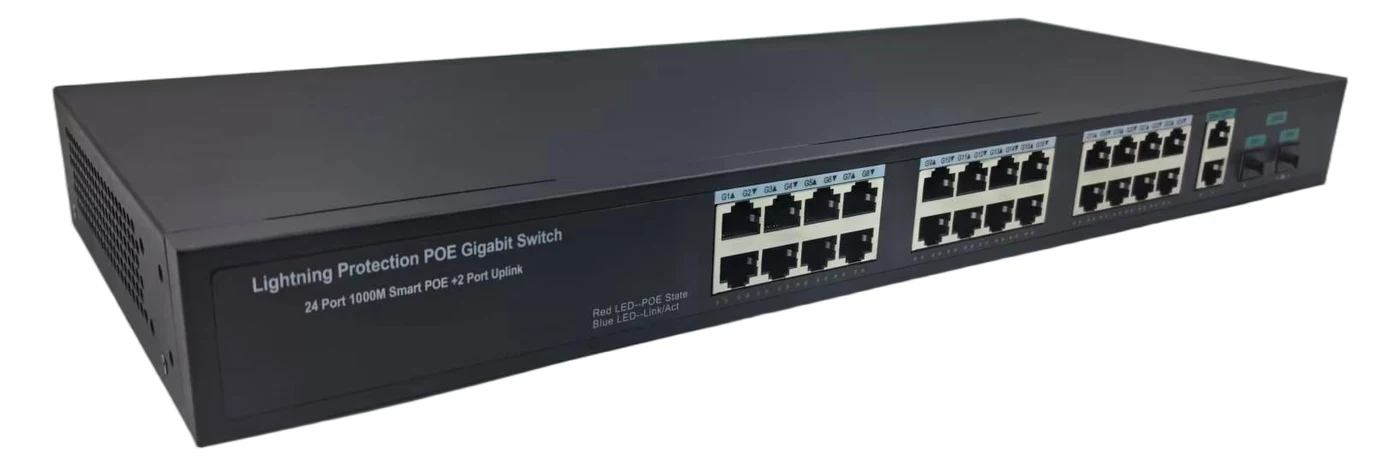

24×GE PoE + 2×GE + 2×SFP · 260W · 19-inch Rack S24G02G2GFI — view 3

Manufacturer product photo · 24×GE PoE + 2×GE + 2×SFP

S24G02G2GFI

Name: Atlas S24G02G2GFI
Brand: Atlas
SKU: S24G02G2GFI

Atlas · Unmanaged PoE · 24-Port Gigabit Rack

24x Gigabit PoE + 2x Gigabit Uplink + 2x Gigabit SFP, 260W budget, 19-inch rack, all-gigabit flagship

Project-Based Pricing

Volume & combo discounts — get your quote

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

✓ Project-level customization & OEM supported

Get Best Price on WhatsApp

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Not sure about the PoE budget? Size it with the calculator →

Need the PDF datasheet? Get it on WhatsApp →

HOW TO GET A BETTER PRICE

Volume DiscountOrder 50+ pcs of this model

Project Combo DiscountMix any categories & models storewide in one order — no quantity limit

BIGGER

Verified Project DiscountDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BIGGEST

All discounts are quoted personally — message me on WhatsApp ↑

◆260W PoE Budget

◆24x Gigabit PoE Ports

◆162 Gbps Non-Blocking

◆2x GE Uplink + 2x GE SFP

◆802.3af/at

◆19-inch Rack-Mount

Overview

S24G02G2GFI is the flagship of the Atlas PoE line: 24 auto-sensing 802.3af/at Gigabit PoE ports, 2 Gigabit RJ45 uplinks, and 2 Gigabit SFP slots in a 19-inch rack chassis, backed by a 162 Gbps non-blocking switching fabric and a 260W total power budget. It's built to be the one rack unit that covers an entire floor or compound at full gigabit speed -- every port, camera, and AP running at full line rate at the same time, with dual fiber and dual copper uplinks for real backbone redundancy.

Is This the Right Fit?

Six real deployment scenarios matched to this model's actual datasheet specifications.

Large Multi-Floor HotelsOne 24-port gigabit rack switch per floor delivers full-gigabit performance to every 4K corridor and room camera.

Large Schools & University BuildingsDense camera and Wi-Fi 6 AP deployments across a whole building run at full gigabit without a bottleneck.

Class-A Office Towers & Business ParksA full floor of gigabit cameras, access control, and APs from one rack unit.

Large Warehouses & Distribution CentersDozens of gigabit dock and aisle cameras plus wireless infrastructure on a single non-blocking switch.

Gated Communities & Large Compound PerimetersOne switch at the security office covers gate cameras, perimeter poles, and clubhouse Wi-Fi at full gigabit.

Regional or Flagship Retail HeadquartersThe flagship 24-port model for the site with the highest camera count and highest performance expectations in a chain rollout.

Not a good fit if:

Not a managed switch -- no VLAN segmentation, spanning-tree, or web management interface. Choose a managed model if the project needs VLANs or loop-prevention protocols.
No ring-network redundancy protocol -- built for star, tree, and bus topologies, not self-healing ring recovery.
Requires 19-inch rack space and commercial-grade conditions -- this is a rack-mount chassis (not desktop or DIN-rail), rated -10°C to +70°C rather than industrial wide-temperature.

Key Features

162 Gbps Non-Blocking Backplane — 162 Gbps switching capacity and 120.528 Mpps forwarding rate mean all 24 PoE ports plus both uplinks can run at full gigabit simultaneously without internal bottlenecking.
260W PoE Budget, 30W per Port — Automatic af/at detection across all 24 gigabit ports, sized for a full floor of PTZ and IR cameras.
Dual Fiber + Dual Copper Uplink Redundancy — 2 Gigabit SFP plus 2 Gigabit RJ45 uplinks give real backbone redundancy -- fiber primary with copper backup, or two independent fiber runs to different equipment rooms.
One Rack Unit for an Entire Floor or Compound — 24 gigabit PoE ports in a single 19-inch chassis is enough to be the only switch a mid-size building or gated community needs.
Gigabit to Every Camera — Full 1000M on all PoE ports, so 4K and multi-sensor units keep their frame rate instead of dropping to 100M.
Fanless, Watchdog-Protected — Fanless 19-inch metal chassis with watchdog auto-reset, built for unattended rack operation in a comms room.
No Field Power Run Needed Across 24 Ports — PoE carries power and data together on all 24 ports, cutting electrical costs on large multi-camera rollouts.

Specifications

Ports & Interfaces

PoE Ports	24x 10/100/1000Base-T (RJ45), IEEE 802.3af/at
Uplink Ports	2x 10/100/1000Base-T (RJ45)
Fiber Uplink	2x 1000Base-X SFP slots
Switching Mode	Store-and-forward

Switching Performance

Switching Capacity	162 Gbps
Forwarding Rate	120.528 Mpps
MAC Address Table	8K
Standards Supported	IEEE 802.3, 802.3u, 802.3ab, 802.3x

PoE Power

PoE Standards	IEEE 802.3af / IEEE 802.3at
Max Power per Port	30W
Total PoE Power Budget	260W (full load)
Cable Distance	Standard 100 m per segment (IEEE 802.3 copper limit)
Powered Device Detection	Automatic; smart detection protects non-PoE devices
PoE Mode	Mode A (power over data pairs)

Switching Features

Topology Support	Star, tree, and bus network topologies
Traffic Control	Supported
Duplex / Auto-Negotiation	Full/half duplex, auto MDI/MDI-X, auto-negotiated speed
Chipset	Chipset options available on a project basis

Physical

Dimensions	440 × 170 × 44 mm (19-inch rack width)
Housing	Metal, fanless
Cooling	Fanless (0 fans)
Protection Rating	IP30
Mounting	19-inch rack

Power Input

Input Voltage	AC 176V - 264V
Power Supply	Built-in power supply, DC 52V 5A

Environmental

Operating / Storage Temperature	-10°C to +70°C
Humidity	5%~95% RH, non-condensing
Ingress Protection	IP30

Indicators & Reliability

LED Indicators	PWR power, red PoE status per port, blue link/data per port
Watchdog	Automatic reset on lock-up, recommended for HD camera loads
Packaging	10 units / carton (reference)
MTBF	50,000 hours (manufacturer figure)

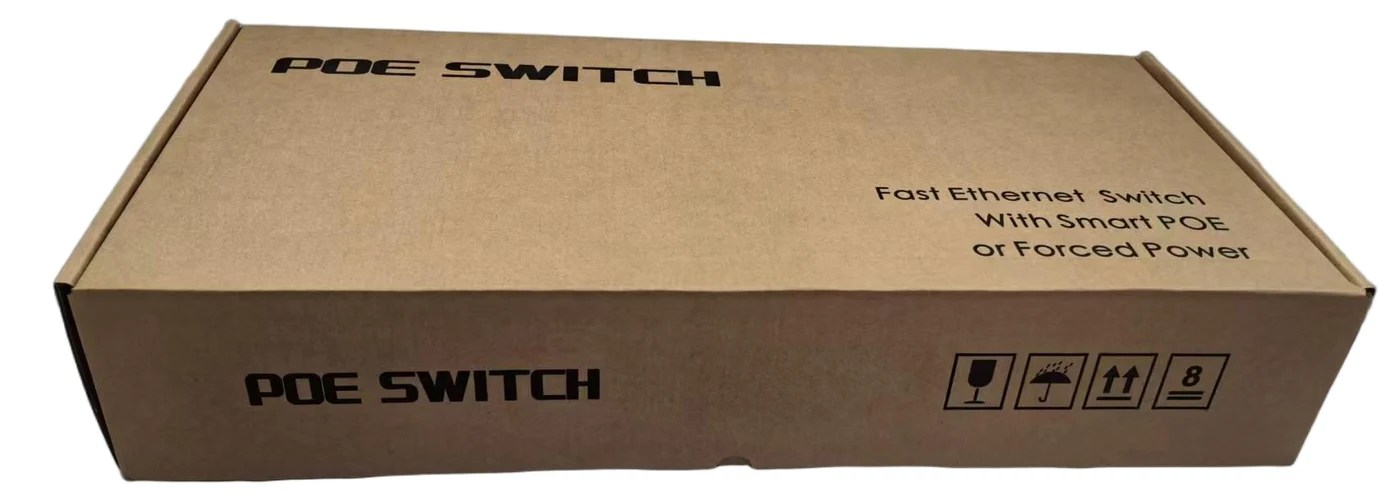

Package

Units per Carton	10 units/carton
Packing Dimensions	522 × 248 × 97 mm
Unit Weight	2.6 kg per unit
Box Contents	Switch × 1, power cord × 1, manual × 1, certificate × 1, warranty card × 1

Models & Ordering

Model	Product Description	Price
S24G02G2GFI	Fixed 24-port, 260W all-gigabit configuration in a 19-inch rack chassis; no desktop version.	✆ WhatsApp

S24G02G2GFI is a fixed 24-port, 260W all-gigabit configuration in a 19-inch rack chassis -- there is no desktop version of this model.

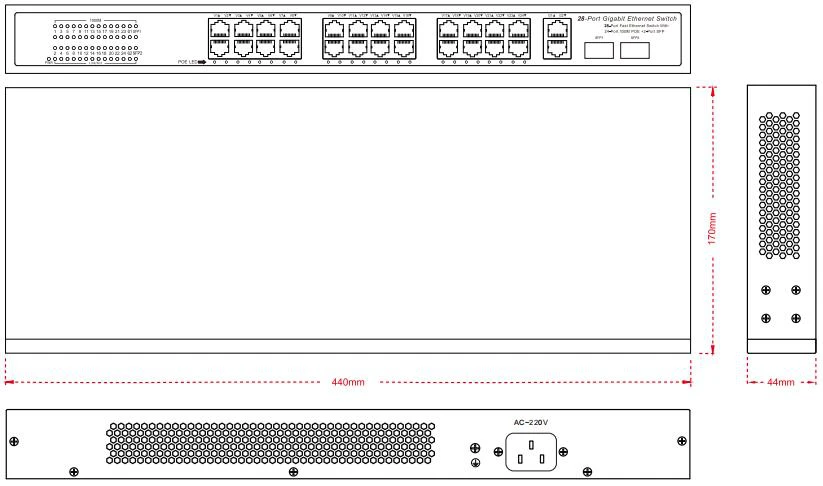

Dimensions

unit: mm

Your Brand. Our Factory.Neutral casing, ready for your logo · Custom port/power options · Small batches welcome.

Custom & OEM →

24-Port Gigabit PoE Switch FAQ — S24G02G2GFI

How many cameras and APs can the S24G02G2GFI run?

All 24 gigabit PoE ports at once. The 260 W budget averages just under 11 W per port while typical IP cameras draw 4–12 W; any port can supply 30 W (IEEE 802.3af/at) for PTZ cameras or access points. Automatic smart detection means non-PoE devices on any port are never damaged.

Does it really run every port at full gigabit speed at once?

Yes. The 162 Gbps non-blocking switching fabric and 120.528 Mpps forwarding rate exceed the combined line rate of all 24 gigabit PoE ports plus the four uplinks, so every camera and AP can transmit at full speed simultaneously with store-and-forward switching and an 8K MAC table underneath.

What uplink redundancy does it offer for the backbone?

Dual fiber and dual copper: 2 × 1000Base-X SFP slots plus 2 × gigabit RJ45 uplinks. Run fiber as the primary backbone and keep copper standby, or split traffic across links. Copper segments follow the standard 100 m IEEE 802.3 limit, so use the SFP fiber uplinks for longer backbone runs.

Is it safe in a rack that gets hot, and does it need fans?

No fans at all — the 19-inch 1U metal chassis (440 × 170 × 44 mm, IP30) cools passively and is rated for −10 °C to +70 °C at 5–95 % humidity. A watchdog auto-resets the switch if it locks up under heavy HD camera loads, and the built-in supply is DC 52 V 5 A on AC 176–264 V input.

What do distributors get per carton, and what is in each box?

Reference packing is 10 units per carton, carton size 522 × 248 × 97 mm, unit weight 2.6 kg. Each box contains the switch, one power cord, a manual, a certificate and a warranty card. Manufacturer MTBF is quoted at 50,000 hours — useful figures for stock planning and project bids.

Which loads should go on this switch instead of a Fast Ethernet model?

Anything that needs full line rate on every drop: dense IP camera walls feeding a recorder over the dual uplinks, Wi-Fi access points, and mixed office-plus-CCTV floors. Every one of the 24 PoE ports is 10/100/1000Base-T with auto-negotiation and auto MDI/MDI-X, backed by the 162 Gbps fabric and traffic control.
