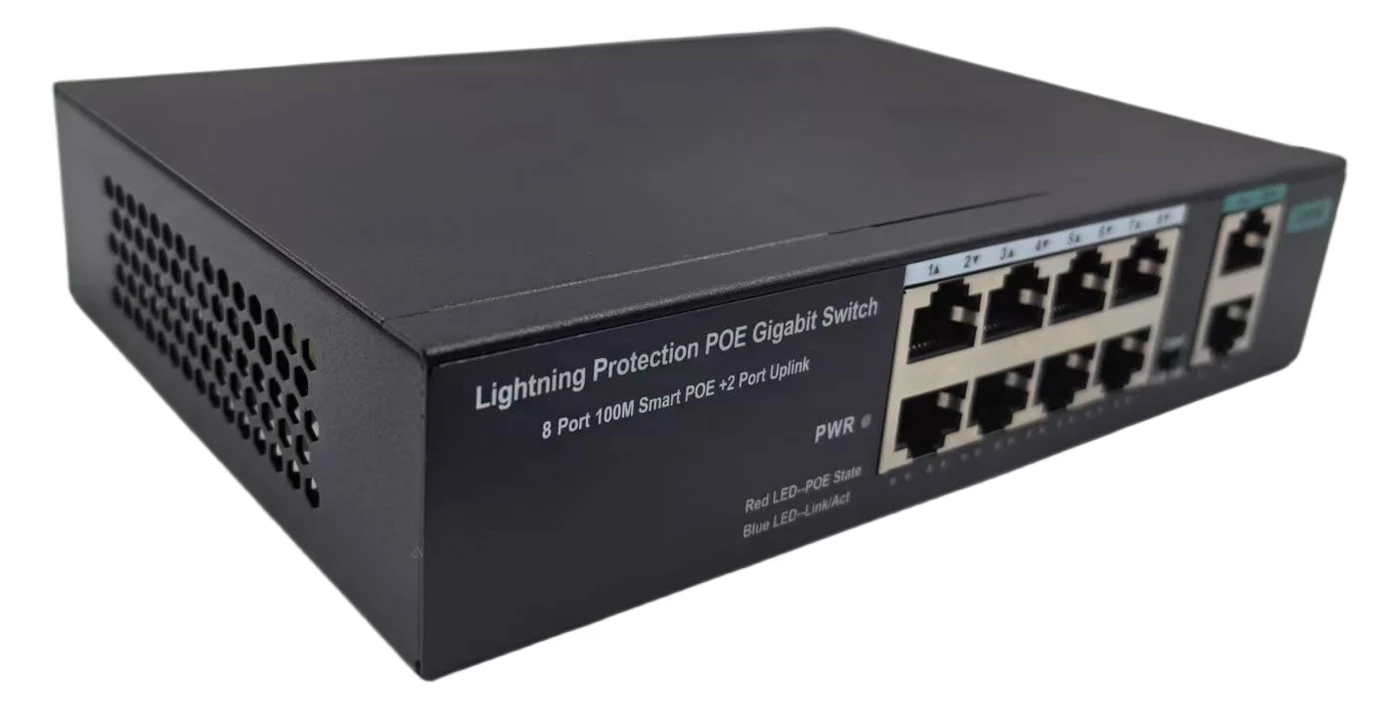

8×FE PoE + 2×FE Uplink · 96W / 120W S802EI — view 1

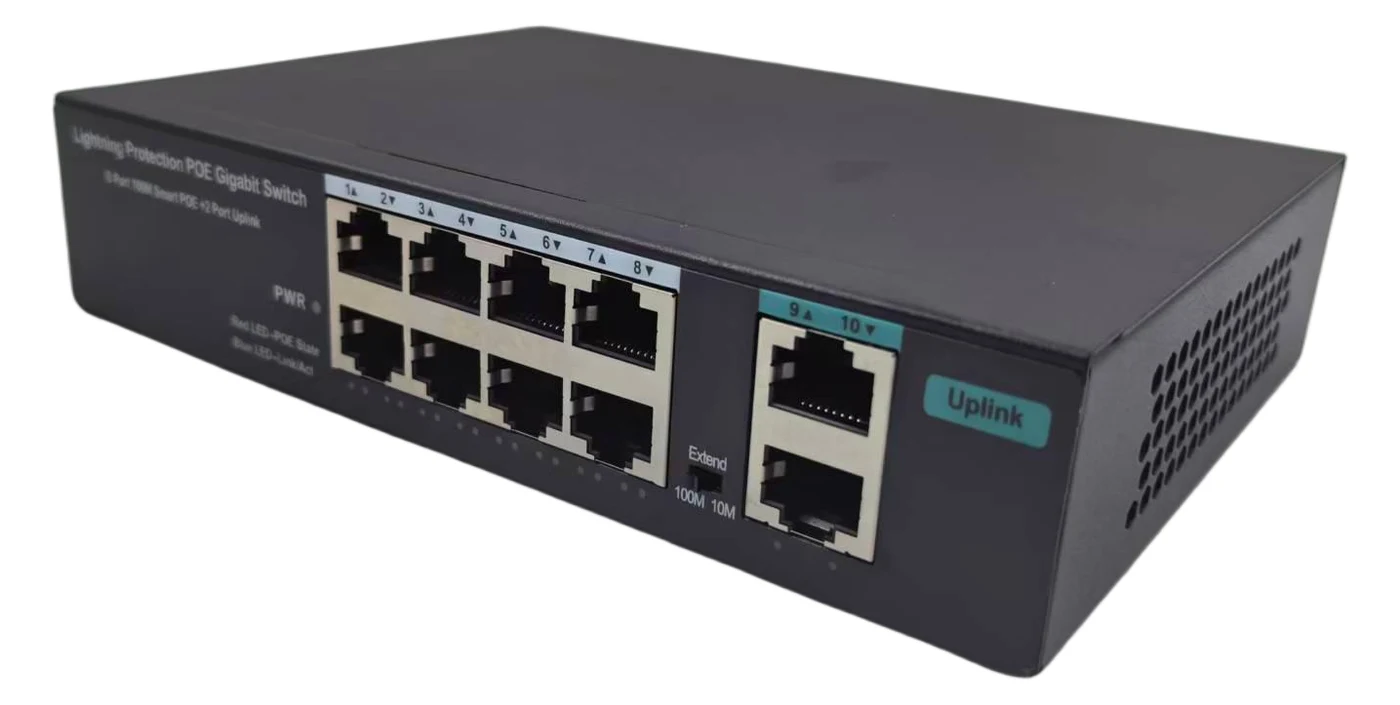

8×FE PoE + 2×FE Uplink · 96W / 120W S802EI — view 2

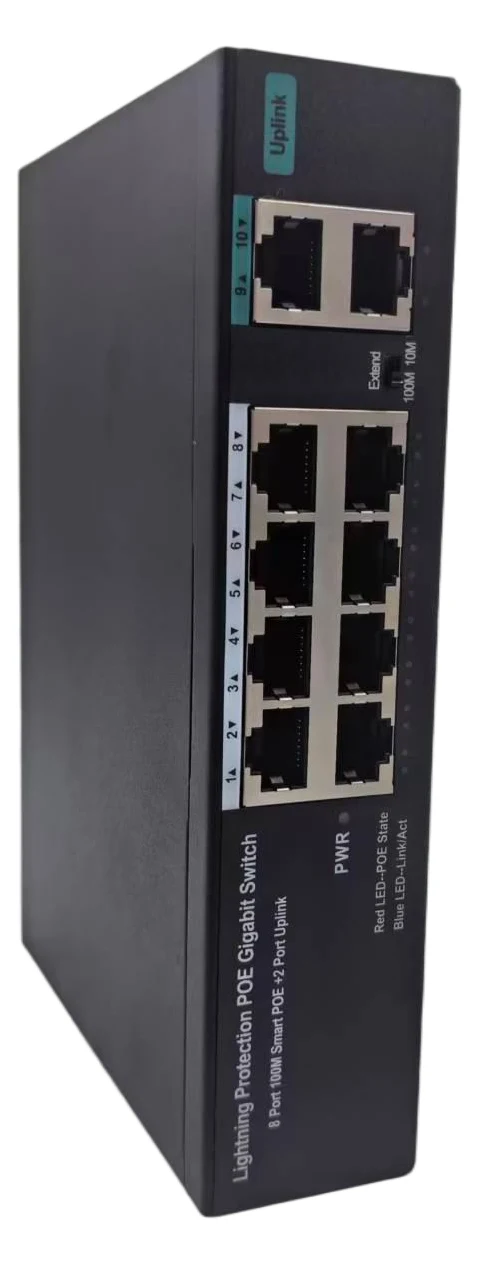

8×FE PoE + 2×FE Uplink · 96W / 120W S802EI — view 3

Manufacturer product photo · 8×FE PoE + 2×FE Uplink

S802EI

Name: Atlas S802EI
Brand: Atlas
SKU: S802EI

Atlas · Unmanaged PoE · 8-Port Fast Ethernet

8-Port Fast Ethernet PoE Switch · 2 Uplinks · 96W / 120W Budget · Fanless

Project-Based Pricing

Volume & combo discounts — get your quote

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

✓ Project-level customization & OEM supported

Get Best Price on WhatsApp

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Not sure about the PoE budget? Size it with the calculator →

Need the PDF datasheet? Get it on WhatsApp →

HOW TO GET A BETTER PRICE

Volume DiscountOrder 50+ pcs of this model

Project Combo DiscountMix any categories & models storewide in one order — no quantity limit

BIGGER

Verified Project DiscountDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BIGGEST

All discounts are quoted personally — message me on WhatsApp ↑

◆IEEE802.3af/at PoE

◆30W per Port

◆250m Extend Mode

◆96W / 120W Power Budget

◆Fanless & Silent

◆IP30 Metal Housing

Overview

The Atlas S802EI is a compact 10-port unmanaged Fast Ethernet PoE switch built for 8-camera installs. It provides 8 x 10/100M PoE ports (IEEE802.3af/at, up to 30W per port with smart powered-device detection) plus 2 x 10/100M uplink ports in a fanless IP30 metal enclosure. The base S802EI carries a 96W power budget; the S802EI steps up to 120W and adds an independent watchdog auto-reset circuit for extra-reliable operation on heavier PoE loads or unattended sites. An Extend mode stretches PoE and data reach out to 250m on any port by stepping the link rate down to 10Mbps, and store-and-forward switching with auto-negotiation and auto MDI/MDIX keeps traffic flowing without configuration. Both variants are rated -10 to +70°C for unheated equipment rooms, corridors and rooftop cabinets.

Is This the Right Fit?

Six real deployment scenarios matched to this model's actual datasheet specifications.

Small store or warehouse with 8 fixed cameras covering the whole perimeter8 PoE ports match a typical full-perimeter camera count for a small site, with 2 uplinks left free for the NVR and an onward network connection.

School corridor or campus block with cameras at every classroom entranceOne switch per corridor covers up to 8 classroom-entrance cameras, keeping cabling simple and contained within a single equipment closet per floor.

Parking lot with entrance, exit and row-coverage cameras8 ports cover entrance, exit and several row-facing cameras from one cabinet, and the Extend mode option reaches cameras mounted further out along the lot.

Remote unattended site such as a gas station or farm gate relying on the watchdog auto-resetWhere no technician is on site to power-cycle a frozen switch, the S802EI's independent watchdog auto-reset recovers the unit on its own, keeping 8 cameras online.

Hotel floor covering room corridors with 8 camerasOne switch per floor handles a full corridor of 8 cameras, and the fanless design keeps it quiet enough to sit in a housekeeping closet next to guest rooms.

Farm perimeter needing both extra distance and headroom for future camerasExtend mode reaches distant perimeter points at 250m, and choosing the 120W S802EI leaves power headroom to add PTZ or IR-illuminated cameras later without swapping the switch.

Not a good fit if:

Unmanaged Layer 2 only — no VLAN segmentation or STP/RSTP; choose a managed switch if network isolation or spanning tree is required.
No ring/loop redundancy protocol — wire in star, tree or bus topology only; do not create physical wiring loops between ports.
Commercial-grade -10 to +70°C housing in a compact desktop/wall-mount form factor — not rated for industrial wide-temperature extremes and not rack-mountable without accessories.

Key Features

8 x 10/100M PoE ports, IEEE802.3af/at, up to 30W per port with smart PD detection
2 x 10/100M uplink ports to NVR or router
Two power budgets on the same 8+2 layout: 96W (S802EI) or 120W (S802EI) for heavier camera loads
S802EI adds an independent watchdog auto-reset circuit for unattended, high-reliability sites
Extend mode: PoE + data reach up to 250m (link rate steps down to 10Mbps)
No extra power cable to any camera — PoE carries power and data on one cable, cutting install cost across 8 points
Fanless metal housing — silent operation, no moving parts to fail

Specifications

IEEE Standards

IEEE802.3	10Base-T Ethernet
IEEE802.3u	100Base-TX Fast Ethernet
IEEE802.3x	Flow Control
IEEE802.3af	PoE
IEEE802.3at	PoE+

Switching

Switching Capacity	2.6 Gbps
Forwarding Rate	1.9344 Mpps
MAC Address Table	4K
Forwarding Mode	Store-and-forward

Interfaces

RJ45 Ports	10 x 10/100Base-TX (8 x PoE + 2 x Uplink)
Fiber Ports	None (copper-only model)
LED Indicators	Power, PoE (red), Link/Data (blue)

PoE

PoE Standard	IEEE802.3af / IEEE802.3at
PoE Ports	8
Max Power per Port	30W
Powered Device Detection	Automatic, smart detection — will not damage non-PoE devices
Extend Mode (250m)	Supported — PoE + data reach extends to 250m, link rate steps down to 10Mbps
PoE Mode	Mode A (power over data pairs)

Power

Input Voltage	AC 176–264V (100–240V compatible)
Power Supply	Built-in power supply, DC 52V — 1.85A (96W) / 2.3A (120W)
Total Power Consumption	< 96 W (S802EI) / < 120 W (S802EI) at full load
Protection	Reverse-polarity and overload protection

Physical

Dimensions	173 × 124 × 38 mm
Housing	Metal, fanless
Cooling	Fanless (0 fans)
Protection Rating	IP30
Mounting	Desktop or wall-mount

Environment

Operating / Storage Temperature	-10°C ~ +70°C
Humidity	5%–95% RH, non-condensing
Protection Rating	IP30
MTBF	50,000 hours (manufacturer figure)

Package

Units per Carton	40 units/carton
Packing Dimensions	220 × 185 × 46 mm
Unit Weight	0.8 kg per unit
Box Contents	Switch × 1, power cord × 1, manual × 1, certificate × 1, warranty card × 1

Models & Ordering

Model	Product Description	Price
S802EI	Standard 96 W PoE budget — fits typical fixed cameras, wireless APs and video intercoms.	Get Quote
S802EI	High-power 120 W version — for PTZ domes, IR illuminators and other heavy loads. This version also adds a hardware watchdog that auto-resets the switch if it hangs under load.	Get Quote

One model, two PoE power versions. Both share the same ports, housing and features; the 120 W version raises the total PoE budget and adds a hardware watchdog for heavy loads. State the power version you need when ordering.

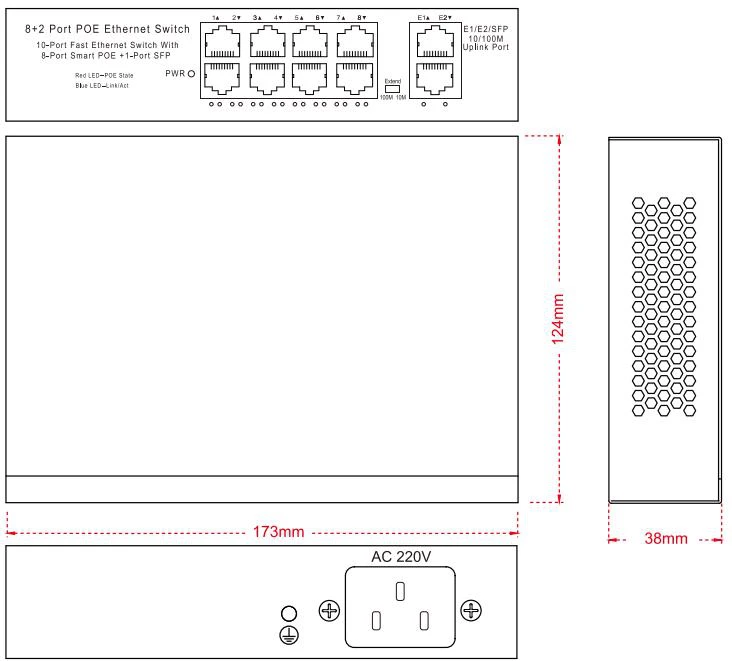

Dimensions

unit: mm

Your Brand. Our Factory.Neutral casing, ready for your logo · Custom port/power options · Small batches welcome.

Custom & OEM →

8-Port PoE Switch FAQ — S802EI

How many IP cameras can the S802EI power?

All 8 PoE ports can run cameras at the same time. The 96 W base budget averages 12 W per camera and the 120 W version averages 15 W, while typical IP cameras draw 4–12 W — a full 8-camera CCTV setup fits either way. A single port delivers up to 30 W (IEEE 802.3af/at) for PTZ units.

What does the 120 W version add over the 96 W base model?

Two things: 24 W more PoE budget for heavier loads, and an independent watchdog auto-reset circuit that reboots the switch if it ever locks up — worth having on unattended sites or where the switch feeds power-hungry cameras around the clock. Ports, speeds and housing stay identical.

How far can a camera sit from the switch?

100 m on a standard link. Switch a port to Extend mode and PoE plus data reach 250 m, with that link stepping down to 10 Mbps — enough for one camera stream at a distant gate or wall. Power rides the data pairs (Mode A) under IEEE 802.3af/at.

Is it safe to mix cameras with non-PoE devices on this switch?

Yes. Smart powered-device detection checks each port and only supplies power to genuine IEEE 802.3af/at devices, so a router or PC on a PoE port is untouched. The 2 dedicated 10/100 M uplink ports connect the NVR, and reverse-polarity plus overload protection guard the whole unit.

What are the physical and environmental specs?

Fanless IP30 metal housing, 173 × 124 × 38 mm, 0.8 kg, desktop or wall mount. The built-in DC 52 V supply accepts AC 176–264 V (100–240 V compatible). Operating range is −10 °C to +70 °C at 5–95 % humidity, switching capacity 2.6 Gbps with a 4K MAC table.

What do resellers get per carton?

Reference packing is 40 units per carton, packing dimensions 220 × 185 × 46 mm per unit box, 0.8 kg per unit. Each box holds the switch, a power cord, a manual, a certificate and a warranty card. Quoted MTBF is 50,000 hours — numbers you can drop straight into a distribution quote.
