8×GE PoE + 2×GE + 2×SFP · 96W / 120W S8G02G2GFI
8×GE PoE + 2×GE + 2×SFP · 96W / 120W S8G02G2GFI — view 18×GE PoE + 2×GE + 2×SFP · 96W / 120W S8G02G2GFI — view 28×GE PoE + 2×GE + 2×SFP · 96W / 120W S8G02G2GFI — view 38×GE PoE + 2×GE + 2×SFP · 96W / 120W S8G02G2GFI — view 4

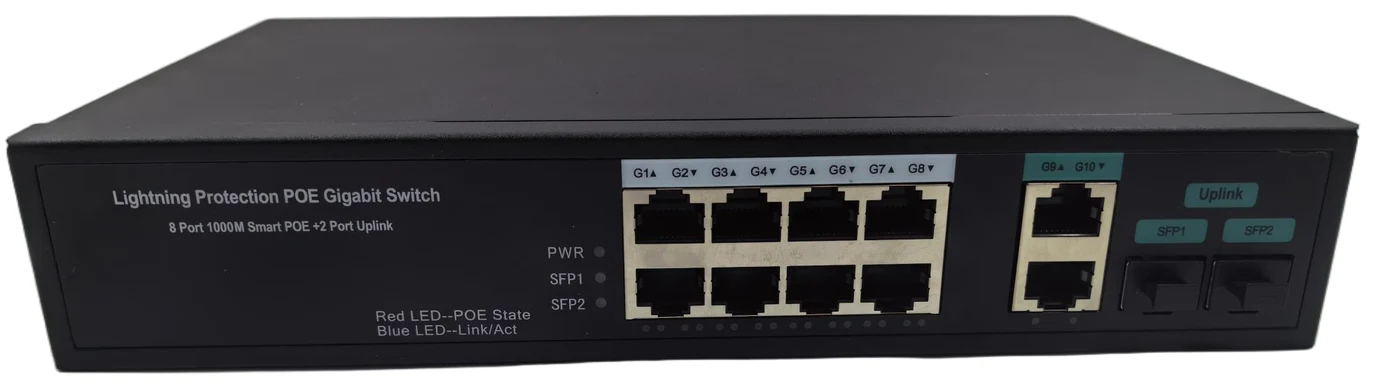

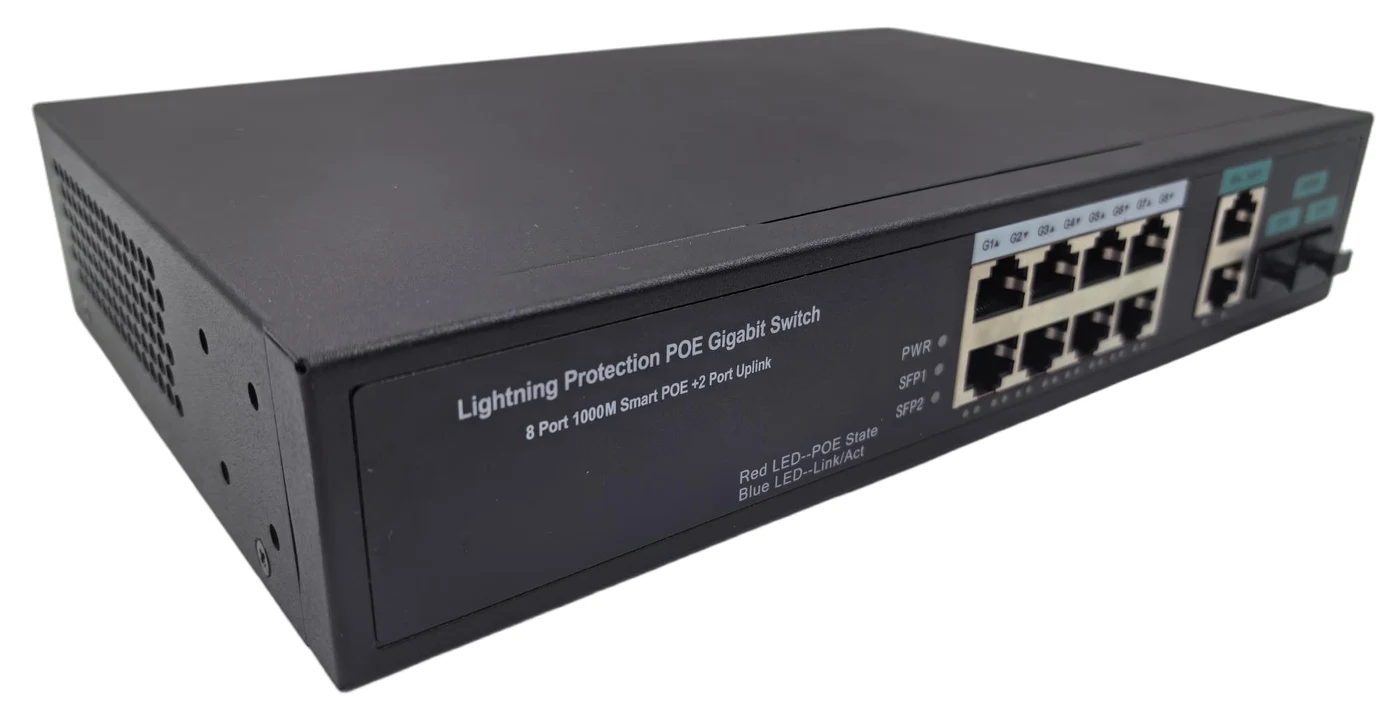

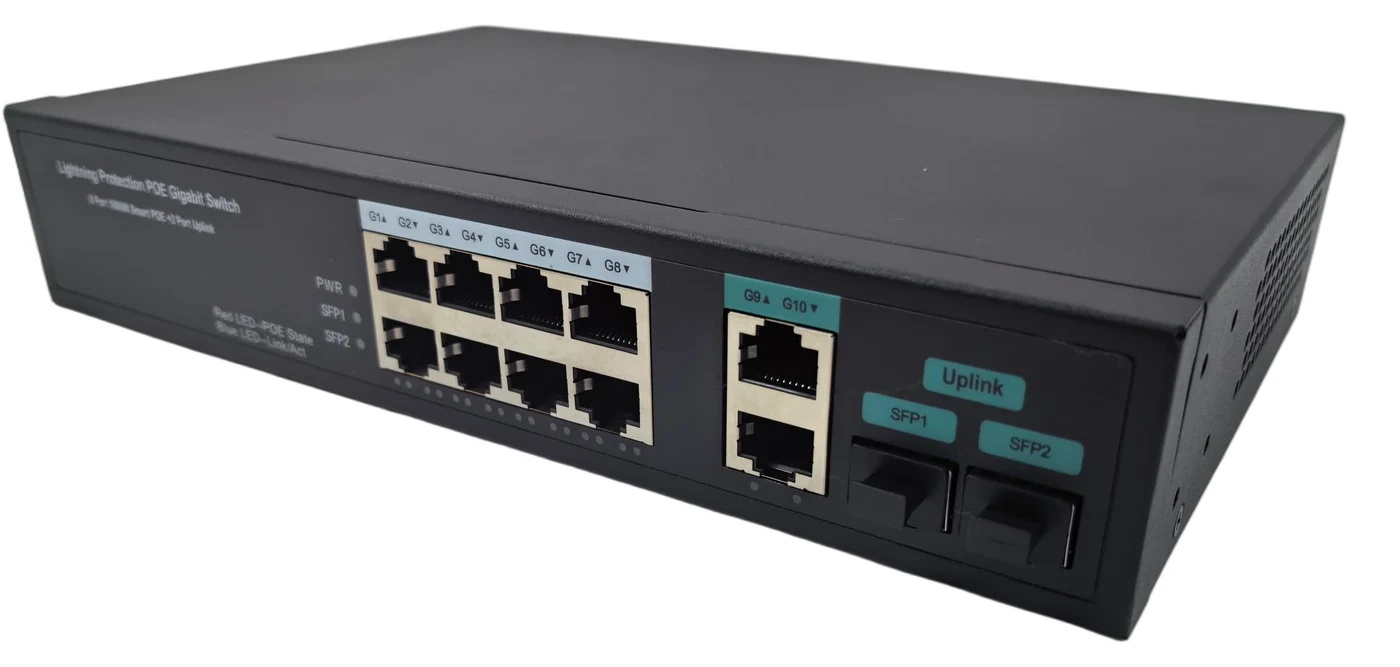

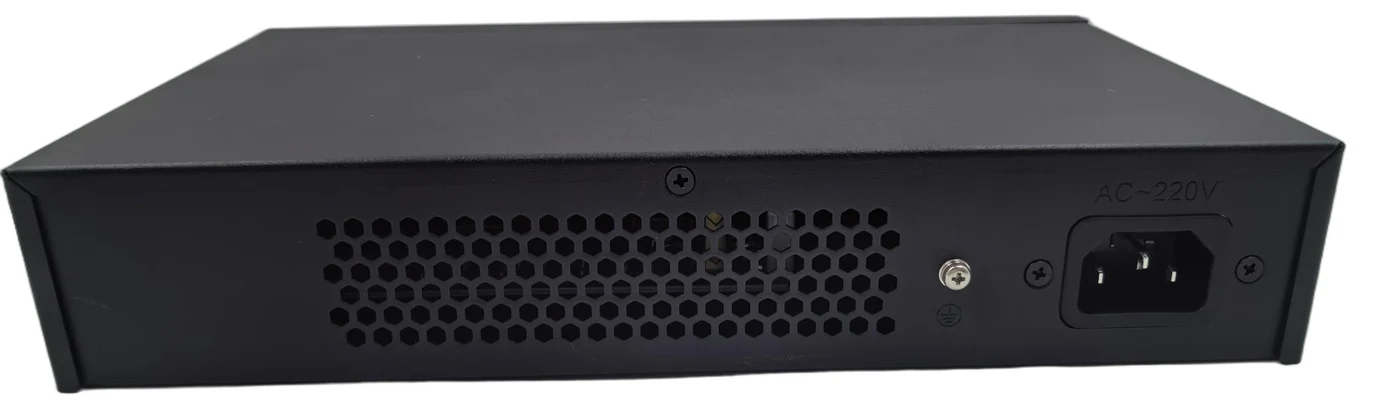

Manufacturer product photo · 8×GE PoE + 2×GE + 2×SFP

S8G02G2GFI

Atlas · Unmanaged PoE · Full Gigabit + 2×SFP
8x Gigabit PoE + 2x Gigabit RJ45 + 2x Gigabit SFP uplink, 96W/120W budget -- copper and fiber together for extra headroom and path redundancy.
Project-Based Pricing
Volume & combo discounts — get your quote
In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port
✓ Project-level customization & OEM supported
Get Best Price on WhatsApp

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Not sure about the PoE budget? Size it with the calculator →

Need the PDF datasheet? Get it on WhatsApp →
HOW TO GET A BETTER PRICE
Volume DiscountOrder 50+ pcs of this model
CONTACT US
Project Combo DiscountMix any categories & models storewide in one order — no quantity limit
BIGGER
Verified Project DiscountDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you
BIGGEST
All discounts are quoted personally — message me on WhatsApp ↑
◆IEEE 802.3af/at PoE+
◆30W per Port
◆Fanless / 0 Fan
◆Full Gigabit PoE
◆IP30 Metal Housing
◆Plug & Play, No Config

Overview

The S8G02G2GFI/GFID is the full-gigabit flagship of the 8-port line: 8 Gigabit PoE ports paired with 2 Gigabit RJ45 uplinks and 2 Gigabit SFP slots, so a project with high-bitrate 4K cameras and a fiber backbone can use both at once. Run the RJ45 uplinks to a nearby switch and the SFP ports to two separate fiber runs for path redundancy, or split camera traffic across copper and fiber to keep any single link from getting overloaded. Every PoE port still delivers up to 30W under IEEE 802.3af/at, and the fanless metal case keeps it silent under load. Choose the 96W S8G02G2GFI for typical loads or the 120W S8G02G2GFI, which adds a watchdog auto-reset, for heavier PTZ/IR loads.

Is This the Right Fit?

Six real deployment scenarios matched to this model's actual datasheet specifications.

Multi-Story GuesthousesFiber riser between floors on the SFP ports, ground-floor lobby cameras on the RJ45 uplink.
Farms with Several BuildingsHouse, barn and storage shed each on their own fiber run into the two SFP ports for a redundant path back to the office.
Construction Site Command CentersTemporary office linked to two separate site trailers over fiber, cameras on gate and material yard on copper.
Small School Campuses (Two Blocks)Fiber uplinks connect the classroom block and the admin block back to a shared NVR closet.
Gas Stations with a Car Wash BayFiber uplink to the wash bay switch, copper uplink handles the main forecourt cameras.
Small Clinic Outbuilding ClustersFiber connects a detached ward or lab building back to the main NVR room over two redundant SFP paths.
Not a good fit if:
  • Not a managed switch -- no VLAN segmentation, spanning-tree, or web management interface. Choose a managed model if the project needs VLANs or loop-prevention protocols.
  • No ring-network redundancy protocol -- built for star, tree, and bus topologies, not self-healing ring recovery.
  • Commercial -10°C to +70°C rated in a desktop/wall-mount metal case without 19-inch rack ears -- not for extreme industrial wide-temperature sites or standard 19-inch rack rows.

Key Features

  • IEEE 802.3af/at PoE+, 30W per Port — Delivers up to 30W on every port -- runs PTZ domes, IR-illuminated cameras, and PoE access points with no separate injector.
  • Smart Powered-Device Detection — Identifies a genuine PD before energizing the port, so a miswired cable or non-PoE device won't get fried and idle ports don't waste power.
  • All-Gigabit Access + RJ45/Dual SFP Uplink — Run copper and fiber together, or split traffic across two paths for extra uplink headroom.
  • Gigabit to Every Camera — Full 1000M on all PoE ports, so 4K and multi-sensor units keep their frame rate instead of dropping to 100M.
  • One Cable for Power and Data — No separate power run to pull -- camera power and video ride the same Cat5e/6 cable, cutting cable cost and install labor on every point.
  • Fanless, Silent, Maintenance-Free — Sealed metal enclosure with zero moving parts -- silent, dust-tolerant, and maintenance-free tucked in a back office, ceiling void, or equipment cabinet.
  • 96W or 120W, Watchdog on the High-Power Version — Available in 96W and 120W PoE power budgets, with the 120W version adding a watchdog auto-reset for heavier PTZ/IR loads -- pick the version that matches the job.

Specifications

Ports & Interfaces

PoE Ports8x 10/100/1000Base-T (RJ45), IEEE 802.3af/at
Uplink Ports2x 10/100/1000Base-T (RJ45)
Fiber Uplink2x 1000Base-X SFP slots (dual fiber uplink / path redundancy)
Switching ModeStore-and-forward

Switching Performance

Switching Capacity28 Gbps
Forwarding Rate20.832 Mpps
MAC Address Table4K
Standards SupportedIEEE 802.3, 802.3u, 802.3ab, 802.3x

PoE Power

PoE StandardsIEEE 802.3af / IEEE 802.3at
Max Power per Port30W
Cable DistanceStandard 100 m per segment (IEEE 802.3 copper limit)
Powered Device DetectionAutomatic; smart detection protects non-PoE devices
PoE ModeMode A (power over data pairs)

Switching Features

Topology SupportStar, tree, and bus network topologies
Traffic ControlSupported
Duplex / Auto-NegotiationFull/half duplex, auto MDI/MDI-X, auto-negotiated speed
ChipsetChipset options available on a project basis

Physical

Dimensions240 × 150 × 44 mm
HousingMetal, fanless
CoolingFanless (0 fans)
Protection RatingIP30
MountingDesktop or wall-mount

Power Input

Input VoltageAC 176V - 264V (100-240V adapter compatible)
Power SupplyBuilt-in power supply, DC 52V — 1.85A (96W) / 2.3A (120W)

Environmental

Operating / Storage Temperature-10 degC to +70 degC
Humidity5% to 95%, non-condensing
Ingress ProtectionIP30

Indicators & Reliability

LED IndicatorsPWR (power), PoE status (red), Link/Data (blue) per port
Watchdog Auto-ResetAvailable on the 120W high-power version; the 96W version has no watchdog
Device CompatibilityMainstream IP cameras, wireless APs, video intercoms and other standard 802.3af/at powered devices
MTBF50,000 hours (manufacturer figure)

Package

Units per Carton20 units/carton
Packing Dimensions275 × 210 × 50 mm
Unit Weight1.1 kg per unit
Box ContentsSwitch × 1, power cord × 1, manual × 1, certificate × 1, warranty card × 1

Models & Ordering

ModelProduct DescriptionPrice
S8G02G2GFIStandard 96 W PoE budget — fits typical fixed cameras, wireless APs and video intercoms.✆ WhatsApp
S8G02G2GFIHigh-power 120 W version — for PTZ domes, IR illuminators and other heavy loads. This version also adds a hardware watchdog that auto-resets the switch if it hangs under load.✆ WhatsApp

One model, two PoE power versions. Both share the same ports, housing and features; the 120 W version raises the total PoE budget and adds a hardware watchdog for heavy loads. State the power version you need when ordering.

Dimensions

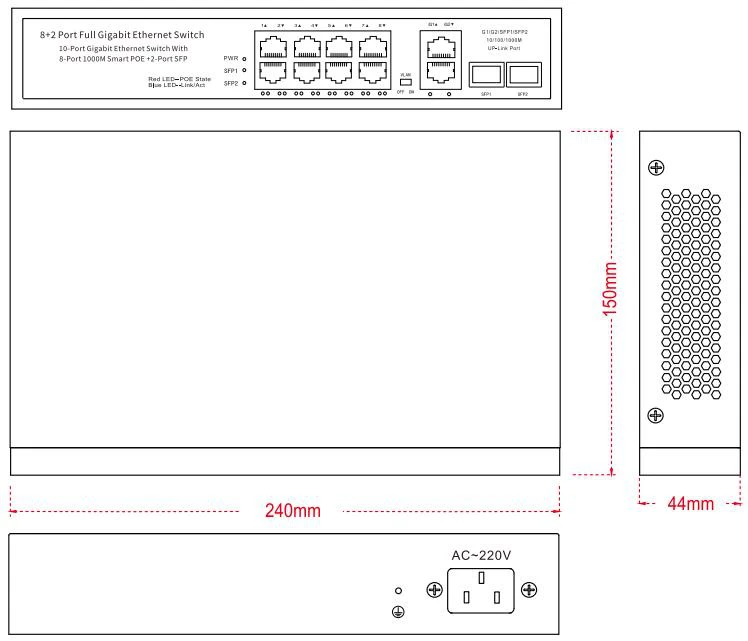

S8G02G2GFI dimensions drawing in mm
unit: mm
Your Brand. Our Factory.Neutral casing, ready for your logo · Custom port/power options · Small batches welcome.
Custom & OEM →

8-Port Gigabit PoE Switch FAQ — S8G02G2GFI

How many cameras can the S8G02G2GFI power, including 4K models?
All 8 gigabit PoE ports power devices simultaneously under IEEE 802.3af/at. The 120W version averages 15W per port; typical IP cameras draw 4–12W, so 8 cameras fit comfortably. Each camera also gets a full gigabit link, which suits high-bitrate 4K streams, and a single port can supply 30W.
Why does it have two SFP slots?
The 2×1000Base-X SFP slots allow dual fiber uplinks: run two separate fiber paths for redundancy, or split camera traffic between copper and fiber so no single link is overloaded. The 2 gigabit RJ45 uplinks stay available for a nearby switch or NVR at the same time.
How far can each camera cable run?
Each copper segment follows the IEEE 802.3 limit of 100m from switch port to camera. For links beyond that, or between buildings, use the 1000Base-X SFP slots with fiber modules on the uplink side instead of stretching copper past specification.
What is the difference between the 96W and 120W versions?
Both share the same layout: 8 gigabit PoE ports, 2 gigabit RJ45 uplinks, 2 SFP slots, 30W max per port. The 96W standard model has no watchdog; the 120W high-power model raises the PoE budget and adds a watchdog that auto-resets the switch itself if it locks up, without a site visit.
What devices is it compatible with?
Any device that follows IEEE 802.3af/at: mainstream IP cameras, wireless APs and video intercoms. Detection is automatic — the switch verifies the powered-device signature before applying voltage, so non-PoE equipment on the same ports simply gets a data connection without risk.
How is it installed and powered?
The fanless metal housing measures 240×150×44mm, is IP30 rated and sits on a desktop or mounts to a wall. A built-in DC 52V supply runs from AC 176–264V input, compatible with 100–240V adapters, over an operating range of -10°C to +70°C.
