8×GE PoE + 2×GE Uplink · 96W / 120W · Full Gigabit S8G02GI

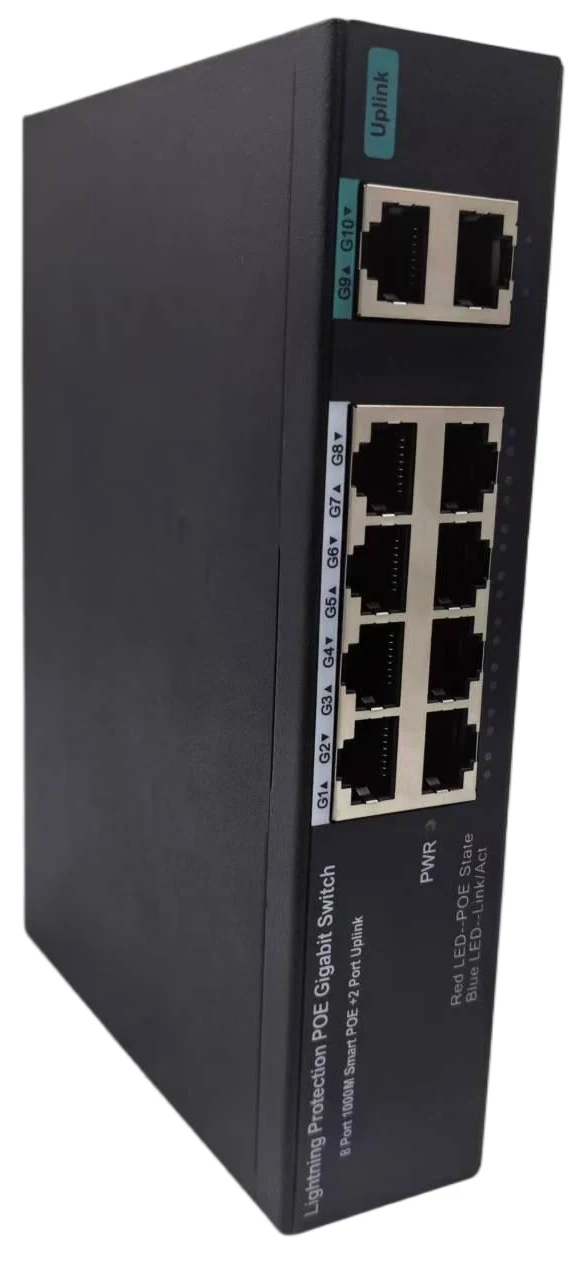

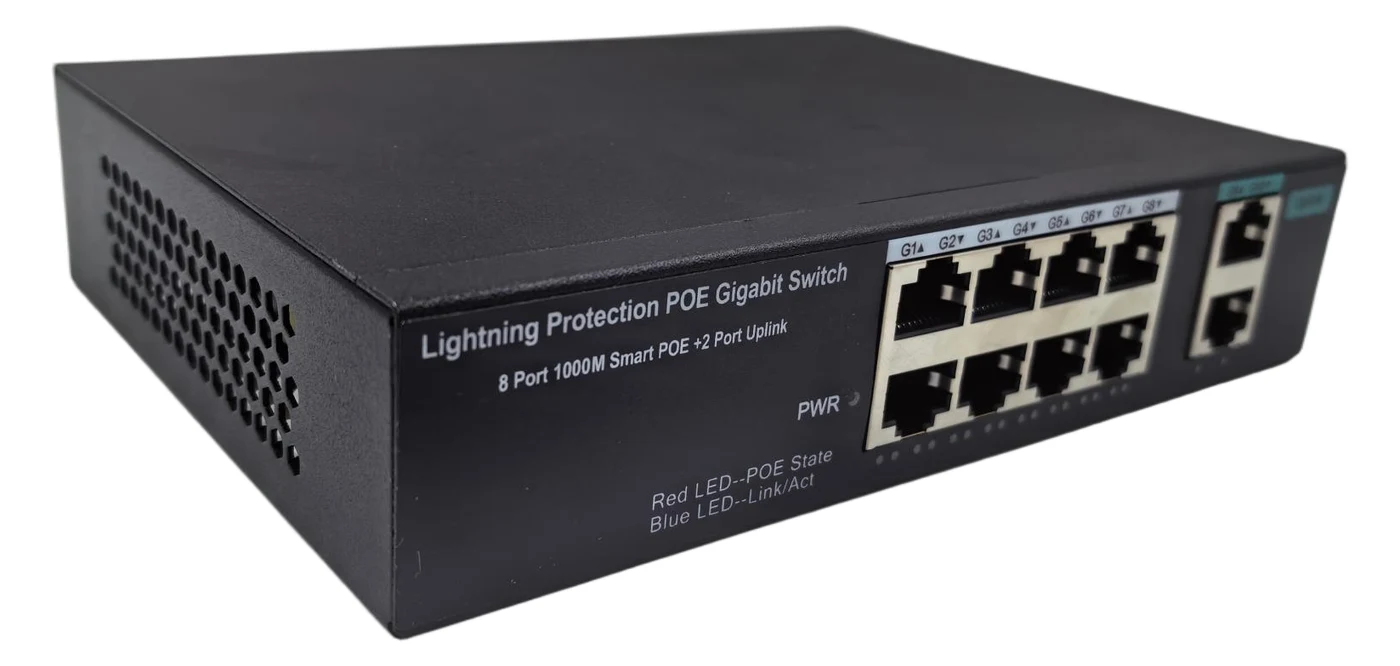

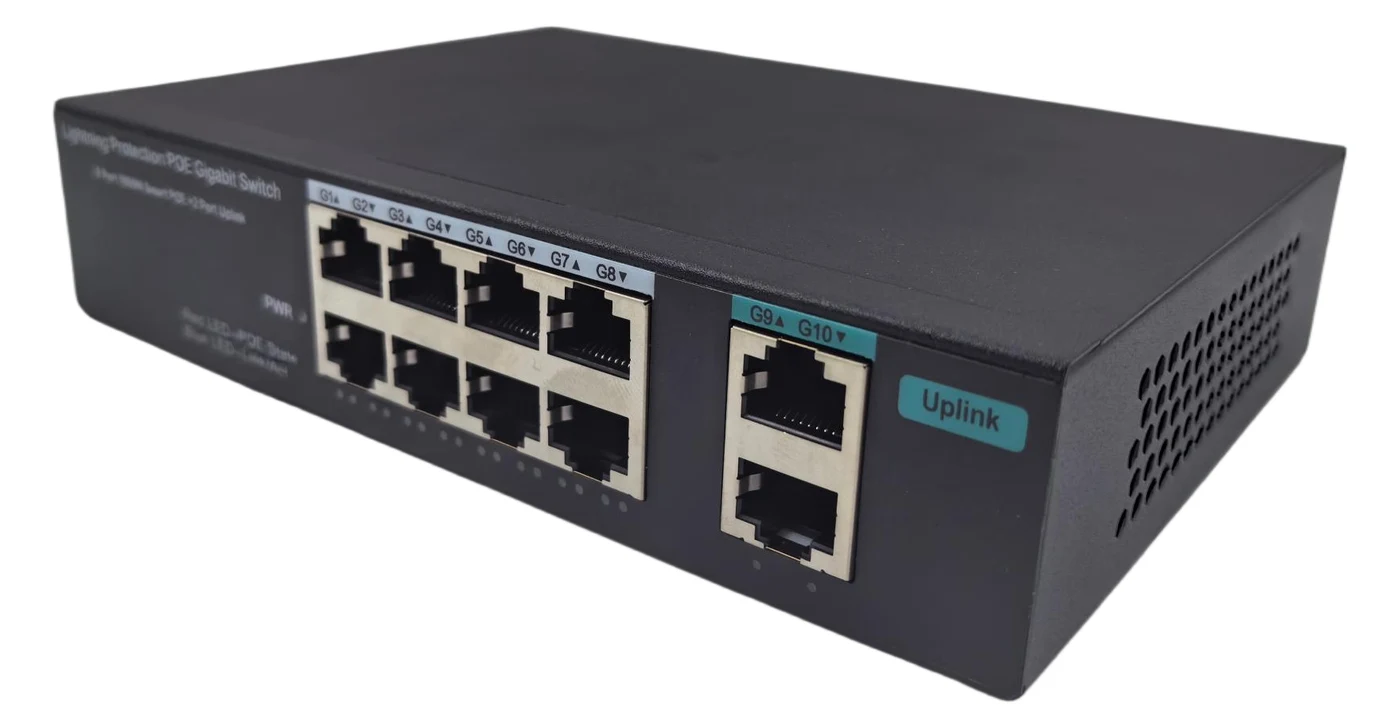

Manufacturer product photo · 8×GE PoE + 2×GE Uplink

S8G02GI

Name: Atlas S8G02GI
Brand: Atlas

Atlas · Unmanaged PoE · Full Gigabit

8x Gigabit PoE + 2x Gigabit uplink, 96W/120W budget -- full-gigabit headroom for 4K cameras and gigabit wireless APs.

Project-Based Pricing

Volume & combo discounts — get your quote

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

✓ Project-level customization & OEM supported

Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →

HOW TO GET A BETTER PRICE

Volume DiscountOrder 50+ pcs of this model

Project Combo DiscountMix any categories & models storewide in one order — no quantity limit

BIGGER

Verified Project DiscountDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BIGGEST

All discounts are quoted personally — message me on WhatsApp ↑

Overview

The S8G02GI upgrades every access port to Gigabit, so 4K cameras, multi-sensor panoramic cameras and gigabit wireless APs each get a full-speed connection instead of sharing fast-Ethernet headroom. Two Gigabit RJ45 uplinks keep the NVR feed clean even with all 8 ports pushing high-bitrate streams at once. Built-in IEEE 802.3af/at PoE+ still delivers up to 30W per port for PTZ and IR-illuminated cameras, and the fanless metal case keeps it quiet in a rack, cabinet, or ceiling void. Choose the 96W S8G02GI for typical loads or the 120W S8G02GI, which adds a watchdog auto-reset, for heavier PTZ/IR loads.

Is This the Right Fit?

Six real deployment scenarios matched to this model's actual datasheet specifications.

Small Hotels & GuesthousesLobby, corridors and parking under 4K cameras, all-gigabit ports keep every stream sharp.

Retail Chain StoresSales floor HD cameras plus a gigabit wireless AP for POS and inventory scanners on the same switch.

Small WarehousesDock-door 4K cameras that need full frame rate for license-plate and pallet-label reads.

Elementary SchoolsFull-gigabit campus network carrying HD classroom cameras alongside the school's own data traffic.

Clinics with Imaging EquipmentGigabit ports handle HD camera feeds alongside networked diagnostic devices without contention.

Farm Processing FacilitiesGigabit cameras on the packing line and loading area feed a local NVR without dropped frames.

Not a good fit if:

Not a managed switch -- no VLAN segmentation, spanning-tree, or web management interface. Choose a managed model if the project needs VLANs or loop-prevention protocols.
No ring-network redundancy protocol -- built for star, tree, and bus topologies, not self-healing ring recovery.
Commercial -10°C to +70°C rated in a desktop/wall-mount metal case without 19-inch rack ears -- not for extreme industrial wide-temperature sites or standard 19-inch rack rows.

Key Features

IEEE 802.3af/at PoE+, 30W per Port — Delivers up to 30W on every port -- runs PTZ domes, IR-illuminated cameras, and PoE access points with no separate injector.
Smart Powered-Device Detection — Identifies a genuine PD before energizing the port, so a miswired cable or non-PoE device won't get fried and idle ports don't waste power.
All-Gigabit Access + Gigabit Uplink — Every port keeps up with 4K cameras and gigabit wireless APs, no per-stream downgrade.
Gigabit to Every Camera — Full 1000M on all PoE ports, so 4K and multi-sensor units keep their frame rate instead of dropping to 100M.
One Cable for Power and Data — No separate power run to pull -- camera power and video ride the same Cat5e/6 cable, cutting cable cost and install labor on every point.
Fanless, Silent, Maintenance-Free — Sealed metal enclosure with zero moving parts -- silent, dust-tolerant, and maintenance-free tucked in a back office, ceiling void, or equipment cabinet.
96W or 120W, Watchdog on the High-Power Version — Available in 96W and 120W PoE power budgets, with the 120W version adding a watchdog auto-reset for heavier PTZ/IR loads -- pick the version that matches the job.

Specifications

Ports & Interfaces

PoE Ports	8x 10/100/1000Base-T (RJ45), IEEE 802.3af/at
Uplink Ports	2x 10/100/1000Base-T (RJ45)
Switching Mode	Store-and-forward

Switching Performance

Switching Capacity	28 Gbps
Forwarding Rate	20.832 Mpps
MAC Address Table	4K
Standards Supported	IEEE 802.3, 802.3u, 802.3ab, 802.3x

PoE Power

PoE Standards	IEEE 802.3af / IEEE 802.3at
Max Power per Port	30W
Cable Distance	Standard 100 m per segment (IEEE 802.3 copper limit)
Powered Device Detection	Automatic; smart detection protects non-PoE devices
PoE Mode	Mode A (power over data pairs)

Switching Features

Topology Support	Star, tree, and bus network topologies
Traffic Control	Supported
Duplex / Auto-Negotiation	Full/half duplex, auto MDI/MDI-X, auto-negotiated speed
Chipset	Chipset options available on a project basis

Physical

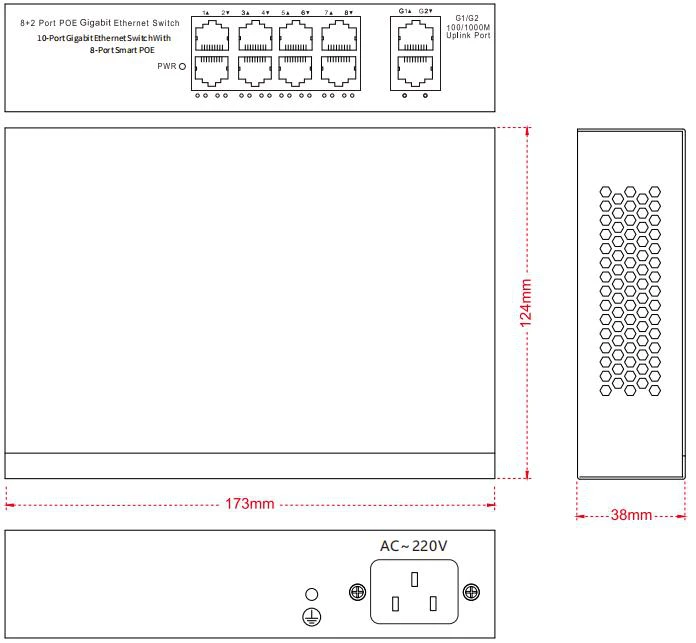

Dimensions	173 × 124 × 38 mm
Housing	Metal, fanless
Cooling	Fanless (0 fans)
Protection Rating	IP30
Mounting	Desktop or wall-mount

Power Input

Input Voltage	AC 176V - 264V (100-240V adapter compatible)
Power Supply	Built-in power supply, DC 52V 1.85A

Environmental

Operating / Storage Temperature	-10 degC to +70 degC
Humidity	5% to 95%, non-condensing
Ingress Protection	IP30

Indicators & Reliability

LED Indicators	PWR (power), PoE status (red), Link/Data (blue) per port
Watchdog Auto-Reset	Available on the 120W high-power version; the 96W version has no watchdog
Device Compatibility	Mainstream IP cameras, wireless APs, video intercoms and other standard 802.3af/at powered devices
MTBF	50,000 hours (manufacturer figure)

Package

Units per Carton	40 units/carton
Packing Dimensions	220 × 185 × 46 mm
Unit Weight	0.9 kg per unit

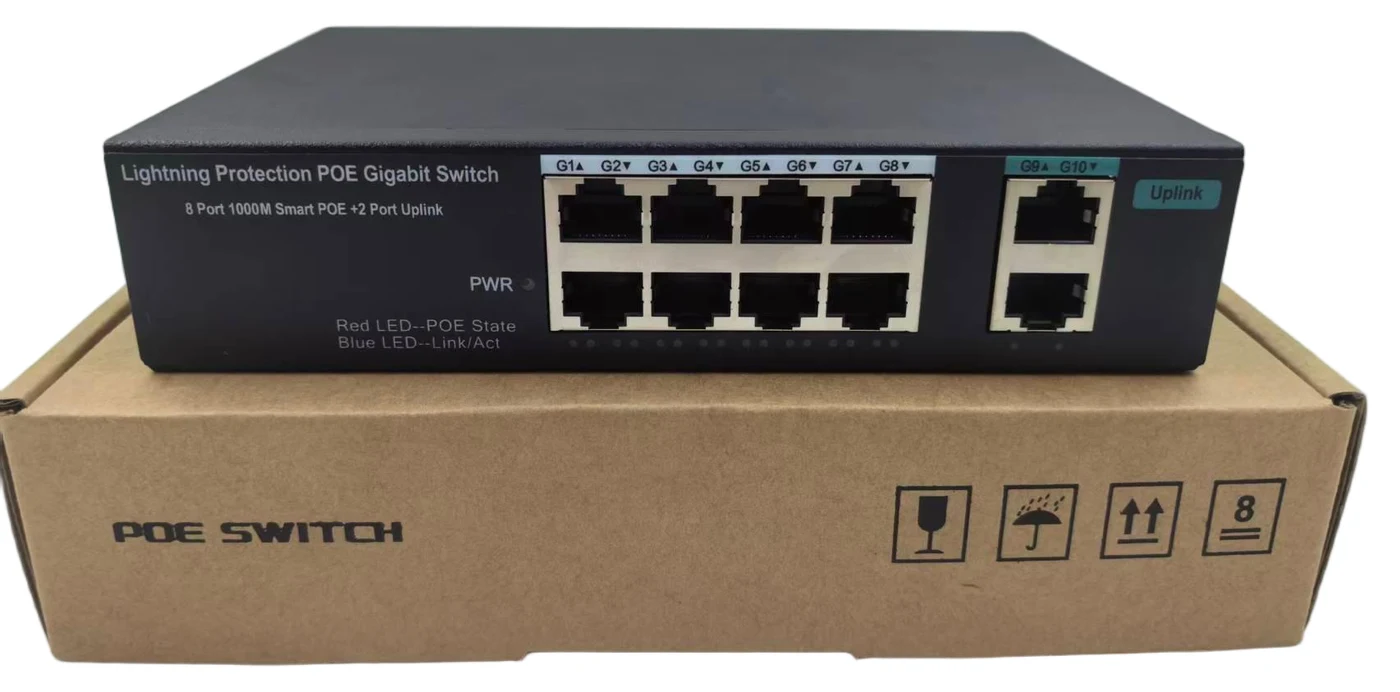

Box Contents	Switch × 1, power cord × 1, manual × 1, certificate × 1, warranty card × 1

Models & Ordering

Model	Product Description	Price
S8G02GI	Standard 96 W PoE budget — fits typical fixed cameras, wireless APs and video intercoms.	✆ WhatsApp
S8G02GI	High-power 120 W version — for PTZ domes, IR illuminators and other heavy loads. This version also adds a hardware watchdog that auto-resets the switch if it hangs under load.	✆ WhatsApp

One model, two PoE power versions. Both share the same ports, housing and features; the 120 W version raises the total PoE budget and adds a hardware watchdog for heavy loads. State the power version you need when ordering.

8-Port Gigabit PoE Switch FAQ — S8G02GI

How many IP cameras can the S8G02GI power?

All 8 gigabit PoE ports can power cameras at the same time. The 96W version averages 12W per port and the 120W version 15W, while a single port can deliver up to 30W under IEEE 802.3af/at — enough headroom for PTZ or IR-heavy cameras on a full 8-camera CCTV build.

What is the difference between the 96W and 120W versions?

Both versions share the same 8 gigabit PoE ports and 2 gigabit RJ45 uplinks. The standard S8G02GI has a 96W PoE budget; the high-power 120W model adds a watchdog auto-reset that reboots frozen powered devices automatically — the standard model has no watchdog.

How far can it carry PoE and data over copper cable?

Each copper segment supports the standard 100 m limit defined by IEEE 802.3. Powered-device detection is automatic and protects non-PoE equipment plugged into the same ports, and power is injected in Mode A over the data pairs, so no separate power wiring is needed at the camera.

Why choose a gigabit PoE switch for CCTV instead of 100M?

Every access port runs at 1000 Mbps, so 4K cameras, multi-sensor panoramic cameras and gigabit wireless APs each get a full-speed link instead of sharing fast-Ethernet headroom. With 28 Gbps switching capacity, 20.832 Mpps forwarding and two gigabit uplinks, the NVR feed stays clean with all 8 ports streaming.

Which devices can the PoE ports power?

Any standard IEEE 802.3af or 802.3at powered device: mainstream IP cameras, wireless access points and video intercoms. Detection is automatic, so non-PoE gear on the same port is never damaged. Maximum output is 30W per port, drawn from the 96W or 120W total budget.

How is the S8G02GI installed and powered?

It uses a built-in DC 52V 1.85A supply fed from AC mains (176–264V input, 100–240V adapter compatible). The fanless IP30 metal case measures 173 x 124 x 38 mm, mounts on a desktop or wall, runs silently from -10 to +70 degC and is rated 50,000 hours MTBF.
