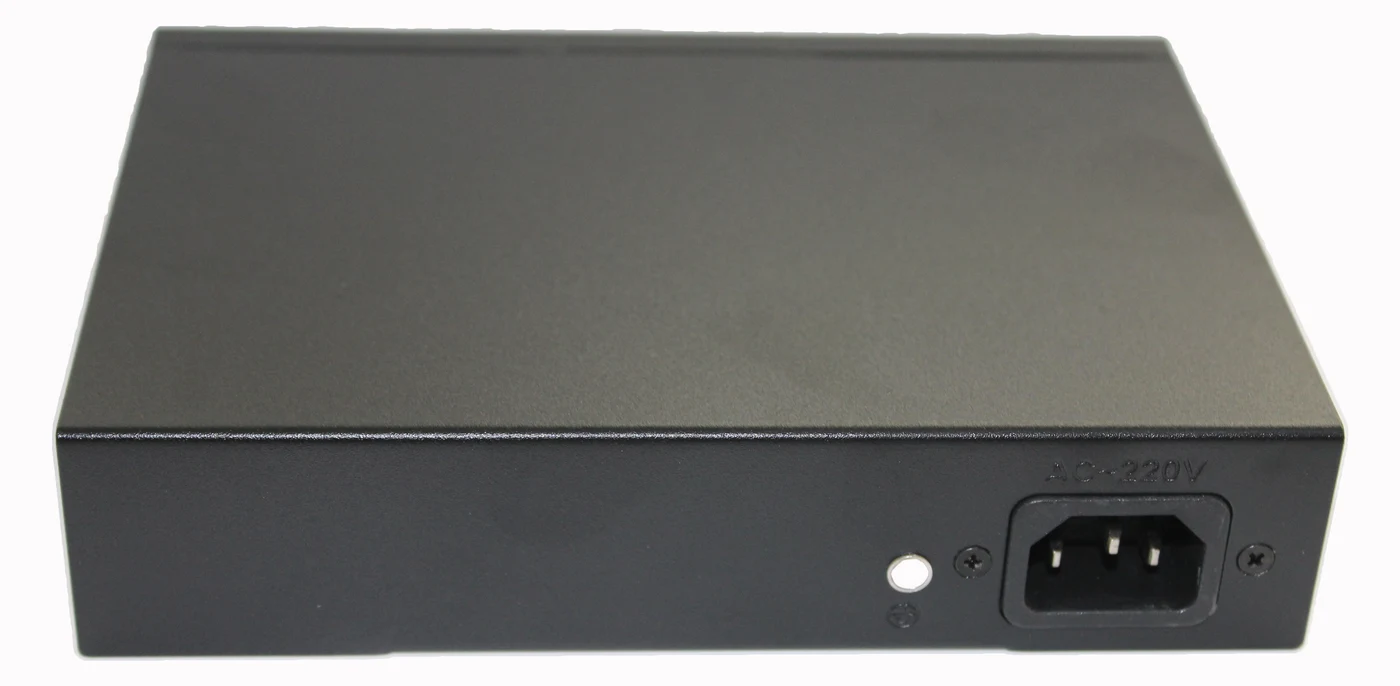

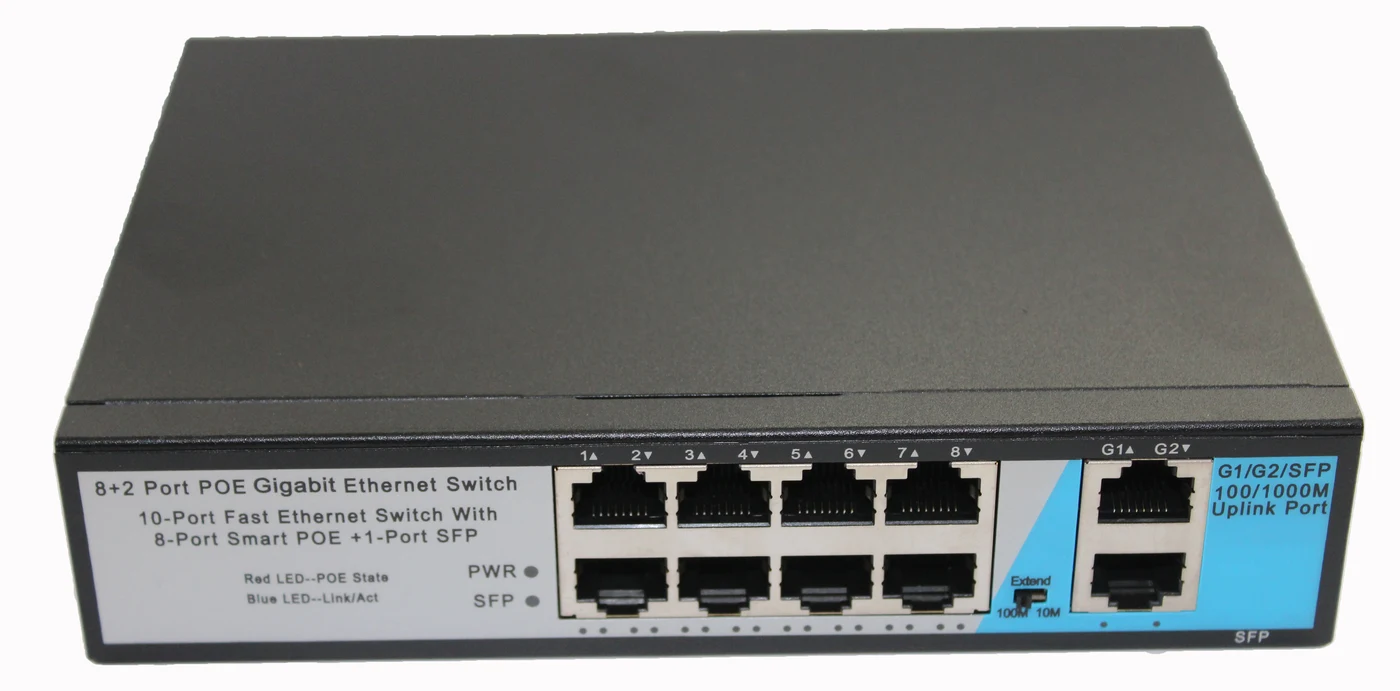

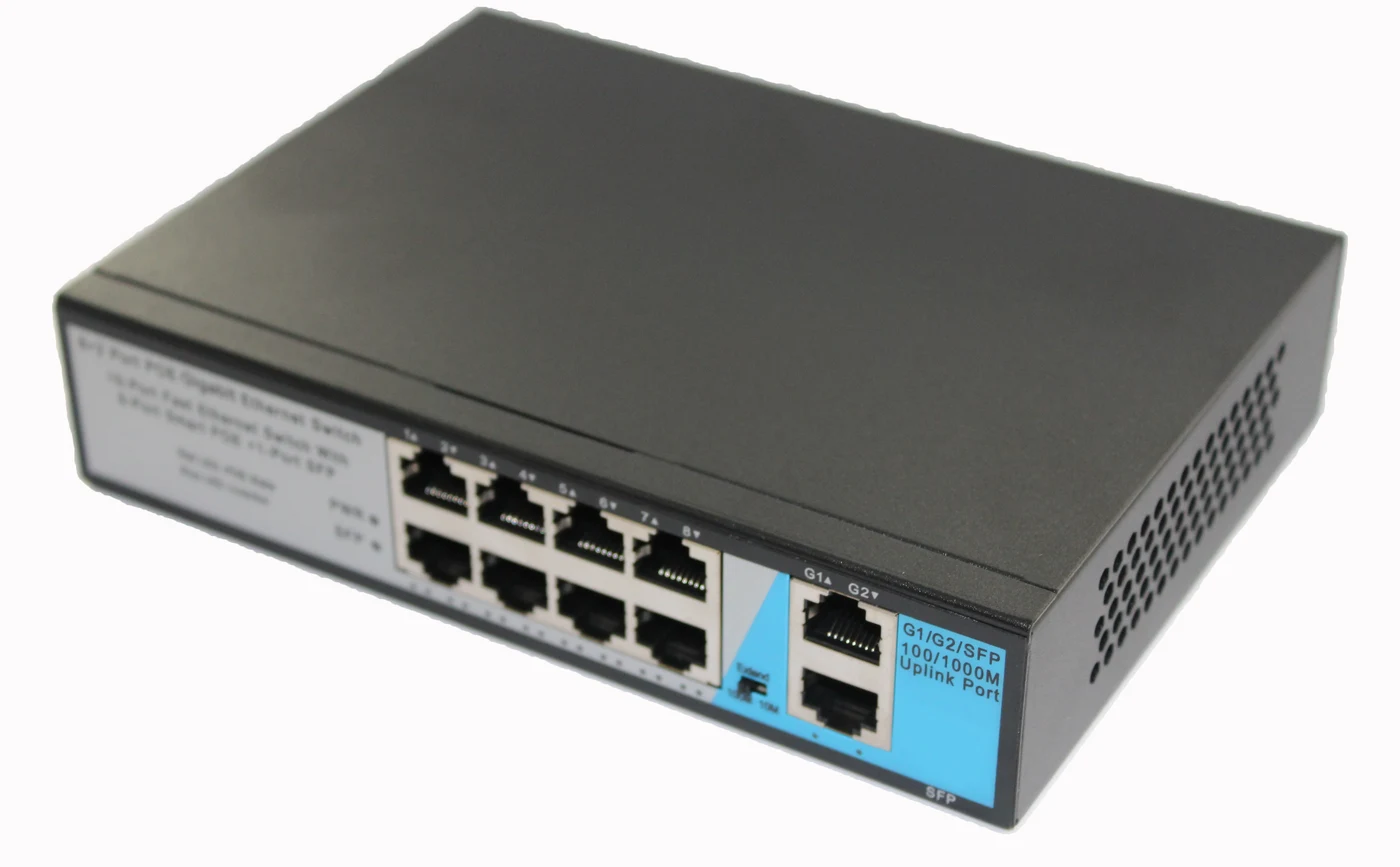

Manufacturer product photo · 8×FE PoE + 2×GE Uplink
S802GI
Atlas · Unmanaged PoE · Gigabit Uplink
8x 10/100M PoE + 2x Gigabit Uplink, 96W/120W budget -- the classic 8-camera setup where the uplink never bottlenecks.
Project-Based Pricing
Volume & combo discounts — get your quote
In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port
✓ Project-level customization & OEM supported
Get Best Price on WhatsAppTerms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
Not sure about the PoE budget? Size it with the calculator →
Need the PDF datasheet? Get it on WhatsApp →HOW TO GET A BETTER PRICE
Volume DiscountOrder 50+ pcs of this model
CONTACT US
Project Combo DiscountMix any categories & models storewide in one order — no quantity limit
BIGGER
Verified Project DiscountDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you
BIGGEST
All discounts are quoted personally — message me on WhatsApp ↑
◆IEEE 802.3af/at PoE+
◆30W per Port
◆Fanless / 0 Fan
◆250m Extend Mode
◆IP30 Metal Housing
◆Plug & Play, No Config
Overview
The S802GI pairs 8 Fast Ethernet PoE ports with 2 Gigabit RJ45 uplinks in a compact fanless case -- the switch most installers reach for on a straightforward 8-camera job. No single IP camera fills a 100Mbps link, but eight streams converging on one uplink can, so the Gigabit backhaul keeps the NVR feed smooth even at full load. Built-in IEEE 802.3af/at PoE+ powers the cameras directly off the same cable, and the optional 250m Extend mode reaches the one camera that's always too far from the panel. Choose the 96W S802GI for typical loads or the 120W S802GI, which adds a watchdog auto-reset, for PTZ or IR-illuminated cameras.
Is This the Right Fit?
Six real deployment scenarios matched to this model's actual datasheet specifications.
Convenience StoresFront door, checkout counter and backroom stock on 8 fixed cameras, one uplink to the office PC.
Small RestaurantsDining room, kitchen pass, cash register and back door on 8 fixed cameras feeding one NVR.
Small WarehousesDock doors, aisles and the loading yard gate on one switch near the office.
Village Internet CafesRows of PCs plus the entrance camera on 8 ports, extend mode reaches the door camera at the far wall.
Rural ClinicsReception, corridor, pharmacy window and entrance on 8 cameras, quiet fanless case sits behind the front desk.
Gas StationsForecourt pump islands, cashier kiosk and entrance/exit lanes on 8 ports, Gigabit uplink to the office NVR.
Not a good fit if:
- Not a managed switch -- no VLAN segmentation, spanning-tree, or web management interface. Choose a managed model if the project needs VLANs or loop-prevention protocols.
- No ring-network redundancy protocol -- built for star, tree, and bus topologies, not self-healing ring recovery.
- Commercial -10°C to +70°C rated in a desktop/wall-mount metal case without 19-inch rack ears -- not for extreme industrial wide-temperature sites or standard 19-inch rack rows.
Key Features
- IEEE 802.3af/at PoE+, 30W per Port — Delivers up to 30W on every port -- runs PTZ domes, IR-illuminated cameras, and PoE access points with no separate injector.
- Smart Powered-Device Detection — Identifies a genuine PD before energizing the port, so a miswired cable or non-PoE device won't get fried and idle ports don't waste power.
- FE Access + Gigabit Uplink — A single camera never fills a 100Mbps link, but eight streams converging on one switch need gigabit headroom to stay smooth.
- 250m Extend Mode — Stretches power and data delivery to 250 meters when switched on (link rate steps down to 10Mbps) -- reach a gate camera or a back-lot pole without a mid-span switch.
- One Cable for Power and Data — No separate power run to pull -- camera power and video ride the same Cat5e/6 cable, cutting cable cost and install labor on every point.
- Fanless, Silent, Maintenance-Free — Sealed metal enclosure with zero moving parts -- silent, dust-tolerant, and maintenance-free tucked in a back office, ceiling void, or equipment cabinet.
- 96W or 120W, Watchdog on the High-Power Version — Available in 96W and 120W PoE power budgets, with the 120W version adding a watchdog auto-reset for heavier PTZ/IR loads -- pick the version that matches the job.
Specifications
Ports & Interfaces
| PoE Ports | 8x 10/100Base-TX (RJ45), IEEE 802.3af/at |
| Uplink Ports | 2x 10/100/1000Base-T (RJ45) |
| Switching Mode | Store-and-forward |
Switching Performance
| Switching Capacity | 15.6 Gbps |
| Forwarding Rate | 11.6064 Mpps |
| MAC Address Table | 4K |
| Standards Supported | IEEE 802.3, 802.3u, 802.3ab, 802.3x |
PoE Power
| PoE Standards | IEEE 802.3af / IEEE 802.3at |
| Max Power per Port | 30W |
| PoE Extend Mode | Up to 250m, link speed on that port reduced to 10Mbps |
| Powered Device Detection | Automatic; smart detection protects non-PoE devices |
| PoE Mode | Mode A (power over data pairs) |
Switching Features
| Topology Support | Star, tree, and bus network topologies |
| Traffic Control | Supported |
| Duplex / Auto-Negotiation | Full/half duplex, auto MDI/MDI-X, auto-negotiated speed |
| Chipset | Chipset options available on a project basis |
Physical
| Dimensions | 173 × 124 × 38 mm |
| Housing | Metal, fanless |
| Cooling | Fanless (0 fans) |
| Protection Rating | IP30 |
| Mounting | Desktop or wall-mount |
Power Input
| Input Voltage | AC 176V - 264V (100-240V adapter compatible) |
| Power Supply | Built-in power supply, DC 52V — 1.85A (96W) / 2.3A (120W) |
Environmental
| Operating / Storage Temperature | -10 degC to +70 degC |
| Humidity | 5% to 95%, non-condensing |
| Ingress Protection | IP30 |
Indicators & Reliability
| LED Indicators | PWR (power), PoE status (red), Link/Data (blue) per port |
| Watchdog Auto-Reset | Available on the 120W high-power version; the 96W version has no watchdog |
| Device Compatibility | Mainstream IP cameras, wireless APs, video intercoms and other standard 802.3af/at powered devices |
| MTBF | 50,000 hours (manufacturer figure) |
Package
| Units per Carton | 40 units/carton |
| Packing Dimensions | 220 × 185 × 46 mm |
| Unit Weight | 0.8 kg per unit |
| Box Contents | Switch × 1, power cord × 1, manual × 1, certificate × 1, warranty card × 1 |
Models & Ordering
| Model | Product Description | Price |
|---|---|---|
| S802GI | Standard 96 W PoE budget — fits typical fixed cameras, wireless APs and video intercoms. | |
| S802GI | High-power 120 W version — for PTZ domes, IR illuminators and other heavy loads. This version also adds a hardware watchdog that auto-resets the switch if it hangs under load. |
One model, two PoE power versions. Both share the same ports, housing and features; the 120 W version raises the total PoE budget and adds a hardware watchdog for heavy loads. State the power version you need when ordering.

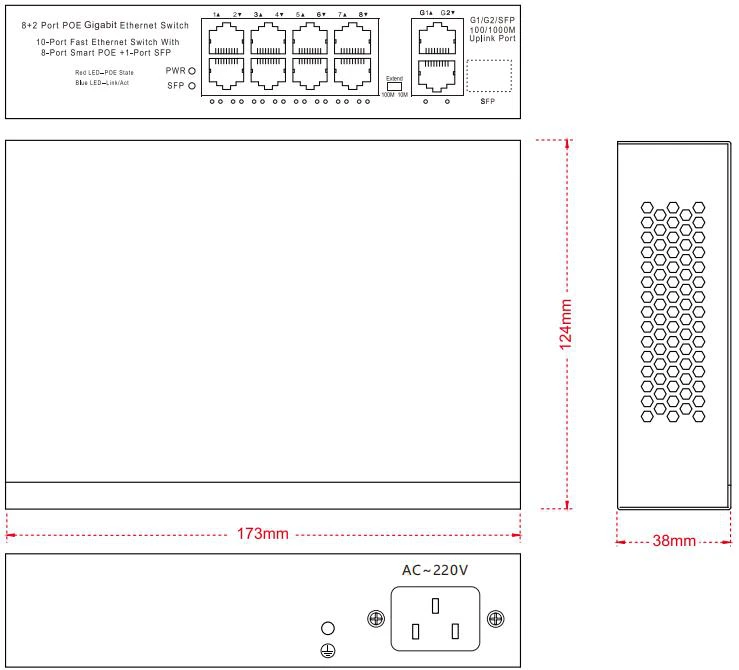

Dimensions
unit: mm
Your Brand. Our Factory.Neutral casing, ready for your logo · Custom port/power options · Small batches welcome.
Custom & OEM →8-Port PoE Switch FAQ — S802GI
How many IP cameras can the S802GI power?
All 8 PoE ports can run cameras at the same time. With the 120W version that averages 15W per camera — typical IP cameras draw 4–12W, so a full 8-camera CCTV setup is well within budget. A single port can deliver up to 30W for PTZ or heated housings.
Is it compatible with 802.3af and 802.3at cameras?
Yes. The S802GI supports both IEEE 802.3af and 802.3at on every PoE port, with automatic powered-device detection that protects non-PoE equipment plugged into the same port.
How far can it send power and data — does it support 250m PoE?
Standard Ethernet reaches 100m. In PoE extend mode the S802GI reaches up to 250m over Cat5e/Cat6, with that port's link speed reduced to 10Mbps — still enough bandwidth for a typical single camera stream.
Will 8 cameras overload the uplink to my NVR?
No. The two 10/100/1000M RJ45 uplinks give the backhaul gigabit headroom, so eight Fast Ethernet camera streams converge without bottlenecking on the way to the NVR or core switch.
What is the difference between the 96W and 120W versions?
Same case and ports; the 120W high-power version adds a bigger PoE budget plus a hardware watchdog that auto-resets the switch itself if it ever locks up — useful for remote CCTV sites you cannot visit often.
Does this fanless PoE switch need an external power adapter?
No adapter needed — the power supply is built in (DC 52V, AC 176–264V input). The metal case is fanless and silent, rated IP30, works from -10°C to +70°C, and mounts on a desktop or wall.
