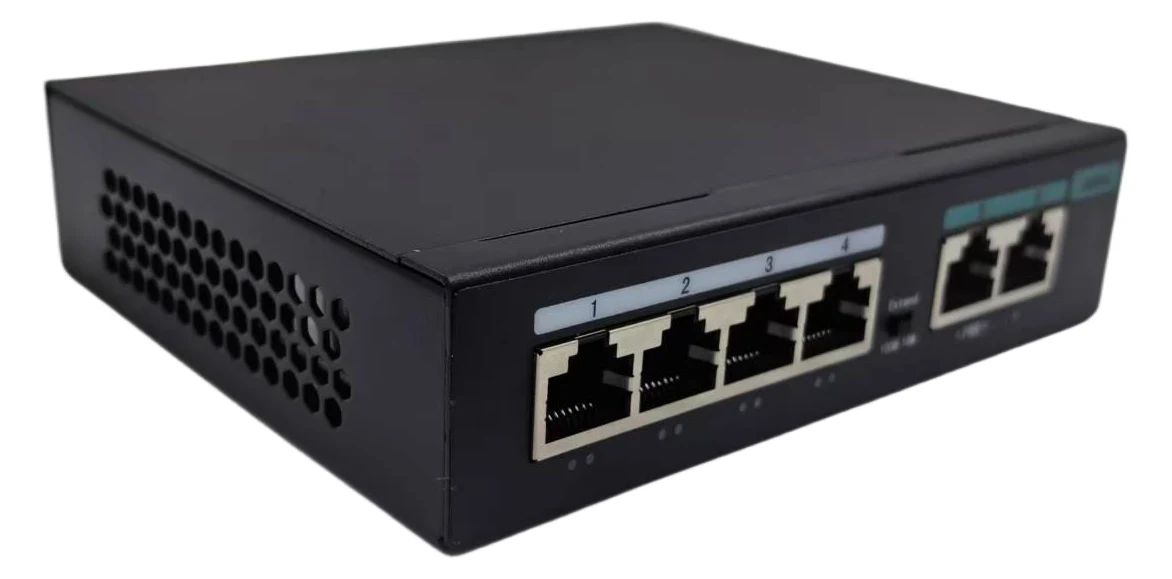

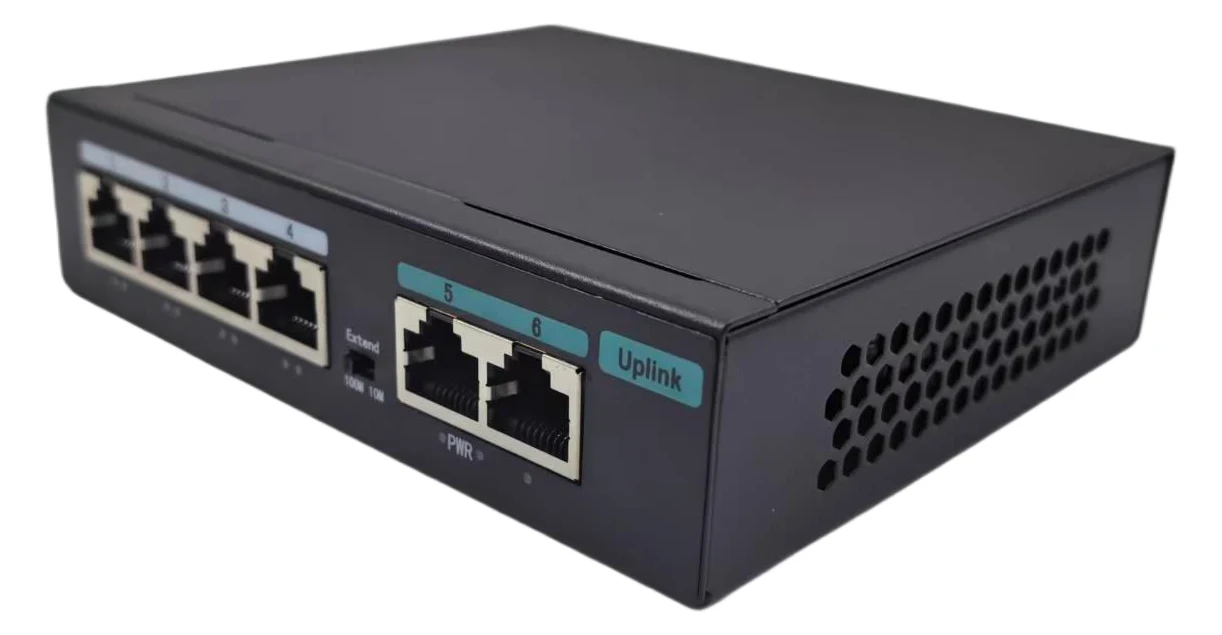

Manufacturer product photo · 4×PoE + 2×Uplink

S402EI

Name: Atlas S402EI
Brand: Atlas
SKU: S402EI

Atlas · Unmanaged PoE · 4-Port Family

4-Port PoE Switch Family · Three Configurations: Fast Ethernetor Full Gigabit

Project-Based Pricing

Volume & combo discounts — get your quote

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

✓ Project-level customization & OEM supported

Get Best Price on WhatsApp

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Not sure about the PoE budget? Size it with the calculator →

Need the PDF datasheet? Get it on WhatsApp →

HOW TO GET A BETTER PRICE

Volume DiscountOrder 50+ pcs of this model

Project Combo DiscountMix any categories & models storewide in one order — no quantity limit

BIGGER

Verified Project DiscountDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BIGGEST

All discounts are quoted personally — message me on WhatsApp ↑

◆IEEE802.3af/at PoE

◆30W per Port

◆250m Extend Mode

◆Fanless & Silent

◆IP30 Metal Housing

◆-10~70°C Commercial Grade

Overview

The Atlas S402EI is a compact 6-port unmanaged Fast Ethernet PoE switch built for small camera installations. It provides 4 x 10/100M PoE ports (IEEE802.3af/at, up to 30W per port with smart powered-device detection) plus 2 x 10/100M uplink ports, all inside a fanless IP30 metal enclosure drawing up to 52W. An Extend mode stretches the PoE and data link out to 250m on any port by stepping the link rate down to 10Mbps, so installers can run a camera well past the standard 100m Ethernet limit without adding a separate power line at the far end. Store-and-forward switching, auto-negotiation with auto MDI/MDIX, and a built-in watchdog auto-reset keep the unit stable under continuous camera loads, while the -10 to +70°C rated housing covers unheated cabinets, gate booths and rooftop enclosures.

Is This the Right Fit?

Six real deployment scenarios matched to this model's actual datasheet specifications.

Small retail shop or convenience store with a handful of cameras4 PoE ports cover a typical 3-4 camera storefront, and the 2 uplink ports connect straight to an NVR or router — no separate PoE injector or extra power run needed.

Home or small residential monitoringA compact desktop unit that sits behind a router without extra noise or heat — enough ports for a front door, driveway, backyard and side gate camera.

Small guesthouse or single-floor B&BCovers hallway and entrance cameras on one switch without running a separate power outlet to each camera location — useful where wiring an extra socket means breaking into finished walls.

Budget-conscious retrofit of an existing 100M camera networkWhere the existing cameras and cabling are already Fast Ethernet, this model matches the network speed at the lowest cost per port instead of paying for gigabit capacity that will not be used.

Detached garage, workshop or small storage roomA rugged metal, fanless build tolerates dust and temperature swings in an unheated outbuilding, while still being small enough to tuck onto a shelf or wall bracket.

Gate booth or entrance camera 200+ meters from the equipment roomExtend mode pushes the PoE and data run to 250m on copper, covering a distant gate or car park entrance that standard 100m Ethernet cannot reach without adding a repeater.

Not a good fit if:

Unmanaged Layer 2 only — no VLAN segmentation or STP/RSTP; choose a managed switch if network isolation or spanning tree is required.
No ring/loop redundancy protocol — wire in star, tree or bus topology only; do not create physical wiring loops between ports.
Commercial-grade -10 to +70°C housing in a compact desktop/wall-mount form factor — not rated for industrial wide-temperature extremes and not rack-mountable without accessories.

Key Features

4 x 10/100M PoE ports, IEEE802.3af/at, up to 30W per port with smart PD detection
2 x 10/100M uplink ports to NVR or router
Extend mode: PoE + data reach up to 250m (link rate steps down to 10Mbps)
No extra power cable to the camera — PoE carries power and data on one cable, cutting install cost
Fanless metal housing — silent operation, no moving parts to fail
Built-in watchdog auto-reset keeps the switch stable under heavy camera loads
Store-and-forward switching with flow control, auto-negotiation and auto MDI/MDIX

Specifications

IEEE Standards

IEEE802.3	10Base-T Ethernet
IEEE802.3u	100Base-TX Fast Ethernet
IEEE802.3x	Flow Control
IEEE802.3af	PoE
IEEE802.3at	PoE+

Switching

Switching Capacity	S402EI 1.6 Gbps · S4G02GI 14 Gbps
Forwarding Rate	S402EI 1.1904 Mpps · S4G02GI 10.416 Mpps
MAC Address Table	S402EI 2K · S4G02GI 2K
Flow Control	Supported (IEEE 802.3x)
Auto MDI/MDI-X	Supported

Interfaces

S402EI — PoE Ports	4 × 10/100Base-TX (RJ45), IEEE 802.3af/at
S402EI — Uplink	2 × 10/100Base-TX (RJ45)

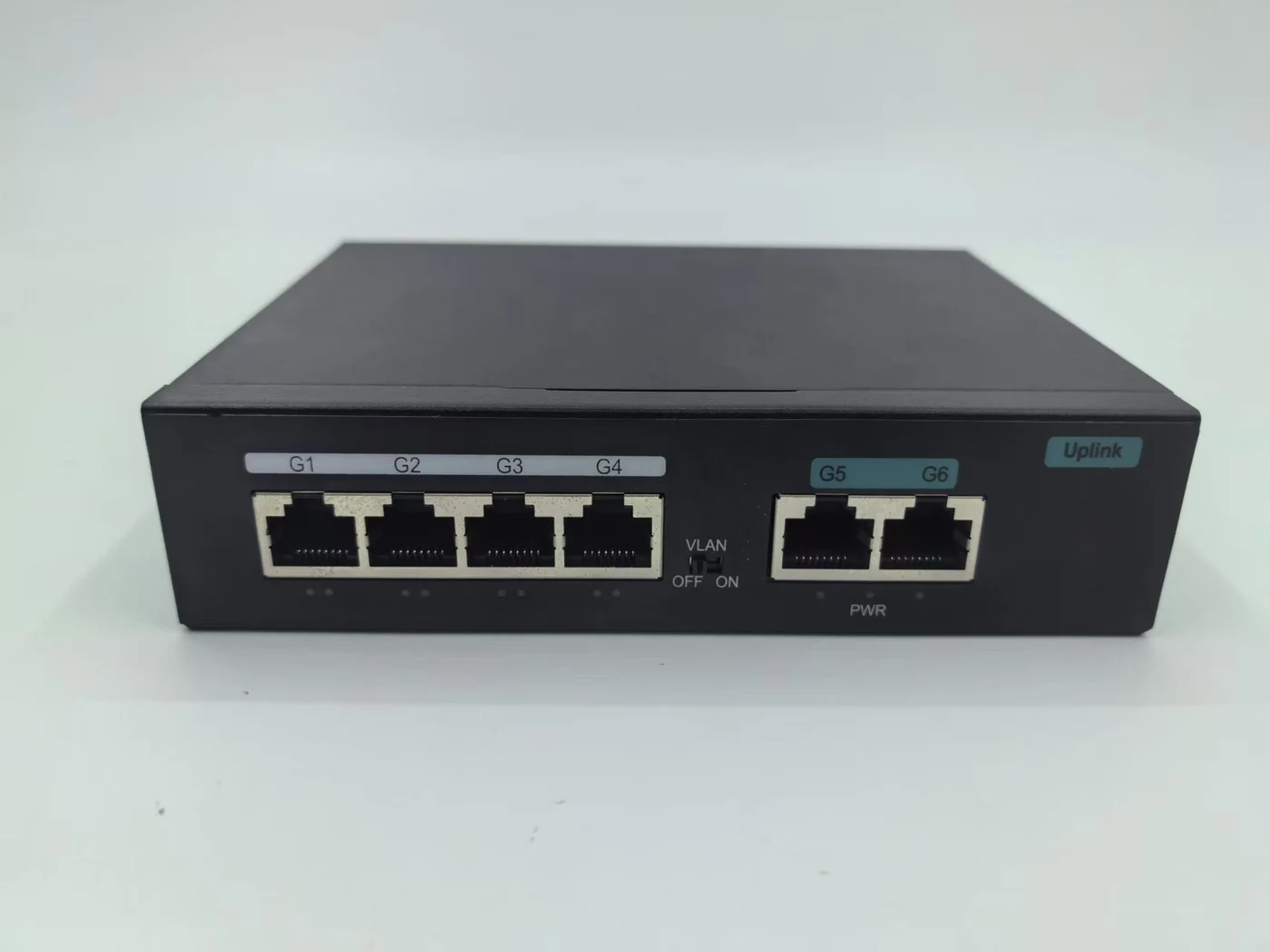

S4G02GI — PoE Ports	4 × 10/100/1000Base-T (RJ45), IEEE 802.3af/at
S4G02GI — Uplink	2 × 10/100/1000Base-T (RJ45)
Switching Mode	Store-and-forward
LED Indicators	PWR (power), red (PoE status), blue (link/activity)

PoE

PoE Standard	IEEE802.3af / IEEE802.3at
PoE Ports	4
Max Power per Port	30W
Powered Device Detection	Automatic, smart detection — will not damage non-PoE devices

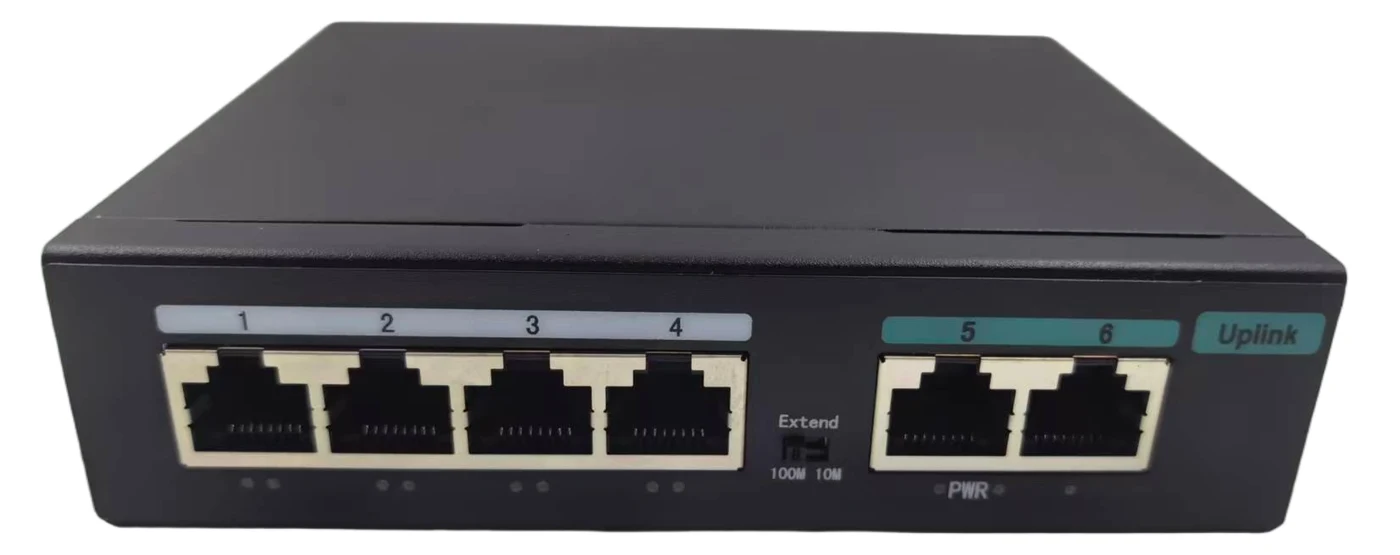

PoE Extend Mode	S402EI only — up to 250 m, that port drops to 10 Mbps. Gigabit configurations: standard 100 m.
PoE Mode	Mode A (power over data pairs)

Power

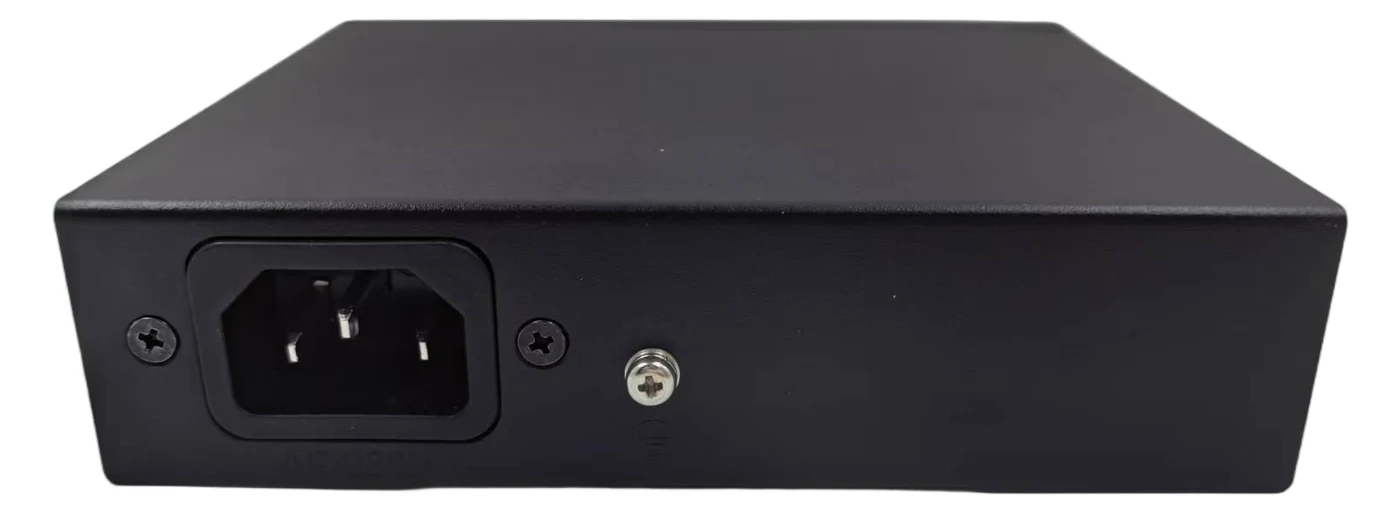

Input Voltage	AC 176–264V (100–240V compatible)
Power Supply	Built-in power supply, DC 52V 1A
Total Power Consumption	< 52 W at full load
Protection	Reverse-polarity and overload protection

Physical

Dimensions	S402EI 128 × 110 × 32 mm · S4G02GI /
Housing	Metal, fanless
Cooling	Fanless (0 fans)
Protection Rating	IP30
Mounting	Desktop or wall-mount

Environment

Operating / Storage Temperature	-10°C ~ +70°C
Humidity	5%–95% RH, non-condensing
Protection Rating	IP30
MTBF	50,000 hours (manufacturer figure)

Package

Units per Carton	S402EI 50 units/carton · S4G02GI 40 units/carton
Packing Dimensions	195 × 164 × 44 mm
Unit Weight	0.6 kg per unit
Box Contents	Switch × 1, power cord × 1, manual × 1, certificate × 1, warranty card × 1

Models & Ordering

Model	Product Description	Price
S402EI	4 × 10/100M PoE ports + 2 × 10/100M uplink ports. 52W total PoE budget, 30W per port. Switching capacity 1.6 Gbps, MAC table 2K, 128 × 110 × 32 mm. The entry configuration for standard-definition and 2MP camera points.	Get Quote
S4G02GI	4 × 10/100/1000M PoE ports + 2 × Gigabit uplink ports. 52W total PoE budget, 30W per port. Switching capacity 14 Gbps, MAC table 2K, 145.8 × 114.2 × 36 mm. Gigabit to every camera — the configuration for 4K and multi-sensor units.	Get Quote

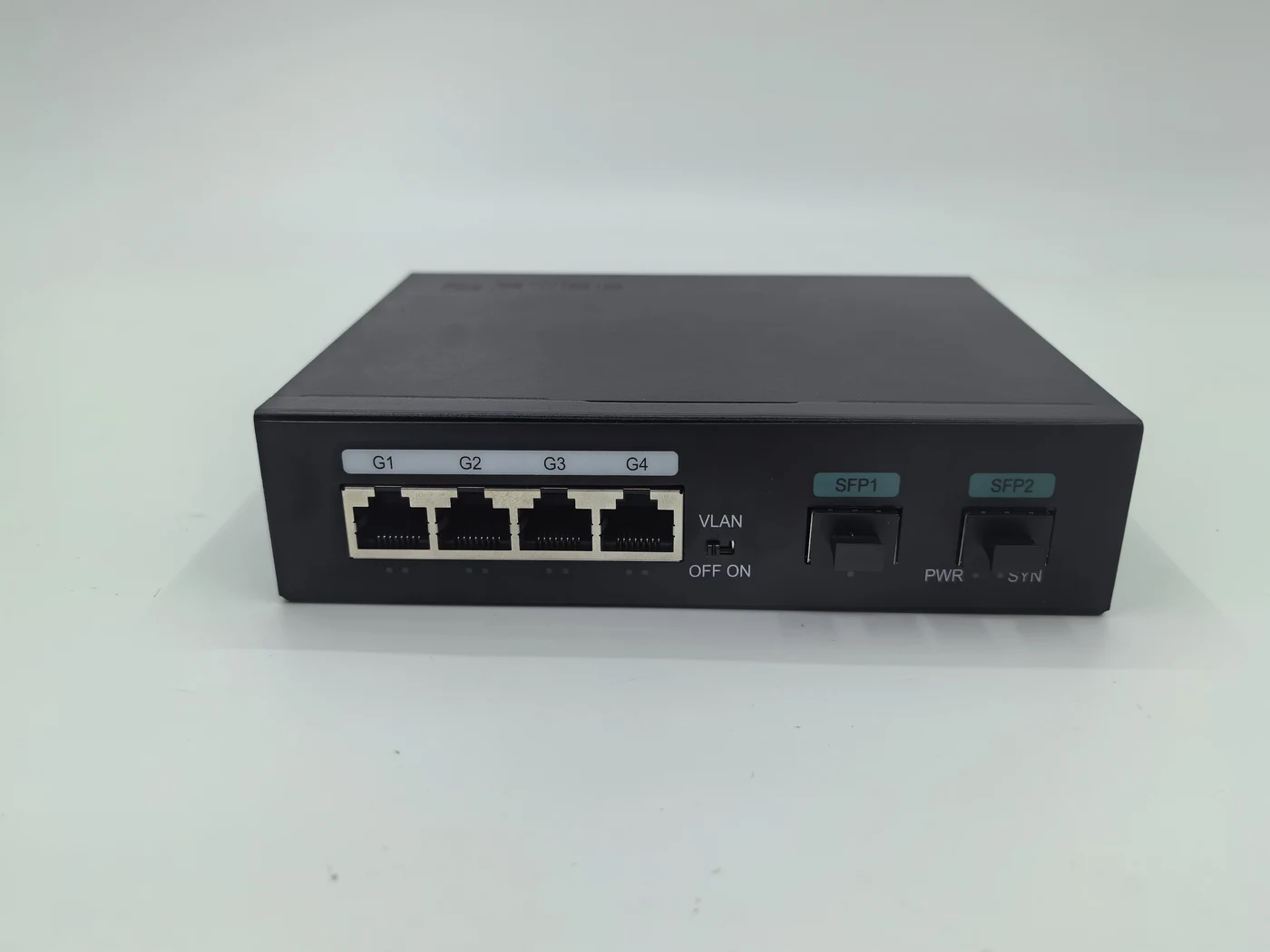

All three configurations share the same fanless metal housing, the same 52 W PoE budget with 30 W per port, IEEE 802.3af/at support and the same −10 to +70 °C rating. The two Gigabit configurations follow the standard 100 m copper limit — for longer runs use the SFP fibre version. A fibre-uplink version, S4G02GFI-SFP, is listed separately.

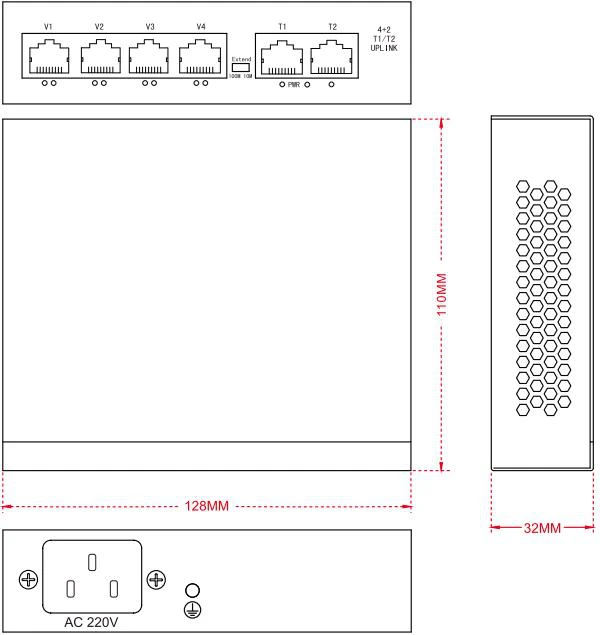

Dimensions

unit: mm

Your Brand. Our Factory.Neutral casing, ready for your logo · Custom port/power options · Small batches welcome.

Custom & OEM →

4-Port PoE Switch FAQ — S402EI

How many cameras can the S402EI power?

Four PoE cameras at once. Total consumption stays under 52 W at full load — 13 W average per port — while typical IP cameras draw 4–12 W, and any single port can deliver up to 30 W under IEEE 802.3af/at. Two extra 10/100 M uplink ports connect the NVR or router.

How far can it reach a camera in Extend mode?

Up to 250 m of PoE power plus data on the S402EI, with that port's link rate stepping down to 10 Mbps — no separate power line needed at the far end. Standard operation covers 100 m. The gigabit configurations of this family stay at the standard 100 m.

What is the difference between the S402EI and the S4G02GI configuration?

The S402EI is Fast Ethernet: 4 × 10/100 M PoE plus 2 × 10/100 M uplinks, 1.6 Gbps capacity, and the 250 m Extend mode. The S4G02GI configuration is full gigabit on all six ports with 14 Gbps capacity at the standard 100 m. Both share the 2K MAC table, 30 W per port and IEEE 802.3af/at.

Will it damage a non-PoE device plugged into a PoE port?

No. Powered-device detection is automatic and smart: the port only injects power after confirming an IEEE 802.3af/at device is present, so laptops, printers or plain switches connect safely. The unit also carries reverse-polarity and overload protection, and power rides the data pairs in Mode A.

How rugged is it, and how is it installed?

A fanless IP30 metal case of 128 × 110 × 32 mm, 0.6 kg, for desktop or wall mounting. The built-in DC 52 V 1 A supply accepts AC 176–264 V (100–240 V compatible), operation spans −10 °C to +70 °C at 5–95 % humidity, and quoted MTBF is 50,000 hours. Resellers get 50 units per carton.
