8×FE PoE + 2×GE + 1×SFP · 96W / 120W S802GIGFI

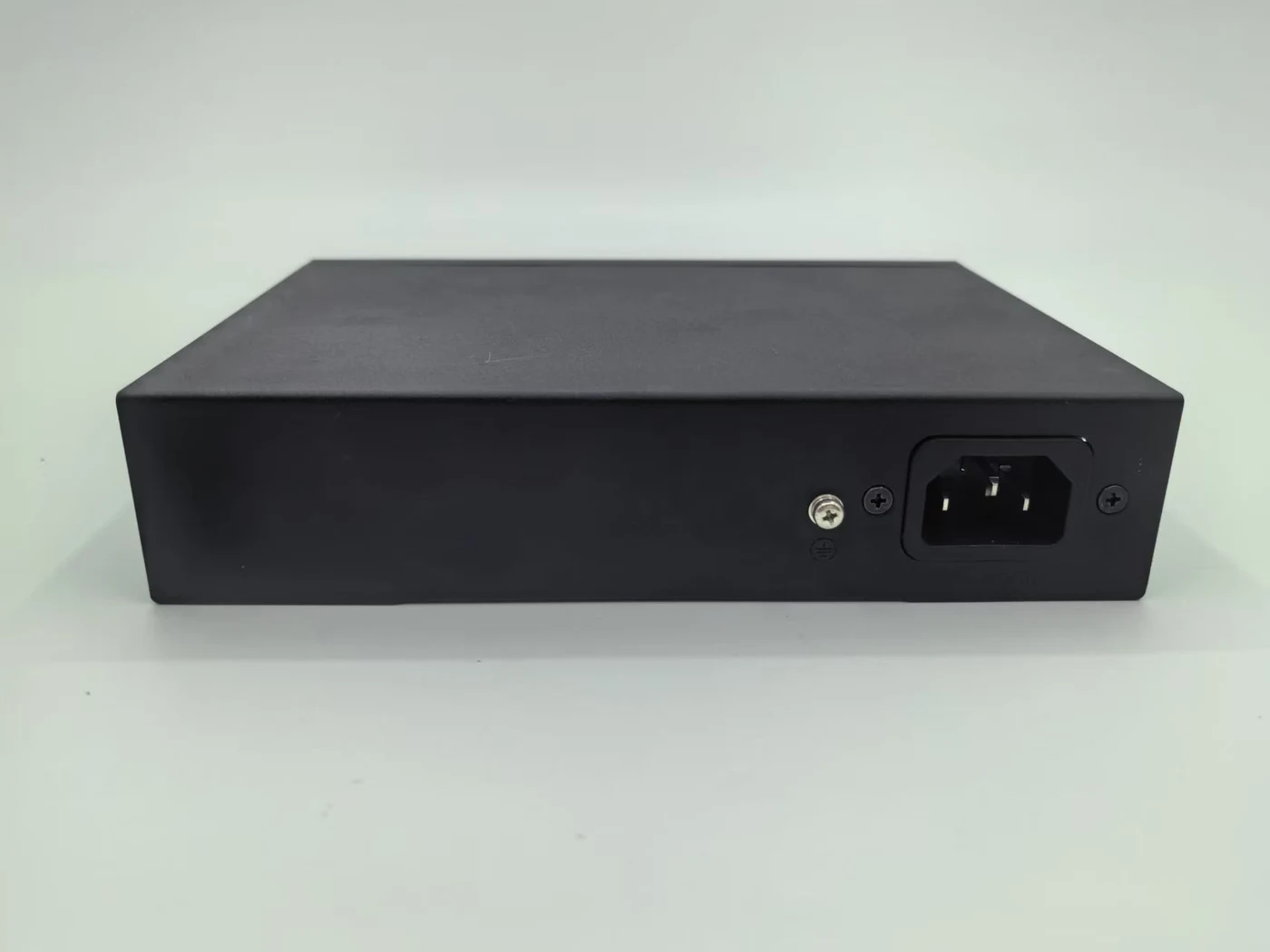

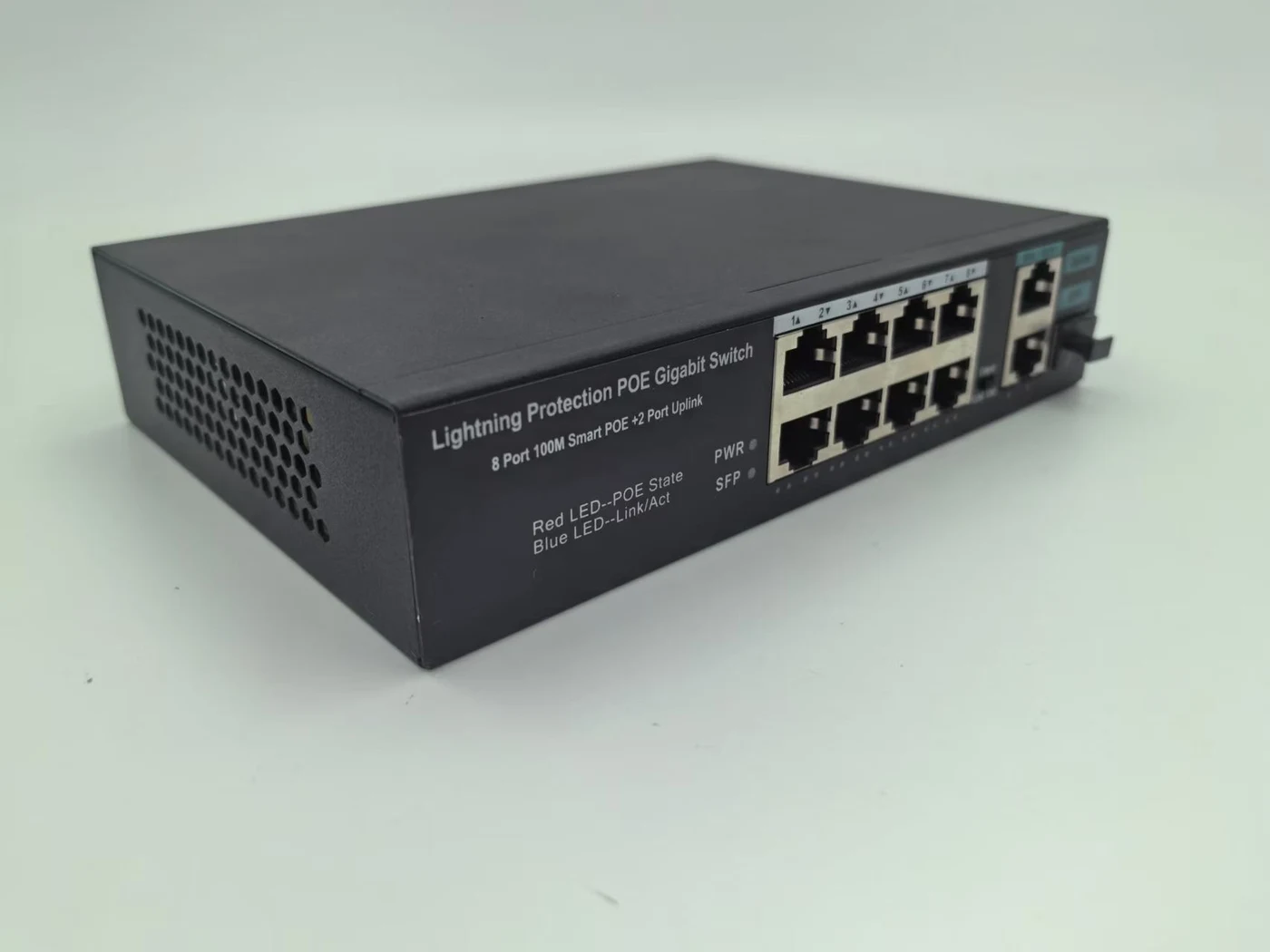

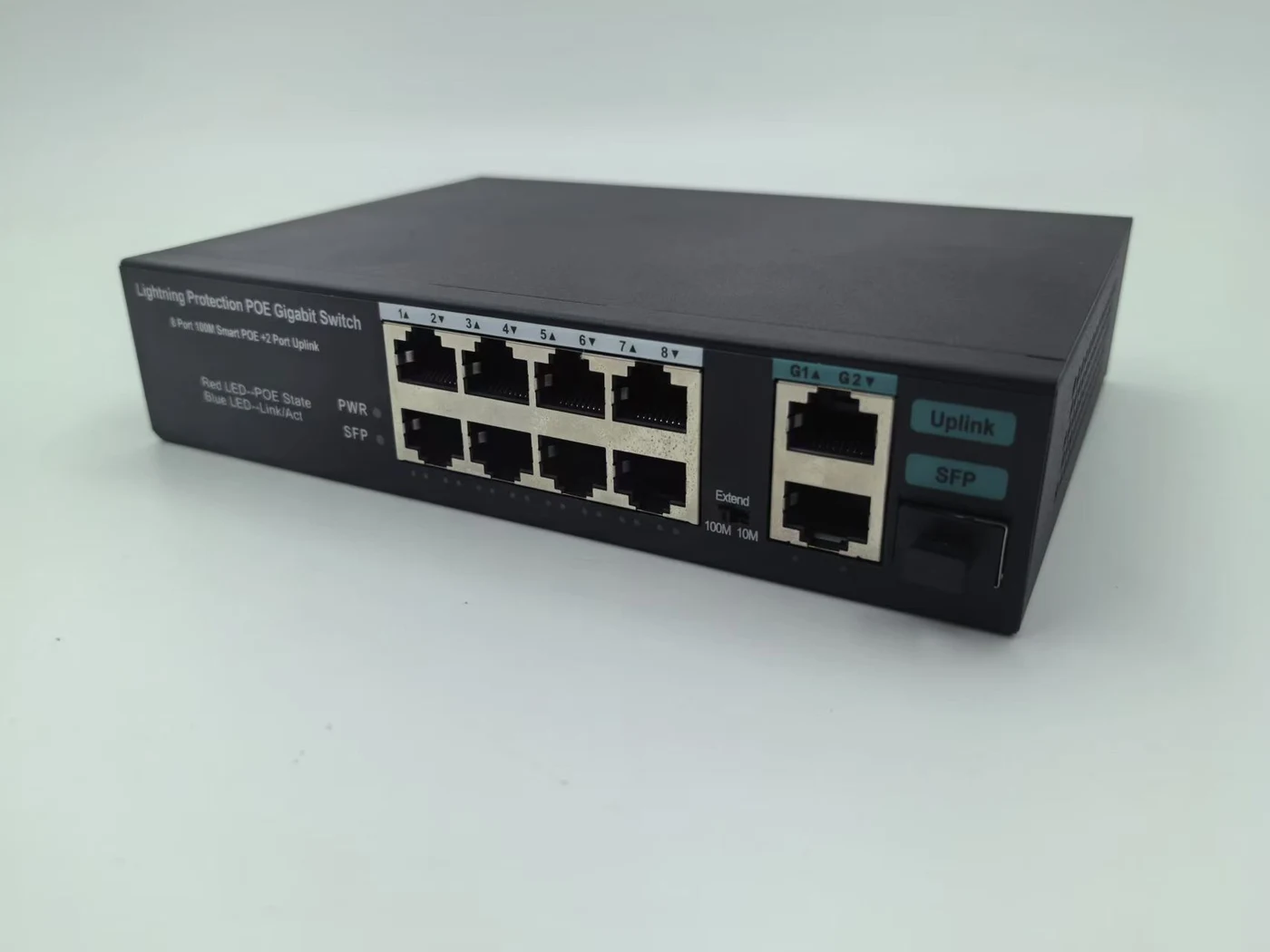

8×FE PoE + 2×GE + 1×SFP · 96W / 120W S802GIGFI — view 18×FE PoE + 2×GE + 1×SFP · 96W / 120W S802GIGFI — view 28×FE PoE + 2×GE + 1×SFP · 96W / 120W S802GIGFI — view 38×FE PoE + 2×GE + 1×SFP · 96W / 120W S802GIGFI — view 4

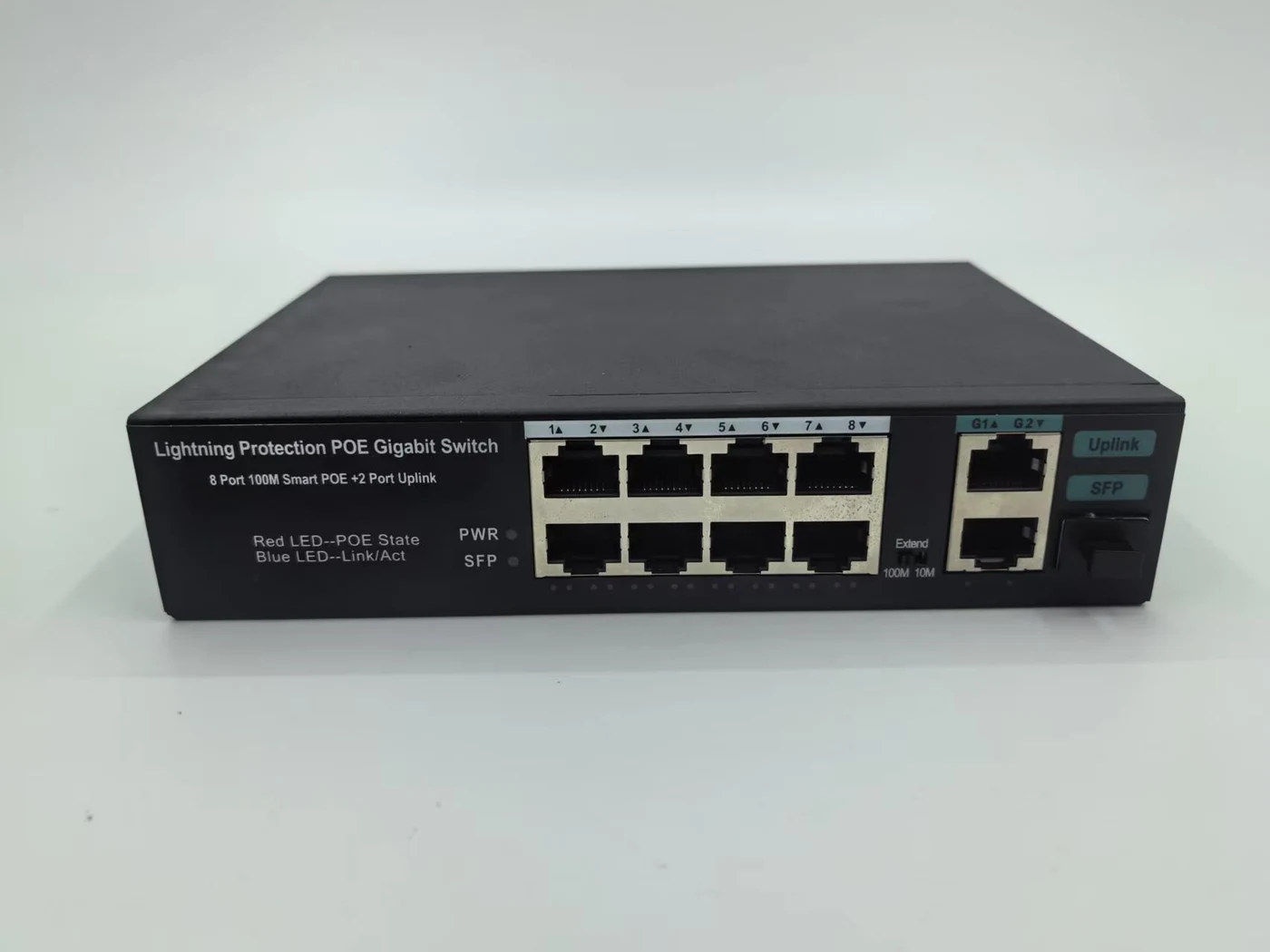

Manufacturer product photo · 8×FE PoE + 2×GE + 1×SFP

S802GIGFI

Atlas · Unmanaged PoE · Gigabit + SFP Uplink
8x 10/100M PoE + 2x Gigabit RJ45 + 1x Gigabit SFP uplink, 96W/120W budget -- copper or fiber back to the equipment room.
Project-Based Pricing
Volume & combo discounts — get your quote
In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port
✓ Project-level customization & OEM supported
Get Best Price on WhatsApp

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Not sure about the PoE budget? Size it with the calculator →

Need the PDF datasheet? Get it on WhatsApp →
HOW TO GET A BETTER PRICE
Volume DiscountOrder 50+ pcs of this model
CONTACT US
Project Combo DiscountMix any categories & models storewide in one order — no quantity limit
BIGGER
Verified Project DiscountDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you
BIGGEST
All discounts are quoted personally — message me on WhatsApp ↑
◆IEEE 802.3af/at PoE+
◆30W per Port
◆Fanless / 0 Fan
◆250m Extend Mode
◆IP30 Metal Housing
◆Plug & Play, No Config

Overview

The S802GIGFI/GFID takes the familiar 8-port FE PoE layout and adds a Gigabit SFP slot alongside the 2 Gigabit RJ45 uplinks, so the same switch works whether the equipment room is down the hall or across the parking lot. Run copper when it's close, drop in a fiber module when the distance or interference calls for it -- no redesign, no swapping switches mid-project. The 8 PoE ports still deliver up to 30W each under IEEE 802.3af/at, and 250m Extend mode covers the outlier camera on the copper side. Choose the 96W S802GIGFI for typical loads or the 120W S802GIGFI, which adds a watchdog auto-reset, for PTZ or IR-illuminated cameras.

Is This the Right Fit?

Six real deployment scenarios matched to this model's actual datasheet specifications.

Small Elementary SchoolsClassroom-block cameras on copper, admin building linked back over fiber where the copper run would be too long.
Construction SitesTemporary site office with 8 cameras on the fence and gate, fiber run back to the contractor's trailer across the yard.
FarmsBarn and gate cameras on copper near the house, processing shed at the far end of the property linked by fiber.
Multi-Story GuesthousesGround-floor lobby and entrance on copper, cameras on the top floor linked back to the reception NVR over fiber.
Gas Station ChainsPole-mounted forecourt cameras run copper to the canopy switch, fiber uplink carries the feed back to the office.
Small Clinic CampusesMain building cameras on copper, a detached outbuilding (pharmacy store or waiting annex) linked back over fiber.
Not a good fit if:
  • Not a managed switch -- no VLAN segmentation, spanning-tree, or web management interface. Choose a managed model if the project needs VLANs or loop-prevention protocols.
  • No ring-network redundancy protocol -- built for star, tree, and bus topologies, not self-healing ring recovery.
  • Commercial -10°C to +70°C rated in a desktop/wall-mount metal case without 19-inch rack ears -- not for extreme industrial wide-temperature sites or standard 19-inch rack rows.

Key Features

  • IEEE 802.3af/at PoE+, 30W per Port — Delivers up to 30W on every port -- runs PTZ domes, IR-illuminated cameras, and PoE access points with no separate injector.
  • Smart Powered-Device Detection — Identifies a genuine PD before energizing the port, so a miswired cable or non-PoE device won't get fried and idle ports don't waste power.
  • FE Access + Gigabit RJ45/SFP Uplink — Run copper back to a nearby NVR, or drop in a fiber module when the equipment room is a long cable run away.
  • 250m Extend Mode — Stretches power and data delivery to 250 meters when switched on (link rate steps down to 10Mbps) -- reach a gate camera or a back-lot pole without a mid-span switch.
  • One Cable for Power and Data — No separate power run to pull -- camera power and video ride the same Cat5e/6 cable, cutting cable cost and install labor on every point.
  • Fanless, Silent, Maintenance-Free — Sealed metal enclosure with zero moving parts -- silent, dust-tolerant, and maintenance-free tucked in a back office, ceiling void, or equipment cabinet.
  • 96W or 120W, Watchdog on the High-Power Version — Available in 96W and 120W PoE power budgets, with the 120W version adding a watchdog auto-reset for heavier PTZ/IR loads -- pick the version that matches the job.

Specifications

Ports & Interfaces

PoE Ports8x 10/100Base-TX (RJ45), IEEE 802.3af/at
Uplink Ports2x 10/100/1000Base-T (RJ45)
Fiber Uplink1x 1000Base-X SFP slot
Switching ModeStore-and-forward

Switching Performance

Switching Capacity15.6 Gbps
Forwarding Rate11.6064 Mpps
MAC Address Table4K
Standards SupportedIEEE 802.3, 802.3u, 802.3ab, 802.3x

PoE Power

PoE StandardsIEEE 802.3af / IEEE 802.3at
Max Power per Port30W
PoE Extend ModeUp to 250m, link speed on that port reduced to 10Mbps
Powered Device DetectionAutomatic; smart detection protects non-PoE devices
PoE ModeMode A (power over data pairs)

Switching Features

Topology SupportStar, tree, and bus network topologies
Traffic ControlSupported
Duplex / Auto-NegotiationFull/half duplex, auto MDI/MDI-X, auto-negotiated speed
ChipsetChipset options available on a project basis

Physical

Dimensions173 × 124 × 38 mm
HousingMetal, fanless
CoolingFanless (0 fans)
Protection RatingIP30
MountingDesktop or wall-mount

Power Input

Input VoltageAC 176V - 264V (100-240V adapter compatible)
Power SupplyBuilt-in power supply, DC 52V — 1.85A (96W) / 2.3A (120W)

Environmental

Operating / Storage Temperature-10 degC to +70 degC
Humidity5% to 95%, non-condensing
Ingress ProtectionIP30

Indicators & Reliability

LED IndicatorsPWR (power), PoE status (red), Link/Data (blue) per port
Watchdog Auto-ResetAvailable on the 120W high-power version; the 96W version has no watchdog
Device CompatibilityMainstream IP cameras, wireless APs, video intercoms and other standard 802.3af/at powered devices
MTBF50,000 hours (manufacturer figure)

Package

Units per Carton40 units/carton
Packing Dimensions220 × 185 × 46 mm
Unit Weight0.8 kg per unit
Box ContentsSwitch × 1, power cord × 1, manual × 1, certificate × 1, warranty card × 1

Models & Ordering

ModelProduct DescriptionPrice
S802GIGFIStandard 96 W PoE budget — fits typical fixed cameras, wireless APs and video intercoms.✆ WhatsApp
S802GIGFIHigh-power 120 W version — for PTZ domes, IR illuminators and other heavy loads. This version also adds a hardware watchdog that auto-resets the switch if it hangs under load.✆ WhatsApp

One model, two PoE power versions. Both share the same ports, housing and features; the 120 W version raises the total PoE budget and adds a hardware watchdog for heavy loads. State the power version you need when ordering.

Dimensions

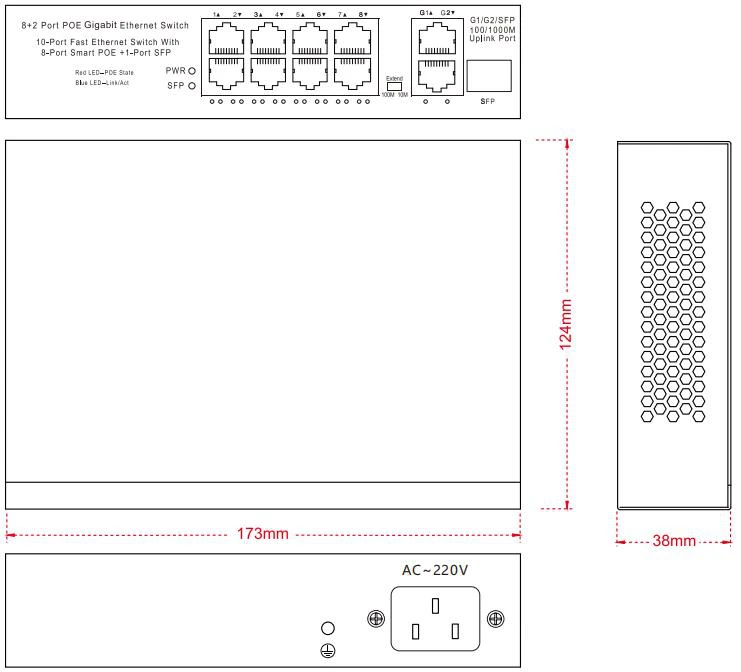

S802GIGFI dimensions drawing in mm
unit: mm
Your Brand. Our Factory.Neutral casing, ready for your logo · Custom port/power options · Small batches welcome.
Custom & OEM →

8-Port PoE Switch FAQ — S802GIGFI

How many IP cameras can the S802GIGFI power?
All 8 PoE ports power devices at the same time under IEEE 802.3af/at. On the 120W version that averages 15W per port; typical fixed IP cameras draw 4–12W, so a full 8-camera CCTV setup fits the budget. A single port can deliver up to 30W for PTZ or IR-heavy cameras.
When should I use the SFP fiber port instead of the RJ45 uplinks?
Use the 1000Base-X SFP slot with a fiber module when the equipment room is beyond copper reach or the path crosses heavy electrical interference. For short runs, the 2 gigabit RJ45 uplinks are simpler. Both options sit on the same switch, so one model covers either site layout.
How far can it power a camera with the 250m extend mode?
In extend mode a PoE port carries power and data over up to 250m of cable, with that port's link speed reduced to 10Mbps. That bandwidth still handles a single camera stream, so use it for the far gate or perimeter camera and keep nearby ports at full speed.
What is the difference between the 96W and 120W versions?
Port layout is identical: 8 PoE, 2 gigabit RJ45, 1 SFP, up to 30W per port. The 96W standard model suits typical loads and has no watchdog. The 120W high-power model adds PoE budget headroom plus a watchdog that auto-resets the switch itself if it locks up.
Is it safe to plug non-PoE devices into the PoE ports?
Yes. Powered-device detection is automatic: the switch checks for a valid IEEE 802.3af/at signature before applying power, so a PC or other non-PoE device only receives data. It works with mainstream IP cameras, wireless APs and video intercoms that follow the same standards.
How is the S802GIGFI installed and powered?
The fanless metal case measures 173×124×38mm, is IP30 rated and mounts on a desktop or wall. Power is a built-in DC 52V supply fed from AC 176–264V, compatible with 100–240V adapters, and the switch operates from -10°C to +70°C with no cooling fan.
