4×GE PoE + 2×1000M SFP Fibre Uplinks · 52W S4G02GFI-SFP

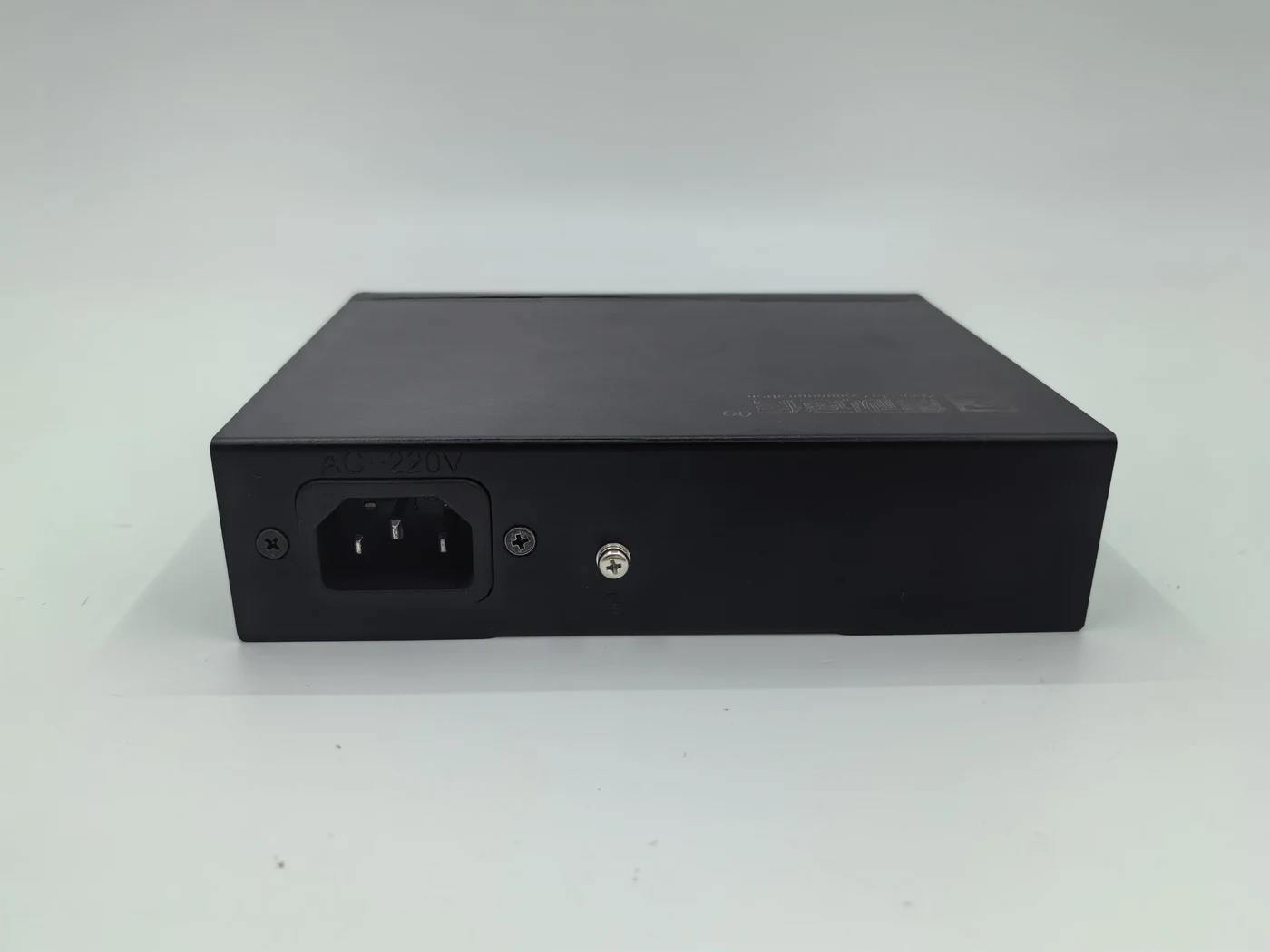

4×GE PoE + 2×1000M SFP Fibre Uplinks · 52W S4G02GFI-SFP — view 1

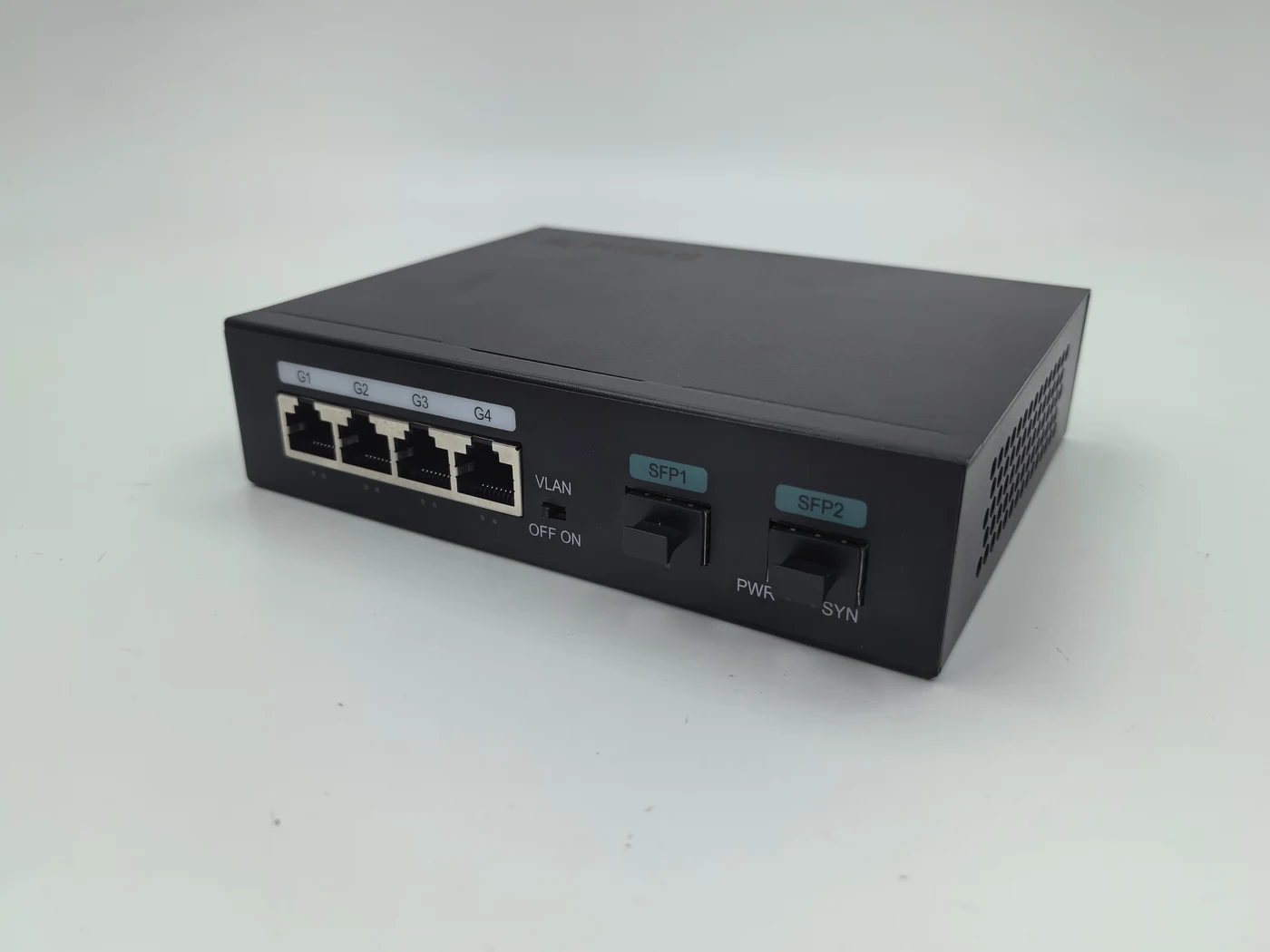

4×GE PoE + 2×1000M SFP Fibre Uplinks · 52W S4G02GFI-SFP — view 2

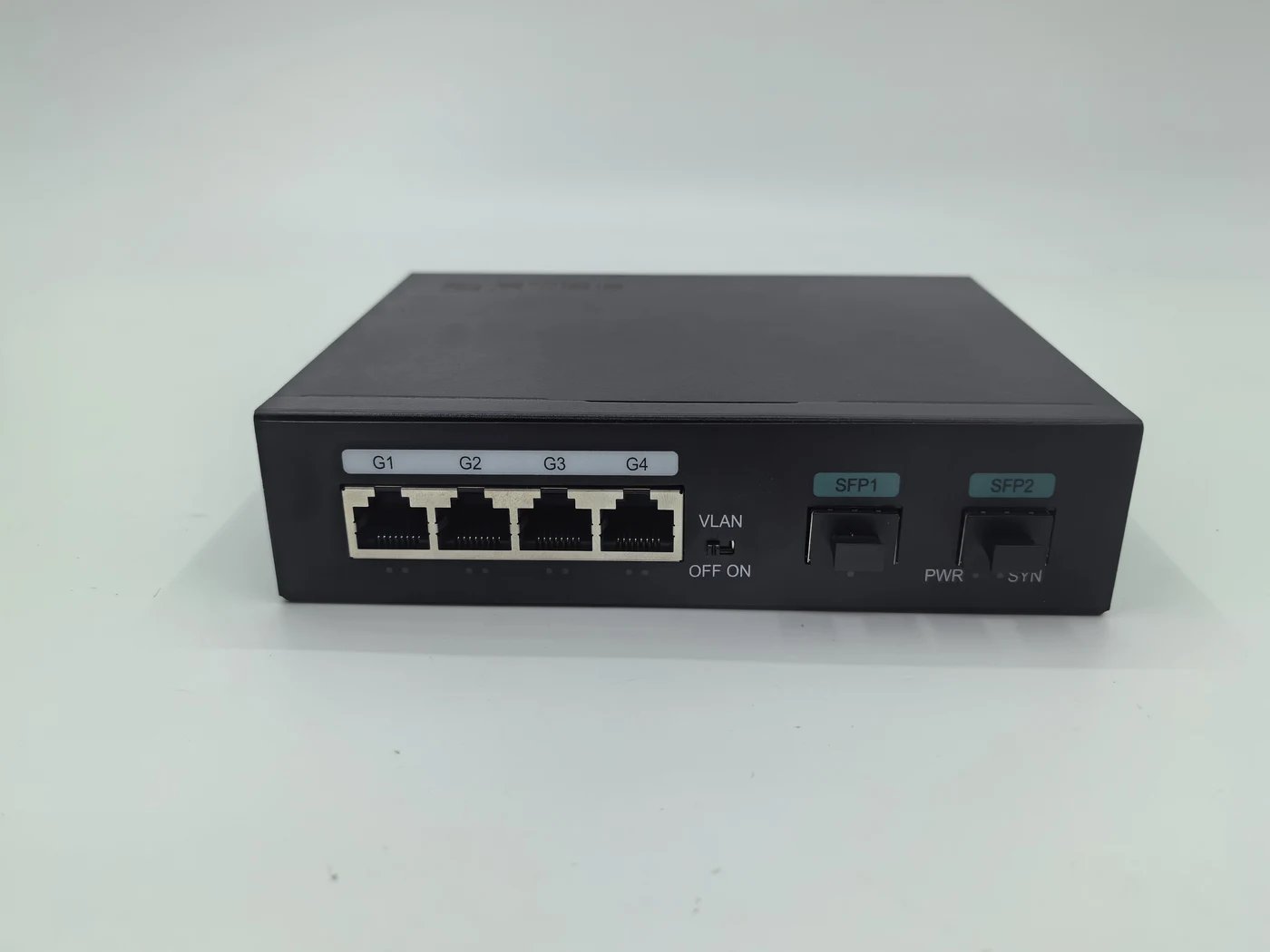

4×GE PoE + 2×1000M SFP Fibre Uplinks · 52W S4G02GFI-SFP — view 3

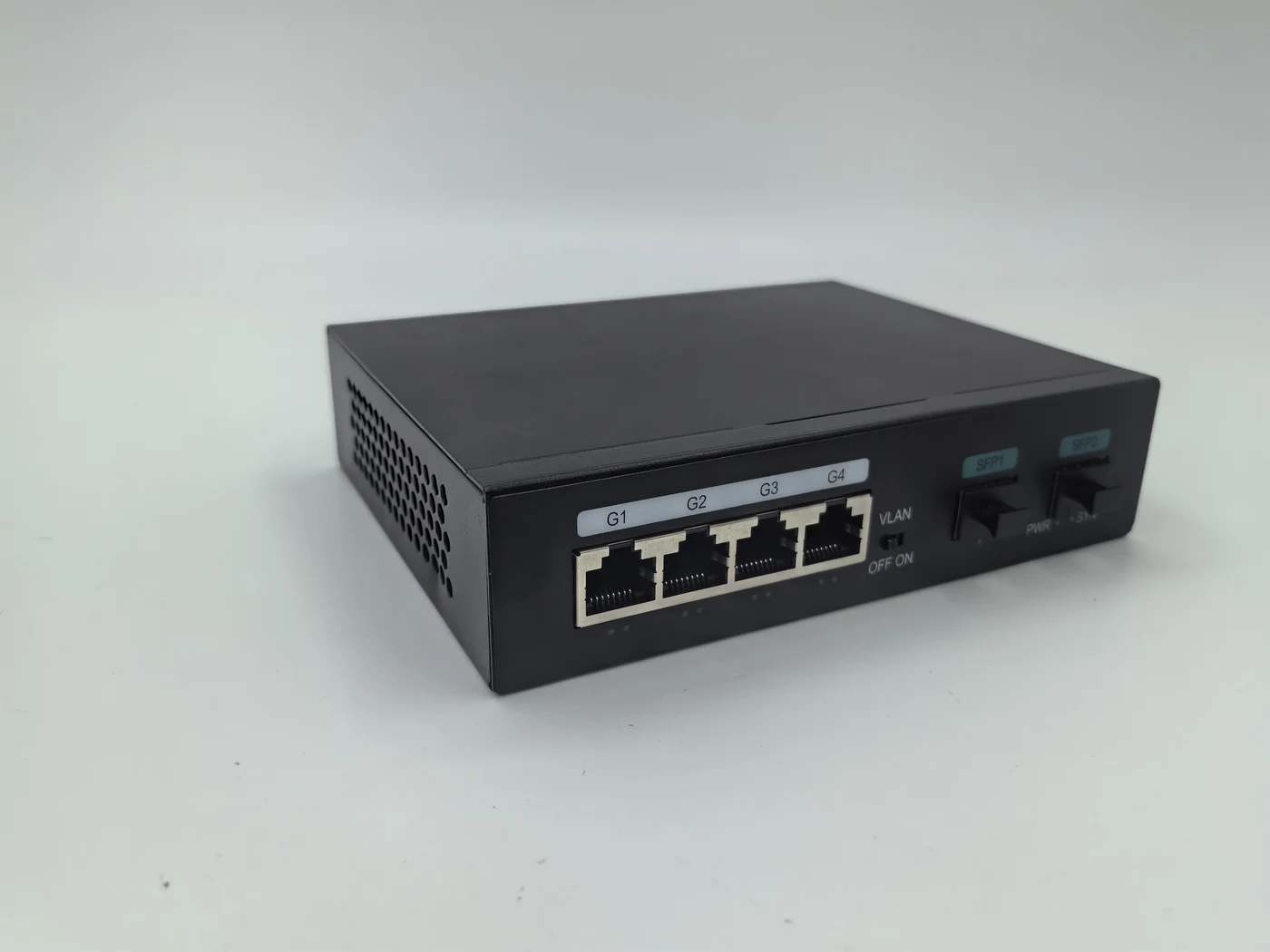

Manufacturer product photo · 4×GE PoE + 2×SFP

S4G02GFI-SFP

Name: Atlas S4G02GFI-SFP
Brand: Atlas
SKU: S4G02GFI-SFP

Atlas · Unmanaged PoE · 4-Port Family

4-Port Gigabit PoE Switch · 2 × 1000M SFP Fibre Uplinks · 52 W · Fanless

Project-Based Pricing

Volume & combo discounts — get your quote

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

✓ Project-level customization & OEM supported

Get Best Price on WhatsApp

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Not sure about the PoE budget? Size it with the calculator →

Need the PDF datasheet? Get it on WhatsApp →

HOW TO GET A BETTER PRICE

Volume DiscountOrder 50+ pcs of this model

Project Combo DiscountMix any categories & models storewide in one order — no quantity limit

BIGGER

Verified Project DiscountDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BIGGEST

All discounts are quoted personally — message me on WhatsApp ↑

◆IEEE802.3af/at PoE

◆30W per Port

◆250m Extend Mode

◆Fanless & Silent

◆IP30 Metal Housing

◆-10~70°C Commercial Grade

Overview

The S4G02GFI-SFP is the fibre-uplink member of the 4-port PoE family: four 10/100/1000M PoE ports for cameras, access points or intercoms, and two 1000M SFP slots instead of copper uplinks. Copper tops out at 100 m per segment, so when the switch sits at a gate house, a pump station or the far end of a yard while the recorder is in the office block, the SFP pair carries the traffic over fibre — single-mode modules cover tens of kilometres. Total PoE budget is 52 W with 30 W available on any single port, the housing is fanless metal, and the unit is unmanaged: power it, plug in, done.

Is This the Right Fit?

Six real deployment scenarios matched to this model's actual datasheet specifications.

Small retail shop or convenience store with a handful of cameras4 PoE ports cover a typical 3-4 camera storefront, and the 2 uplink ports connect straight to an NVR or router — no separate PoE injector or extra power run needed.

Home or small residential monitoringA compact desktop unit that sits behind a router without extra noise or heat — enough ports for a front door, driveway, backyard and side gate camera.

Small guesthouse or single-floor B&BCovers hallway and entrance cameras on one switch without running a separate power outlet to each camera location — useful where wiring an extra socket means breaking into finished walls.

Budget-conscious retrofit of an existing 100M camera networkWhere the existing cameras and cabling are already Fast Ethernet, this model matches the network speed at the lowest cost per port instead of paying for gigabit capacity that will not be used.

Detached garage, workshop or small storage roomA rugged metal, fanless build tolerates dust and temperature swings in an unheated outbuilding, while still being small enough to tuck onto a shelf or wall bracket.

Gate booth or entrance camera 200+ meters from the equipment roomExtend mode pushes the PoE and data run to 250m on copper, covering a distant gate or car park entrance that standard 100m Ethernet cannot reach without adding a repeater.

Not a good fit if:

Unmanaged Layer 2 only — no VLAN segmentation or STP/RSTP; choose a managed switch if network isolation or spanning tree is required.
No ring/loop redundancy protocol — wire in star, tree or bus topology only; do not create physical wiring loops between ports.
Commercial-grade -10 to +70°C housing in a compact desktop/wall-mount form factor — not rated for industrial wide-temperature extremes and not rack-mountable without accessories.

Key Features

4 x 10/100M PoE ports, IEEE802.3af/at, up to 30W per port with smart PD detection
2 x 10/100M uplink ports to NVR or router
Extend mode: PoE + data reach up to 250m (link rate steps down to 10Mbps)
No extra power cable to the camera — PoE carries power and data on one cable, cutting install cost
Fanless metal housing — silent operation, no moving parts to fail
Built-in watchdog auto-reset keeps the switch stable under heavy camera loads
Store-and-forward switching with flow control, auto-negotiation and auto MDI/MDIX

Specifications

IEEE Standards

IEEE802.3	10Base-T Ethernet
IEEE802.3u	100Base-TX Fast Ethernet
IEEE802.3x	Flow Control
IEEE802.3af	PoE
IEEE802.3at	PoE+

Switching

Switching Capacity	16 Gbps
Forwarding Rate	11.904 Mpps
MAC Address Table	4K
Flow Control	Supported (IEEE 802.3x)
Auto MDI/MDI-X	Supported

Interfaces

PoE Ports	4 × 10/100/1000Base-T (RJ45), IEEE 802.3af/at
Uplink	2 × 1000Base-X SFP slots (modules ordered separately)
Fibre Reach	Depends on SFP module — multimode ~550 m, single-mode 20 / 40 / 60 / 120 km options
Switching Mode	Store-and-forward
LED Indicators	PWR (power), red (PoE status), blue (link/activity)

PoE

PoE Standard	IEEE802.3af / IEEE802.3at
PoE Ports	4
Max Power per Port	30W
Powered Device Detection	Automatic, smart detection — will not damage non-PoE devices
PoE Mode	Mode A (power over data pairs)
Cable Distance	Standard 100 m per copper segment; use the SFP uplinks for longer runs

Power

Input Voltage	AC 176–264V (100–240V compatible)
Power Supply	Built-in power supply, DC 52V 1A
Total Power Consumption	< 52 W at full load
Protection	Reverse-polarity and overload protection

Physical

Dimensions	145.8 × 114.2 × 36 mm (excluding protrusions)
Housing	Metal, fanless
Cooling	Fanless (0 fans)
Protection Rating	IP30
Mounting	Desktop or wall-mount

Environment

Operating / Storage Temperature	-10°C ~ +70°C
Humidity	5%–95% RH, non-condensing
Protection Rating	IP30
MTBF	50,000 hours (manufacturer figure)

Package

Units per Carton	50 units/carton
Packing Dimensions	195 × 164 × 44 mm
Unit Weight	0.6 kg per unit
Box Contents	Switch × 1, power cord × 1, manual × 1, certificate × 1, warranty card × 1

Models & Ordering

Model	Product Description	Price
S4G02GFI-SFP	4 × 10/100/1000M PoE ports (IEEE 802.3af/at, 30 W per port) + 2 × 1000M SFP fibre uplink slots. 52 W total PoE budget, switching capacity 16 Gbps, MAC table 4K, 145.8 × 114.2 × 36 mm, built-in DC 52V 1A supply. SFP modules are ordered separately to match fibre type and distance.	Get Quote

Single model, single 52 W PoE budget. It shares housing and PoE behaviour with the copper S4G02GI; the difference is the uplink — two 1000M SFP fibre slots instead of two copper Gigabit ports. Choose this version when the run back to the recorder or router is longer than 100 m.

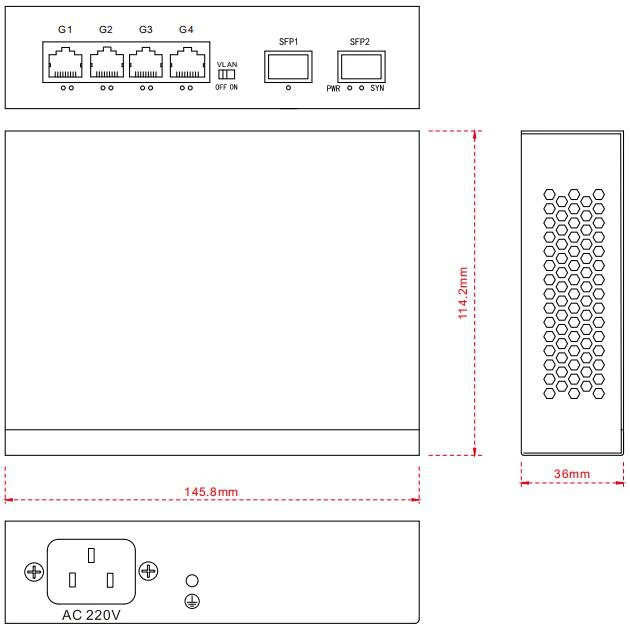

Dimensions

unit: mm

Your Brand. Our Factory.Neutral casing, ready for your logo · Custom port/power options · Small batches welcome.

Custom & OEM →

4-Port Gigabit PoE Switch FAQ — S4G02GFI-SFP

How many cameras can the S4G02GFI-SFP power?

Four devices on the gigabit PoE ports — cameras, access points or intercoms. The 52 W full-load budget averages 13 W each, comfortably above the 4–12 W a typical IP camera draws, and any single port can supply up to 30 W under IEEE 802.3af/at for a PTZ at the gate.

How far can the fiber uplinks reach?

It depends on the SFP module you fit (ordered separately): multimode covers about 550 m, while single-mode options run 20, 40, 60 or 120 km. Both 1000Base-X slots are available, so you can link a gate house to the office block and still keep a second fiber path.

When should I pick this model over a copper-uplink switch?

Whenever the switch sits far from the recorder: copper tops out at 100 m per segment, so at a gate house, pump station or the far end of a yard, the SFP pair carries the traffic over fiber instead. The four 10/100/1000 M PoE ports serve the local cameras while fiber does the backhaul.

Does it need any configuration to start working?

None — it is unmanaged: power it, plug in, done. Auto-negotiation and auto MDI/MDI-X sort out speeds and cable order, store-and-forward switching moves 16 Gbps with 11.904 Mpps forwarding and a 4K MAC table, and smart PD detection means non-PoE devices on the PoE ports are never harmed.

What about housing, power input and operating conditions?

A fanless IP30 metal case of 145.8 × 114.2 × 36 mm, 0.6 kg, for desktop or wall mounting. The built-in DC 52 V 1 A supply takes AC 176–264 V (100–240 V compatible) with reverse-polarity and overload protection. Operation runs −10 °C to +70 °C at 5–95 % humidity; quoted MTBF is 50,000 hours.
